vtkStreamPoints Class Reference

#include <vtkStreamPoints.h>

Inheritance diagram for vtkStreamPoints:

Inheritance graph
[legend]

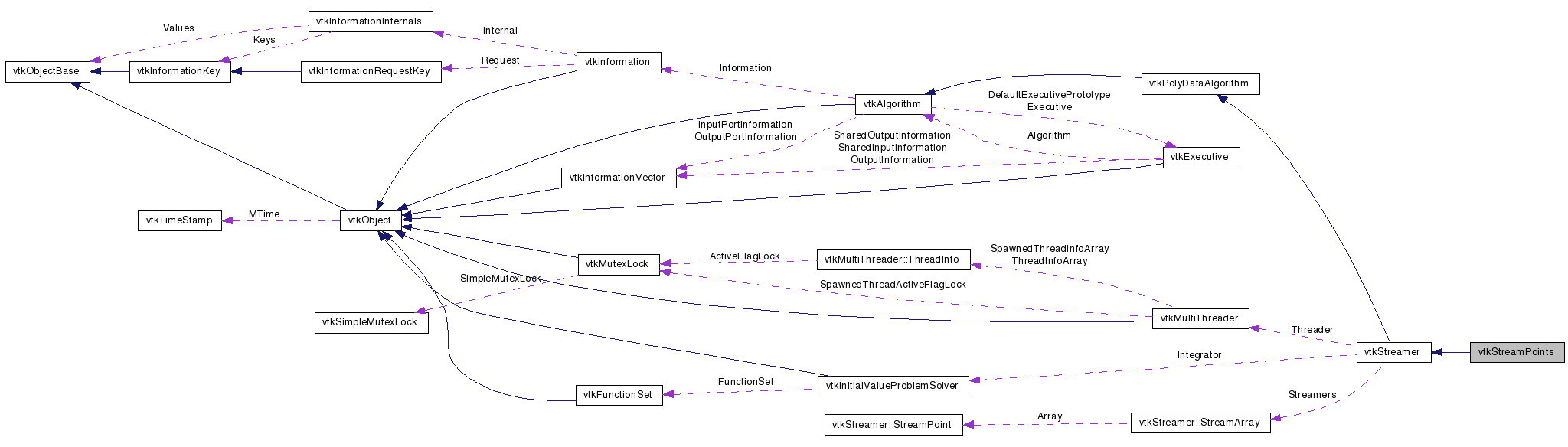

Collaboration diagram for vtkStreamPoints:

Collaboration graph
[legend]

List of all members.


Detailed Description

generate points along streamer separated by constant time increment

vtkStreamPoints is a filter that generates points along a streamer. The points are separated by a constant time increment. The resulting visual effect (especially when coupled with vtkGlyph3D) is an indication of particle speed.

See also:
vtkStreamer vtkStreamLine vtkDashedStreamLine
Tests:
vtkStreamPoints (Tests)

Definition at line 35 of file vtkStreamPoints.h.


Public Types

typedef vtkStreamer Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void SetTimeIncrement (double)
virtual double GetTimeIncrement ()

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkStreamPointsSafeDownCast (vtkObject *o)
static vtkStreamPointsNew ()

Protected Member Functions

 vtkStreamPoints ()
 ~vtkStreamPoints ()
virtual int RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)

Protected Attributes

double TimeIncrement

Member Typedef Documentation

Reimplemented from vtkStreamer.

Definition at line 38 of file vtkStreamPoints.h.


Constructor & Destructor Documentation

vtkStreamPoints::vtkStreamPoints (  )  [protected]

vtkStreamPoints::~vtkStreamPoints (  )  [inline, protected]

Definition at line 52 of file vtkStreamPoints.h.


Member Function Documentation

virtual const char* vtkStreamPoints::GetClassName (  )  [virtual]

Reimplemented from vtkStreamer.

static int vtkStreamPoints::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkStreamer.

virtual int vtkStreamPoints::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkStreamer.

static vtkStreamPoints* vtkStreamPoints::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkStreamer.

void vtkStreamPoints::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkStreamer.

static vtkStreamPoints* vtkStreamPoints::New (  )  [static]

Construct object with time increment set to 1.0.

Reimplemented from vtkPolyDataAlgorithm.

virtual void vtkStreamPoints::SetTimeIncrement ( double   )  [virtual]

Specify the separation of points in terms of absolute time.

virtual double vtkStreamPoints::GetTimeIncrement (  )  [virtual]

Specify the separation of points in terms of absolute time.

virtual int vtkStreamPoints::RequestData ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector
) [protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkPolyDataAlgorithm.


Member Data Documentation

double vtkStreamPoints::TimeIncrement [protected]

Definition at line 58 of file vtkStreamPoints.h.


The documentation for this class was generated from the following file:
