vtkSurfaceRepresentation Class Reference

#include <vtkSurfaceRepresentation.h>

Inheritance diagram for vtkSurfaceRepresentation:

[legend]

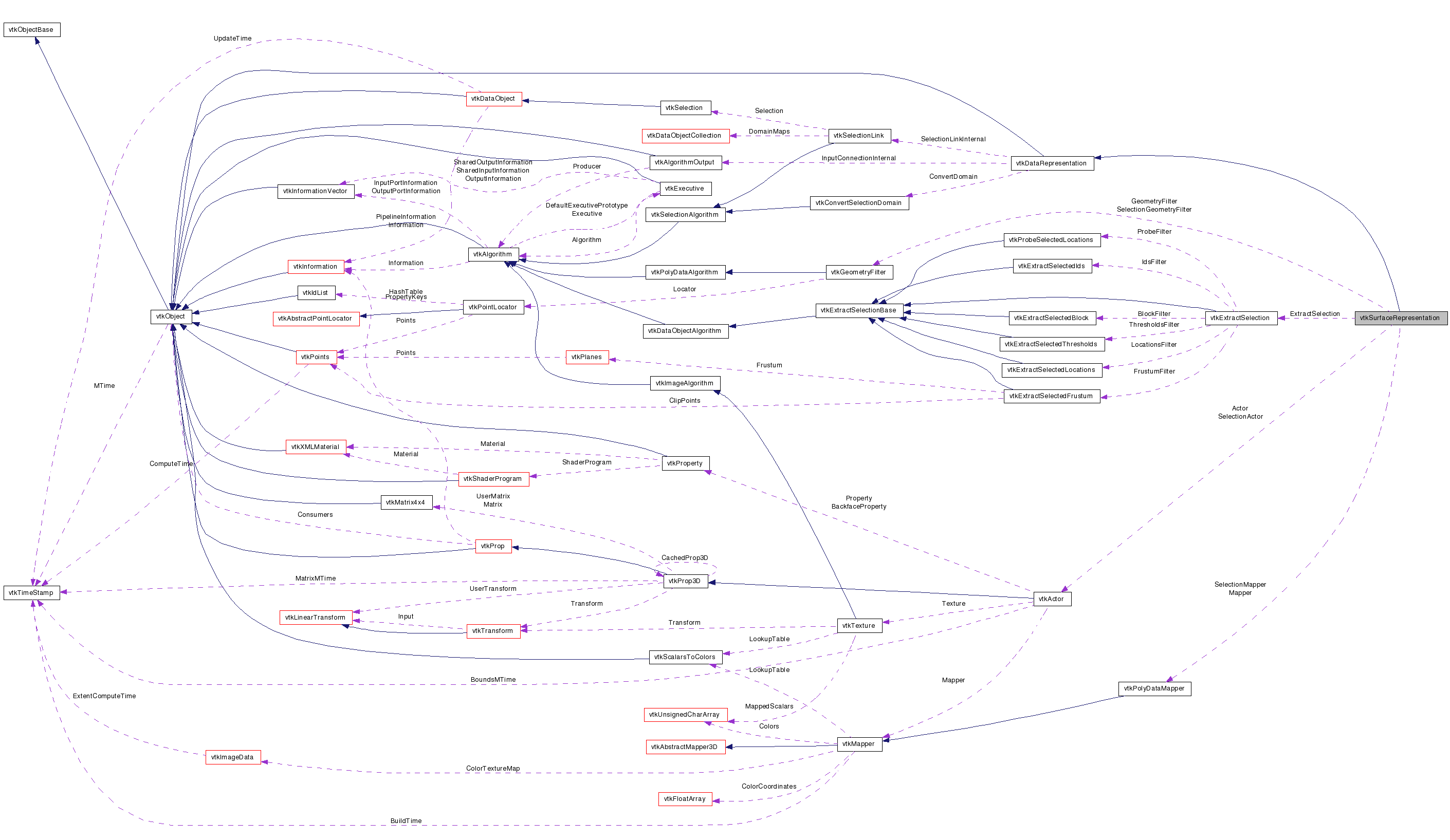

Collaboration diagram for vtkSurfaceRepresentation:

[legend]

List of all members.

Detailed Description

Displays a geometric dataset as a surface.

vtkSurfaceRepresentation is used to show a geometric dataset in a view. The representation uses a vtkGeometryFilter to convert the dataset to polygonal data (e.g. volumetric data is converted to its external surface). The representation may then be added to vtkRenderView.

Tests:: vtkSurfaceRepresentation (Tests)

Definition at line 47 of file vtkSurfaceRepresentation.h.


Public Types
typedef vtkDataRepresentation	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	SetInputConnection (vtkAlgorithmOutput *conn)
Static Public Member Functions
static vtkSurfaceRepresentation *	New ()
static int	IsTypeOf (const char *type)
static vtkSurfaceRepresentation *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkSurfaceRepresentation ()
	~vtkSurfaceRepresentation ()
virtual bool	AddToView (vtkView *view)
virtual bool	RemoveFromView (vtkView *view)
virtual vtkSelection *	ConvertSelection (vtkView view, vtkSelection selection)
Protected Attributes

vtkGeometryFilter *	GeometryFilter
vtkPolyDataMapper *	Mapper
vtkActor *	Actor
vtkExtractSelection *	ExtractSelection
vtkGeometryFilter *	SelectionGeometryFilter
vtkPolyDataMapper *	SelectionMapper
vtkActor *	SelectionActor

Member Typedef Documentation

typedef vtkDataRepresentation vtkSurfaceRepresentation::Superclass

Reimplemented from vtkDataRepresentation.

Definition at line 51 of file vtkSurfaceRepresentation.h.

Constructor & Destructor Documentation

vtkSurfaceRepresentation::vtkSurfaceRepresentation ( ) [protected]

vtkSurfaceRepresentation::~vtkSurfaceRepresentation ( ) [protected]

Member Function Documentation

static vtkSurfaceRepresentation* vtkSurfaceRepresentation::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkDataRepresentation.

virtual const char* vtkSurfaceRepresentation::GetClassName ( ) [virtual]

Reimplemented from vtkDataRepresentation.

static int vtkSurfaceRepresentation::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDataRepresentation.

virtual int vtkSurfaceRepresentation::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDataRepresentation.

static vtkSurfaceRepresentation* vtkSurfaceRepresentation::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkDataRepresentation.

void vtkSurfaceRepresentation::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkDataRepresentation.

virtual void vtkSurfaceRepresentation::SetInputConnection ( vtkAlgorithmOutput * conn ) [virtual]

Sets the input pipeline connection to this representation.

Reimplemented from vtkDataRepresentation.

virtual bool vtkSurfaceRepresentation::AddToView ( vtkView * view ) [protected, virtual]

Adds the representation to the view. This is called from vtkView::AddRepresentation().

virtual bool vtkSurfaceRepresentation::RemoveFromView ( vtkView * view ) [protected, virtual]

Removes the representation to the view. This is called from vtkView::RemoveRepresentation().

virtual vtkSelection* vtkSurfaceRepresentation::ConvertSelection	(	vtkView *	view,
		vtkSelection *	selection
	)			`[protected, virtual]`

Convert the selection to a type appropriate for sharing with other representations through vtkSelectionLink. If the selection cannot be applied to this representation, returns NULL.

Reimplemented from vtkDataRepresentation.
