vtkTesting Class Reference

#include <vtkTesting.h>

Inheritance diagram for vtkTesting:

[legend]

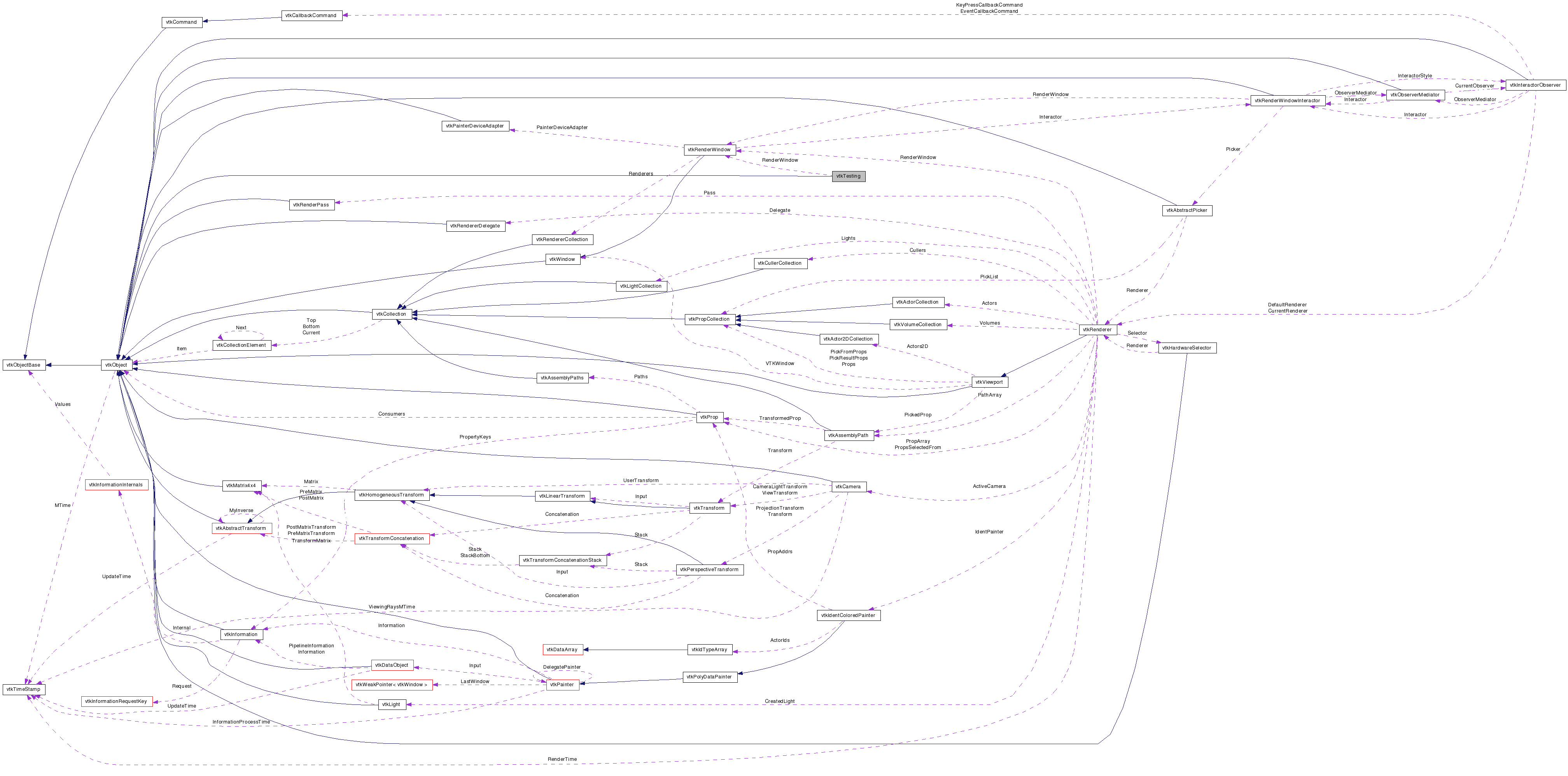

Collaboration diagram for vtkTesting:

[legend]

List of all members.

---

Detailed Description

a unified VTK regression testing framework

This is a VTK regression testing framework. Looks like this:

vtkTesting* t = vtkTesting::New();

Two options for setting arguments

Option 1: for ( cc = 1; cc < argc; cc ++ ) { t->AddArgument(argv[cc]); }

Option 2: t->AddArgument("-D"); t->AddArgument(my_data_dir); t->AddArgument("-V"); t->AddArgument(my_valid_image);

...

Two options of doing testing:

Option 1: t->SetRenderWindow(renWin); int res = t->RegressionTest(threshold);

Option 2: int res = t->RegressionTest(test_image, threshold);

...

if ( res == vtkTesting::PASSED ) { Test passed } else { Test failed }

Tests:

vtkTesting (Tests)

Definition at line 76 of file vtkTesting.h.

Public Types
enum	ReturnValue { FAILED = 0, PASSED = 1, NOT_RUN = 2, DO_INTERACTOR = 3 }
typedef vtkObject	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
void	CleanArguments ()
int	IsValidImageSpecified ()
int	IsInteractiveModeSpecified ()
int	IsFlagSpecified (const char *flag)
virtual void	SetFrontBuffer (int)
virtual void	FrontBufferOn ()
virtual void	FrontBufferOff ()
virtual int	GetFrontBuffer ()
virtual int	RegressionTest (double thresh)
virtual int	RegressionTest (double thresh, ostream &os)
virtual int	RegressionTest (vtkImageData *image, double thresh)
virtual int	RegressionTest (vtkImageData *image, double thresh, ostream &os)
int	CompareAverageOfL2Norm (vtkDataSet *pdA, vtkDataSet *pdB, double tol)
int	CompareAverageOfL2Norm (vtkDataArray *daA, vtkDataArray *daB, double tol)
virtual void	SetRenderWindow (vtkRenderWindow *rw)
virtual vtkRenderWindow *	GetRenderWindow ()
virtual void	SetValidImageFileName (const char *)
const char *	GetValidImageFileName ()
virtual double	GetImageDifference ()
void	AddArgument (const char *argv)
void	AddArguments (int argc, const char **argv)
char *	GetArgument (const char *arg)
const char *	GetDataRoot ()
virtual void	SetDataRoot (const char *)
const char *	GetTempDirectory ()
virtual void	SetTempDirectory (const char *)
virtual void	SetBorderOffset (int)
virtual int	GetBorderOffset ()
virtual void	SetVerbose (int)
virtual int	GetVerbose ()
Static Public Member Functions
static vtkTesting *	New ()
static int	IsTypeOf (const char *type)
static vtkTesting *	SafeDownCast (vtkObject *o)
static int	Test (int argc, char *argv[], vtkRenderWindow *rw, double thresh)
Protected Member Functions
	vtkTesting ()
	~vtkTesting ()
Static Protected Member Functions
static char *	IncrementFileName (const char *fname, int count)
static int	LookForFile (const char *newFileName)
Protected Attributes
int	FrontBuffer
vtkRenderWindow *	RenderWindow
char *	ValidImageFileName
double	ImageDifference
char *	TempDirectory
int	BorderOffset
int	Verbose
vtkstd::vector< vtkstd::string >	Args
char *	DataRoot
double	StartWallTime
double	StartCPUTime

---

Member Typedef Documentation

typedef vtkObject vtkTesting::Superclass

Reimplemented from vtkObject.

Definition at line 80 of file vtkTesting.h.

---

Member Enumeration Documentation

enum vtkTesting::ReturnValue

Enumerator:

FAILED
PASSED
NOT_RUN
DO_INTERACTOR

Definition at line 84 of file vtkTesting.h.

---

Constructor & Destructor Documentation

vtkTesting::vtkTesting

(

)

[protected]

vtkTesting::~vtkTesting

(

)

[protected]

---

Member Function Documentation

static vtkTesting* vtkTesting::New

(

)

[static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkTesting::GetClassName

(

)

[virtual]

Reimplemented from vtkObject.

static int vtkTesting::IsTypeOf

(

const char *

name

)

[static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

virtual int vtkTesting::IsA

(

const char *

name

)

[virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

static vtkTesting* vtkTesting::SafeDownCast

(

vtkObject *

o

)

[static]

Reimplemented from vtkObject.

void vtkTesting::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkObject.

static int vtkTesting::Test	(	int	argc,
		char *	argv[],
		vtkRenderWindow *	rw,
		double	thresh
	)			[static]

virtual void vtkTesting::SetFrontBuffer

(

int

)

[virtual]

Use front buffer for tests. By default use back buffer.

virtual void vtkTesting::FrontBufferOn

(

)

[virtual]

Use front buffer for tests. By default use back buffer.

virtual void vtkTesting::FrontBufferOff

(

)

[virtual]

Use front buffer for tests. By default use back buffer.

virtual int vtkTesting::GetFrontBuffer

(

)

[virtual]

Use front buffer for tests. By default use back buffer.

virtual int vtkTesting::RegressionTest

(

double

thresh

)

[virtual]

Perform the test and return result. At the same time the output will be written cout

virtual int vtkTesting::RegressionTest	(	double	thresh,
		ostream &	os
	)			[virtual]

Perform the test and return result. At the same time the output will be written cout

virtual int vtkTesting::RegressionTest	(	vtkImageData *	image,
		double	thresh
	)			[virtual]

Compare the image with the valid image.

virtual int vtkTesting::RegressionTest	(	vtkImageData *	image,
		double	thresh,
		ostream &	os
	)			[virtual]

Compare the image with the valid image.

int vtkTesting::CompareAverageOfL2Norm	(	vtkDataSet *	pdA,
		vtkDataSet *	pdB,
		double	tol
	)

Compute the average L2 norm between all point data data arrays of types float and double present in the data sets "dsA" and "dsB" (this includes instances of vtkPoints) Compare the result of each L2 comutation to "tol".

int vtkTesting::CompareAverageOfL2Norm	(	vtkDataArray *	daA,
		vtkDataArray *	daB,
		double	tol
	)

Compute the average L2 norm between all point data data arrays of types float and double present in the data sets "dsA" and "dsB" (this includes instances of vtkPoints) Compare the result of each L2 comutation to "tol".

virtual void vtkTesting::SetRenderWindow

(

vtkRenderWindow *

rw

)

[virtual]

Set and get the render window that will be used for regression testing.

virtual vtkRenderWindow* vtkTesting::GetRenderWindow

(

)

[virtual]

Set and get the render window that will be used for regression testing.

virtual void vtkTesting::SetValidImageFileName

(

const char *

)

[virtual]

Set/Get the name of the valid image file

const char* vtkTesting::GetValidImageFileName

(

)

Set/Get the name of the valid image file

virtual double vtkTesting::GetImageDifference

(

)

[virtual]

Get the image difference.

void vtkTesting::AddArgument

(

const char *

argv

)

Pass the command line arguments into this class to be processed. Many of the Get methods such as GetValidImage and GetBaselineRoot rely on the arguments to be passed in prior to retrieving these values. Just call AddArgument for each argument that was passed into the command line

void vtkTesting::AddArguments	(	int	argc,
		const char **	argv
	)

Pass the command line arguments into this class to be processed. Many of the Get methods such as GetValidImage and GetBaselineRoot rely on the arguments to be passed in prior to retrieving these values. Just call AddArgument for each argument that was passed into the command line

char* vtkTesting::GetArgument

(

const char *

arg

)

Search for a specific argument by name and return its value (assumed to be the next on the command tail). Up to caller to delete the returned string.

void vtkTesting::CleanArguments

(

)

This method delete all arguments in vtkTesting, this way you can reuse it in a loop where you would have multiple testing.

const char* vtkTesting::GetDataRoot

(

)

Get some paramters from the command line arguments, env, or defaults

virtual void vtkTesting::SetDataRoot

(

const char *

)

[virtual]

Get some paramters from the command line arguments, env, or defaults

const char* vtkTesting::GetTempDirectory

(

)

Get some paramters from the command line arguments, env, or defaults

virtual void vtkTesting::SetTempDirectory

(

const char *

)

[virtual]

Get some paramters from the command line arguments, env, or defaults

int vtkTesting::IsValidImageSpecified

(

)

Is a valid image specified on the command line areguments?

int vtkTesting::IsInteractiveModeSpecified

(

)

Is the interactive mode specified?

int vtkTesting::IsFlagSpecified

(

const char *

flag

)

Is some arbitrary user flag ("-X", "-Z" etc) specified

virtual void vtkTesting::SetBorderOffset

(

int

)

[virtual]

Number of pixels added as borders to avoid problems with window decorations added by some window managers.

virtual int vtkTesting::GetBorderOffset

(

)

[virtual]

Number of pixels added as borders to avoid problems with window decorations added by some window managers.

virtual void vtkTesting::SetVerbose

(

int

)

[virtual]

Get/Set verbosity level. A level of 0 is quiet.

virtual int vtkTesting::GetVerbose

(

)

[virtual]

Get/Set verbosity level. A level of 0 is quiet.

static char* vtkTesting::IncrementFileName	(	const char *	fname,
		int	count
	)			[static, protected]

static int vtkTesting::LookForFile

(

const char *

newFileName

)

[static, protected]

---

Member Data Documentation

int vtkTesting::FrontBuffer [protected]

Definition at line 208 of file vtkTesting.h.

vtkRenderWindow* vtkTesting::RenderWindow [protected]

Definition at line 209 of file vtkTesting.h.

char* vtkTesting::ValidImageFileName [protected]

Definition at line 210 of file vtkTesting.h.

double vtkTesting::ImageDifference [protected]

Definition at line 211 of file vtkTesting.h.

char* vtkTesting::TempDirectory [protected]

Definition at line 212 of file vtkTesting.h.

int vtkTesting::BorderOffset [protected]

Definition at line 213 of file vtkTesting.h.

int vtkTesting::Verbose [protected]

Definition at line 214 of file vtkTesting.h.

vtkstd::vector<vtkstd::string> vtkTesting::Args [protected]

Definition at line 217 of file vtkTesting.h.

char* vtkTesting::DataRoot [protected]

Definition at line 219 of file vtkTesting.h.

double vtkTesting::StartWallTime [protected]

Definition at line 220 of file vtkTesting.h.

double vtkTesting::StartCPUTime [protected]

Definition at line 221 of file vtkTesting.h.

---

The documentation for this class was generated from the following file:

• dox/Rendering/vtkTesting.h
