vtkTextureMapToCylinder Class Reference

#include <vtkTextureMapToCylinder.h>

Inheritance diagram for vtkTextureMapToCylinder:

Inheritance graph
[legend]

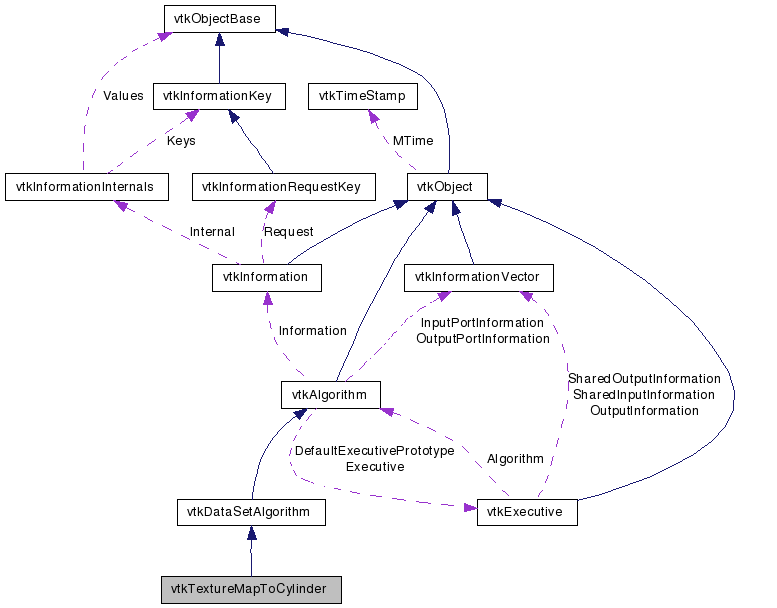

Collaboration diagram for vtkTextureMapToCylinder:

Collaboration graph
[legend]

List of all members.


Detailed Description

generate texture coordinates by mapping points to cylinder

vtkTextureMapToCylinder is a filter that generates 2D texture coordinates by mapping input dataset points onto a cylinder. The cylinder can either be user specified or generated automatically. (The cylinder is generated automatically by computing the axis of the cylinder.) Note that the generated texture coordinates for the s-coordinate ranges from (0-1) (corresponding to angle of 0->360 around axis), while the mapping of the t-coordinate is controlled by the projection of points along the axis.

To specify a cylinder manually, you must provide two points that define the axis of the cylinder. The length of the axis will affect the t-coordinates.

A special ivar controls how the s-coordinate is generated. If PreventSeam is set to true, the s-texture varies from 0->1 and then 1->0 (corresponding to angles of 0->180 and 180->360).

Warning:
Since the resulting texture s-coordinate will lie between (0,1), and the origin of the texture coordinates is not user-controllable, you may want to use the class vtkTransformTexture to linearly scale and shift the origin of the texture coordinates.
See also:
vtkTextureMapToPlane vtkTextureMapToSphere vtkTransformTexture vtkThresholdTextureCoords
Tests:
vtkTextureMapToCylinder (Tests)

Definition at line 53 of file vtkTextureMapToCylinder.h.


Public Types

typedef vtkDataSetAlgorithm Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void SetPoint1 (double, double, double)
virtual void SetPoint1 (double[3])
virtual double * GetPoint1 ()
virtual void GetPoint1 (double data[3])
virtual void SetPoint2 (double, double, double)
virtual void SetPoint2 (double[3])
virtual double * GetPoint2 ()
virtual void GetPoint2 (double data[3])
virtual void SetAutomaticCylinderGeneration (int)
virtual int GetAutomaticCylinderGeneration ()
virtual void AutomaticCylinderGenerationOn ()
virtual void AutomaticCylinderGenerationOff ()
virtual void SetPreventSeam (int)
virtual int GetPreventSeam ()
virtual void PreventSeamOn ()
virtual void PreventSeamOff ()

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkTextureMapToCylinderSafeDownCast (vtkObject *o)
static vtkTextureMapToCylinderNew ()

Protected Member Functions

 vtkTextureMapToCylinder ()
 ~vtkTextureMapToCylinder ()
int RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)

Protected Attributes

double Point1 [3]
double Point2 [3]
int AutomaticCylinderGeneration
int PreventSeam

Member Typedef Documentation

Reimplemented from vtkDataSetAlgorithm.

Definition at line 56 of file vtkTextureMapToCylinder.h.


Constructor & Destructor Documentation

vtkTextureMapToCylinder::vtkTextureMapToCylinder (  )  [protected]

vtkTextureMapToCylinder::~vtkTextureMapToCylinder (  )  [inline, protected]

Definition at line 96 of file vtkTextureMapToCylinder.h.


Member Function Documentation

virtual const char* vtkTextureMapToCylinder::GetClassName (  )  [virtual]

Reimplemented from vtkDataSetAlgorithm.

static int vtkTextureMapToCylinder::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDataSetAlgorithm.

virtual int vtkTextureMapToCylinder::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDataSetAlgorithm.

static vtkTextureMapToCylinder* vtkTextureMapToCylinder::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkDataSetAlgorithm.

void vtkTextureMapToCylinder::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkDataSetAlgorithm.

static vtkTextureMapToCylinder* vtkTextureMapToCylinder::New (  )  [static]

Create object with cylinder axis parallel to z-axis (points (0,0,-0.5) and (0,0,0.5)). The PreventSeam ivar is set to true. The cylinder is automatically generated.

Reimplemented from vtkDataSetAlgorithm.

virtual void vtkTextureMapToCylinder::SetPoint1 ( double  ,
double  ,
double
) [virtual]

Specify the first point defining the cylinder axis,

virtual void vtkTextureMapToCylinder::SetPoint1 ( double  [3]  )  [virtual]

Specify the first point defining the cylinder axis,

virtual double* vtkTextureMapToCylinder::GetPoint1 (  )  [virtual]

Specify the first point defining the cylinder axis,

virtual void vtkTextureMapToCylinder::GetPoint1 ( double  data[3]  )  [virtual]

Specify the first point defining the cylinder axis,

virtual void vtkTextureMapToCylinder::SetPoint2 ( double  ,
double  ,
double
) [virtual]

Specify the second point defining the cylinder axis,

virtual void vtkTextureMapToCylinder::SetPoint2 ( double  [3]  )  [virtual]

Specify the second point defining the cylinder axis,

virtual double* vtkTextureMapToCylinder::GetPoint2 (  )  [virtual]

Specify the second point defining the cylinder axis,

virtual void vtkTextureMapToCylinder::GetPoint2 ( double  data[3]  )  [virtual]

Specify the second point defining the cylinder axis,

virtual void vtkTextureMapToCylinder::SetAutomaticCylinderGeneration ( int   )  [virtual]

Turn on/off automatic cylinder generation. This means it automatically finds the cylinder center and axis.

virtual int vtkTextureMapToCylinder::GetAutomaticCylinderGeneration (  )  [virtual]

Turn on/off automatic cylinder generation. This means it automatically finds the cylinder center and axis.

virtual void vtkTextureMapToCylinder::AutomaticCylinderGenerationOn (  )  [virtual]

Turn on/off automatic cylinder generation. This means it automatically finds the cylinder center and axis.

virtual void vtkTextureMapToCylinder::AutomaticCylinderGenerationOff (  )  [virtual]

Turn on/off automatic cylinder generation. This means it automatically finds the cylinder center and axis.

virtual void vtkTextureMapToCylinder::SetPreventSeam ( int   )  [virtual]

Control how the texture coordinates are generated. If PreventSeam is set, the s-coordinate ranges from 0->1 and 1->0 corresponding to the angle variation from 0->180 and 180->0. Otherwise, the s-coordinate ranges from 0->1 from 0->360 degrees.

virtual int vtkTextureMapToCylinder::GetPreventSeam (  )  [virtual]

Control how the texture coordinates are generated. If PreventSeam is set, the s-coordinate ranges from 0->1 and 1->0 corresponding to the angle variation from 0->180 and 180->0. Otherwise, the s-coordinate ranges from 0->1 from 0->360 degrees.

virtual void vtkTextureMapToCylinder::PreventSeamOn (  )  [virtual]

Control how the texture coordinates are generated. If PreventSeam is set, the s-coordinate ranges from 0->1 and 1->0 corresponding to the angle variation from 0->180 and 180->0. Otherwise, the s-coordinate ranges from 0->1 from 0->360 degrees.

virtual void vtkTextureMapToCylinder::PreventSeamOff (  )  [virtual]

Control how the texture coordinates are generated. If PreventSeam is set, the s-coordinate ranges from 0->1 and 1->0 corresponding to the angle variation from 0->180 and 180->0. Otherwise, the s-coordinate ranges from 0->1 from 0->360 degrees.

int vtkTextureMapToCylinder::RequestData ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [protected, virtual]

This is called within ProcessRequest when a request asks the algorithm to do its work. This is the method you should override to do whatever the algorithm is designed to do. This happens during the fourth pass in the pipeline execution process.

Reimplemented from vtkDataSetAlgorithm.


Member Data Documentation

double vtkTextureMapToCylinder::Point1[3] [protected]

Definition at line 100 of file vtkTextureMapToCylinder.h.

double vtkTextureMapToCylinder::Point2[3] [protected]

Definition at line 101 of file vtkTextureMapToCylinder.h.

Definition at line 102 of file vtkTextureMapToCylinder.h.

Definition at line 103 of file vtkTextureMapToCylinder.h.


The documentation for this class was generated from the following file:

Generated on Wed Jun 3 19:39:37 2009 for VTK by  doxygen 1.5.6
