vtkTextureMapToPlane Class Reference

#include <vtkTextureMapToPlane.h>

Inheritance diagram for vtkTextureMapToPlane:

[legend]

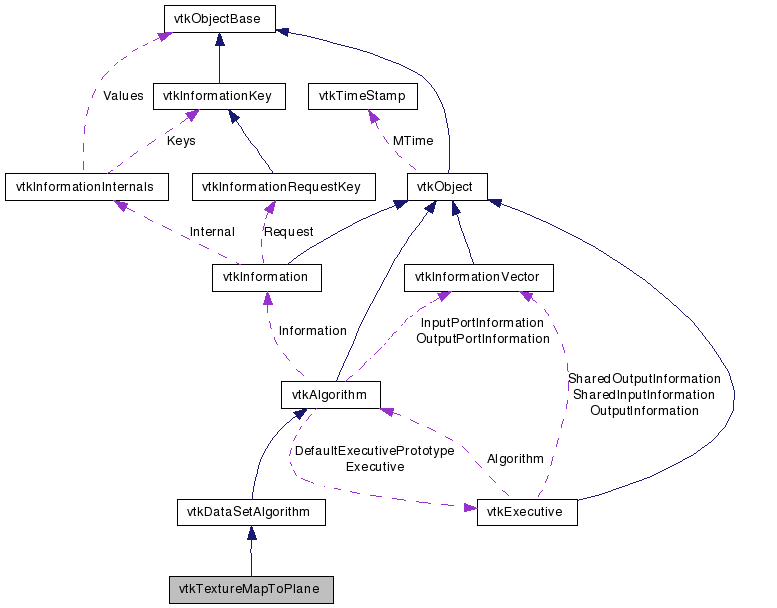

Collaboration diagram for vtkTextureMapToPlane:

[legend]

List of all members.

---

Detailed Description

generate texture coordinates by mapping points to plane

vtkTextureMapToPlane is a filter that generates 2D texture coordinates by mapping input dataset points onto a plane. The plane can either be user specified or generated automatically. (A least squares method is used to generate the plane automatically.)

There are two ways you can specify the plane. The first is to provide a plane normal. In this case the points are projected to a plane, and the points are then mapped into the user specified s-t coordinate range. For more control, you can specify a plane with three points: an origin and two points defining the two axes of the plane. (This is compatible with the vtkPlaneSource.) Using the second method, the SRange and TRange vectors are ignored, since the presumption is that the user does not want to scale the texture coordinates; and you can adjust the origin and axes points to achieve the texture coordinate scaling you need. Note also that using the three point method the axes do not have to be orthogonal.

See also:

vtkPlaneSource vtkTextureMapToCylinder vtkTextureMapToSphere vtkThresholdTextureCoords

Tests:

vtkTextureMapToPlane (Tests)

Definition at line 47 of file vtkTextureMapToPlane.h.

Public Types
typedef vtkDataSetAlgorithm	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	SetOrigin (double, double, double)
virtual void	SetOrigin (double[3])
virtual double *	GetOrigin ()
virtual void	GetOrigin (double data[3])
virtual void	SetPoint1 (double, double, double)
virtual void	SetPoint1 (double[3])
virtual double *	GetPoint1 ()
virtual void	GetPoint1 (double data[3])
virtual void	SetPoint2 (double, double, double)
virtual void	SetPoint2 (double[3])
virtual double *	GetPoint2 ()
virtual void	GetPoint2 (double data[3])
virtual void	SetNormal (double, double, double)
virtual void	SetNormal (double[3])
virtual double *	GetNormal ()
virtual void	GetNormal (double data[3])
virtual void	SetSRange (double, double)
void	SetSRange (double[2])
virtual double *	GetSRange ()
virtual void	GetSRange (double data[2])
virtual void	SetTRange (double, double)
void	SetTRange (double[2])
virtual double *	GetTRange ()
virtual void	GetTRange (double data[2])
virtual void	SetAutomaticPlaneGeneration (int)
virtual int	GetAutomaticPlaneGeneration ()
virtual void	AutomaticPlaneGenerationOn ()
virtual void	AutomaticPlaneGenerationOff ()
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkTextureMapToPlane *	SafeDownCast (vtkObject *o)
static vtkTextureMapToPlane *	New ()
Protected Member Functions
	vtkTextureMapToPlane ()
	~vtkTextureMapToPlane ()
int	RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
void	ComputeNormal (vtkDataSet *output)
Protected Attributes
double	Origin [3]
double	Point1 [3]
double	Point2 [3]
double	Normal [3]
double	SRange [2]
double	TRange [2]
int	AutomaticPlaneGeneration

---

Member Typedef Documentation

typedef vtkDataSetAlgorithm vtkTextureMapToPlane::Superclass

Reimplemented from vtkDataSetAlgorithm.

Definition at line 50 of file vtkTextureMapToPlane.h.

---

Constructor & Destructor Documentation

vtkTextureMapToPlane::vtkTextureMapToPlane

(

)

[protected]

vtkTextureMapToPlane::~vtkTextureMapToPlane

(

)

[inline, protected]

Definition at line 105 of file vtkTextureMapToPlane.h.

---

Member Function Documentation

virtual const char* vtkTextureMapToPlane::GetClassName

(

)

[virtual]

Reimplemented from vtkDataSetAlgorithm.

static int vtkTextureMapToPlane::IsTypeOf

(

const char *

name

)

[static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDataSetAlgorithm.

virtual int vtkTextureMapToPlane::IsA

(

const char *

name

)

[virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDataSetAlgorithm.

static vtkTextureMapToPlane* vtkTextureMapToPlane::SafeDownCast

(

vtkObject *

o

)

[static]

Reimplemented from vtkDataSetAlgorithm.

void vtkTextureMapToPlane::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkDataSetAlgorithm.

static vtkTextureMapToPlane* vtkTextureMapToPlane::New

(

)

[static]

Construct with s,t range=(0,1) and automatic plane generation turned on.

Reimplemented from vtkDataSetAlgorithm.

virtual void vtkTextureMapToPlane::SetOrigin	(	double	,
		double	,
		double
	)			[virtual]

Specify a point defining the origin of the plane. Used in conjunction with the Point1 and Point2 ivars to specify a map plane.

virtual void vtkTextureMapToPlane::SetOrigin

(

double

[3]

)

[virtual]

Specify a point defining the origin of the plane. Used in conjunction with the Point1 and Point2 ivars to specify a map plane.

virtual double* vtkTextureMapToPlane::GetOrigin

(

)

[virtual]

Specify a point defining the origin of the plane. Used in conjunction with the Point1 and Point2 ivars to specify a map plane.

virtual void vtkTextureMapToPlane::GetOrigin

(

double

data[3]

)

[virtual]

Specify a point defining the origin of the plane. Used in conjunction with the Point1 and Point2 ivars to specify a map plane.

virtual void vtkTextureMapToPlane::SetPoint1	(	double	,
		double	,
		double
	)			[virtual]

Specify a point defining the first axis of the plane.

virtual void vtkTextureMapToPlane::SetPoint1

(

double

[3]

)

[virtual]

Specify a point defining the first axis of the plane.

virtual double* vtkTextureMapToPlane::GetPoint1

(

)

[virtual]

Specify a point defining the first axis of the plane.

virtual void vtkTextureMapToPlane::GetPoint1

(

double

data[3]

)

[virtual]

Specify a point defining the first axis of the plane.

virtual void vtkTextureMapToPlane::SetPoint2	(	double	,
		double	,
		double
	)			[virtual]

Specify a point defining the second axis of the plane.

virtual void vtkTextureMapToPlane::SetPoint2

(

double

[3]

)

[virtual]

Specify a point defining the second axis of the plane.

virtual double* vtkTextureMapToPlane::GetPoint2

(

)

[virtual]

Specify a point defining the second axis of the plane.

virtual void vtkTextureMapToPlane::GetPoint2

(

double

data[3]

)

[virtual]

Specify a point defining the second axis of the plane.

virtual void vtkTextureMapToPlane::SetNormal	(	double	,
		double	,
		double
	)			[virtual]

Specify plane normal. An alternative way to specify a map plane. Using this method, the object will scale the resulting texture coordinate between the SRange and TRange specified.

virtual void vtkTextureMapToPlane::SetNormal

(

double

[3]

)

[virtual]

Specify plane normal. An alternative way to specify a map plane. Using this method, the object will scale the resulting texture coordinate between the SRange and TRange specified.

virtual double* vtkTextureMapToPlane::GetNormal

(

)

[virtual]

Specify plane normal. An alternative way to specify a map plane. Using this method, the object will scale the resulting texture coordinate between the SRange and TRange specified.

virtual void vtkTextureMapToPlane::GetNormal

(

double

data[3]

)

[virtual]

Specify plane normal. An alternative way to specify a map plane. Using this method, the object will scale the resulting texture coordinate between the SRange and TRange specified.

virtual void vtkTextureMapToPlane::SetSRange	(	double	,
		double
	)			[virtual]

Specify s-coordinate range for texture s-t coordinate pair.

void vtkTextureMapToPlane::SetSRange

(

double

[2]

)

Specify s-coordinate range for texture s-t coordinate pair.

virtual double* vtkTextureMapToPlane::GetSRange

(

)

[virtual]

Specify s-coordinate range for texture s-t coordinate pair.

virtual void vtkTextureMapToPlane::GetSRange

(

double

data[2]

)

[virtual]

Specify s-coordinate range for texture s-t coordinate pair.

virtual void vtkTextureMapToPlane::SetTRange	(	double	,
		double
	)			[virtual]

Specify t-coordinate range for texture s-t coordinate pair.

void vtkTextureMapToPlane::SetTRange

(

double

[2]

)

Specify t-coordinate range for texture s-t coordinate pair.

virtual double* vtkTextureMapToPlane::GetTRange

(

)

[virtual]

Specify t-coordinate range for texture s-t coordinate pair.

virtual void vtkTextureMapToPlane::GetTRange

(

double

data[2]

)

[virtual]

Specify t-coordinate range for texture s-t coordinate pair.

virtual void vtkTextureMapToPlane::SetAutomaticPlaneGeneration

(

int

)

[virtual]

Turn on/off automatic plane generation.

virtual int vtkTextureMapToPlane::GetAutomaticPlaneGeneration

(

)

[virtual]

Turn on/off automatic plane generation.

virtual void vtkTextureMapToPlane::AutomaticPlaneGenerationOn

(

)

[virtual]

Turn on/off automatic plane generation.

virtual void vtkTextureMapToPlane::AutomaticPlaneGenerationOff

(

)

[virtual]

Turn on/off automatic plane generation.

int vtkTextureMapToPlane::RequestData	(	vtkInformation *	,
		vtkInformationVector **	,
		vtkInformationVector *
	)			[protected, virtual]

This is called within ProcessRequest when a request asks the algorithm to do its work. This is the method you should override to do whatever the algorithm is designed to do. This happens during the fourth pass in the pipeline execution process.

Reimplemented from vtkDataSetAlgorithm.

void vtkTextureMapToPlane::ComputeNormal

(

vtkDataSet *

output

)

[protected]

---

Member Data Documentation

double vtkTextureMapToPlane::Origin[3] [protected]

Definition at line 110 of file vtkTextureMapToPlane.h.

double vtkTextureMapToPlane::Point1[3] [protected]

Definition at line 111 of file vtkTextureMapToPlane.h.

double vtkTextureMapToPlane::Point2[3] [protected]

Definition at line 112 of file vtkTextureMapToPlane.h.

double vtkTextureMapToPlane::Normal[3] [protected]

Definition at line 113 of file vtkTextureMapToPlane.h.

double vtkTextureMapToPlane::SRange[2] [protected]

Definition at line 114 of file vtkTextureMapToPlane.h.

double vtkTextureMapToPlane::TRange[2] [protected]

Definition at line 115 of file vtkTextureMapToPlane.h.

int vtkTextureMapToPlane::AutomaticPlaneGeneration [protected]

Definition at line 116 of file vtkTextureMapToPlane.h.

---

The documentation for this class was generated from the following file:

• dox/Graphics/vtkTextureMapToPlane.h
