vtkThreshold Class Reference

#include <vtkThreshold.h>

Inheritance diagram for vtkThreshold:

Inheritance graph
[legend]

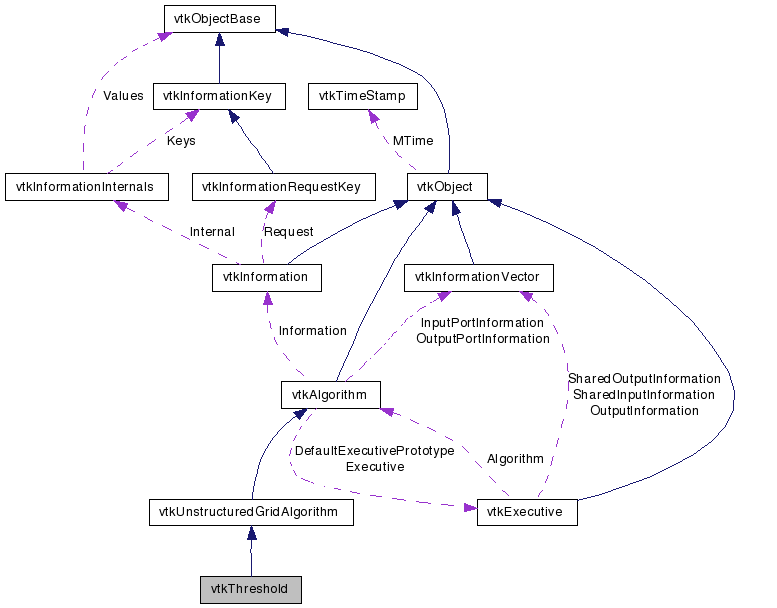

Collaboration diagram for vtkThreshold:

Collaboration graph
[legend]

List of all members.


Detailed Description

extracts cells where scalar value in cell satisfies threshold criterion

vtkThreshold is a filter that extracts cells from any dataset type that satisfy a threshold criterion. A cell satisfies the criterion if the scalar value of (every or any) point satisfies the criterion. The criterion can take three forms: 1) greater than a particular value; 2) less than a particular value; or 3) between two values. The output of this filter is an unstructured grid.

Note that scalar values are available from the point and cell attribute data. By default, point data is used to obtain scalars, but you can control this behavior. See the AttributeMode ivar below.

By default only the first scalar value is used in the decision. Use the ComponentMode and SelectedComponent ivars to control this behavior.

See also:
vtkThresholdPoints vtkThresholdTextureCoords
Tests:
vtkThreshold (Tests)

Definition at line 55 of file vtkThreshold.h.


Public Types

typedef
vtkUnstructuredGridAlgorithm
Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
void ThresholdByLower (double lower)
void ThresholdByUpper (double upper)
void ThresholdBetween (double lower, double upper)
virtual double GetUpperThreshold ()
virtual double GetLowerThreshold ()
virtual void SetAttributeMode (int)
virtual int GetAttributeMode ()
void SetAttributeModeToDefault ()
void SetAttributeModeToUsePointData ()
void SetAttributeModeToUseCellData ()
const char * GetAttributeModeAsString ()
virtual void SetComponentMode (int)
virtual int GetComponentMode ()
void SetComponentModeToUseSelected ()
void SetComponentModeToUseAll ()
void SetComponentModeToUseAny ()
const char * GetComponentModeAsString ()
virtual void SetSelectedComponent (int)
virtual int GetSelectedComponent ()
virtual void SetAllScalars (int)
virtual int GetAllScalars ()
virtual void AllScalarsOn ()
virtual void AllScalarsOff ()
void SetPointsDataTypeToDouble ()
void SetPointsDataTypeToFloat ()
virtual void SetPointsDataType (int)
virtual int GetPointsDataType ()

Static Public Member Functions

static vtkThresholdNew ()
static int IsTypeOf (const char *type)
static vtkThresholdSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkThreshold ()
 ~vtkThreshold ()
virtual int RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int FillInputPortInformation (int port, vtkInformation *info)
int Lower (double s)
int Upper (double s)
int Between (double s)
int EvaluateComponents (vtkDataArray *scalars, vtkIdType id)

Protected Attributes

int AllScalars
double LowerThreshold
double UpperThreshold
int AttributeMode
int ComponentMode
int SelectedComponent
int PointsDataType
int(vtkThreshold::* ThresholdFunction )(double s)

Member Typedef Documentation

Reimplemented from vtkUnstructuredGridAlgorithm.

Definition at line 59 of file vtkThreshold.h.


Constructor & Destructor Documentation

vtkThreshold::vtkThreshold (  )  [protected]

vtkThreshold::~vtkThreshold (  )  [protected]


Member Function Documentation

static vtkThreshold* vtkThreshold::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkUnstructuredGridAlgorithm.

virtual const char* vtkThreshold::GetClassName (  )  [virtual]

Reimplemented from vtkUnstructuredGridAlgorithm.

static int vtkThreshold::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkUnstructuredGridAlgorithm.

virtual int vtkThreshold::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkUnstructuredGridAlgorithm.

static vtkThreshold* vtkThreshold::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkUnstructuredGridAlgorithm.

void vtkThreshold::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkUnstructuredGridAlgorithm.

void vtkThreshold::ThresholdByLower ( double  lower  )

Criterion is cells whose scalars are less or equal to lower threshold.

void vtkThreshold::ThresholdByUpper ( double  upper  )

Criterion is cells whose scalars are greater or equal to upper threshold.

void vtkThreshold::ThresholdBetween ( double  lower,
double  upper
)

Criterion is cells whose scalars are between lower and upper thresholds (inclusive of the end values).

virtual double vtkThreshold::GetUpperThreshold (  )  [virtual]

Get the Upper and Lower thresholds.

virtual double vtkThreshold::GetLowerThreshold (  )  [virtual]

Get the Upper and Lower thresholds.

virtual void vtkThreshold::SetAttributeMode ( int   )  [virtual]

Control how the filter works with scalar point data and cell attribute data. By default (AttributeModeToDefault), the filter will use point data, and if no point data is available, then cell data is used. Alternatively you can explicitly set the filter to use point data (AttributeModeToUsePointData) or cell data (AttributeModeToUseCellData).

virtual int vtkThreshold::GetAttributeMode (  )  [virtual]

Control how the filter works with scalar point data and cell attribute data. By default (AttributeModeToDefault), the filter will use point data, and if no point data is available, then cell data is used. Alternatively you can explicitly set the filter to use point data (AttributeModeToUsePointData) or cell data (AttributeModeToUseCellData).

void vtkThreshold::SetAttributeModeToDefault (  )  [inline]

Control how the filter works with scalar point data and cell attribute data. By default (AttributeModeToDefault), the filter will use point data, and if no point data is available, then cell data is used. Alternatively you can explicitly set the filter to use point data (AttributeModeToUsePointData) or cell data (AttributeModeToUseCellData).

Definition at line 89 of file vtkThreshold.h.

void vtkThreshold::SetAttributeModeToUsePointData (  )  [inline]

Control how the filter works with scalar point data and cell attribute data. By default (AttributeModeToDefault), the filter will use point data, and if no point data is available, then cell data is used. Alternatively you can explicitly set the filter to use point data (AttributeModeToUsePointData) or cell data (AttributeModeToUseCellData).

Definition at line 91 of file vtkThreshold.h.

void vtkThreshold::SetAttributeModeToUseCellData (  )  [inline]

Control how the filter works with scalar point data and cell attribute data. By default (AttributeModeToDefault), the filter will use point data, and if no point data is available, then cell data is used. Alternatively you can explicitly set the filter to use point data (AttributeModeToUsePointData) or cell data (AttributeModeToUseCellData).

Definition at line 93 of file vtkThreshold.h.

const char* vtkThreshold::GetAttributeModeAsString (  )

Control how the filter works with scalar point data and cell attribute data. By default (AttributeModeToDefault), the filter will use point data, and if no point data is available, then cell data is used. Alternatively you can explicitly set the filter to use point data (AttributeModeToUsePointData) or cell data (AttributeModeToUseCellData).

virtual void vtkThreshold::SetComponentMode ( int   )  [virtual]

Control how the decision of in / out is made with multi-component data. The choices are to use the selected component (specified in the SelectedComponent ivar), or to look at all components. When looking at all components, the evaluation can pass if all the components satisfy the rule (UseAll) or if any satisfy is (UseAny). The default value is UseSelected.

virtual int vtkThreshold::GetComponentMode (  )  [virtual]

Control how the decision of in / out is made with multi-component data. The choices are to use the selected component (specified in the SelectedComponent ivar), or to look at all components. When looking at all components, the evaluation can pass if all the components satisfy the rule (UseAll) or if any satisfy is (UseAny). The default value is UseSelected.

void vtkThreshold::SetComponentModeToUseSelected (  )  [inline]

Control how the decision of in / out is made with multi-component data. The choices are to use the selected component (specified in the SelectedComponent ivar), or to look at all components. When looking at all components, the evaluation can pass if all the components satisfy the rule (UseAll) or if any satisfy is (UseAny). The default value is UseSelected.

Definition at line 109 of file vtkThreshold.h.

void vtkThreshold::SetComponentModeToUseAll (  )  [inline]

Control how the decision of in / out is made with multi-component data. The choices are to use the selected component (specified in the SelectedComponent ivar), or to look at all components. When looking at all components, the evaluation can pass if all the components satisfy the rule (UseAll) or if any satisfy is (UseAny). The default value is UseSelected.

Definition at line 111 of file vtkThreshold.h.

void vtkThreshold::SetComponentModeToUseAny (  )  [inline]

Control how the decision of in / out is made with multi-component data. The choices are to use the selected component (specified in the SelectedComponent ivar), or to look at all components. When looking at all components, the evaluation can pass if all the components satisfy the rule (UseAll) or if any satisfy is (UseAny). The default value is UseSelected.

Definition at line 113 of file vtkThreshold.h.

const char* vtkThreshold::GetComponentModeAsString (  )

Control how the decision of in / out is made with multi-component data. The choices are to use the selected component (specified in the SelectedComponent ivar), or to look at all components. When looking at all components, the evaluation can pass if all the components satisfy the rule (UseAll) or if any satisfy is (UseAny). The default value is UseSelected.

virtual void vtkThreshold::SetSelectedComponent ( int   )  [virtual]

When the component mode is UseSelected, this ivar indicated the selected component. The default value is 0.

virtual int vtkThreshold::GetSelectedComponent (  )  [virtual]

When the component mode is UseSelected, this ivar indicated the selected component. The default value is 0.

virtual void vtkThreshold::SetAllScalars ( int   )  [virtual]

If using scalars from point data, all scalars for all points in a cell must satisfy the threshold criterion if AllScalars is set. Otherwise, just a single scalar value satisfying the threshold criterion enables will extract the cell.

virtual int vtkThreshold::GetAllScalars (  )  [virtual]

If using scalars from point data, all scalars for all points in a cell must satisfy the threshold criterion if AllScalars is set. Otherwise, just a single scalar value satisfying the threshold criterion enables will extract the cell.

virtual void vtkThreshold::AllScalarsOn (  )  [virtual]

If using scalars from point data, all scalars for all points in a cell must satisfy the threshold criterion if AllScalars is set. Otherwise, just a single scalar value satisfying the threshold criterion enables will extract the cell.

virtual void vtkThreshold::AllScalarsOff (  )  [virtual]

If using scalars from point data, all scalars for all points in a cell must satisfy the threshold criterion if AllScalars is set. Otherwise, just a single scalar value satisfying the threshold criterion enables will extract the cell.

void vtkThreshold::SetPointsDataTypeToDouble (  )  [inline]

Set the data type of the output points (See the data types defined in vtkType.h). The default data type is float.

Definition at line 138 of file vtkThreshold.h.

void vtkThreshold::SetPointsDataTypeToFloat (  )  [inline]

Set the data type of the output points (See the data types defined in vtkType.h). The default data type is float.

Definition at line 139 of file vtkThreshold.h.

virtual void vtkThreshold::SetPointsDataType ( int   )  [virtual]

Set the data type of the output points (See the data types defined in vtkType.h). The default data type is float.

virtual int vtkThreshold::GetPointsDataType (  )  [virtual]

Set the data type of the output points (See the data types defined in vtkType.h). The default data type is float.

virtual int vtkThreshold::RequestData ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector
) [protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkUnstructuredGridAlgorithm.

virtual int vtkThreshold::FillInputPortInformation ( int  port,
vtkInformation info
) [protected, virtual]

Fill the input port information objects for this algorithm. This is invoked by the first call to GetInputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkUnstructuredGridAlgorithm.

int vtkThreshold::Lower ( double  s  )  [inline, protected]

Definition at line 165 of file vtkThreshold.h.

int vtkThreshold::Upper ( double  s  )  [inline, protected]

Definition at line 166 of file vtkThreshold.h.

int vtkThreshold::Between ( double  s  )  [inline, protected]

Definition at line 167 of file vtkThreshold.h.

int vtkThreshold::EvaluateComponents ( vtkDataArray scalars,
vtkIdType  id
) [protected]


Member Data Documentation

int vtkThreshold::AllScalars [protected]

Definition at line 153 of file vtkThreshold.h.

double vtkThreshold::LowerThreshold [protected]

Definition at line 154 of file vtkThreshold.h.

double vtkThreshold::UpperThreshold [protected]

Definition at line 155 of file vtkThreshold.h.

int vtkThreshold::AttributeMode [protected]

Definition at line 156 of file vtkThreshold.h.

int vtkThreshold::ComponentMode [protected]

Definition at line 157 of file vtkThreshold.h.

Definition at line 158 of file vtkThreshold.h.

Definition at line 159 of file vtkThreshold.h.

int(vtkThreshold::* vtkThreshold::ThresholdFunction)(double s) [protected]


The documentation for this class was generated from the following file:
