vtkTreeLayoutView Class Reference

#include <vtkTreeLayoutView.h>

Inheritance diagram for vtkTreeLayoutView:

[legend]

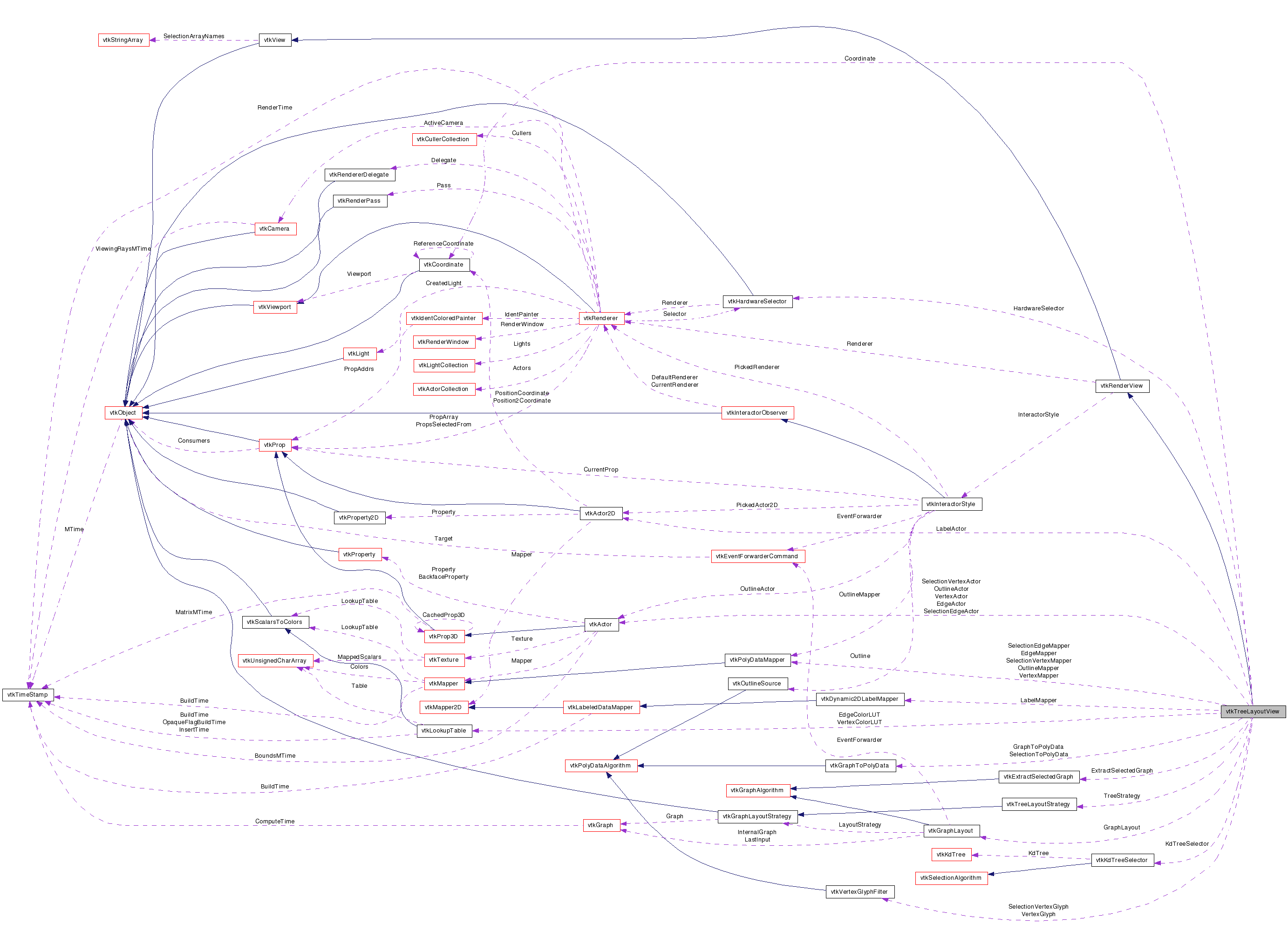

Collaboration diagram for vtkTreeLayoutView:

[legend]

List of all members.

Detailed Description

Lays out and displays a tree.

vtkTreeLayoutView displays a tree in radial or standard "top-down" format. You may specify the vertex labels and colors.

Tests:: vtkTreeLayoutView (Tests)

Definition at line 52 of file vtkTreeLayoutView.h.


Public Types
typedef vtkRenderView	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	SetupRenderWindow (vtkRenderWindow *win)
virtual void	ApplyViewTheme (vtkViewTheme *theme)

void	SetLabelArrayName (const char *name)
const char *	GetLabelArrayName ()

void	SetLabelVisibility (bool vis)
bool	GetLabelVisibility ()
void	LabelVisibilityOn ()
void	LabelVisibilityOff ()

void	SetVertexColorArrayName (const char *name)
const char *	GetVertexColorArrayName ()

void	SetColorVertices (bool vis)
bool	GetColorVertices ()
void	ColorVerticesOn ()
void	ColorVerticesOff ()

void	SetEdgeColorArrayName (const char *name)
const char *	GetEdgeColorArrayName ()

void	SetColorEdges (bool vis)
bool	GetColorEdges ()
void	ColorEdgesOn ()
void	ColorEdgesOff ()

void	SetAngle (double angle)
double	GetAngle ()

void	SetRadial (bool radial)
bool	GetRadial ()
void	RadialOn ()
void	RadialOff ()

void	SetLogSpacingValue (double value)
double	GetLogSpacingValue ()

void	SetLeafSpacing (double value)
double	GetLeafSpacing ()

const char *	GetDistanceArrayName ()
void	SetDistanceArrayName (const char *name)
Static Public Member Functions
static vtkTreeLayoutView *	New ()
static int	IsTypeOf (const char *type)
static vtkTreeLayoutView *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkTreeLayoutView ()
	~vtkTreeLayoutView ()
virtual void	PrepareForRendering ()
void	MapToXYPlane (double displayX, double displayY, double &x, double &y)

virtual void	ProcessEvents (vtkObject caller, unsigned long eventId, void callData)

virtual void	AddInputConnection (int port, int item, vtkAlgorithmOutput conn, vtkAlgorithmOutput selectionConn)

virtual void	RemoveInputConnection (int port, int item, vtkAlgorithmOutput conn, vtkAlgorithmOutput selectionConn)

virtual char *	GetVertexColorArrayNameInternal ()
virtual void	SetVertexColorArrayNameInternal (const char *)
virtual char *	GetEdgeColorArrayNameInternal ()
virtual void	SetEdgeColorArrayNameInternal (const char *)
Protected Attributes
char *	VertexColorArrayNameInternal
char *	EdgeColorArrayNameInternal
vtkCoordinate *	Coordinate
vtkGraphLayout *	GraphLayout
vtkTreeLayoutStrategy *	TreeStrategy
vtkGraphToPolyData *	GraphToPolyData
vtkVertexGlyphFilter *	VertexGlyph
vtkPolyDataMapper *	VertexMapper
vtkLookupTable *	VertexColorLUT
vtkActor *	VertexActor
vtkPolyDataMapper *	OutlineMapper
vtkActor *	OutlineActor
vtkPolyDataMapper *	EdgeMapper
vtkLookupTable *	EdgeColorLUT
vtkActor *	EdgeActor
vtkDynamic2DLabelMapper *	LabelMapper
vtkActor2D *	LabelActor
vtkKdTreeSelector *	KdTreeSelector
vtkHardwareSelector *	HardwareSelector
vtkExtractSelectedGraph *	ExtractSelectedGraph
vtkGraphToPolyData *	SelectionToPolyData
vtkVertexGlyphFilter *	SelectionVertexGlyph
vtkPolyDataMapper *	SelectionVertexMapper
vtkActor *	SelectionVertexActor
vtkPolyDataMapper *	SelectionEdgeMapper
vtkActor *	SelectionEdgeActor

Member Typedef Documentation

typedef vtkRenderView vtkTreeLayoutView::Superclass

Reimplemented from vtkRenderView.

Definition at line 56 of file vtkTreeLayoutView.h.

Constructor & Destructor Documentation

vtkTreeLayoutView::vtkTreeLayoutView ( ) [protected]

vtkTreeLayoutView::~vtkTreeLayoutView ( ) [protected]

Member Function Documentation

static vtkTreeLayoutView* vtkTreeLayoutView::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkRenderView.

virtual const char* vtkTreeLayoutView::GetClassName ( ) [virtual]

Reimplemented from vtkRenderView.

static int vtkTreeLayoutView::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkRenderView.

virtual int vtkTreeLayoutView::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkRenderView.

static vtkTreeLayoutView* vtkTreeLayoutView::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkRenderView.

void vtkTreeLayoutView::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkRenderView.

void vtkTreeLayoutView::SetLabelArrayName ( const char * name )

The array to use for labeling. Default is "label".

const char* vtkTreeLayoutView::GetLabelArrayName ( )

The array to use for labeling. Default is "label".

void vtkTreeLayoutView::SetLabelVisibility ( bool vis )
