vtkTreeMapLayout Class Reference

#include <vtkTreeMapLayout.h>

Inheritance diagram for vtkTreeMapLayout:

[legend]

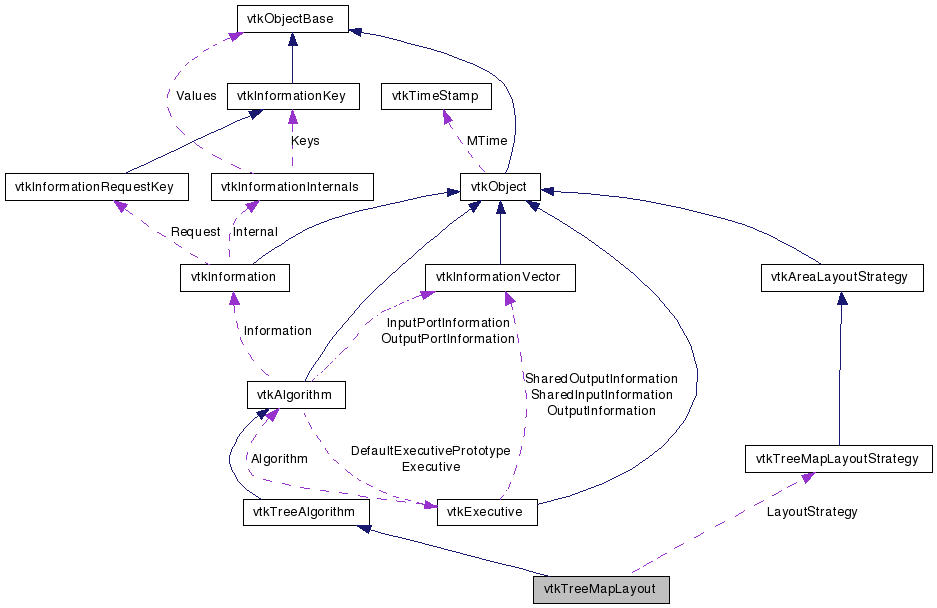

Collaboration diagram for vtkTreeMapLayout:

[legend]

List of all members.

Detailed Description

layout a vtkTree into a tree map

vtkTreeMapLayout assigns rectangular regions to each vertex in the tree, creating a tree map. The data is added as a data array with four components per tuple representing the location and size of the rectangle using the format (Xmin, Xmax, Ymin, Ymax).

This algorithm relies on a helper class to perform the actual layout. This helper class is a subclass of vtkTreeMapLayoutStrategy.

Thanks:: Thanks to Brian Wylie and Ken Moreland from Sandia National Laboratories for help developing this class.

Thanks:: Tree map concept comes from: Shneiderman, B. 1992. Tree visualization with tree-maps: 2-d space-filling approach. ACM Trans. Graph. 11, 1 (Jan. 1992), 92-99.

Tests:: vtkTreeMapLayout (Tests)

Definition at line 52 of file vtkTreeMapLayout.h.


Public Types
typedef vtkTreeAlgorithm	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
vtkIdType	FindVertex (float pnt[2], float *binfo=0)
void	GetBoundingBox (vtkIdType id, float *binfo)
virtual unsigned long	GetMTime ()

virtual char *	GetRectanglesFieldName ()
virtual void	SetRectanglesFieldName (const char *)

virtual void	SetSizeArrayName (const char *name)

virtual vtkTreeMapLayoutStrategy *	GetLayoutStrategy ()
void	SetLayoutStrategy (vtkTreeMapLayoutStrategy *strategy)
Static Public Member Functions
static vtkTreeMapLayout *	New ()
static int	IsTypeOf (const char *type)
static vtkTreeMapLayout *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkTreeMapLayout ()
	~vtkTreeMapLayout ()
int	RequestData (vtkInformation , vtkInformationVector , vtkInformationVector )
Protected Attributes
char *	RectanglesFieldName
vtkTreeMapLayoutStrategy *	LayoutStrategy

Member Typedef Documentation

typedef vtkTreeAlgorithm vtkTreeMapLayout::Superclass

Reimplemented from vtkTreeAlgorithm.

Definition at line 57 of file vtkTreeMapLayout.h.

Constructor & Destructor Documentation

vtkTreeMapLayout::vtkTreeMapLayout ( ) [protected]

vtkTreeMapLayout::~vtkTreeMapLayout ( ) [protected]

Member Function Documentation

static vtkTreeMapLayout* vtkTreeMapLayout::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkTreeAlgorithm.

virtual const char* vtkTreeMapLayout::GetClassName ( ) [virtual]

Reimplemented from vtkTreeAlgorithm.

static int vtkTreeMapLayout::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkTreeAlgorithm.

virtual int vtkTreeMapLayout::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkTreeAlgorithm.

static vtkTreeMapLayout* vtkTreeMapLayout::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkTreeAlgorithm.

void vtkTreeMapLayout::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkTreeAlgorithm.

virtual char* vtkTreeMapLayout::GetRectanglesFieldName ( ) [virtual]

The field name to use for storing the rectangles for each vertex. The rectangles are stored in a quadruple float array (minX, maxX, minY, maxY).

virtual void vtkTreeMapLayout::SetRectanglesFieldName ( const char * ) [virtual]

The field name to use for storing the rectangles for each vertex. The rectangles are stored in a quadruple float array (minX, maxX, minY, maxY).

virtual void vtkTreeMapLayout::SetSizeArrayName ( const char * name ) [inline, virtual]

The array to use for the size of each vertex.

Definition at line 70 of file vtkTreeMapLayout.h.

virtual vtkTreeMapLayoutStrategy* vtkTreeMapLayout::GetLayoutStrategy ( ) [virtual]

The strategy to use when laying out the tree map.

void vtkTreeMapLayout::SetLayoutStrategy ( vtkTreeMapLayoutStrategy * strategy )

The strategy to use when laying out the tree map.

vtkIdType vtkTreeMapLayout::FindVertex	(	float	pnt[2],
		float *	binfo = `0`
	)

Returns the vertex id that contains pnt (or -1 if no one contains it)

void vtkTreeMapLayout::GetBoundingBox	(	vtkIdType	id,
		float *	binfo
	)

Return the min and max 2D points of the vertex's bounding box

virtual unsigned long vtkTreeMapLayout::GetMTime ( ) [virtual]

Get the modification time of the layout algorithm.

Reimplemented from vtkObject.

int vtkTreeMapLayout::RequestData	(	vtkInformation *	request,
		vtkInformationVector **	inputVector,
		vtkInformationVector *	outputVector
	)			`[protected, virtual]`
