vtkUnstructuredGridVolumeRayCastMapper Class Reference

#include <vtkUnstructuredGridVolumeRayCastMapper.h>

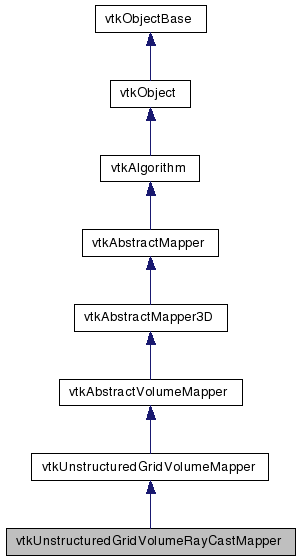

Inheritance diagram for vtkUnstructuredGridVolumeRayCastMapper:

[legend]

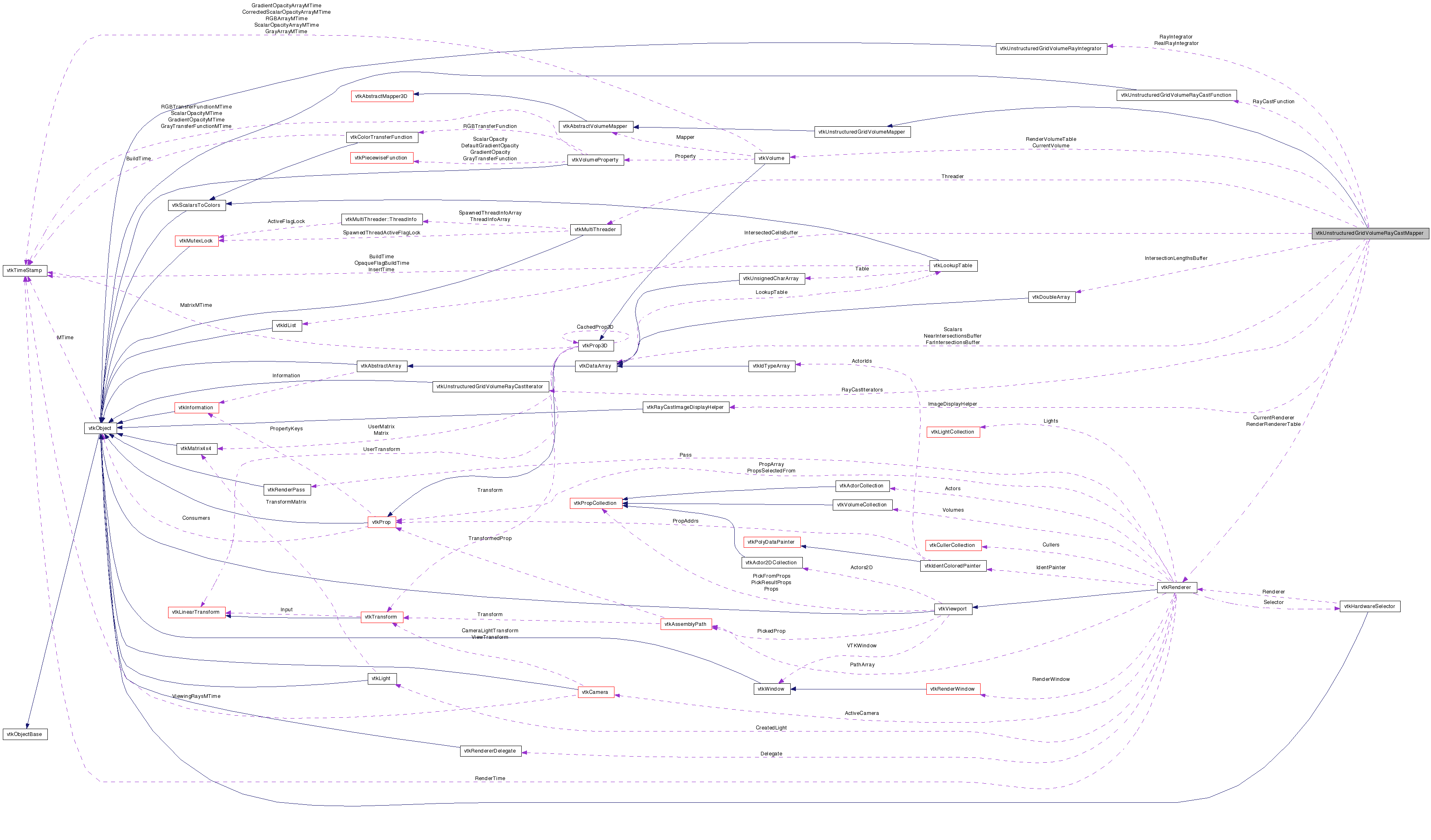

Collaboration diagram for vtkUnstructuredGridVolumeRayCastMapper:

[legend]

List of all members.

Detailed Description

A software mapper for unstructured volumes.

This is a software ray caster for rendering volumes in vtkUnstructuredGrid.

See also:: vtkVolumeMapper

Tests:: vtkUnstructuredGridVolumeRayCastMapper (Tests)

Definition at line 44 of file vtkUnstructuredGridVolumeRayCastMapper.h.


Public Types
typedef vtkUnstructuredGridVolumeMapper	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
void	Render (vtkRenderer , vtkVolume )
void	ReleaseGraphicsResources (vtkWindow *)
virtual int *	GetImageInUseSize ()
virtual void	GetImageInUseSize (int data[2])
virtual int *	GetImageOrigin ()
virtual void	GetImageOrigin (int data[2])
virtual int *	GetImageViewportSize ()
virtual void	GetImageViewportSize (int data[2])
void	CastRays (int threadID, int threadCount)

virtual void	SetImageSampleDistance (float)
virtual float	GetImageSampleDistance ()

virtual void	SetMinimumImageSampleDistance (float)
virtual float	GetMinimumImageSampleDistance ()

virtual void	SetMaximumImageSampleDistance (float)
virtual float	GetMaximumImageSampleDistance ()

virtual void	SetAutoAdjustSampleDistances (int)
virtual int	GetAutoAdjustSampleDistances ()
virtual void	AutoAdjustSampleDistancesOn ()
virtual void	AutoAdjustSampleDistancesOff ()

virtual void	SetNumberOfThreads (int)
virtual int	GetNumberOfThreads ()

virtual void	SetIntermixIntersectingGeometry (int)
virtual int	GetIntermixIntersectingGeometry ()
virtual void	IntermixIntersectingGeometryOn ()
virtual void	IntermixIntersectingGeometryOff ()

virtual void	SetRayCastFunction (vtkUnstructuredGridVolumeRayCastFunction *f)
virtual vtkUnstructuredGridVolumeRayCastFunction *	GetRayCastFunction ()

virtual void	SetRayIntegrator (vtkUnstructuredGridVolumeRayIntegrator *ri)
virtual vtkUnstructuredGridVolumeRayIntegrator *	GetRayIntegrator ()
Static Public Member Functions
static vtkUnstructuredGridVolumeRayCastMapper *	New ()
static int	IsTypeOf (const char *type)
static vtkUnstructuredGridVolumeRayCastMapper *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkUnstructuredGridVolumeRayCastMapper ()
	~vtkUnstructuredGridVolumeRayCastMapper ()
void	StoreRenderTime (vtkRenderer ren, vtkVolume vol, float t)
float	RetrieveRenderTime (vtkRenderer ren, vtkVolume vol)
double	GetZBufferValue (int x, int y)
double	GetMinimumBoundsDepth (vtkRenderer ren, vtkVolume vol)
Protected Attributes
float	ImageSampleDistance
float	MinimumImageSampleDistance
float	MaximumImageSampleDistance
int	AutoAdjustSampleDistances
vtkMultiThreader *	Threader
int	NumberOfThreads
vtkRayCastImageDisplayHelper *	ImageDisplayHelper
int	ImageViewportSize [2]
int	ImageMemorySize [2]
int	ImageInUseSize [2]
int	ImageOrigin [2]
unsigned char *	Image
float *	RenderTimeTable
vtkVolume **	RenderVolumeTable
vtkRenderer **	RenderRendererTable
int	RenderTableSize
int	RenderTableEntries
int	IntermixIntersectingGeometry
float *	ZBuffer
int	ZBufferSize [2]
int	ZBufferOrigin [2]
vtkUnstructuredGridVolumeRayCastFunction *	RayCastFunction
vtkUnstructuredGridVolumeRayCastIterator **	RayCastIterators
vtkUnstructuredGridVolumeRayIntegrator *	RayIntegrator
vtkUnstructuredGridVolumeRayIntegrator *	RealRayIntegrator
vtkIdList **	IntersectedCellsBuffer
vtkDoubleArray **	IntersectionLengthsBuffer
vtkDataArray **	NearIntersectionsBuffer
vtkDataArray **	FarIntersectionsBuffer
vtkVolume *	CurrentVolume
vtkRenderer *	CurrentRenderer
vtkDataArray *	Scalars
int	CellScalars

Member Typedef Documentation

typedef vtkUnstructuredGridVolumeMapper vtkUnstructuredGridVolumeRayCastMapper::Superclass

Reimplemented from vtkUnstructuredGridVolumeMapper.

Definition at line 48 of file vtkUnstructuredGridVolumeRayCastMapper.h.

Constructor & Destructor Documentation

vtkUnstructuredGridVolumeRayCastMapper::vtkUnstructuredGridVolumeRayCastMapper ( ) [protected]

vtkUnstructuredGridVolumeRayCastMapper::~vtkUnstructuredGridVolumeRayCastMapper ( ) [protected]

Member Function Documentation

static vtkUnstructuredGridVolumeRayCastMapper* vtkUnstructuredGridVolumeRayCastMapper::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkAlgorithm.

virtual const char* vtkUnstructuredGridVolumeRayCastMapper::GetClassName ( ) [virtual]

Reimplemented from vtkUnstructuredGridVolumeMapper.

static int vtkUnstructuredGridVolumeRayCastMapper::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkUnstructuredGridVolumeMapper.

virtual int vtkUnstructuredGridVolumeRayCastMapper::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkUnstructuredGridVolumeMapper.

static vtkUnstructuredGridVolumeRayCastMapper* vtkUnstructuredGridVolumeRayCastMapper::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkUnstructuredGridVolumeMapper.

void vtkUnstructuredGridVolumeRayCastMapper::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkUnstructuredGridVolumeMapper.

virtual void vtkUnstructuredGridVolumeRayCastMapper::SetImageSampleDistance ( float ) [virtual]

Sampling distance in the XY image dimensions. Default value of 1 meaning 1 ray cast per pixel. If set to 0.5, 4 rays will be cast per pixel. If set to 2.0, 1 ray will be cast for every 4 (2 by 2) pixels.

virtual float vtkUnstructuredGridVolumeRayCastMapper::GetImageSampleDistance ( ) [virtual]

Sampling distance in the XY image dimensions. Default value of 1 meaning 1 ray cast per pixel. If set to 0.5, 4 rays will be cast per pixel. If set to 2.0, 1 ray will be cast for every 4 (2 by 2) pixels.

virtual void vtkUnstructuredGridVolumeRayCastMapper::SetMinimumImageSampleDistance ( float ) [virtual]

This is the minimum image sample distance allow when the image sample distance is being automatically adjusted

virtual float vtkUnstructuredGridVolumeRayCastMapper::GetMinimumImageSampleDistance ( ) [virtual]

This is the minimum image sample distance allow when the image sample distance is being automatically adjusted

virtual void vtkUnstructuredGridVolumeRayCastMapper::SetMaximumImageSampleDistance ( float ) [virtual]

This is the maximum image sample distance allow when the image sample distance is being automatically adjusted

virtual float vtkUnstructuredGridVolumeRayCastMapper::GetMaximumImageSampleDistance ( ) [virtual]

This is the maximum image sample distance allow when the image sample distance is being automatically adjusted

virtual void vtkUnstructuredGridVolumeRayCastMapper::SetAutoAdjustSampleDistances ( int ) [virtual]

If AutoAdjustSampleDistances is on, the the ImageSampleDistance will be varied to achieve the allocated render time of this prop (controlled by the desired update rate and any culling in use).

virtual int vtkUnstructuredGridVolumeRayCastMapper::GetAutoAdjustSampleDistances ( ) [virtual]

If AutoAdjustSampleDistances is on, the the ImageSampleDistance will be varied to achieve the allocated render time of this prop (controlled by the desired update rate and any culling in use).

virtual void vtkUnstructuredGridVolumeRayCastMapper::AutoAdjustSampleDistancesOn ( ) [virtual]

If AutoAdjustSampleDistances is on, the the ImageSampleDistance will be varied to achieve the allocated render time of this prop (controlled by the desired update rate and any culling in use).

virtual void vtkUnstructuredGridVolumeRayCastMapper::AutoAdjustSampleDistancesOff ( ) [virtual]

If AutoAdjustSampleDistances is on, the the ImageSampleDistance will be varied to achieve the allocated render time of this prop (controlled by the desired update rate and any culling in use).

virtual void vtkUnstructuredGridVolumeRayCastMapper::SetNumberOfThreads ( int ) [virtual]

Set/Get the number of threads to use. This by default is equal to the number of available processors detected.

virtual int vtkUnstructuredGridVolumeRayCastMapper::GetNumberOfThreads ( ) [virtual]

Set/Get the number of threads to use. This by default is equal to the number of available processors detected.

virtual void vtkUnstructuredGridVolumeRayCastMapper::SetIntermixIntersectingGeometry ( int ) [virtual]

If IntermixIntersectingGeometry is turned on, the zbuffer will be captured and used to limit the traversal of the rays.

virtual int vtkUnstructuredGridVolumeRayCastMapper::GetIntermixIntersectingGeometry ( ) [virtual]

If IntermixIntersectingGeometry is turned on, the zbuffer will be captured and used to limit the traversal of the rays.

virtual void vtkUnstructuredGridVolumeRayCastMapper::IntermixIntersectingGeometryOn ( ) [virtual]

If IntermixIntersectingGeometry is turned on, the zbuffer will be captured and used to limit the traversal of the rays.

virtual void vtkUnstructuredGridVolumeRayCastMapper::IntermixIntersectingGeometryOff ( ) [virtual]

If IntermixIntersectingGeometry is turned on, the zbuffer will be captured and used to limit the traversal of the rays.

virtual void vtkUnstructuredGridVolumeRayCastMapper::SetRayCastFunction ( vtkUnstructuredGridVolumeRayCastFunction * f ) [virtual]

Set/Get the helper class for casting rays.

virtual vtkUnstructuredGridVolumeRayCastFunction* vtkUnstructuredGridVolumeRayCastMapper::GetRayCastFunction ( ) [virtual]

Set/Get the helper class for casting rays.

virtual void vtkUnstructuredGridVolumeRayCastMapper::SetRayIntegrator ( vtkUnstructuredGridVolumeRayIntegrator * ri ) [virtual]

Set/Get the helper class for integrating rays. If set to NULL, a default integrator will be assigned.

virtual vtkUnstructuredGridVolumeRayIntegrator* vtkUnstructuredGridVolumeRayCastMapper::GetRayIntegrator ( ) [virtual]

Set/Get the helper class for integrating rays. If set to NULL, a default integrator will be assigned.

void vtkUnstructuredGridVolumeRayCastMapper::Render	(	vtkRenderer *	,
		vtkVolume *
	)			`[virtual]`

WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE Initialize rendering for this volume.

Implements vtkUnstructuredGridVolumeMapper.

void vtkUnstructuredGridVolumeRayCastMapper::ReleaseGraphicsResources ( vtkWindow * ) [virtual]

WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE Release any graphics resources that are being consumed by this mapper. The parameter window could be used to determine which graphic resources to release.

Reimplemented from vtkUnstructuredGridVolumeMapper.

virtual int* vtkUnstructuredGridVolumeRayCastMapper::GetImageInUseSize ( ) [virtual]
