vtkXMLPPolyDataReader Class Reference

#include <vtkXMLPPolyDataReader.h>

Inheritance diagram for vtkXMLPPolyDataReader:

[legend]

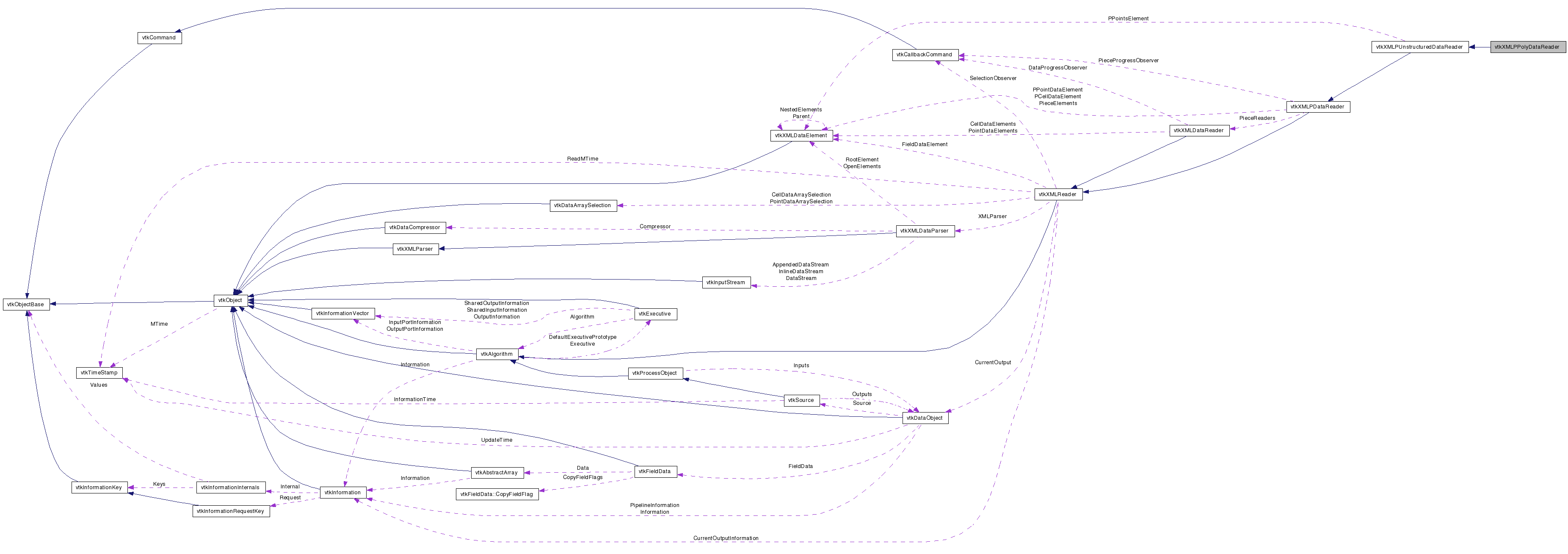

Collaboration diagram for vtkXMLPPolyDataReader:

[legend]

List of all members.

Detailed Description

Read PVTK XML PolyData files.

vtkXMLPPolyDataReader reads the PVTK XML PolyData file format. This reads the parallel format's summary file and then uses vtkXMLPolyDataReader to read data from the individual PolyData piece files. Streaming is supported. The standard extension for this reader's file format is "pvtp".

See also:: vtkXMLPolyDataReader

Definition at line 35 of file vtkXMLPPolyDataReader.h.


Public Types
typedef vtkXMLPUnstructuredDataReader	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)

vtkPolyData *	GetOutput ()
vtkPolyData *	GetOutput (int idx)
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkXMLPPolyDataReader *	SafeDownCast (vtkObject *o)
static vtkXMLPPolyDataReader *	New ()
Protected Member Functions
	vtkXMLPPolyDataReader ()
	~vtkXMLPPolyDataReader ()
const char *	GetDataSetName ()
void	GetOutputUpdateExtent (int &piece, int &numberOfPieces, int &ghostLevel)
vtkIdType	GetNumberOfCellsInPiece (int piece)
vtkIdType	GetNumberOfVertsInPiece (int piece)
vtkIdType	GetNumberOfLinesInPiece (int piece)
vtkIdType	GetNumberOfStripsInPiece (int piece)
vtkIdType	GetNumberOfPolysInPiece (int piece)
void	SetupOutputTotals ()
void	SetupOutputData ()
void	SetupNextPiece ()
int	ReadPieceData ()
void	CopyArrayForCells (vtkDataArray inArray, vtkDataArray outArray)
vtkXMLDataReader *	CreatePieceReader ()
virtual int	FillOutputPortInformation (int, vtkInformation *)
Protected Attributes
vtkIdType	TotalNumberOfVerts
vtkIdType	TotalNumberOfLines
vtkIdType	TotalNumberOfStrips
vtkIdType	TotalNumberOfPolys
vtkIdType	StartVert
vtkIdType	StartLine
vtkIdType	StartStrip
vtkIdType	StartPoly

Member Typedef Documentation

typedef vtkXMLPUnstructuredDataReader vtkXMLPPolyDataReader::Superclass

Reimplemented from vtkXMLPUnstructuredDataReader.

Definition at line 38 of file vtkXMLPPolyDataReader.h.

Constructor & Destructor Documentation

vtkXMLPPolyDataReader::vtkXMLPPolyDataReader ( ) [protected]

vtkXMLPPolyDataReader::~vtkXMLPPolyDataReader ( ) [protected]

Member Function Documentation

virtual const char* vtkXMLPPolyDataReader::GetClassName ( ) [virtual]

Reimplemented from vtkXMLPUnstructuredDataReader.

static int vtkXMLPPolyDataReader::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkXMLPUnstructuredDataReader.

virtual int vtkXMLPPolyDataReader::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkXMLPUnstructuredDataReader.

static vtkXMLPPolyDataReader* vtkXMLPPolyDataReader::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkXMLPUnstructuredDataReader.

void vtkXMLPPolyDataReader::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkXMLPUnstructuredDataReader.

static vtkXMLPPolyDataReader* vtkXMLPPolyDataReader::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkAlgorithm.

vtkPolyData* vtkXMLPPolyDataReader::GetOutput ( )

Get the reader's output.

vtkPolyData* vtkXMLPPolyDataReader::GetOutput ( int idx )

Get the reader's output.

const char* vtkXMLPPolyDataReader::GetDataSetName ( ) [protected, virtual]

Implements vtkXMLReader.

void vtkXMLPPolyDataReader::GetOutputUpdateExtent	(	int &	piece,
		int &	numberOfPieces,
		int &	ghostLevel
	)			`[protected, virtual]`

Implements vtkXMLPUnstructuredDataReader.

vtkIdType vtkXMLPPolyDataReader::GetNumberOfCellsInPiece ( int piece ) [protected, virtual]

Reimplemented from vtkXMLPUnstructuredDataReader.

vtkIdType vtkXMLPPolyDataReader::GetNumberOfVertsInPiece ( int piece ) [protected]

vtkIdType vtkXMLPPolyDataReader::GetNumberOfLinesInPiece ( int piece ) [protected]

vtkIdType vtkXMLPPolyDataReader::GetNumberOfStripsInPiece ( int piece ) [protected]

vtkIdType vtkXMLPPolyDataReader::GetNumberOfPolysInPiece ( int piece ) [protected]

void vtkXMLPPolyDataReader::SetupOutputTotals ( ) [protected, virtual]

Reimplemented from vtkXMLPUnstructuredDataReader.

void vtkXMLPPolyDataReader::SetupOutputData ( ) [protected, virtual]

Reimplemented from vtkXMLPUnstructuredDataReader.

void vtkXMLPPolyDataReader::SetupNextPiece ( ) [protected, virtual]

Reimplemented from vtkXMLPUnstructuredDataReader.

int vtkXMLPPolyDataReader::ReadPieceData ( ) [protected, virtual]

Reimplemented from vtkXMLPUnstructuredDataReader.

void vtkXMLPPolyDataReader::CopyArrayForCells	(	vtkDataArray *	inArray,
		vtkDataArray *	outArray
	)			`[protected, virtual]`

Implements vtkXMLPDataReader.

vtkXMLDataReader* vtkXMLPPolyDataReader::CreatePieceReader ( ) [protected, virtual]

Implements vtkXMLPDataReader.

virtual int vtkXMLPPolyDataReader::FillOutputPortInformation	(	int	port,
		vtkInformation *	info
	)			`[protected, virtual]`

Fill the output port information objects for this algorithm. This is invoked by the first call to GetOutputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkAlgorithm.
