vtkAVSucdReader Class Reference

#include <vtkAVSucdReader.h>

Inheritance diagram for vtkAVSucdReader:

Inheritance graph
[legend]
Collaboration diagram for vtkAVSucdReader:

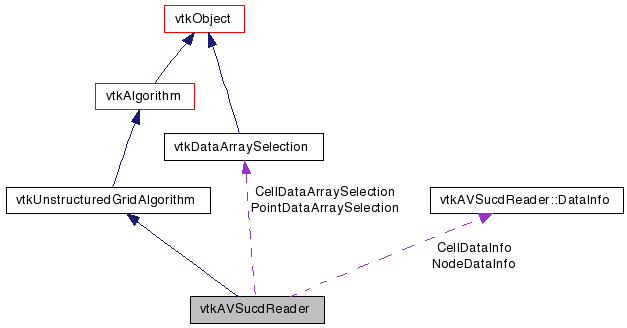

Collaboration graph
[legend]

List of all members.


Detailed Description

reads a dataset in AVS "UCD" format

vtkAVSucdReader creates an unstructured grid dataset. It reads binary or ASCII files stored in UCD format, with optional data stored at the nodes or at the cells of the model. A cell-based fielddata stores the material id. The class can automatically detect the endian-ness of the binary files.

Thanks:
Thanks to Guenole Harel and Emmanuel Colin (Supelec engineering school, France) and Jean M. Favre (CSCS, Switzerland) who co-developed this class. Thanks to Isabelle Surin (isabelle.surin at cea.fr, CEA-DAM, France) who supervised the internship of the first two authors. Thanks to Daniel Aguilera (daniel.aguilera at cea.fr, CEA-DAM, France) who contributed code and advice. Please address all comments to Jean Favre (jfavre at cscs.ch)
See also:
vtkGAMBITReader
Tests:
vtkAVSucdReader (Tests)

Definition at line 48 of file vtkAVSucdReader.h.


Public Types

typedef
vtkUnstructuredGridAlgorithm
Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void SetByteOrder (int)
virtual int GetByteOrder ()
void DisableAllCellArrays ()
void EnableAllCellArrays ()
void DisableAllPointArrays ()
void EnableAllPointArrays ()
void GetCellDataRange (int cellComp, int index, float *min, float *max)
void GetNodeDataRange (int nodeComp, int index, float *min, float *max)
virtual void SetFileName (const char *)
virtual char * GetFileName ()
virtual void SetBinaryFile (int)
virtual int GetBinaryFile ()
virtual void BinaryFileOn ()
virtual void BinaryFileOff ()
virtual int GetNumberOfCells ()
virtual int GetNumberOfNodes ()
virtual int GetNumberOfNodeFields ()
virtual int GetNumberOfCellFields ()
virtual int GetNumberOfFields ()
virtual int GetNumberOfNodeComponents ()
virtual int GetNumberOfCellComponents ()
void SetByteOrderToBigEndian ()
void SetByteOrderToLittleEndian ()
const char * GetByteOrderAsString ()
int GetNumberOfPointArrays ()
int GetNumberOfCellArrays ()
const char * GetPointArrayName (int index)
const char * GetCellArrayName (int index)
int GetPointArrayStatus (const char *name)
int GetCellArrayStatus (const char *name)
void SetPointArrayStatus (const char *name, int status)
void SetCellArrayStatus (const char *name, int status)

Static Public Member Functions

static vtkAVSucdReaderNew ()
static int IsTypeOf (const char *type)
static vtkAVSucdReaderSafeDownCast (vtkObject *o)

Protected Types

enum  { FILE_BIG_ENDIAN = 0, FILE_LITTLE_ENDIAN = 1 }
enum  UCDCell_type {
  PT = 0, LINE = 1, TRI = 2, QUAD = 3,
  TET = 4, PYR = 5, PRISM = 6, HEX = 7
}

Protected Member Functions

 vtkAVSucdReader ()
 ~vtkAVSucdReader ()
int RequestInformation (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
int RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
int GetLabel (char *string, int number, char *label)

Protected Attributes

char * FileName
int BinaryFile
int NumberOfNodes
int NumberOfCells
int NumberOfNodeFields
int NumberOfNodeComponents
int NumberOfCellComponents
int NumberOfCellFields
int NumberOfFields
int NlistNodes
ifstream * FileStream
vtkDataArraySelectionPointDataArraySelection
vtkDataArraySelectionCellDataArraySelection
int DecrementNodeIds
int ByteOrder
DataInfoNodeDataInfo
DataInfoCellDataInfo

Classes

struct  DataInfo

Member Typedef Documentation

Reimplemented from vtkUnstructuredGridAlgorithm.

Definition at line 52 of file vtkAVSucdReader.h.


Member Enumeration Documentation

anonymous enum [protected]

Enumerator:
FILE_BIG_ENDIAN
FILE_LITTLE_ENDIAN

Definition at line 165 of file vtkAVSucdReader.h.

Enumerator:
PT
LINE
TRI
QUAD
TET
PYR
PRISM
HEX

Definition at line 170 of file vtkAVSucdReader.h.


Constructor & Destructor Documentation

vtkAVSucdReader::vtkAVSucdReader (  )  [protected]

vtkAVSucdReader::~vtkAVSucdReader (  )  [protected]


Member Function Documentation

static vtkAVSucdReader* vtkAVSucdReader::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkUnstructuredGridAlgorithm.

virtual const char* vtkAVSucdReader::GetClassName (  )  [virtual]

Reimplemented from vtkUnstructuredGridAlgorithm.

static int vtkAVSucdReader::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkUnstructuredGridAlgorithm.

virtual int vtkAVSucdReader::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkUnstructuredGridAlgorithm.

static vtkAVSucdReader* vtkAVSucdReader::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkUnstructuredGridAlgorithm.

void vtkAVSucdReader::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkUnstructuredGridAlgorithm.

virtual void vtkAVSucdReader::SetFileName ( const char *   )  [virtual]

Specify file name of AVS UCD datafile to read

virtual char* vtkAVSucdReader::GetFileName (  )  [virtual]

Specify file name of AVS UCD datafile to read

virtual void vtkAVSucdReader::SetBinaryFile ( int   )  [virtual]

Is the file to be read written in binary format (as opposed to ascii).

virtual int vtkAVSucdReader::GetBinaryFile (  )  [virtual]

Is the file to be read written in binary format (as opposed to ascii).

virtual void vtkAVSucdReader::BinaryFileOn (  )  [virtual]

Is the file to be read written in binary format (as opposed to ascii).

virtual void vtkAVSucdReader::BinaryFileOff (  )  [virtual]

Is the file to be read written in binary format (as opposed to ascii).

virtual int vtkAVSucdReader::GetNumberOfCells (  )  [virtual]

Get the total number of cells.

virtual int vtkAVSucdReader::GetNumberOfNodes (  )  [virtual]

Get the total number of nodes.

virtual int vtkAVSucdReader::GetNumberOfNodeFields (  )  [virtual]

Get the number of data fields at the nodes.

virtual int vtkAVSucdReader::GetNumberOfCellFields (  )  [virtual]

Get the number of data fields at the cell centers.

virtual int vtkAVSucdReader::GetNumberOfFields (  )  [virtual]

Get the number of data fields for the model. Unused because VTK has no methods for it.

virtual int vtkAVSucdReader::GetNumberOfNodeComponents (  )  [virtual]

Get the number of data components at the nodes and cells.

virtual int vtkAVSucdReader::GetNumberOfCellComponents (  )  [virtual]

Get the number of data components at the nodes and cells.

void vtkAVSucdReader::SetByteOrderToBigEndian (  )

Set/Get the endian-ness of the binary file.

void vtkAVSucdReader::SetByteOrderToLittleEndian (  )

Set/Get the endian-ness of the binary file.

const char* vtkAVSucdReader::GetByteOrderAsString (  )

Set/Get the endian-ness of the binary file.

virtual void vtkAVSucdReader::SetByteOrder ( int   )  [virtual]

virtual int vtkAVSucdReader::GetByteOrder (  )  [virtual]

int vtkAVSucdReader::GetNumberOfPointArrays (  )

The following methods allow selective reading of solutions fields. by default, ALL data fields are the nodes and cells are read, but this can be modified.

int vtkAVSucdReader::GetNumberOfCellArrays (  )

The following methods allow selective reading of solutions fields. by default, ALL data fields are the nodes and cells are read, but this can be modified.

const char* vtkAVSucdReader::GetPointArrayName ( int  index  )

The following methods allow selective reading of solutions fields. by default, ALL data fields are the nodes and cells are read, but this can be modified.

const char* vtkAVSucdReader::GetCellArrayName ( int  index  )

The following methods allow selective reading of solutions fields. by default, ALL data fields are the nodes and cells are read, but this can be modified.

int vtkAVSucdReader::GetPointArrayStatus ( const char *  name  )

The following methods allow selective reading of solutions fields. by default, ALL data fields are the nodes and cells are read, but this can be modified.

int vtkAVSucdReader::GetCellArrayStatus ( const char *  name  )

The following methods allow selective reading of solutions fields. by default, ALL data fields are the nodes and cells are read, but this can be modified.

void vtkAVSucdReader::SetPointArrayStatus ( const char *  name,
int  status
)

The following methods allow selective reading of solutions fields. by default, ALL data fields are the nodes and cells are read, but this can be modified.

void vtkAVSucdReader::SetCellArrayStatus ( const char *  name,
int  status
)

The following methods allow selective reading of solutions fields. by default, ALL data fields are the nodes and cells are read, but this can be modified.

void vtkAVSucdReader::DisableAllCellArrays (  )

void vtkAVSucdReader::EnableAllCellArrays (  )

void vtkAVSucdReader::DisableAllPointArrays (  )

void vtkAVSucdReader::EnableAllPointArrays (  )

void vtkAVSucdReader::GetCellDataRange ( int  cellComp,
int  index,
float *  min,
float *  max
)

void vtkAVSucdReader::GetNodeDataRange ( int  nodeComp,
int  index,
float *  min,
float *  max
)

int vtkAVSucdReader::RequestInformation ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [protected, virtual]

Reimplemented from vtkUnstructuredGridAlgorithm.

int vtkAVSucdReader::RequestData ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector
) [protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkUnstructuredGridAlgorithm.

int vtkAVSucdReader::GetLabel ( char *  string,
int  number,
char *  label
) [protected]


Member Data Documentation

char* vtkAVSucdReader::FileName [protected]

Definition at line 144 of file vtkAVSucdReader.h.

int vtkAVSucdReader::BinaryFile [protected]

Definition at line 145 of file vtkAVSucdReader.h.

Definition at line 147 of file vtkAVSucdReader.h.

Definition at line 148 of file vtkAVSucdReader.h.

Definition at line 149 of file vtkAVSucdReader.h.

Definition at line 150 of file vtkAVSucdReader.h.

Definition at line 151 of file vtkAVSucdReader.h.

Definition at line 152 of file vtkAVSucdReader.h.

Definition at line 153 of file vtkAVSucdReader.h.

int vtkAVSucdReader::NlistNodes [protected]

Definition at line 154 of file vtkAVSucdReader.h.

ifstream* vtkAVSucdReader::FileStream [protected]

Definition at line 156 of file vtkAVSucdReader.h.

Definition at line 158 of file vtkAVSucdReader.h.

Definition at line 159 of file vtkAVSucdReader.h.

Definition at line 161 of file vtkAVSucdReader.h.

int vtkAVSucdReader::ByteOrder [protected]

Definition at line 162 of file vtkAVSucdReader.h.

Definition at line 190 of file vtkAVSucdReader.h.

Definition at line 191 of file vtkAVSucdReader.h.


The documentation for this class was generated from the following file:
