vtkCollectTable Class Reference

#include <vtkCollectTable.h>

Inheritance diagram for vtkCollectTable:

Inheritance graph
[legend]

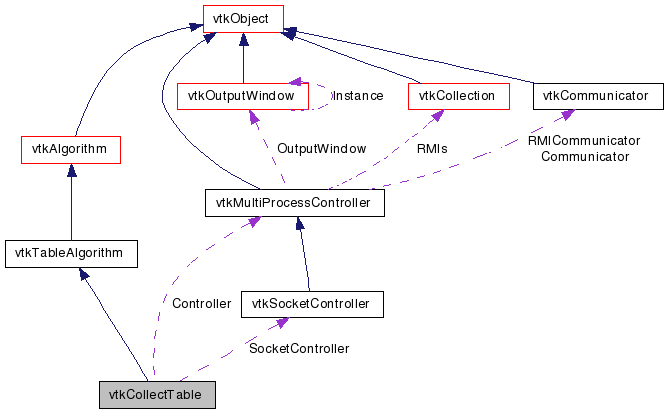

Collaboration diagram for vtkCollectTable:

Collaboration graph
[legend]

List of all members.


Detailed Description

Collect distributed table.

This filter has code to collect a table from across processes onto node 0. Collection can be turned on or off using the "PassThrough" flag.

Definition at line 34 of file vtkCollectTable.h.


Public Types

typedef vtkTableAlgorithm Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void SetController (vtkMultiProcessController *)
virtual vtkMultiProcessControllerGetController ()
virtual void SetSocketController (vtkSocketController *)
virtual vtkSocketControllerGetSocketController ()
virtual void SetPassThrough (int)
virtual int GetPassThrough ()
virtual void PassThroughOn ()
virtual void PassThroughOff ()

Static Public Member Functions

static vtkCollectTableNew ()
static int IsTypeOf (const char *type)
static vtkCollectTableSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkCollectTable ()
 ~vtkCollectTable ()
virtual int RequestUpdateExtent (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int RequestInformation (vtkInformation *, vtkInformationVector **, vtkInformationVector *)

Protected Attributes

int PassThrough
vtkMultiProcessControllerController
vtkSocketControllerSocketController

Member Typedef Documentation

Reimplemented from vtkTableAlgorithm.

Definition at line 38 of file vtkCollectTable.h.


Constructor & Destructor Documentation

vtkCollectTable::vtkCollectTable (  )  [protected]

vtkCollectTable::~vtkCollectTable (  )  [protected]


Member Function Documentation

static vtkCollectTable* vtkCollectTable::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkTableAlgorithm.

virtual const char* vtkCollectTable::GetClassName (  )  [virtual]

Reimplemented from vtkTableAlgorithm.

static int vtkCollectTable::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkTableAlgorithm.

virtual int vtkCollectTable::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkTableAlgorithm.

static vtkCollectTable* vtkCollectTable::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkTableAlgorithm.

void vtkCollectTable::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkTableAlgorithm.

virtual void vtkCollectTable::SetController ( vtkMultiProcessController  )  [virtual]

By defualt this filter uses the global controller, but this method can be used to set another instead.

virtual vtkMultiProcessController* vtkCollectTable::GetController (  )  [virtual]

By defualt this filter uses the global controller, but this method can be used to set another instead.

virtual void vtkCollectTable::SetSocketController ( vtkSocketController  )  [virtual]

When this filter is being used in client-server mode, this is the controller used to communicate between client and server. Client should not set the other controller.

virtual vtkSocketController* vtkCollectTable::GetSocketController (  )  [virtual]

When this filter is being used in client-server mode, this is the controller used to communicate between client and server. Client should not set the other controller.

virtual void vtkCollectTable::SetPassThrough ( int   )  [virtual]

To collect or just copy input to output. Off (collect) by default.

virtual int vtkCollectTable::GetPassThrough (  )  [virtual]

To collect or just copy input to output. Off (collect) by default.

virtual void vtkCollectTable::PassThroughOn (  )  [virtual]

To collect or just copy input to output. Off (collect) by default.

virtual void vtkCollectTable::PassThroughOff (  )  [virtual]

To collect or just copy input to output. Off (collect) by default.

virtual int vtkCollectTable::RequestUpdateExtent ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkTableAlgorithm.

virtual int vtkCollectTable::RequestData ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector
) [protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkTableAlgorithm.

virtual int vtkCollectTable::RequestInformation ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [protected, virtual]

Reimplemented from vtkTableAlgorithm.


Member Data Documentation

Definition at line 67 of file vtkCollectTable.h.

Definition at line 74 of file vtkCollectTable.h.

Definition at line 75 of file vtkCollectTable.h.


The documentation for this class was generated from the following file:
