vtkCompositePolyDataMapper2 Class Reference

#include <vtkCompositePolyDataMapper2.h>

Inheritance diagram for vtkCompositePolyDataMapper2:

[legend]

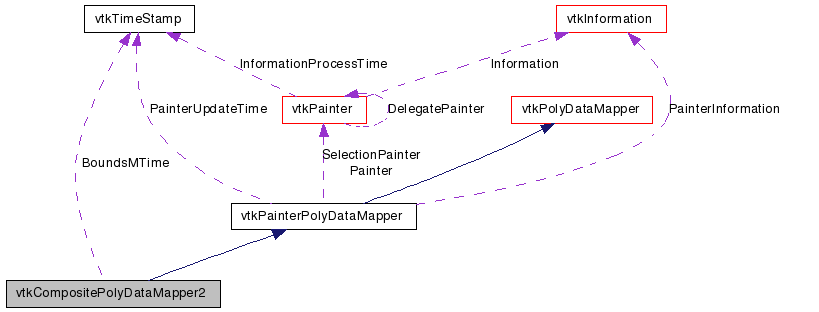

Collaboration diagram for vtkCompositePolyDataMapper2:

[legend]

List of all members.

Detailed Description

mapper for composite dataset consisting of polygonal data.

vtkCompositePolyDataMapper2 is similar to vtkCompositePolyDataMapper except that instead of creating individual mapper for each block in the composite dataset, it iterates over the blocks internally.

Events:: vtkCommand::StartEvent vtkCommand::EndEvent

Definition at line 32 of file vtkCompositePolyDataMapper2.h.


Public Types
typedef vtkPainterPolyDataMapper	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	RenderPiece (vtkRenderer ren, vtkActor act)
virtual void	Render (vtkRenderer ren, vtkActor act)

double *	GetBounds ()
void	GetBounds (double bounds[6])

virtual void	SetColorBlocks (int)
virtual int	GetColorBlocks ()
Static Public Member Functions
static vtkCompositePolyDataMapper2 *	New ()
static int	IsTypeOf (const char *type)
static vtkCompositePolyDataMapper2 *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkCompositePolyDataMapper2 ()
	~vtkCompositePolyDataMapper2 ()
vtkExecutive *	CreateDefaultExecutive ()
virtual int	FillInputPortInformation (int port, vtkInformation *info)
virtual void	ComputeBounds ()
virtual void	UpdatePainterInformation ()
Protected Attributes
vtkTimeStamp	BoundsMTime
int	ColorBlocks

Member Typedef Documentation

typedef vtkPainterPolyDataMapper vtkCompositePolyDataMapper2::Superclass

Reimplemented from vtkPainterPolyDataMapper.

Definition at line 36 of file vtkCompositePolyDataMapper2.h.

Constructor & Destructor Documentation

vtkCompositePolyDataMapper2::vtkCompositePolyDataMapper2 ( ) [protected]

vtkCompositePolyDataMapper2::~vtkCompositePolyDataMapper2 ( ) [protected]

Member Function Documentation

static vtkCompositePolyDataMapper2* vtkCompositePolyDataMapper2::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkPainterPolyDataMapper.

virtual const char* vtkCompositePolyDataMapper2::GetClassName ( ) [virtual]

Reimplemented from vtkPainterPolyDataMapper.

static int vtkCompositePolyDataMapper2::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPainterPolyDataMapper.

virtual int vtkCompositePolyDataMapper2::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPainterPolyDataMapper.

static vtkCompositePolyDataMapper2* vtkCompositePolyDataMapper2::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkPainterPolyDataMapper.

void vtkCompositePolyDataMapper2::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkPainterPolyDataMapper.

virtual void vtkCompositePolyDataMapper2::RenderPiece	(	vtkRenderer *	ren,
		vtkActor *	act
	)			`[virtual]`

Implemented by sub classes. Actual rendering is done here.

Reimplemented from vtkPainterPolyDataMapper.

double* vtkCompositePolyDataMapper2::GetBounds ( ) [virtual]

Standard vtkProp method to get 3D bounds of a 3D prop

Reimplemented from vtkPainterPolyDataMapper.

void vtkCompositePolyDataMapper2::GetBounds ( double bounds[6] ) [inline, virtual]

Standard vtkProp method to get 3D bounds of a 3D prop

Reimplemented from vtkPainterPolyDataMapper.

Definition at line 45 of file vtkCompositePolyDataMapper2.h.

virtual void vtkCompositePolyDataMapper2::Render	(	vtkRenderer *	ren,
		vtkActor *	act
	)			`[virtual]`

This calls RenderPiece (in a for loop is streaming is necessary). Basically a reimplementation for vtkPolyDataMapper::Render() since we don't want it to give up when vtkCompositeDataSet is encountered.

Reimplemented from vtkPolyDataMapper.

virtual void vtkCompositePolyDataMapper2::SetColorBlocks ( int ) [virtual]

When set, each block is colored with a different color. Note that scalar coloring will be ignored.

virtual int vtkCompositePolyDataMapper2::GetColorBlocks ( ) [virtual]

When set, each block is colored with a different color. Note that scalar coloring will be ignored.

vtkExecutive* vtkCompositePolyDataMapper2::CreateDefaultExecutive ( ) [protected, virtual]

We need to override this method because the standard streaming demand driven pipeline is not what we want - we are expecting hierarchical data as input

Reimplemented from vtkAlgorithm.
