vtkCompositeRenderManager Class Reference

#include <vtkCompositeRenderManager.h>

Inheritance diagram for vtkCompositeRenderManager:

Inheritance graph
[legend]

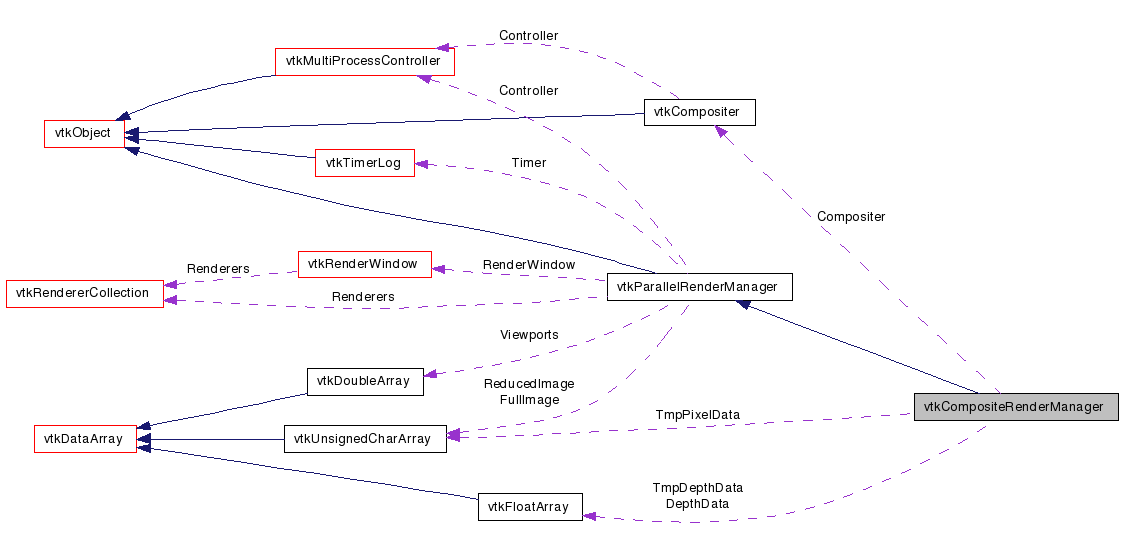

Collaboration diagram for vtkCompositeRenderManager:

Collaboration graph
[legend]

List of all members.


Detailed Description

An object to control sort-last parallel rendering.

vtkCompositeRenderManager is a subclass of vtkParallelRenderManager that uses compositing to do parallel rendering. This class has replaced vtkCompositeManager.

Examples:
vtkCompositeRenderManager (Examples)
Tests:
vtkCompositeRenderManager (Tests)

Definition at line 39 of file vtkCompositeRenderManager.h.


Public Types

typedef vtkParallelRenderManager Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
virtual void PrintSelf (ostream &os, vtkIndent indent)
void SetCompositer (vtkCompositer *c)
virtual vtkCompositerGetCompositer ()
virtual double GetImageProcessingTime ()

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkCompositeRenderManagerSafeDownCast (vtkObject *o)
static vtkCompositeRenderManagerNew ()

Protected Member Functions

 vtkCompositeRenderManager ()
 ~vtkCompositeRenderManager ()
virtual void PreRenderProcessing ()
virtual void PostRenderProcessing ()

Protected Attributes

vtkCompositerCompositer
vtkFloatArrayDepthData
vtkUnsignedCharArrayTmpPixelData
vtkFloatArrayTmpDepthData
int SavedMultiSamplesSetting

Member Typedef Documentation

Reimplemented from vtkParallelRenderManager.

Definition at line 42 of file vtkCompositeRenderManager.h.


Constructor & Destructor Documentation

vtkCompositeRenderManager::vtkCompositeRenderManager (  )  [protected]

vtkCompositeRenderManager::~vtkCompositeRenderManager (  )  [protected]


Member Function Documentation

virtual const char* vtkCompositeRenderManager::GetClassName (  )  [virtual]

Reimplemented from vtkParallelRenderManager.

static int vtkCompositeRenderManager::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkParallelRenderManager.

virtual int vtkCompositeRenderManager::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkParallelRenderManager.

static vtkCompositeRenderManager* vtkCompositeRenderManager::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkParallelRenderManager.

static vtkCompositeRenderManager* vtkCompositeRenderManager::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual void vtkCompositeRenderManager::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkParallelRenderManager.

void vtkCompositeRenderManager::SetCompositer ( vtkCompositer c  )

Set/Get the composite algorithm.

virtual vtkCompositer* vtkCompositeRenderManager::GetCompositer (  )  [virtual]

Set/Get the composite algorithm.

virtual double vtkCompositeRenderManager::GetImageProcessingTime (  )  [virtual]

Get rendering metrics.

Reimplemented from vtkParallelRenderManager.

virtual void vtkCompositeRenderManager::PreRenderProcessing (  )  [protected, virtual]

Here is a good place to handle processing of data before and after render.

Implements vtkParallelRenderManager.

virtual void vtkCompositeRenderManager::PostRenderProcessing (  )  [protected, virtual]

Here is a good place to handle processing of data before and after render.

Implements vtkParallelRenderManager.


Member Data Documentation

Definition at line 61 of file vtkCompositeRenderManager.h.

Definition at line 66 of file vtkCompositeRenderManager.h.

Definition at line 67 of file vtkCompositeRenderManager.h.

Definition at line 68 of file vtkCompositeRenderManager.h.

Definition at line 70 of file vtkCompositeRenderManager.h.


The documentation for this class was generated from the following file:
