vtkCompositeZPass Class Reference

#include <vtkCompositeZPass.h>

Inheritance diagram for vtkCompositeZPass:

[legend]

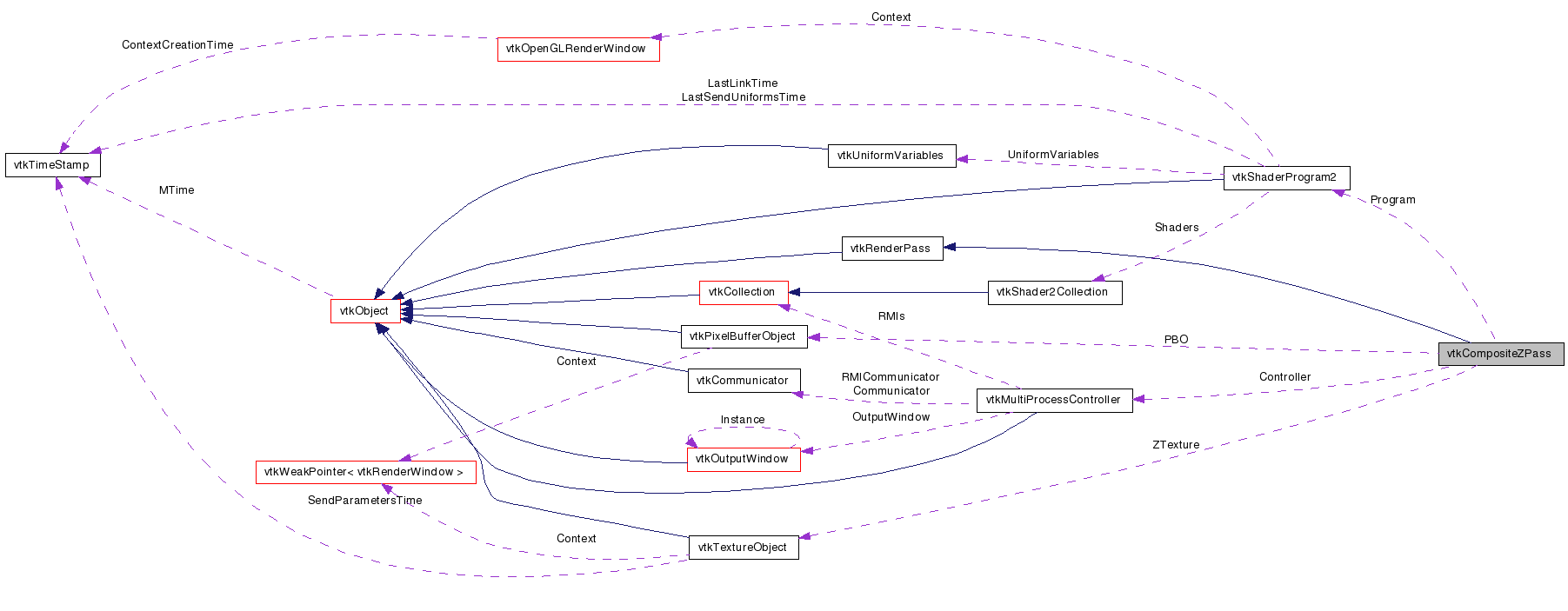

Collaboration diagram for vtkCompositeZPass:

[legend]

List of all members.

Detailed Description

Merge depth buffers of processes.

Merge the depth buffers of satellite processes into the root process depth buffer. It assumes that all the depth buffers have the same number of bits. The depth buffer of the satellite processes are not changed.

This pass requires a OpenGL context that supports texture objects (TO), and pixel buffer objects (PBO). If not, it will emit an error message and will render its delegate and return.

See also:: vtkRenderPass

Tests:: vtkCompositeZPass (Tests)

Definition at line 45 of file vtkCompositeZPass.h.


Public Types
typedef vtkRenderPass	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	Render (const vtkRenderState *s)
void	ReleaseGraphicsResources (vtkWindow *w)
bool	IsSupported (vtkOpenGLRenderWindow *context)

virtual vtkMultiProcessController *	GetController ()
virtual void	SetController (vtkMultiProcessController *controller)
Static Public Member Functions
static vtkCompositeZPass *	New ()
static int	IsTypeOf (const char *type)
static vtkCompositeZPass *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkCompositeZPass ()
virtual	~vtkCompositeZPass ()
void	CreateProgram (vtkOpenGLRenderWindow *context)
Protected Attributes
vtkMultiProcessController *	Controller
vtkPixelBufferObject *	PBO
vtkTextureObject *	ZTexture
vtkShaderProgram2 *	Program
float *	RawZBuffer
size_t	RawZBufferSize

Member Typedef Documentation

typedef vtkRenderPass vtkCompositeZPass::Superclass

Reimplemented from vtkRenderPass.

Definition at line 49 of file vtkCompositeZPass.h.

Constructor & Destructor Documentation

vtkCompositeZPass::vtkCompositeZPass ( ) [protected]

Default constructor. Controller is set to NULL.

virtual vtkCompositeZPass::~vtkCompositeZPass ( ) [protected, virtual]

Destructor.

Member Function Documentation

static vtkCompositeZPass* vtkCompositeZPass::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkCompositeZPass::GetClassName ( ) [virtual]

Reimplemented from vtkRenderPass.

static int vtkCompositeZPass::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkRenderPass.

virtual int vtkCompositeZPass::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkRenderPass.

static vtkCompositeZPass* vtkCompositeZPass::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkRenderPass.

void vtkCompositeZPass::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkRenderPass.

virtual void vtkCompositeZPass::Render ( const vtkRenderState * s ) [virtual]

Perform rendering according to a render state s.
