vtkContext2D Class Reference

#include <vtkContext2D.h>

Inheritance diagram for vtkContext2D:

Inheritance graph
[legend]

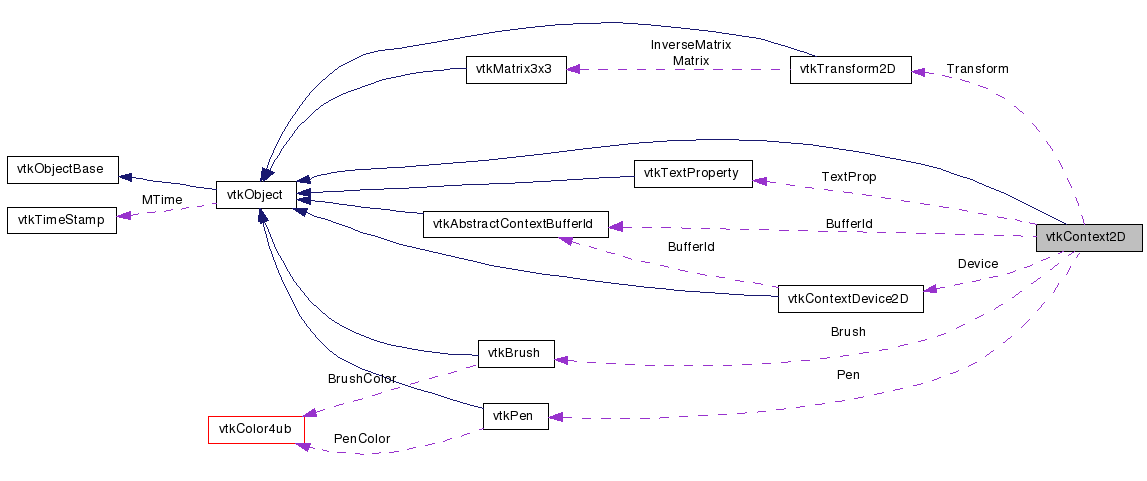

Collaboration diagram for vtkContext2D:

Collaboration graph
[legend]

List of all members.


Detailed Description

Class for drawing 2D primitives to a graphical context.

This defines the interface for drawing onto a 2D context. The context must be set up with a vtkContextDevice2D derived class that provides the functions to facilitate the low level calls to the context. Currently only an OpenGL based device is provided, but this could be extended in the future.

Examples:
vtkContext2D (Examples)
Tests:
vtkContext2D (Tests)

Definition at line 50 of file vtkContext2D.h.


Public Types

typedef vtkObject Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
virtual void PrintSelf (ostream &os, vtkIndent indent)
bool Begin (vtkContextDevice2D *device)
virtual vtkContextDevice2DGetDevice ()
bool End ()
bool GetBufferIdMode () const
void BufferIdModeBegin (vtkAbstractContextBufferId *bufferId)
void BufferIdModeEnd ()
void DrawLine (float x1, float y1, float x2, float y2)
void DrawLine (float p[4])
void DrawLine (vtkPoints2D *points)
void DrawPoly (float *x, float *y, int n)
void DrawPoly (vtkPoints2D *points)
void DrawPoly (float *points, int n)
void DrawPoint (float x, float y)
void DrawPoints (float *x, float *y, int n)
void DrawPoints (vtkPoints2D *points)
void DrawPoints (float *points, int n)
void DrawPointSprites (vtkImageData *sprite, vtkPoints2D *points)
void DrawPointSprites (vtkImageData *sprite, float *points, int n)
void DrawRect (float x, float y, float w, float h)
void DrawEllipse (float x, float y, float rx, float ry)
void DrawImage (float x, float y, vtkImageData *image)
void DrawStringRect (vtkPoints2D *rect, const vtkStdString &string)
void DrawString (vtkPoints2D *point, const char *string)
void DrawString (float x, float y, const char *string)
void ComputeStringBounds (const char *string, float bounds[4])
void ApplyPen (vtkPen *pen)
void ApplyBrush (vtkBrush *brush)
void ApplyTextProp (vtkTextProperty *prop)
void AppendTransform (vtkTransform2D *transform)
void ApplyId (vtkIdType id)
void DrawQuad (float x1, float y1, float x2, float y2, float x3, float y3, float x4, float y4)
void DrawQuad (float *p)
void DrawWedge (float x, float y, float outRadius, float inRadius, float startAngle, float stopAngle)
void DrawEllipseWedge (float x, float y, float outRx, float outRy, float inRx, float inRy, float startAngle, float stopAngle)
void DrawArc (float x, float y, float r, float startAngle, float stopAngle)
void DrawEllipticArc (float x, float y, float rX, float rY, float startAngle, float stopAngle)
void DrawString (vtkPoints2D *point, const vtkStdString &string)
void DrawString (float x, float y, const vtkStdString &string)
void ComputeStringBounds (const vtkStdString &string, vtkPoints2D *bounds)
void ComputeStringBounds (const vtkStdString &string, float bounds[4])
virtual vtkPenGetPen ()
virtual vtkBrushGetBrush ()
virtual vtkTextPropertyGetTextProp ()
void SetTransform (vtkTransform2D *transform)
virtual vtkTransform2DGetTransform ()
void PushMatrix ()
void PopMatrix ()

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkContext2DSafeDownCast (vtkObject *o)
static vtkContext2DNew ()

Protected Member Functions

 vtkContext2D ()
 ~vtkContext2D ()

Protected Attributes

vtkContextDevice2DDevice
vtkPenPen
vtkBrushBrush
vtkTextPropertyTextProp
vtkTransform2DTransform
vtkAbstractContextBufferIdBufferId

Member Typedef Documentation

Reimplemented from vtkObject.

Definition at line 53 of file vtkContext2D.h.


Constructor & Destructor Documentation

vtkContext2D::vtkContext2D (  )  [protected]

vtkContext2D::~vtkContext2D (  )  [protected]


Member Function Documentation

virtual const char* vtkContext2D::GetClassName (  )  [virtual]

Reimplemented from vtkObject.

static int vtkContext2D::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

virtual int vtkContext2D::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

static vtkContext2D* vtkContext2D::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkObject.

virtual void vtkContext2D::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkObject.

static vtkContext2D* vtkContext2D::New (  )  [static]

Creates a 2D Painter object.

Reimplemented from vtkObject.

bool vtkContext2D::Begin ( vtkContextDevice2D device  )

Begin painting on a vtkContextDevice2D, no painting can occur before this call has been made. Only one painter is allowed at a time on any given paint device. Returns true if successful, otherwise false.

virtual vtkContextDevice2D* vtkContext2D::GetDevice (  )  [virtual]

bool vtkContext2D::End (  )

Ends painting on the device, you would not usually need to call this as it should be called by the destructor. Returns true if the painter is no longer active, otherwise false.

bool vtkContext2D::GetBufferIdMode (  )  const

Tell if the context is in BufferId creation mode. Initial value is false.

void vtkContext2D::BufferIdModeBegin ( vtkAbstractContextBufferId bufferId  )

Start BufferId creation Mode.

Precondition:
not_yet: !GetBufferIdMode()

bufferId_exists: bufferId!=0

Postcondition:
started: GetBufferIdMode()

void vtkContext2D::BufferIdModeEnd (  )

Finalize BufferId creation Mode. It makes sure that the content of the bufferId passed in argument of BufferIdModeBegin() is correctly set.

Precondition:
started: GetBufferIdMode()
Postcondition:
done: !GetBufferIdMode()

void vtkContext2D::DrawLine ( float  x1,
float  y1,
float  x2,
float  y2
)

Draw a line between the specified points.

void vtkContext2D::DrawLine ( float  p[4]  )

Draw a line between the specified points.

void vtkContext2D::DrawLine ( vtkPoints2D points  )

Draw a line between the specified points. Note: Fastest path - points packed in x and y.

void vtkContext2D::DrawPoly ( float *  x,
float *  y,
int  n
)

Draw a poly line between the specified points.

void vtkContext2D::DrawPoly ( vtkPoints2D points  )

Draw a poly line between the specified points - fastest code path due to memory layout of the coordinates.

void vtkContext2D::DrawPoly ( float *  points,
int  n
)

Draw a poly line between the specified points, where the float array is of size 2*n and the points are packed x1, y1, x2, y2 etc. Note: Fastest code path - points packed in x and y.

void vtkContext2D::DrawPoint ( float  x,
float  y
)

Draw a point at the supplied x and y coordinate

void vtkContext2D::DrawPoints ( float *  x,
float *  y,
int  n
)

Draw the specified number of points using the x and y arrays supplied

void vtkContext2D::DrawPoints ( vtkPoints2D points  )

Draw a poly line between the specified points - fastest code path due to memory layout of the coordinates.

void vtkContext2D::DrawPoints ( float *  points,
int  n
)

Draw a poly line between the specified points, where the float array is of size 2*n and the points are packed x1, y1, x2, y2 etc. Note: Fastest code path - points packed in x and y.

void vtkContext2D::DrawPointSprites ( vtkImageData sprite,
vtkPoints2D points
)

Draw a series of point sprites, images centred at the points supplied. The supplied vtkImageData is the sprite to be drawn, only squares will be drawn and the size is set using SetPointSize.

void vtkContext2D::DrawPointSprites ( vtkImageData sprite,
float *  points,
int  n
)

Draw a series of point sprites, images centred at the points supplied. The supplied vtkImageData is the sprite to be drawn, only squares will be drawn and the size is set using SetPointSize.

void vtkContext2D::DrawRect ( float  x,
float  y,
float  w,
float  h
)

Draw a rectangle with origin at x, y and width w, height h

void vtkContext2D::DrawQuad ( float  x1,
float  y1,
float  x2,
float  y2,
float  x3,
float  y3,
float  x4,
float  y4
)

Draw a quadrilateral at the specified points (4 points, 8 floats in x, y).

void vtkContext2D::DrawQuad ( float *  p  )

Draw a quadrilateral at the specified points (4 points, 8 floats in x, y).

void vtkContext2D::DrawEllipse ( float  x,
float  y,
float  rx,
float  ry
)

Draw an ellipse with center at x, y and radii rx, ry.

Precondition:
positive_rx: rx>=0

positive_ry: ry>=0

void vtkContext2D::DrawWedge ( float  x,
float  y,
float  outRadius,
float  inRadius,
float  startAngle,
float  stopAngle
)

Draw a circular wedge with center at x, y, outer radius outRadius, inner radius inRadius between angles startAngle and stopAngle (expressed in degrees).

Precondition:
positive_outRadius: outRadius>=0

positive_inRadius: inRadius>=0

ordered_radii: inRadius<=outRadius

void vtkContext2D::DrawEllipseWedge ( float  x,
float  y,
float  outRx,
float  outRy,
float  inRx,
float  inRy,
float  startAngle,
float  stopAngle
)

Draw an elliptic wedge with center at x, y, outer radii outRx, outRy, inner radii inRx, inRy between angles startAngle and stopAngle (expressed in degrees).

Precondition:
positive_outRx: outRx>=0

positive_outRy: outRy>=0

positive_inRx: inRx>=0

positive_inRy: inRy>=0

ordered_rx: inRx<=outRx

ordered_ry: inRy<=outRy

void vtkContext2D::DrawArc ( float  x,
float  y,
float  r,
float  startAngle,
float  stopAngle
)

Draw a circular arc with center at x,y with radius r between angles startAngle and stopAngle (expressed in degrees).

Precondition:
positive_radius: r>=0

void vtkContext2D::DrawEllipticArc ( float  x,
float  y,
float  rX,
float  rY,
float  startAngle,
float  stopAngle
)

Draw an elliptic arc with center at x,y with radii rX and rY between angles startAngle and stopAngle (expressed in degrees).

Precondition:
positive_rX: rX>=0

positive_rY: rY>=0

void vtkContext2D::DrawImage ( float  x,
float  y,
vtkImageData image
)

Draw the supplied image at the given x, y location (bottom corner).

void vtkContext2D::DrawStringRect ( vtkPoints2D rect,
const vtkStdString string
)

Draw some text to the screen in a bounding rectangle with the alignment of the text properties respecting the rectangle. The points should be supplied as bottom corner (x, y), width, height.

void vtkContext2D::DrawString ( vtkPoints2D point,
const vtkStdString string
)

Draw some text to the screen.

void vtkContext2D::DrawString ( float  x,
float  y,
const vtkStdString string
)

Draw some text to the screen.

void vtkContext2D::DrawString ( vtkPoints2D point,
const char *  string
)

void vtkContext2D::DrawString ( float  x,
float  y,
const char *  string
)

void vtkContext2D::ComputeStringBounds ( const vtkStdString string,
vtkPoints2D bounds
)

Compute the bounds of the supplied string. The bounds will be copied to the supplied bounds variable, the first two elements are the bottom corner of the string, and the second two elements are the width and height of the bounding box. NOTE: This function does not take account of the text rotation.

void vtkContext2D::ComputeStringBounds ( const vtkStdString string,
float  bounds[4]
)

Compute the bounds of the supplied string. The bounds will be copied to the supplied bounds variable, the first two elements are the bottom corner of the string, and the second two elements are the width and height of the bounding box. NOTE: This function does not take account of the text rotation.

void vtkContext2D::ComputeStringBounds ( const char *  string,
float  bounds[4]
)

void vtkContext2D::ApplyPen ( vtkPen pen  )

Apply the supplied pen which controls the outlines of shapes, as well as lines, points and related primitives. This makes a deep copy of the vtkPen object in the vtkContext2D, it does not hold a pointer to the supplied object.

virtual vtkPen* vtkContext2D::GetPen (  )  [virtual]

Get the pen which controls the outlines of shapes, as well as lines, points and related primitives. This object can be modified and the changes will be reflected in subsequent drawing operations.

void vtkContext2D::ApplyBrush ( vtkBrush brush  )

Apply the supplied brush which controls the outlines of shapes, as well as lines, points and related primitives. This makes a deep copy of the vtkBrush object in the vtkContext2D, it does not hold a pointer to the supplied object.

virtual vtkBrush* vtkContext2D::GetBrush (  )  [virtual]

Get the pen which controls the outlines of shapes as well as lines, points and related primitives.

void vtkContext2D::ApplyTextProp ( vtkTextProperty prop  )

Apply the supplied text property which controls how text is rendered. This makes a deep copy of the vtkTextProperty object in the vtkContext2D, it does not hold a pointer to the supplied object.

virtual vtkTextProperty* vtkContext2D::GetTextProp (  )  [virtual]

Get the text properties object for the vtkContext2D.

void vtkContext2D::SetTransform ( vtkTransform2D transform  )

Set the transform for the context, the underlying device will use the matrix of the transform. Note, this is set immediately, later changes to the matrix will have no effect until it is set again.

virtual vtkTransform2D* vtkContext2D::GetTransform (  )  [virtual]

Set the transform for the context, the underlying device will use the matrix of the transform. Note, this is set immediately, later changes to the matrix will have no effect until it is set again.

void vtkContext2D::AppendTransform ( vtkTransform2D transform  )

Append the transform for the context, the underlying device will use the matrix of the transform. Note, this is set immediately, later changes to the matrix will have no effect until it is set again. The matrix of the transform will multiply the current context transform.

void vtkContext2D::PushMatrix (  )

Push/pop the transformation matrix for the painter (sets the underlying matrix for the device when available).

void vtkContext2D::PopMatrix (  )

Push/pop the transformation matrix for the painter (sets the underlying matrix for the device when available).

void vtkContext2D::ApplyId ( vtkIdType  id  )

Apply id as a color.


Member Data Documentation

Definition at line 282 of file vtkContext2D.h.

vtkPen* vtkContext2D::Pen [protected]

Definition at line 283 of file vtkContext2D.h.

Definition at line 284 of file vtkContext2D.h.

Definition at line 285 of file vtkContext2D.h.

Definition at line 286 of file vtkContext2D.h.

Definition at line 288 of file vtkContext2D.h.


The documentation for this class was generated from the following file:

Generated on Mon Sep 27 18:20:38 2010 for VTK by  doxygen 1.5.6
