vtkDataSetEdgeSubdivisionCriterion Class Reference

#include <vtkDataSetEdgeSubdivisionCriterion.h>

Inheritance diagram for vtkDataSetEdgeSubdivisionCriterion:

[legend]

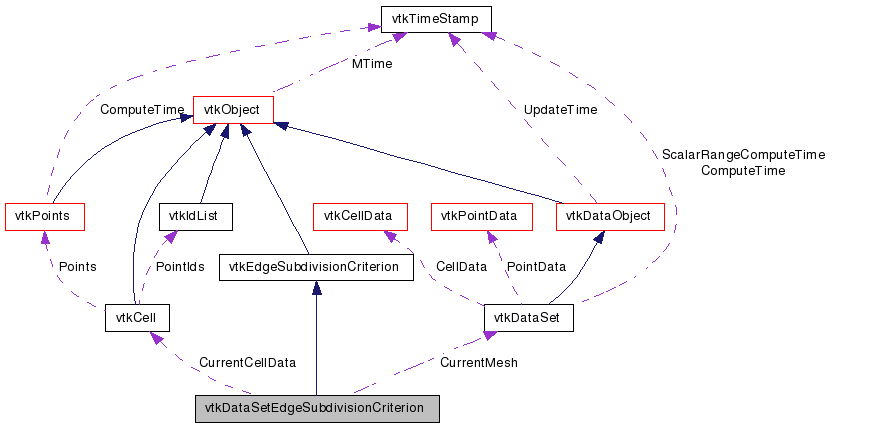

Collaboration diagram for vtkDataSetEdgeSubdivisionCriterion:

[legend]

List of all members.

Detailed Description

a subclass of vtkEdgeSubdivisionCriterion for vtkDataSet objects.

$Date$ $Revision$

This is a subclass of vtkEdgeSubdivisionCriterion that is used for tessellating cells of a vtkDataSet, particularly nonlinear cells.

It provides functions for setting the current cell being tessellated and a convenience routine, EvaluateFields() to evaluate field values at a point. You should call EvaluateFields() from inside EvaluateEdge() whenever the result of EvaluateEdge() will be true. Otherwise, do not call EvaluateFields() as the midpoint is about to be discarded. (Implementor's note: This isn't true if UGLY_ASPECT_RATIO_HACK has been defined. But in that case, we don't want the exact field values; we need the linearly interpolated ones at the midpoint for continuity.)

See also:: vtkEdgeSubdivisionCriterion

Definition at line 46 of file vtkDataSetEdgeSubdivisionCriterion.h.


Public Types
typedef vtkEdgeSubdivisionCriterion	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
virtual void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	SetMesh (vtkDataSet *)
vtkDataSet *	GetMesh ()
const vtkDataSet *	GetMesh () const
virtual void	SetCellId (vtkIdType cell)
vtkIdType	GetCellId () const
vtkIdType &	GetCellId ()
vtkCell *	GetCell ()
const vtkCell *	GetCell () const
virtual bool	EvaluateEdge (const double p0, double midpt, const double *p1, int field_start)
double *	EvaluateFields (double vertex, double weights, int field_start)
virtual void	ResetFieldError2 ()

void	EvaluatePointDataField (double result, double weights, int field)
void	EvaluateCellDataField (double result, double weights, int field)

virtual void	SetChordError2 (double)
virtual double	GetChordError2 ()

virtual void	SetFieldError2 (int s, double err)
double	GetFieldError2 (int s) const

virtual int	GetActiveFieldCriteria ()
int	GetActiveFieldCriteria () const
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkDataSetEdgeSubdivisionCriterion *	SafeDownCast (vtkObject *o)
static vtkDataSetEdgeSubdivisionCriterion *	New ()
Protected Member Functions
	vtkDataSetEdgeSubdivisionCriterion ()
virtual	~vtkDataSetEdgeSubdivisionCriterion ()
Protected Attributes
vtkDataSet *	CurrentMesh
vtkIdType	CurrentCellId
vtkCell *	CurrentCellData
double	ChordError2
double *	FieldError2
int	FieldError2Length
int	FieldError2Capacity
int	ActiveFieldCriteria

Member Typedef Documentation

typedef vtkEdgeSubdivisionCriterion vtkDataSetEdgeSubdivisionCriterion::Superclass

Reimplemented from vtkEdgeSubdivisionCriterion.

Definition at line 49 of file vtkDataSetEdgeSubdivisionCriterion.h.

Constructor & Destructor Documentation

vtkDataSetEdgeSubdivisionCriterion::vtkDataSetEdgeSubdivisionCriterion ( ) [protected]

virtual vtkDataSetEdgeSubdivisionCriterion::~vtkDataSetEdgeSubdivisionCriterion ( ) [protected, virtual]

Member Function Documentation

virtual const char* vtkDataSetEdgeSubdivisionCriterion::GetClassName ( ) [virtual]

Reimplemented from vtkEdgeSubdivisionCriterion.

static int vtkDataSetEdgeSubdivisionCriterion::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkEdgeSubdivisionCriterion.

virtual int vtkDataSetEdgeSubdivisionCriterion::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkEdgeSubdivisionCriterion.

static vtkDataSetEdgeSubdivisionCriterion* vtkDataSetEdgeSubdivisionCriterion::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkEdgeSubdivisionCriterion.

static vtkDataSetEdgeSubdivisionCriterion* vtkDataSetEdgeSubdivisionCriterion::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual void vtkDataSetEdgeSubdivisionCriterion::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkEdgeSubdivisionCriterion.

virtual void vtkDataSetEdgeSubdivisionCriterion::SetMesh ( vtkDataSet * ) [virtual]

vtkDataSet * vtkDataSetEdgeSubdivisionCriterion::GetMesh ( ) [inline]

Definition at line 164 of file vtkDataSetEdgeSubdivisionCriterion.h.

const vtkDataSet * vtkDataSetEdgeSubdivisionCriterion::GetMesh ( ) const [inline]

Definition at line 165 of file vtkDataSetEdgeSubdivisionCriterion.h.

virtual void vtkDataSetEdgeSubdivisionCriterion::SetCellId ( vtkIdType cell ) [virtual]

vtkIdType vtkDataSetEdgeSubdivisionCriterion::GetCellId ( ) const [inline]

Definition at line 162 of file vtkDataSetEdgeSubdivisionCriterion.h.

vtkIdType & vtkDataSetEdgeSubdivisionCriterion::GetCellId ( ) [inline]

Definition at line 161 of file vtkDataSetEdgeSubdivisionCriterion.h.

vtkCell * vtkDataSetEdgeSubdivisionCriterion::GetCell ( ) [inline]

Definition at line 167 of file vtkDataSetEdgeSubdivisionCriterion.h.

const vtkCell * vtkDataSetEdgeSubdivisionCriterion::GetCell ( ) const [inline]

Definition at line 168 of file vtkDataSetEdgeSubdivisionCriterion.h.

virtual bool vtkDataSetEdgeSubdivisionCriterion::EvaluateEdge	(	const double *	p0,
		double *	p1,
		const double *	p2,
		int	field_start
	)			`[virtual]`

You must implement this member function in a subclass. It will be called by vtkStreamingTessellator for each edge in each primitive that vtkStreamingTessellator generates.

Implements vtkEdgeSubdivisionCriterion.

double* vtkDataSetEdgeSubdivisionCriterion::EvaluateFields	(	double *	vertex,
		double *	weights,
		int	field_start
	)

Evaluate all of the fields that should be output with the given vertex and store them just past the parametric coordinates of vertex, at the offsets given by vtkEdgeSubdivisionCriterion::GetFieldOffsets() plus field_start. field_start contains the number of world-space coordinates (always 3) plus the embedding dimension (the size of the parameter-space in which the cell is embedded). It will range between 3 and 6, inclusive. You must have called SetCellId() before calling this routine or there will not be a mesh over which to evaluate the fields. You must have called vtkEdgeSubdivisionCriterion::PassDefaultFields() or vtkEdgeSubdivisionCriterion::PassField() or there will be no fields defined for the output vertex. This routine is public and returns its input argument so that it may be used as an argument to vtkStreamingTessellator::AdaptivelySamplekFacet():

	vtkStreamingTessellator* t = vtkStreamingTessellator::New();
	vtkEdgeSubdivisionCriterion* s; ... t->AdaptivelySample1Facet(
	s->EvaluateFields( p0 ), s->EvaluateFields( p1 ) ); ...

Although this will work, using EvaluateFields() in this manner should be avoided. It's much more efficient to fetch the corner values for each attribute and copy them into p0, p1, ... as opposed to performing shape function evaluations. The only case where you wouldn't want to do this is when the field you are interpolating is discontinuous at cell borders, such as with a discontinuous galerkin method or when all the Gauss points for quadrature are interior to the cell. The final argument, weights, is the array of weights to apply to each point's data when interpolating the field. This is returned by vtkCell::EvaluateLocation() when evaluating the geometry.

void vtkDataSetEdgeSubdivisionCriterion::EvaluatePointDataField	(	double *	result,
		double *	weights,
		int	field
	)

Evaluate either a cell or nodal field. This exists because of the funky way that Exodus data will be handled. Sure, it's a hack, but what are ya gonna do?

void vtkDataSetEdgeSubdivisionCriterion::EvaluateCellDataField	(	double *	result,
		double *	weights,
		int	field
	)

Evaluate either a cell or nodal field. This exists because of the funky way that Exodus data will be handled. Sure, it's a hack, but what are ya gonna do?

virtual void vtkDataSetEdgeSubdivisionCriterion::SetChordError2 ( double ) [virtual]

Get/Set the square of the allowable chord error at any edge's midpoint. This value is used by EvaluateEdge.

virtual double vtkDataSetEdgeSubdivisionCriterion::GetChordError2 ( ) [virtual]

Get/Set the square of the allowable chord error at any edge's midpoint. This value is used by EvaluateEdge.

virtual void vtkDataSetEdgeSubdivisionCriterion::SetFieldError2	(	int	s,
		double	err
	)			`[virtual]`

Get/Set the square of the allowable error magnitude for the scalar field s at any edge's midpoint. A value less than or equal to 0 indicates that the field should not be used as a criterion for subdivision.

double vtkDataSetEdgeSubdivisionCriterion::GetFieldError2 ( int s ) const

Get/Set the square of the allowable error magnitude for the scalar field s at any edge's midpoint. A value less than or equal to 0 indicates that the field should not be used as a criterion for subdivision.

virtual void vtkDataSetEdgeSubdivisionCriterion::ResetFieldError2 ( ) [virtual]

Tell the subdivider not to use any field values as subdivision criteria. Effectively calls SetFieldError2( a, -1. ) for all fields.

virtual int vtkDataSetEdgeSubdivisionCriterion::GetActiveFieldCriteria ( ) [virtual]

Return a bitfield specifying which FieldError2 criteria are positive (i.e., actively used to decide edge subdivisions). This is stored as separate state to make subdivisions go faster.

int vtkDataSetEdgeSubdivisionCriterion::GetActiveFieldCriteria ( ) const [inline]

Return a bitfield specifying which FieldError2 criteria are positive (i.e., actively used to decide edge subdivisions). This is stored as separate state to make subdivisions go faster.

Definition at line 136 of file vtkDataSetEdgeSubdivisionCriterion.h.
