vtkDistributedDataFilter Class Reference

#include <vtkDistributedDataFilter.h>

Inheritance diagram for vtkDistributedDataFilter:

Inheritance graph
[legend]

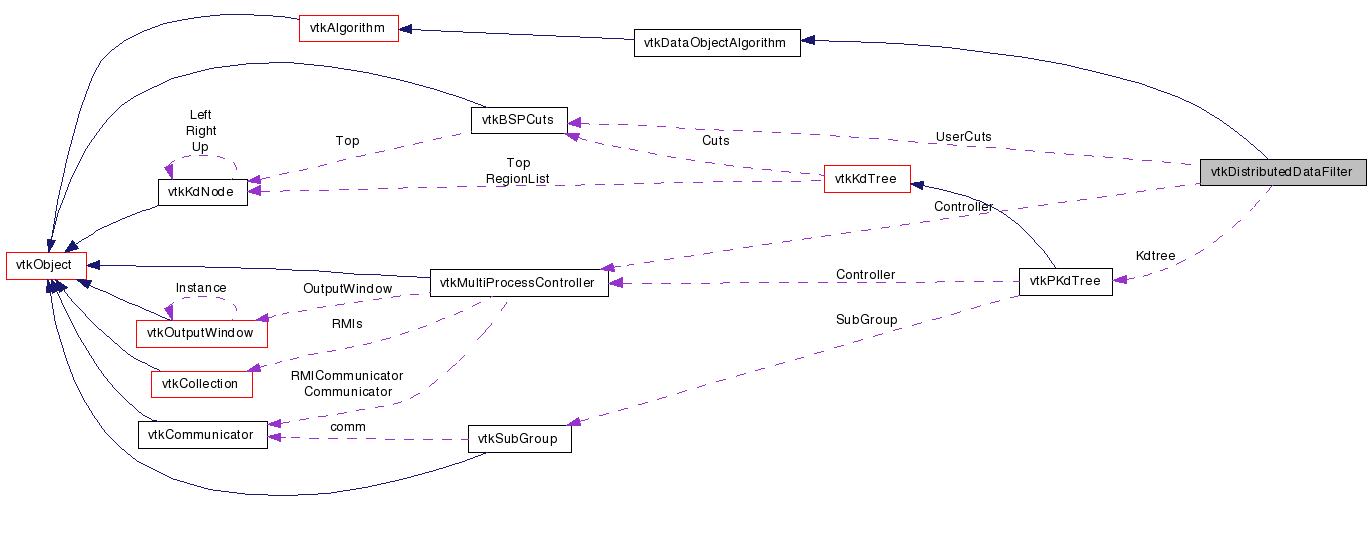

Collaboration diagram for vtkDistributedDataFilter:

Collaboration graph
[legend]

List of all members.


Detailed Description

Distribute data among processors.

This filter redistributes data among processors in a parallel application into spatially contiguous vtkUnstructuredGrids. The execution model anticipated is that all processes read in part of a large vtkDataSet. Each process sets the input of filter to be that DataSet. When executed, this filter builds in parallel a k-d tree, decomposing the space occupied by the distributed DataSet into spatial regions. It assigns each spatial region to a processor. The data is then redistributed and the output is a single vtkUnstructuredGrid containing the cells in the process' assigned regions.

This filter is sometimes called "D3" for "distributed data decomposition".

Enhancement: You can set the k-d tree decomposition, rather than have D3 compute it. This allows you to divide a dataset using the decomposition computed for another dataset. Obtain a description of the k-d tree cuts this way:

vtkBSPCuts *cuts = D3Object1->GetCuts()

And set it this way:

D3Object2->SetCuts(cuts)

It is desirable to have a field array of global node IDs for two reasons:

1. When merging together sub grids that were distributed across processors, global node IDs can be used to remove duplicate points and significantly reduce the size of the resulting output grid. If no such array is available, D3 will use a tolerance to merge points, which is much slower.

2. If ghost cells have been requested, D3 requires a global node ID array in order to request and transfer ghost cells in parallel among the processors. If there is no global node ID array, D3 will in parallel create a global node ID array, and the time to do this can be significant.

If you know the name of a global node ID array in the input dataset, set that name with this method. If you leave it unset, D3 will search the input data set for certain common names of global node ID arrays. If none is found, and ghost cells have been requested, D3 will create a temporary global node ID array before aquiring ghost cells. It is also desirable to have global element IDs. However, if they don't exist D3 can create them relatively quickly. Set the name of the global element ID array if you have it. If it is not set, D3 will search for it using common names. If still not found, D3 will create a temporary array of global element IDs.

Warning:
The Execute() method must be called by all processes in the parallel application, or it will hang. If you are not certain that your pipeline will execute identically on all processors, you may want to use this filter in an explicit execution mode.
See also:
vtkKdTree vtkPKdTree vtkBSPCuts
Tests:
vtkDistributedDataFilter (Tests)

Definition at line 108 of file vtkDistributedDataFilter.h.


Public Types

enum  BoundaryModes { ASSIGN_TO_ONE_REGION = 0, ASSIGN_TO_ALL_INTERSECTING_REGIONS = 1, SPLIT_BOUNDARY_CELLS = 2 }

Public Member Functions

void PrintSelf (ostream &os, vtkIndent indent)
vtkPKdTreeGetKdtree ()
virtual void RetainKdtreeOn ()
virtual void RetainKdtreeOff ()
virtual int GetRetainKdtree ()
virtual void SetRetainKdtree (int)
virtual void IncludeAllIntersectingCellsOn ()
virtual void IncludeAllIntersectingCellsOff ()
virtual int GetIncludeAllIntersectingCells ()
virtual void SetIncludeAllIntersectingCells (int)
virtual void ClipCellsOn ()
virtual void ClipCellsOff ()
virtual int GetClipCells ()
virtual void SetClipCells (int)
virtual int RequestUpdateExtent (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual void UseMinimalMemoryOn ()
virtual void UseMinimalMemoryOff ()
virtual int GetUseMinimalMemory ()
virtual void SetUseMinimalMemory (int)
virtual void TimingOn ()
virtual void TimingOff ()
virtual void SetTiming (int)
virtual int GetTiming ()
void SetUserRegionAssignments (const int *map, int numRegions)
void SetController (vtkMultiProcessController *c)
virtual vtkMultiProcessControllerGetController ()
void SetBoundaryMode (int mode)
void SetBoundaryModeToAssignToOneRegion ()
void SetBoundaryModeToAssignToAllIntersectingRegions ()
void SetBoundaryModeToSplitBoundaryCells ()
int GetBoundaryMode ()
vtkBSPCutsGetCuts ()
void SetCuts (vtkBSPCuts *cuts)

Static Public Member Functions

static vtkDistributedDataFilterNew ()

Protected Member Functions

 vtkDistributedDataFilter ()
 ~vtkDistributedDataFilter ()
void AssignBoundaryCellsToOneRegionOn ()
void AssignBoundaryCellsToOneRegionOff ()
void SetAssignBoundaryCellsToOneRegion (int val)
void AssignBoundaryCellsToAllIntersectingRegionsOn ()
void AssignBoundaryCellsToAllIntersectingRegionsOff ()
void SetAssignBoundaryCellsToAllIntersectingRegions (int val)
void DivideBoundaryCellsOn ()
void DivideBoundaryCellsOff ()
void SetDivideBoundaryCells (int val)
virtual int RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
void SingleProcessExecute (vtkDataSet *input, vtkUnstructuredGrid *output)
virtual int RequestInformation (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int FillInputPortInformation (int port, vtkInformation *info)
int RequestDataInternal (vtkDataSet *input, vtkUnstructuredGrid *output)
virtual int RequestDataObject (vtkInformation *, vtkInformationVector **, vtkInformationVector *)

Member Enumeration Documentation

Enumerator:
ASSIGN_TO_ONE_REGION
ASSIGN_TO_ALL_INTERSECTING_REGIONS
SPLIT_BOUNDARY_CELLS

Definition at line 173 of file vtkDistributedDataFilter.h.


Constructor & Destructor Documentation

vtkDistributedDataFilter::vtkDistributedDataFilter (  )  [protected]

vtkDistributedDataFilter::~vtkDistributedDataFilter (  )  [protected]


Member Function Documentation

void vtkDistributedDataFilter::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkDataObjectAlgorithm.

static vtkDistributedDataFilter* vtkDistributedDataFilter::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkDataObjectAlgorithm.

void vtkDistributedDataFilter::SetController ( vtkMultiProcessController c  )

Set/Get the communicator object

virtual vtkMultiProcessController* vtkDistributedDataFilter::GetController (  )  [virtual]

Set/Get the communicator object

vtkPKdTree* vtkDistributedDataFilter::GetKdtree (  )

Get a pointer to the parallel k-d tree object. Required for changing default behavior for region assignment, changing default depth of tree, or other tree building default parameters. See vtkPKdTree and vtkKdTree for more information about these options. NOTE: Changing the tree returned by this method does NOT change the d3 filter. Make sure to call Modified() on the d3 object if you want it to re-execute.

virtual void vtkDistributedDataFilter::RetainKdtreeOn (  )  [virtual]

When this filter executes, it creates a vtkPKdTree (K-d tree) data structure in parallel which divides the total distributed data set into spatial regions. The K-d tree object also creates tables describing which processes have data for which regions. Only then does this filter redistribute the data according to the region assignment scheme. By default, the K-d tree structure and it's associated tables are deleted after the filter executes. If you anticipate changing only the region assignment scheme (input is unchanged) and explicitly re-executing, then RetainKdTreeOn, and the K-d tree structure and tables will be saved. Then, when you re-execute, this filter will skip the k-d tree build phase and go straight to redistributing the data according to region assignment. See vtkPKdTree for more information about region assignment.

virtual void vtkDistributedDataFilter::RetainKdtreeOff (  )  [virtual]

virtual int vtkDistributedDataFilter::GetRetainKdtree (  )  [virtual]

virtual void vtkDistributedDataFilter::SetRetainKdtree ( int   )  [virtual]

virtual void vtkDistributedDataFilter::IncludeAllIntersectingCellsOn (  )  [virtual]

Each cell in the data set is associated with one of the spatial regions of the k-d tree decomposition. In particular, the cell belongs to the region that it's centroid lies in. When the new vtkUnstructuredGrid is created, by default it is composed of the cells associated with the region(s) assigned to this process. If you also want it to contain cells that intersect these regions, but have their centroid elsewhere, then set this variable on. By default it is off.

virtual void vtkDistributedDataFilter::IncludeAllIntersectingCellsOff (  )  [virtual]

virtual int vtkDistributedDataFilter::GetIncludeAllIntersectingCells (  )  [virtual]

virtual void vtkDistributedDataFilter::SetIncludeAllIntersectingCells ( int   )  [virtual]

virtual void vtkDistributedDataFilter::ClipCellsOn (  )  [virtual]

Set this variable if you want the cells of the output vtkUnstructuredGrid to be clipped to the spatial region boundaries. By default this is off.

virtual void vtkDistributedDataFilter::ClipCellsOff (  )  [virtual]

virtual int vtkDistributedDataFilter::GetClipCells (  )  [virtual]

virtual void vtkDistributedDataFilter::SetClipCells ( int   )  [virtual]

void vtkDistributedDataFilter::SetBoundaryMode ( int  mode  )

Handling of ClipCells and IncludeAllIntersectingCells.

void vtkDistributedDataFilter::SetBoundaryModeToAssignToOneRegion (  )  [inline]

Handling of ClipCells and IncludeAllIntersectingCells.

Definition at line 183 of file vtkDistributedDataFilter.h.

void vtkDistributedDataFilter::SetBoundaryModeToAssignToAllIntersectingRegions (  )  [inline]

Handling of ClipCells and IncludeAllIntersectingCells.

Definition at line 185 of file vtkDistributedDataFilter.h.

void vtkDistributedDataFilter::SetBoundaryModeToSplitBoundaryCells (  )  [inline]

Handling of ClipCells and IncludeAllIntersectingCells.

Definition at line 189 of file vtkDistributedDataFilter.h.

int vtkDistributedDataFilter::GetBoundaryMode (  )

Handling of ClipCells and IncludeAllIntersectingCells.

virtual int vtkDistributedDataFilter::RequestUpdateExtent ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [virtual]

Ensure previous filters don't send up ghost cells

Reimplemented from vtkDataObjectAlgorithm.

virtual void vtkDistributedDataFilter::UseMinimalMemoryOn (  )  [virtual]

This class does a great deal of all-to-all communication when exchanging portions of data sets and building new sub grids. By default it will do fast communication. It can instead use communication routines that use the least possible amount of memory, but these are slower. Set this option ON to choose these latter routines.

virtual void vtkDistributedDataFilter::UseMinimalMemoryOff (  )  [virtual]

virtual int vtkDistributedDataFilter::GetUseMinimalMemory (  )  [virtual]

virtual void vtkDistributedDataFilter::SetUseMinimalMemory ( int   )  [virtual]

virtual void vtkDistributedDataFilter::TimingOn (  )  [virtual]

Turn on collection of timing data

virtual void vtkDistributedDataFilter::TimingOff (  )  [virtual]

virtual void vtkDistributedDataFilter::SetTiming ( int   )  [virtual]

virtual int vtkDistributedDataFilter::GetTiming (  )  [virtual]

vtkBSPCuts* vtkDistributedDataFilter::GetCuts (  )  [inline]

You can set the k-d tree decomposition, rather than have D3 compute it. This allows you to divide a dataset using the decomposition computed for another dataset. Obtain a description of the k-d tree cuts this way: vtkBSPCuts *cuts = D3Object1->GetCuts() And set it this way: D3Object2->SetCuts(cuts)

Definition at line 221 of file vtkDistributedDataFilter.h.

void vtkDistributedDataFilter::SetCuts ( vtkBSPCuts cuts  )

You can set the k-d tree decomposition, rather than have D3 compute it. This allows you to divide a dataset using the decomposition computed for another dataset. Obtain a description of the k-d tree cuts this way: vtkBSPCuts *cuts = D3Object1->GetCuts() And set it this way: D3Object2->SetCuts(cuts)

void vtkDistributedDataFilter::SetUserRegionAssignments ( const int *  map,
int  numRegions
)

vtkBSPCuts doesn't have information about process assignments for the cuts. Typically D3 filter simply reassigns the processes for each cut. However, that may not always work, sometimes the processes have be pre-assigned and we want to preserve that partitioning. In that case, one sets the region assignments explicitly. Look at vtkPKdTree::AssignRegions for details about the arguments. Calling SetUserRegionAssignments(NULL, 0) will revert to default behavior i.e. letting the KdTree come up with the assignments.

void vtkDistributedDataFilter::AssignBoundaryCellsToOneRegionOn (  )  [protected]

Another way to set ClipCells and IncludeAllIntersectingCells. AssignBoundaryCellsToOneRegion turns off both ClipCells and IncludeAllIntersectingCells. Each cell will be included in exactly one process' output unstructured grid.

void vtkDistributedDataFilter::AssignBoundaryCellsToOneRegionOff (  )  [protected]

void vtkDistributedDataFilter::SetAssignBoundaryCellsToOneRegion ( int  val  )  [protected]

void vtkDistributedDataFilter::AssignBoundaryCellsToAllIntersectingRegionsOn (  )  [protected]

Another way to set ClipCells and IncludeAllIntersectingCells. AssignBoundaryCellsToAllIntersectingRegions turns off ClipCells turns on IncludeAllIntersectingCells. A cell will be included in the output unstructured grid built for every region that it intersects. If a cell intersects two process' spatial regions, both processes will have that cell in their output grid.

void vtkDistributedDataFilter::AssignBoundaryCellsToAllIntersectingRegionsOff (  )  [protected]

void vtkDistributedDataFilter::SetAssignBoundaryCellsToAllIntersectingRegions ( int  val  )  [protected]

void vtkDistributedDataFilter::DivideBoundaryCellsOn (  )  [protected]

Another way to set ClipCells and IncludeAllIntersectingCells. DivideBoundaryCells turns on both ClipCells and IncludeAllIntersectingCells. A cell that straddles a processor boundary will be split along the boundary, with each process getting the portion of the cell that lies in it's spatial region.

void vtkDistributedDataFilter::DivideBoundaryCellsOff (  )  [protected]

void vtkDistributedDataFilter::SetDivideBoundaryCells ( int  val  )  [protected]

virtual int vtkDistributedDataFilter::RequestData ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [protected, virtual]

Build a vtkUnstructuredGrid for a spatial region from the data distributed across processes. Execute() must be called by all processes, or it will hang.

Reimplemented from vtkDataObjectAlgorithm.

void vtkDistributedDataFilter::SingleProcessExecute ( vtkDataSet input,
vtkUnstructuredGrid output
) [protected]

virtual int vtkDistributedDataFilter::RequestInformation ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [protected, virtual]

Reimplemented from vtkDataObjectAlgorithm.

virtual int vtkDistributedDataFilter::FillInputPortInformation ( int  port,
vtkInformation info
) [protected, virtual]

Fill the input port information objects for this algorithm. This is invoked by the first call to GetInputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkDataObjectAlgorithm.

virtual int vtkDistributedDataFilter::RequestDataObject ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [protected, virtual]

Overridden to create the correct type of data output. If input is dataset, output is vtkUnstructuredGrid. If input is composite dataset, output is vtkMultiBlockDataSet.

Reimplemented from vtkDataObjectAlgorithm.

int vtkDistributedDataFilter::RequestDataInternal ( vtkDataSet input,
vtkUnstructuredGrid output
) [protected]

Implementation for request data.


The documentation for this class was generated from the following file:
