vtkFieldData Class Reference

#include <vtkFieldData.h>

Inheritance diagram for vtkFieldData:

Inheritance graph
[legend]

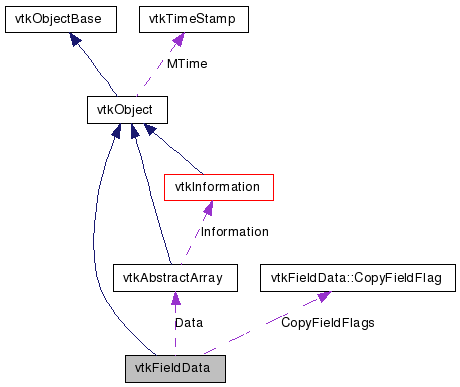

Collaboration diagram for vtkFieldData:

Collaboration graph
[legend]

List of all members.


Detailed Description

represent and manipulate fields of data

vtkFieldData represents and manipulates fields of data. The model of a field is a m x n matrix of data values, where m is the number of tuples, and n is the number of components. (A tuple is a row of n components in the matrix.) The field is assumed to be composed of a set of one or more data arrays, where the data in the arrays are of different types (e.g., int, double, char, etc.), and there may be variable numbers of components in each array. Note that each data array is assumed to be "m" in length (i.e., number of tuples), which typically corresponds to the number of points or cells in a dataset. Also, each data array must have a character-string name. (This is used to manipulate data.)

There are two ways of manipulating and interfacing to fields. You can do it generically by manipulating components/tuples via a double-type data exchange, or you can do it by grabbing the arrays and manipulating them directly. The former is simpler but performs type conversion, which is bad if your data has non-castable types like (void) pointers, or you lose information as a result of the cast. The, more efficient method means managing each array in the field. Using this method you can create faster, more efficient algorithms that do not lose information.

See also:
vtkAbstractArray vtkDataSetAttributes vtkPointData vtkCellData
Tests:
vtkFieldData (Tests)

Definition at line 58 of file vtkFieldData.h.


Public Types

typedef vtkObject Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void Initialize ()
int Allocate (const vtkIdType sz, const vtkIdType ext=1000)
void CopyStructure (vtkFieldData *)
void AllocateArrays (int num)
int AddArray (vtkAbstractArray *array)
vtkDataArrayGetArray (int i)
vtkDataArrayGetArray (const char *arrayName, int &index)
vtkAbstractArrayGetAbstractArray (int i)
vtkAbstractArrayGetAbstractArray (const char *arrayName, int &index)
virtual void PassData (vtkFieldData *fd)
virtual void CopyAllOn (int unused=0)
virtual void CopyAllOff (int unused=0)
virtual void DeepCopy (vtkFieldData *da)
virtual void ShallowCopy (vtkFieldData *da)
void Squeeze ()
void Reset ()
virtual unsigned long GetActualMemorySize ()
unsigned long int GetMTime ()
void GetField (vtkIdList *ptId, vtkFieldData *f)
int GetArrayContainingComponent (int i, int &arrayComp)
int GetNumberOfComponents ()
vtkIdType GetNumberOfTuples ()
void SetNumberOfTuples (const vtkIdType number)
void SetTuple (const vtkIdType i, const vtkIdType j, vtkFieldData *source)
void InsertTuple (const vtkIdType i, const vtkIdType j, vtkFieldData *source)
vtkIdType InsertNextTuple (const vtkIdType j, vtkFieldData *source)
double * GetTuple (const vtkIdType i)
void GetTuple (const vtkIdType i, double *tuple)
void SetTuple (const vtkIdType i, const double *tuple)
void InsertTuple (const vtkIdType i, const double *tuple)
vtkIdType InsertNextTuple (const double *tuple)
double GetComponent (const vtkIdType i, const int j)
void SetComponent (const vtkIdType i, const int j, const double c)
void InsertComponent (const vtkIdType i, const int j, const double c)
int GetNumberOfArrays ()
virtual void RemoveArray (const char *name)
vtkDataArrayGetArray (const char *arrayName)
vtkAbstractArrayGetAbstractArray (const char *arrayName)
int HasArray (const char *name)
const char * GetArrayName (int i)
void CopyFieldOn (const char *name)
void CopyFieldOff (const char *name)

Static Public Member Functions

static vtkFieldDataNew ()
static int IsTypeOf (const char *type)
static vtkFieldDataSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkFieldData ()
 ~vtkFieldData ()
void SetArray (int i, vtkAbstractArray *array)
virtual void RemoveArray (int index)
virtual void InitializeFields ()
void CopyFieldOnOff (const char *name, int onOff)
void ClearFieldFlags ()
int FindFlag (const char *field)
int GetFlag (const char *field)
void CopyFlags (const vtkFieldData *source)

Protected Attributes

int NumberOfArrays
int NumberOfActiveArrays
vtkAbstractArray ** Data
CopyFieldFlagCopyFieldFlags
int NumberOfFieldFlags
int DoCopyAllOn
int DoCopyAllOff

Classes

class  BasicIterator
struct  CopyFieldFlag
class  Iterator

Member Typedef Documentation

Reimplemented from vtkObject.

Reimplemented in vtkCellData, vtkDataSetAttributes, and vtkPointData.

Definition at line 63 of file vtkFieldData.h.


Constructor & Destructor Documentation

vtkFieldData::vtkFieldData (  )  [protected]

vtkFieldData::~vtkFieldData (  )  [protected]


Member Function Documentation

static vtkFieldData* vtkFieldData::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

Reimplemented in vtkCellData, vtkDataSetAttributes, and vtkPointData.

virtual const char* vtkFieldData::GetClassName (  )  [virtual]

Reimplemented from vtkObject.

Reimplemented in vtkCellData, vtkDataSetAttributes, and vtkPointData.

static int vtkFieldData::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

Reimplemented in vtkCellData, vtkDataSetAttributes, and vtkPointData.

virtual int vtkFieldData::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

Reimplemented in vtkCellData, vtkDataSetAttributes, and vtkPointData.

static vtkFieldData* vtkFieldData::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkObject.

Reimplemented in vtkCellData, vtkDataSetAttributes, and vtkPointData.

void vtkFieldData::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkObject.

Reimplemented in vtkCellData, vtkDataSetAttributes, and vtkPointData.

virtual void vtkFieldData::Initialize (  )  [virtual]

Release all data but do not delete object. Also, clear the copy flags.

Reimplemented in vtkDataSetAttributes.

int vtkFieldData::Allocate ( const vtkIdType  sz,
const vtkIdType  ext = 1000
)

Allocate data for each array. Note that ext is no longer used.

void vtkFieldData::CopyStructure ( vtkFieldData  )

Copy data array structure from a given field. The same arrays will exist with the same types, but will contain nothing in the copy.

void vtkFieldData::AllocateArrays ( int  num  )

AllocateOfArrays actually sets the number of vtkAbstractArray pointers in the vtkFieldData object, not the number of used pointers (arrays). Adding more arrays will cause the object to dynamically adjust the number of pointers if it needs to extend. Although AllocateArrays can be used if the number of arrays which will be added is known, it can be omitted with a small computation cost.

int vtkFieldData::GetNumberOfArrays (  )  [inline]

Get the number of arrays of data available. This does not include NULL array pointers therefore after fd->AllocateArray(n); nArrays = GetNumberOfArrays() nArrays is not necessarily equal to n.

Definition at line 89 of file vtkFieldData.h.

int vtkFieldData::AddArray ( vtkAbstractArray array  )

Add an array to the array list. If an array with the same name already exists - then the added array will replace it.

virtual void vtkFieldData::RemoveArray ( const char *  name  )  [inline, virtual]

Remove an array (with the given name) from the list of arrays.

Reimplemented in vtkDataSetAttributes.

Definition at line 101 of file vtkFieldData.h.

vtkDataArray* vtkFieldData::GetArray ( int  i  )

Return the ith array in the field. A NULL is returned if the index i is out of range. A NULL is returned if the array at the given index is not a vtkDataArray.

vtkDataArray* vtkFieldData::GetArray ( const char *  arrayName,
int &  index
)

Return the array with the name given. Returns NULL is array not found. A NULL is also returned if the array with the given name is not a vtkDataArray. Also returns index of array if found, -1 otherwise.

vtkDataArray* vtkFieldData::GetArray ( const char *  arrayName  )  [inline]

Return the array with the name given. Returns NULL is array not found. A NULL is also returned if the array with the given name is not a vtkDataArray.

Definition at line 124 of file vtkFieldData.h.

vtkAbstractArray* vtkFieldData::GetAbstractArray ( int  i  )

Returns the ith array in the field. Unlike GetArray(), this method returns a vtkAbstractArray. A NULL is returned only if the index i is out of range.

vtkAbstractArray* vtkFieldData::GetAbstractArray ( const char *  arrayName,
int &  index
)

Return the array with the name given. Returns NULL is array not found. Unlike GetArray(), this method returns a vtkAbstractArray. Also returns index of array if found, -1 otherwise.

vtkAbstractArray* vtkFieldData::GetAbstractArray ( const char *  arrayName  )  [inline]

Return the array with the name given. Returns NULL is array not found. Unlike GetArray(), this method returns a vtkAbstractArray.

Definition at line 144 of file vtkFieldData.h.

int vtkFieldData::HasArray ( const char *  name  )  [inline]

Return 1 if an array with the given name could be found. 0 otherwise.

Definition at line 153 of file vtkFieldData.h.

const char* vtkFieldData::GetArrayName ( int  i  )  [inline]

Get the name of ith array. Note that this is equivalent to: GetAbstractArray(i)->GetName() if ith array pointer is not NULL

Definition at line 165 of file vtkFieldData.h.

virtual void vtkFieldData::PassData ( vtkFieldData fd  )  [virtual]

Pass entire arrays of input data through to output. Obey the "copy" flags.

Reimplemented in vtkDataSetAttributes.

void vtkFieldData::CopyFieldOn ( const char *  name  )  [inline]

Turn on/off the copying of the field specified by name. During the copying/passing, the following rules are followed for each array: 1. If the copy flag for an array is set (on or off), it is applied This overrides rule 2. 2. If CopyAllOn is set, copy the array. If CopyAllOff is set, do not copy the array

Definition at line 182 of file vtkFieldData.h.

void vtkFieldData::CopyFieldOff ( const char *  name  )  [inline]

Turn on/off the copying of the field specified by name. During the copying/passing, the following rules are followed for each array: 1. If the copy flag for an array is set (on or off), it is applied This overrides rule 2. 2. If CopyAllOn is set, copy the array. If CopyAllOff is set, do not copy the array

Definition at line 183 of file vtkFieldData.h.

virtual void vtkFieldData::CopyAllOn ( int  unused = 0  )  [virtual]

Turn on copying of all data. During the copying/passing, the following rules are followed for each array: 1. If the copy flag for an array is set (on or off), it is applied This overrides rule 2. 2. If CopyAllOn is set, copy the array. If CopyAllOff is set, do not copy the array

Reimplemented in vtkDataSetAttributes.

virtual void vtkFieldData::CopyAllOff ( int  unused = 0  )  [virtual]

Turn off copying of all data. During the copying/passing, the following rules are followed for each array: 1. If the copy flag for an array is set (on or off), it is applied This overrides rule 2. 2. If CopyAllOn is set, copy the array. If CopyAllOff is set, do not copy the array

Reimplemented in vtkDataSetAttributes.

virtual void vtkFieldData::DeepCopy ( vtkFieldData da  )  [virtual]

Copy a field by creating new data arrays (i.e., duplicate storage).

Reimplemented in vtkDataSetAttributes.

virtual void vtkFieldData::ShallowCopy ( vtkFieldData da  )  [virtual]

Copy a field by reference counting the data arrays.

Reimplemented in vtkDataSetAttributes.

void vtkFieldData::Squeeze (  )

Squeezes each data array in the field (Squeeze() reclaims unused memory.)

void vtkFieldData::Reset (  )

Resets each data array in the field (Reset() does not release memory but it makes the arrays look like they are empty.)

virtual unsigned long vtkFieldData::GetActualMemorySize (  )  [virtual]

Return the memory in kilobytes consumed by this field data. Used to support streaming and reading/writing data. The value returned is guaranteed to be greater than or equal to the memory required to actually represent the data represented by this object.

unsigned long int vtkFieldData::GetMTime (  )  [virtual]

Check object's components for modified times.

Reimplemented from vtkObject.

void vtkFieldData::GetField ( vtkIdList ptId,
vtkFieldData f
)

Get a field from a list of ids. Supplied field f should have same types and number of data arrays as this one (i.e., like CopyStructure() creates). This method should not be used if the instance is from a subclass of vtkFieldData (vtkPointData or vtkCellData). This is because in those cases, the attribute data is stored with the other fields and will cause the method to behave in an unexpected way.

int vtkFieldData::GetArrayContainingComponent ( int  i,
int &  arrayComp
)

Return the array containing the ith component of the field. The return value is an integer number n 0<=n<this->NumberOfArrays. Also, an integer value is returned indicating the component in the array is returned. Method returns -1 if specified component is not in the field.

int vtkFieldData::GetNumberOfComponents (  )

Get the number of components in the field. This is determined by adding up the components in each non-NULL array. This method should not be used if the instance is from a subclass of vtkFieldData (vtkPointData or vtkCellData). This is because in those cases, the attribute data is stored with the other fields and will cause the method to behave in an unexpected way.

vtkIdType vtkFieldData::GetNumberOfTuples (  )

Get the number of tuples in the field. Note: some fields have arrays with different numbers of tuples; this method returns the number of tuples in the first array. Mixed-length arrays may have to be treated specially. This method should not be used if the instance is from a subclass of vtkFieldData (vtkPointData or vtkCellData). This is because in those cases, the attribute data is stored with the other fields and will cause the method to behave in an unexpected way.

void vtkFieldData::SetNumberOfTuples ( const vtkIdType  number  )

Set the number of tuples for each data array in the field. This method should not be used if the instance is from a subclass of vtkFieldData (vtkPointData or vtkCellData). This is because in those cases, the attribute data is stored with the other fields and will cause the method to behave in an unexpected way.

void vtkFieldData::SetTuple ( const vtkIdType  i,
const vtkIdType  j,
vtkFieldData source
)

Set the jth tuple in source field data at the ith location. Set operations mean that no range checking is performed, so they're faster.

void vtkFieldData::InsertTuple ( const vtkIdType  i,
const vtkIdType  j,
vtkFieldData source
)

Insert the jth tuple in source field data at the ith location. Range checking is performed and memory allocates as necessary.

vtkIdType vtkFieldData::InsertNextTuple ( const vtkIdType  j,
vtkFieldData source
)

Insert the jth tuple in source field data at the end of the tuple matrix. Range checking is performed and memory is allocated as necessary.

double* vtkFieldData::GetTuple ( const vtkIdType  i  )

Return a tuple consisting of a concatenation of all data from all the different arrays. Note that everything is converted to and from double values.

Deprecated:
as of VTK 5.2. Using this method for FieldData having arrays that are not subclasses of vtkDataArray may yield unexpected results.

void vtkFieldData::GetTuple ( const vtkIdType  i,
double *  tuple
)

Copy the ith tuple value into a user provided tuple array. Make sure that you've allocated enough space for the copy.

Deprecated:
as of VTK 5.2. Using this method for FieldData having arrays that are not subclasses of vtkDataArray may yield unexpected results.

void vtkFieldData::SetTuple ( const vtkIdType  i,
const double *  tuple
)

Set the tuple value at the ith location. Set operations mean that no range checking is performed, so they're faster.

Deprecated:
as of VTK 5.2. Using this method for FieldData having arrays that are not subclasses of vtkDataArray may yield unexpected results.

void vtkFieldData::InsertTuple ( const vtkIdType  i,
const double *  tuple
)

Insert the tuple value at the ith location. Range checking is performed and memory allocates as necessary.

Deprecated:
as of VTK 5.2. Using this method for FieldData having arrays that are not subclasses of vtkDataArray may yield unexpected results.

vtkIdType vtkFieldData::InsertNextTuple ( const double *  tuple  )

Insert the tuple value at the end of the tuple matrix. Range checking is performed and memory is allocated as necessary.

Deprecated:
as of VTK 5.2. Using this method for FieldData having arrays that are not subclasses of vtkDataArray may yield unexpected results.

double vtkFieldData::GetComponent ( const vtkIdType  i,
const int  j
)

Get the component value at the ith tuple (or row) and jth component (or column).

Deprecated:
as of VTK 5.2. Using this method for FieldData having arrays that are not subclasses of vtkDataArray may yield unexpected results.

void vtkFieldData::SetComponent ( const vtkIdType  i,
const int  j,
const double  c
)

Set the component value at the ith tuple (or row) and jth component (or column). Range checking is not performed, so set the object up properly before invoking.

Deprecated:
as of VTK 5.2. Using this method for FieldData having arrays that are not subclasses of vtkDataArray may yield unexpected results.

void vtkFieldData::InsertComponent ( const vtkIdType  i,
const int  j,
const double  c
)

Insert the component value at the ith tuple (or row) and jth component (or column). Range checking is performed and memory allocated as necessary o hold data.

Deprecated:
as of VTK 5.2. Using this method for FieldData having arrays that are not subclasses of vtkDataArray may yield unexpected results.

void vtkFieldData::SetArray ( int  i,
vtkAbstractArray array
) [protected]

Set an array to define the field.

virtual void vtkFieldData::RemoveArray ( int  index  )  [protected, virtual]

Reimplemented in vtkDataSetAttributes.

virtual void vtkFieldData::InitializeFields (  )  [protected, virtual]

Release all data but do not delete object.

Reimplemented in vtkDataSetAttributes.

void vtkFieldData::CopyFieldOnOff ( const char *  name,
int  onOff
) [protected]

void vtkFieldData::ClearFieldFlags (  )  [protected]

int vtkFieldData::FindFlag ( const char *  field  )  [protected]

int vtkFieldData::GetFlag ( const char *  field  )  [protected]

void vtkFieldData::CopyFlags ( const vtkFieldData source  )  [protected]


Member Data Documentation

Definition at line 336 of file vtkFieldData.h.

Definition at line 337 of file vtkFieldData.h.

Definition at line 338 of file vtkFieldData.h.

Definition at line 356 of file vtkFieldData.h.

Definition at line 357 of file vtkFieldData.h.

int vtkFieldData::DoCopyAllOn [protected]

Definition at line 363 of file vtkFieldData.h.

int vtkFieldData::DoCopyAllOff [protected]

Definition at line 364 of file vtkFieldData.h.


The documentation for this class was generated from the following file:

Generated on Mon Sep 27 18:24:05 2010 for VTK by  doxygen 1.5.6
