vtkGeoAdaptiveArcs Class Reference

#include <vtkGeoAdaptiveArcs.h>

Inheritance diagram for vtkGeoAdaptiveArcs:

[legend]

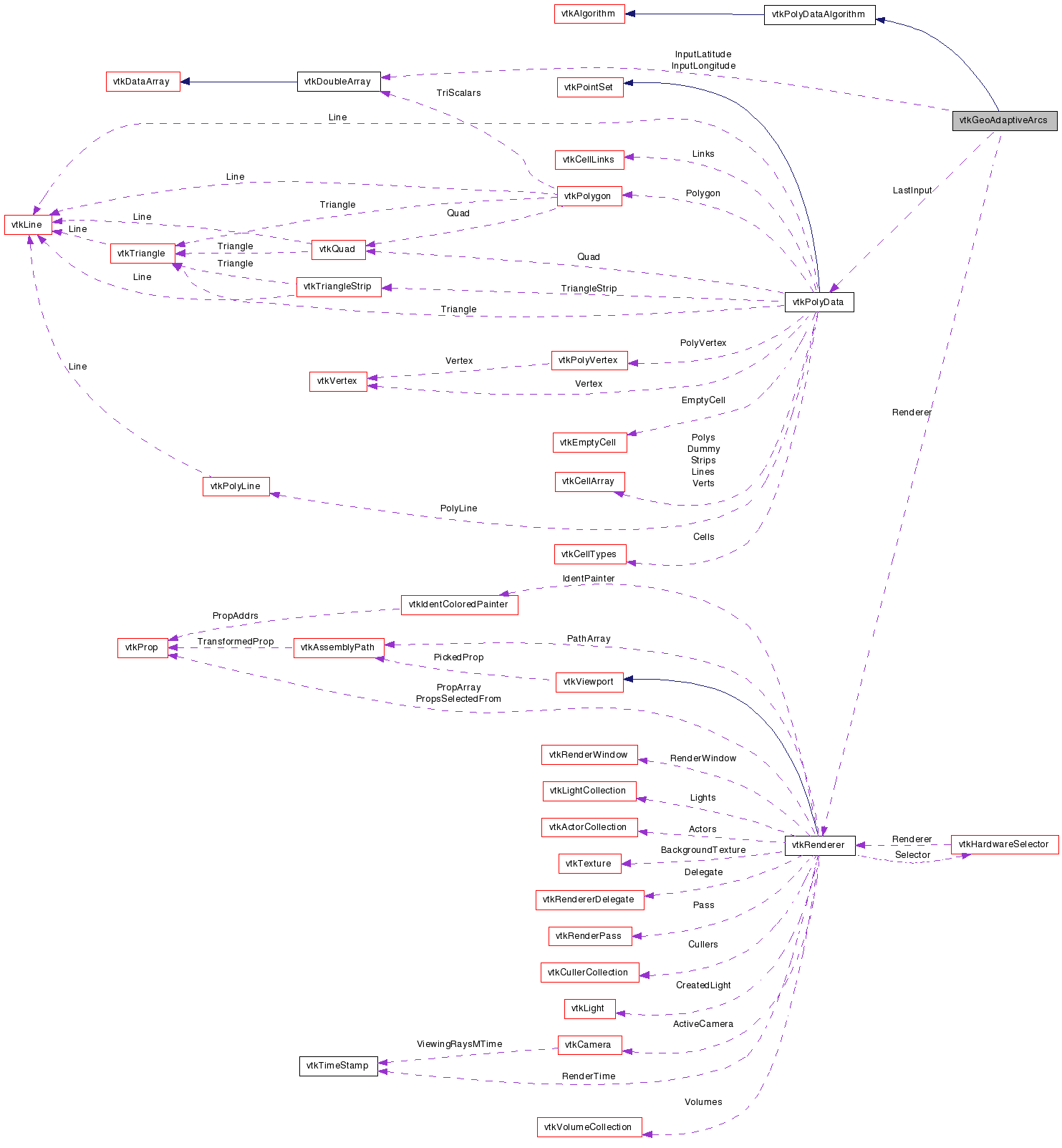

Collaboration diagram for vtkGeoAdaptiveArcs:

[legend]

List of all members.

Detailed Description

Definition at line 36 of file vtkGeoAdaptiveArcs.h.


Public Types
typedef vtkPolyDataAlgorithm	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual unsigned long	GetMTime ()

virtual void	SetGlobeRadius (double)
virtual double	GetGlobeRadius ()

virtual void	SetMaximumPixelSeparation (double)
virtual double	GetMaximumPixelSeparation ()

virtual void	SetMinimumPixelSeparation (double)
virtual double	GetMinimumPixelSeparation ()

virtual void	SetRenderer (vtkRenderer *ren)
virtual vtkRenderer *	GetRenderer ()
Static Public Member Functions
static vtkGeoAdaptiveArcs *	New ()
static int	IsTypeOf (const char *type)
static vtkGeoAdaptiveArcs *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkGeoAdaptiveArcs ()
	~vtkGeoAdaptiveArcs ()
int	RequestData (vtkInformation , vtkInformationVector , vtkInformationVector )
Protected Attributes
vtkRenderer *	Renderer
double	GlobeRadius
double	MaximumPixelSeparation
double	MinimumPixelSeparation
unsigned long	LastInputMTime
vtkPolyData *	LastInput
vtkDoubleArray *	InputLatitude
vtkDoubleArray *	InputLongitude

Member Typedef Documentation

typedef vtkPolyDataAlgorithm vtkGeoAdaptiveArcs::Superclass

Reimplemented from vtkPolyDataAlgorithm.

Definition at line 41 of file vtkGeoAdaptiveArcs.h.

Constructor & Destructor Documentation

vtkGeoAdaptiveArcs::vtkGeoAdaptiveArcs ( ) [protected]

vtkGeoAdaptiveArcs::~vtkGeoAdaptiveArcs ( ) [protected]

Member Function Documentation

static vtkGeoAdaptiveArcs* vtkGeoAdaptiveArcs::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkPolyDataAlgorithm.

virtual const char* vtkGeoAdaptiveArcs::GetClassName ( ) [virtual]

Reimplemented from vtkPolyDataAlgorithm.

static int vtkGeoAdaptiveArcs::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkGeoAdaptiveArcs::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

static vtkGeoAdaptiveArcs* vtkGeoAdaptiveArcs::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkPolyDataAlgorithm.

void vtkGeoAdaptiveArcs::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkPolyDataAlgorithm.

virtual void vtkGeoAdaptiveArcs::SetGlobeRadius ( double ) [virtual]

The base radius used to determine the earth's surface. Default is the earth's radius in meters. TODO: Change this to take in a vtkGeoTerrain to get altitude.

virtual double vtkGeoAdaptiveArcs::GetGlobeRadius ( ) [virtual]

The base radius used to determine the earth's surface. Default is the earth's radius in meters. TODO: Change this to take in a vtkGeoTerrain to get altitude.

virtual void vtkGeoAdaptiveArcs::SetMaximumPixelSeparation ( double ) [virtual]

The maximum number of pixels between points on the arcs. If two adjacent points are farther than the threshold, the line segment will be subdivided such that each point is separated by at most the threshold.

virtual double vtkGeoAdaptiveArcs::GetMaximumPixelSeparation ( ) [virtual]

The maximum number of pixels between points on the arcs. If two adjacent points are farther than the threshold, the line segment will be subdivided such that each point is separated by at most the threshold.

virtual void vtkGeoAdaptiveArcs::SetMinimumPixelSeparation ( double ) [virtual]

The minimum number of pixels between points on the arcs. Points closer than the threshold will be skipped until a point farther than the minimum threshold is reached.

virtual double vtkGeoAdaptiveArcs::GetMinimumPixelSeparation ( ) [virtual]

The minimum number of pixels between points on the arcs. Points closer than the threshold will be skipped until a point farther than the minimum threshold is reached.

virtual void vtkGeoAdaptiveArcs::SetRenderer ( vtkRenderer * ren ) [virtual]

The renderer used to estimate the number of pixels between points.

virtual vtkRenderer* vtkGeoAdaptiveArcs::GetRenderer ( ) [virtual]

The renderer used to estimate the number of pixels between points.

virtual unsigned long vtkGeoAdaptiveArcs::GetMTime ( ) [virtual]

Return the modified time of this object.

Reimplemented from vtkObject.
