vtkGeoSource Class Reference

#include <vtkGeoSource.h>

Inheritance diagram for vtkGeoSource:

[legend]

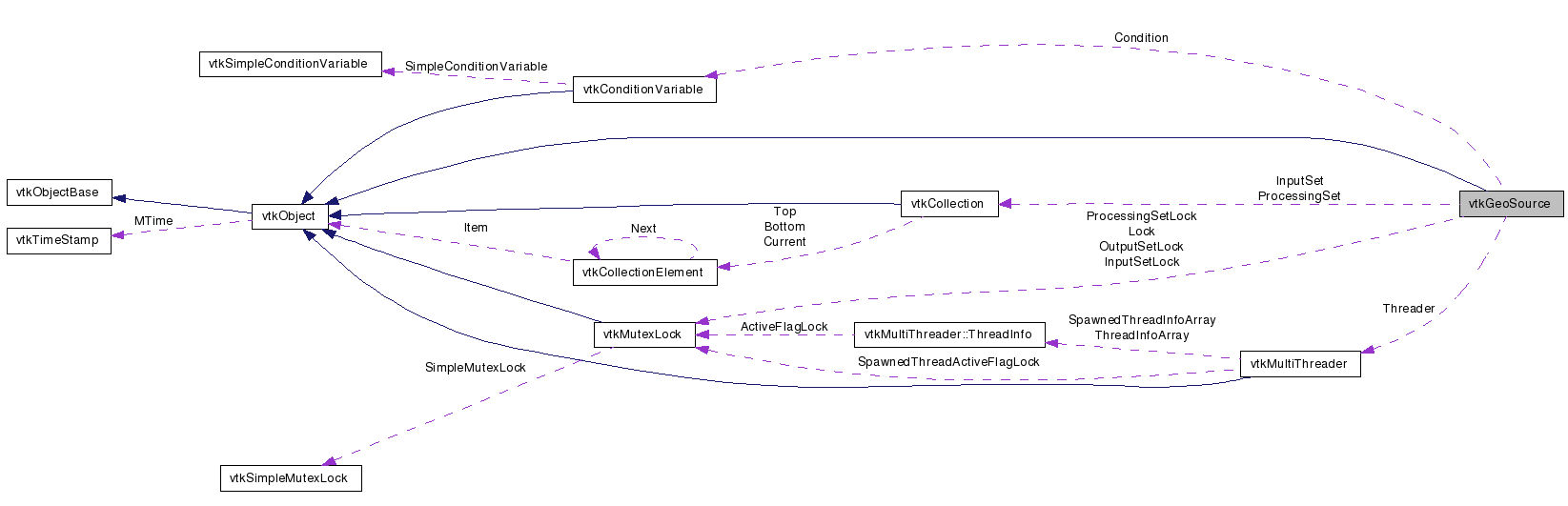

Collaboration diagram for vtkGeoSource:

[legend]

List of all members.

Detailed Description

A multi-resolution geographic data source.

vtkGeoSource is an abstract superclass for all multi-resolution data sources shown in a geographic view like vtkGeoView or vtkGeoView2D. vtkGeoSource subclasses need to implement the FetchRoot() method, which fills a vtkGeoTreeNode with the low-res data at the root, and FetchChild(), which produces a refinement of a parent node. Other geovis classes such as vtkGeoTerrain, vtkGeoTerrain2D, and vtkGeoAlignedImageSource use a vtkGeoSource subclass to build their geometry or image caches which are stored in trees. The source itself does not maintain the tree, but simply provides a mechanism for generating refined tree nodes.

Sources are multi-threaded. Each source may have one or more worker threads associated with it, which this superclass manages. It is essential that the FetchChild() method is thread-safe, since it may be called from multiple workers simultaneously.

Tests:: vtkGeoSource (Tests)

Definition at line 55 of file vtkGeoSource.h.


Public Types
typedef vtkObject	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
	vtkGeoSource ()
	~vtkGeoSource ()
void	Initialize (int numThreads=1)
void	ShutDown ()
void	WorkerThread ()
virtual vtkAbstractTransform *	GetTransform ()

virtual bool	FetchRoot (vtkGeoTreeNode *root)=0
virtual bool	FetchChild (vtkGeoTreeNode node, int index, vtkGeoTreeNode child)=0

virtual void	RequestChildren (vtkGeoTreeNode *node)
virtual vtkCollection *	GetRequestedNodes (vtkGeoTreeNode *node)
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkGeoSource *	SafeDownCast (vtkObject *o)
Protected Attributes
vtkCollection *	InputSet
vtkCollection *	ProcessingSet
vtkMutexLock *	Lock
vtkConditionVariable *	Condition
vtkMultiThreader *	Threader
bool	StopThread
bool	Initialized
implementation *	Implementation

vtkMutexLock *	InputSetLock
vtkMutexLock *	ProcessingSetLock
vtkMutexLock *	OutputSetLock

Member Typedef Documentation

typedef vtkObject vtkGeoSource::Superclass

Reimplemented from vtkObject.

Reimplemented in vtkGeoAlignedImageSource, vtkGeoFileImageSource, vtkGeoFileTerrainSource, vtkGeoGlobeSource, and vtkGeoProjectionSource.

Definition at line 58 of file vtkGeoSource.h.

Constructor & Destructor Documentation

vtkGeoSource::vtkGeoSource ( )

vtkGeoSource::~vtkGeoSource ( )

Member Function Documentation

virtual const char* vtkGeoSource::GetClassName ( ) [virtual]

Reimplemented from vtkObject.

Reimplemented in vtkGeoAlignedImageSource, vtkGeoFileImageSource, vtkGeoFileTerrainSource, vtkGeoGlobeSource, and vtkGeoProjectionSource.

static int vtkGeoSource::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

Reimplemented in vtkGeoAlignedImageSource, vtkGeoFileImageSource, vtkGeoFileTerrainSource, vtkGeoGlobeSource, and vtkGeoProjectionSource.

virtual int vtkGeoSource::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

Reimplemented in vtkGeoAlignedImageSource, vtkGeoFileImageSource, vtkGeoFileTerrainSource, vtkGeoGlobeSource, and vtkGeoProjectionSource.

static vtkGeoSource* vtkGeoSource::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkObject.

Reimplemented in vtkGeoAlignedImageSource, vtkGeoFileImageSource, vtkGeoFileTerrainSource, vtkGeoGlobeSource, and vtkGeoProjectionSource.

virtual bool vtkGeoSource::FetchRoot ( vtkGeoTreeNode * root ) [pure virtual]

Blocking access methods to be implemented in subclasses.

Implemented in vtkGeoAlignedImageSource, vtkGeoFileImageSource, vtkGeoFileTerrainSource, vtkGeoGlobeSource, and vtkGeoProjectionSource.

virtual bool vtkGeoSource::FetchChild	(	vtkGeoTreeNode *	node,
		int	index,
		vtkGeoTreeNode *	child
	)			`[pure virtual]`

Blocking access methods to be implemented in subclasses.

Implemented in vtkGeoAlignedImageSource, vtkGeoFileImageSource, vtkGeoFileTerrainSource, vtkGeoGlobeSource, and vtkGeoProjectionSource.

virtual void vtkGeoSource::RequestChildren ( vtkGeoTreeNode * node ) [virtual]

Non-blocking methods for to use from the main application. After calling RequestChildren() for a certain node, GetRequestedNodes() will after a certain period of time return a non-null pointer to a collection of four vtkGeoTreeNode objects, which are the four children of the requested node. The collection is reference counted, so you need to eventually call Delete() on the returned collection pointer (if it is non-null).

virtual vtkCollection* vtkGeoSource::GetRequestedNodes ( vtkGeoTreeNode * node ) [virtual]

Non-blocking methods for to use from the main application. After calling RequestChildren() for a certain node, GetRequestedNodes() will after a certain period of time return a non-null pointer to a collection of four vtkGeoTreeNode objects, which are the four children of the requested node. The collection is reference counted, so you need to eventually call Delete() on the returned collection pointer (if it is non-null).

void vtkGeoSource::Initialize ( int numThreads = 1 )

Spawn worker threads.

void vtkGeoSource::ShutDown ( )

Shut down the source. This terminates the thread and releases memory.

void vtkGeoSource::WorkerThread ( )
