vtkHyperOctreeClipCutPointsGrabber Class Reference

#include <vtkHyperOctreeClipCutPointsGrabber.h>

Inheritance diagram for vtkHyperOctreeClipCutPointsGrabber:

Inheritance graph
[legend]

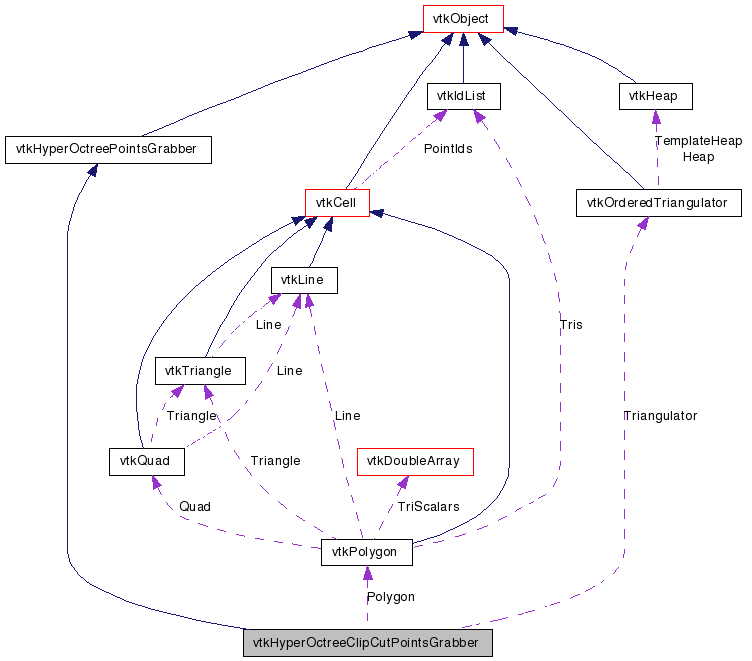

Collaboration diagram for vtkHyperOctreeClipCutPointsGrabber:

Collaboration graph
[legend]

List of all members.


Detailed Description

A concrete implementation of vtkHyperOctreePointsGrabber used by vtkClipHyperOctree and vtkHyperOctreeCutter.

See also:
vtkHyperOctreeClipCut, vtkHyperOctreeClipCutClipCutPointsGrabber, vtkClipHyperOctree, vtkHyperOctreeClipCutCutter

Definition at line 34 of file vtkHyperOctreeClipCutPointsGrabber.h.


Public Types

typedef vtkHyperOctreePointsGrabber Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void SetDimension (int dim)
virtual void InitPointInsertion ()
vtkOrderedTriangulatorGetTriangulator ()
vtkPolygonGetPolygon ()
virtual void InsertPoint (vtkIdType ptId, double pt[3], double pcoords[3], int ijk[3])
virtual void InsertPointWithMerge (vtkIdType ptId, double pt[3], double pcoords[3], int ijk[3])
virtual void InsertPoint2D (double pt[3], int ijk[3])

Static Public Member Functions

static
vtkHyperOctreeClipCutPointsGrabber
New ()
static int IsTypeOf (const char *type)
static
vtkHyperOctreeClipCutPointsGrabber
SafeDownCast (vtkObject *o)

Protected Member Functions

 vtkHyperOctreeClipCutPointsGrabber ()
 ~vtkHyperOctreeClipCutPointsGrabber ()

Protected Attributes

vtkOrderedTriangulatorTriangulator
vtkPolygonPolygon
vtkHyperOctreeIdSet * IdSet

Member Typedef Documentation

Reimplemented from vtkHyperOctreePointsGrabber.

Definition at line 39 of file vtkHyperOctreeClipCutPointsGrabber.h.


Constructor & Destructor Documentation

vtkHyperOctreeClipCutPointsGrabber::vtkHyperOctreeClipCutPointsGrabber (  )  [protected]

vtkHyperOctreeClipCutPointsGrabber::~vtkHyperOctreeClipCutPointsGrabber (  )  [protected]


Member Function Documentation

static vtkHyperOctreeClipCutPointsGrabber* vtkHyperOctreeClipCutPointsGrabber::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkHyperOctreeClipCutPointsGrabber::GetClassName (  )  [virtual]

Reimplemented from vtkHyperOctreePointsGrabber.

static int vtkHyperOctreeClipCutPointsGrabber::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkHyperOctreePointsGrabber.

virtual int vtkHyperOctreeClipCutPointsGrabber::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkHyperOctreePointsGrabber.

static vtkHyperOctreeClipCutPointsGrabber* vtkHyperOctreeClipCutPointsGrabber::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkHyperOctreePointsGrabber.

void vtkHyperOctreeClipCutPointsGrabber::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkHyperOctreePointsGrabber.

virtual void vtkHyperOctreeClipCutPointsGrabber::SetDimension ( int  dim  )  [virtual]

Set the dimension of the hyperoctree.

Precondition:
valid_dim: (dim==2 || dim==3)
Postcondition:
is_set: GetDimension()==dim

Implements vtkHyperOctreePointsGrabber.

virtual void vtkHyperOctreeClipCutPointsGrabber::InitPointInsertion (  )  [virtual]

Initialize the points insertion scheme. Actually, it is just a trick to initialize the IdSet from the filter. The IdSet class cannot be shared with the filter because it is a Pimpl. It is used by clip,cut and contour filters to build the points that lie on an hyperoctant.

Precondition:
only_in_3d: GetDimension()==3

Implements vtkHyperOctreePointsGrabber.

virtual void vtkHyperOctreeClipCutPointsGrabber::InsertPoint ( vtkIdType  ptId,
double  pt[3],
double  pcoords[3],
int  ijk[3]
) [virtual]

Insert a point, assuming the point is unique and does not require a locator. Tt does not mean it does not use a locator. It just mean that some implementation may skip the use of a locator.

Implements vtkHyperOctreePointsGrabber.

virtual void vtkHyperOctreeClipCutPointsGrabber::InsertPointWithMerge ( vtkIdType  ptId,
double  pt[3],
double  pcoords[3],
int  ijk[3]
) [virtual]

Insert a point using a locator.

Implements vtkHyperOctreePointsGrabber.

virtual void vtkHyperOctreeClipCutPointsGrabber::InsertPoint2D ( double  pt[3],
int  ijk[3]
) [virtual]

Insert a point in the quadtree case.

Implements vtkHyperOctreePointsGrabber.

vtkOrderedTriangulator* vtkHyperOctreeClipCutPointsGrabber::GetTriangulator (  )

Return the ordered triangulator.

vtkPolygon* vtkHyperOctreeClipCutPointsGrabber::GetPolygon (  )

Return the polygon.


Member Data Documentation

Definition at line 90 of file vtkHyperOctreeClipCutPointsGrabber.h.

Definition at line 91 of file vtkHyperOctreeClipCutPointsGrabber.h.

vtkHyperOctreeIdSet* vtkHyperOctreeClipCutPointsGrabber::IdSet [protected]

Definition at line 92 of file vtkHyperOctreeClipCutPointsGrabber.h.


The documentation for this class was generated from the following file:
