vtkImageDecomposeFilter Class Reference
#include <vtkImageDecomposeFilter.h>
Detailed Description
Filters that execute axes in series.This superclass molds the vtkImageIterateFilter superclass so it iterates over the axes. The filter uses dimensionality to determine how many axes to execute (starting from x). The filter also provides convenience methods for permuting information retrieved from input, output and vtkImageData.
Definition at line 31 of file vtkImageDecomposeFilter.h.
| typedef vtkImageIterateFilter | Superclass |
| virtual const char * | GetClassName () |
| virtual int | IsA (const char *type) |
| void | PrintSelf (ostream &os, vtkIndent indent) |
| static int | IsTypeOf (const char *type) |
| static vtkImageDecomposeFilter * | SafeDownCast (vtkObject *o) |
Public Member Functions | |
| void | SetDimensionality (int dim) |
| virtual int | GetDimensionality () |
| void | PermuteIncrements (vtkIdType *increments, vtkIdType &inc0, vtkIdType &inc1, vtkIdType &inc2) |
| void | PermuteExtent (int *extent, int &min0, int &max0, int &min1, int &max1, int &min2, int &max2) |
Protected Member Functions | |
| vtkImageDecomposeFilter () | |
| ~vtkImageDecomposeFilter () | |
Protected Attributes | |
| int | Dimensionality |
Member Typedef Documentation
Construct an instance of vtkImageDecomposeFilter filter with default dimensionality 3.
Reimplemented from vtkImageIterateFilter.

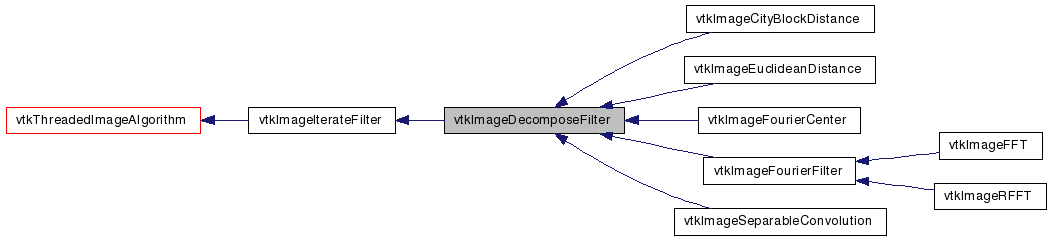

Reimplemented in vtkImageCityBlockDistance, vtkImageEuclideanDistance, vtkImageFFT, vtkImageFourierCenter, vtkImageFourierFilter, vtkImageRFFT, and vtkImageSeparableConvolution.
Definition at line 37 of file vtkImageDecomposeFilter.h.
Constructor & Destructor Documentation
| vtkImageDecomposeFilter::vtkImageDecomposeFilter | ( | ) | [protected] |
| vtkImageDecomposeFilter::~vtkImageDecomposeFilter | ( | ) | [inline, protected] |
Definition at line 58 of file vtkImageDecomposeFilter.h.
Member Function Documentation
| virtual const char* vtkImageDecomposeFilter::GetClassName | ( | ) | [virtual] |
Construct an instance of vtkImageDecomposeFilter filter with default dimensionality 3.
Reimplemented from vtkImageIterateFilter.
Reimplemented in vtkImageCityBlockDistance, vtkImageEuclideanDistance, vtkImageFFT, vtkImageFourierCenter, vtkImageFourierFilter, vtkImageRFFT, and vtkImageSeparableConvolution.
| static int vtkImageDecomposeFilter::IsTypeOf | ( | const char * | type | ) | [static] |
Construct an instance of vtkImageDecomposeFilter filter with default dimensionality 3.
Reimplemented from vtkImageIterateFilter.
Reimplemented in vtkImageCityBlockDistance, vtkImageEuclideanDistance, vtkImageFFT, vtkImageFourierCenter, vtkImageFourierFilter, vtkImageRFFT, and vtkImageSeparableConvolution.
| virtual int vtkImageDecomposeFilter::IsA | ( | const char * | type | ) | [virtual] |
Construct an instance of vtkImageDecomposeFilter filter with default dimensionality 3.
Reimplemented from vtkImageIterateFilter.
Reimplemented in vtkImageCityBlockDistance, vtkImageEuclideanDistance, vtkImageFFT, vtkImageFourierCenter, vtkImageFourierFilter, vtkImageRFFT, and vtkImageSeparableConvolution.
| static vtkImageDecomposeFilter* vtkImageDecomposeFilter::SafeDownCast | ( | vtkObject * | o | ) | [static] |
Construct an instance of vtkImageDecomposeFilter filter with default dimensionality 3.
Reimplemented from vtkImageIterateFilter.
Reimplemented in vtkImageCityBlockDistance, vtkImageEuclideanDistance, vtkImageFFT, vtkImageFourierCenter, vtkImageFourierFilter, vtkImageRFFT, and vtkImageSeparableConvolution.
| void vtkImageDecomposeFilter::PrintSelf | ( | ostream & | os, | |
| vtkIndent | indent | |||
| ) | [virtual] |
Construct an instance of vtkImageDecomposeFilter filter with default dimensionality 3.
Reimplemented from vtkImageIterateFilter.
Reimplemented in vtkImageEuclideanDistance, and vtkImageSeparableConvolution.
| void vtkImageDecomposeFilter::SetDimensionality | ( | int | dim | ) |
Dimensionality is the number of axes which are considered during execution. To process images dimensionality would be set to 2.
| virtual int vtkImageDecomposeFilter::GetDimensionality | ( | ) | [virtual] |
Dimensionality is the number of axes which are considered during execution. To process images dimensionality would be set to 2.
| void vtkImageDecomposeFilter::PermuteIncrements | ( | vtkIdType * | increments, | |
| vtkIdType & | inc0, | |||
| vtkIdType & | inc1, | |||
| vtkIdType & | inc2 | |||
| ) |
Private methods kept public for template execute functions.
| void vtkImageDecomposeFilter::PermuteExtent | ( | int * | extent, | |
| int & | min0, | |||
| int & | max0, | |||
| int & | min1, | |||
| int & | max1, | |||
| int & | min2, | |||
| int & | max2 | |||
| ) |
Private methods kept public for template execute functions.
Member Data Documentation
int vtkImageDecomposeFilter::Dimensionality [protected] |
Definition at line 58 of file vtkImageDecomposeFilter.h.
The documentation for this class was generated from the following file:
- dox/Imaging/vtkImageDecomposeFilter.h
