vtkImageTracerWidget Class Reference

#include <vtkImageTracerWidget.h>

Inheritance diagram for vtkImageTracerWidget:

Inheritance graph
[legend]

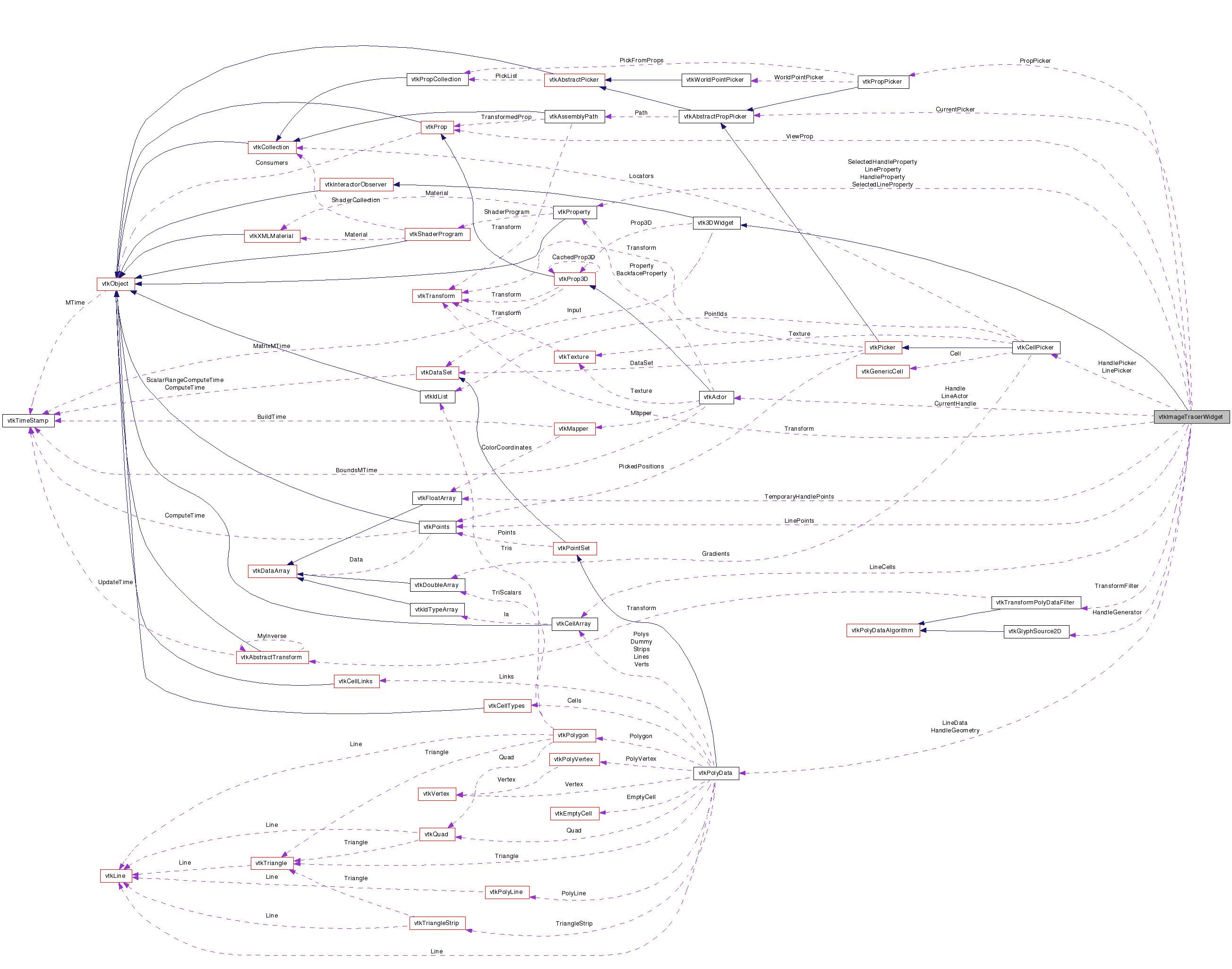

Collaboration diagram for vtkImageTracerWidget:

Collaboration graph
[legend]

List of all members.


Detailed Description

3D widget for tracing on planar props.

vtkImageTracerWidget is different from other widgets in three distinct ways: 1) any sub-class of vtkProp can be input rather than just vtkProp3D, so that vtkImageActor can be set as the prop and then traced over, 2) the widget fires pick events at the input prop to decide where to move its handles, 3) the widget has 2D glyphs for handles instead of 3D spheres as is done in other sub-classes of vtk3DWidget. This widget is primarily designed for manually tracing over image data. The button actions and key modifiers are as follows for controlling the widget: 1) left button click over the image, hold and drag draws a free hand line. 2) left button click and release erases the widget line, if it exists, and repositions the first handle. 3) middle button click starts a snap drawn line. The line is terminated by clicking the middle button while depressing the ctrl key. 4) when tracing a continuous or snap drawn line, if the last cursor position is within a specified tolerance to the first handle, the widget line will form a closed loop. 5) right button clicking and holding on any handle that is part of a snap drawn line allows handle dragging: existing line segments are updated accordingly. If the path is open and AutoClose is set to On, the path can be closed by repositioning the first and last points over one another. 6) ctrl key + right button down on any handle will erase it: existing snap drawn line segments are updated accordingly. If the line was formed by continous tracing, the line is deleted leaving one handle. 7) shift key + right button down on any snap drawn line segment will insert a handle at the cursor position. The line segment is split accordingly.

Warning:
the input vtkDataSet should be vtkImageData.
See also:
vtk3DWidget vtkBoxWidget vtkLineWidget vtkPointWidget vtkSphereWidget vtkImagePlaneWidget vtkImplicitPlaneWidget vtkPlaneWidget
Events:
vtkCommand::DisableEvent vtkCommand::EndInteractionEvent vtkCommand::InteractionEvent vtkCommand::StartInteractionEvent vtkCommand::EnableEvent
Examples:
vtkImageTracerWidget (Examples)
Tests:
vtkImageTracerWidget (Tests)

Definition at line 87 of file vtkImageTracerWidget.h.


Public Types

typedef vtk3DWidget Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
void SetViewProp (vtkProp *prop)
void GetPath (vtkPolyData *pd)
vtkGlyphSource2DGetGlyphSource ()
void InitializeHandles (vtkPoints *)
int IsClosed ()
void SetProp (vtkProp *prop)
virtual void SetEnabled (int)
virtual void PlaceWidget (double bounds[6])
void PlaceWidget ()
void PlaceWidget (double xmin, double xmax, double ymin, double ymax, double zmin, double zmax)
virtual void SetHandleProperty (vtkProperty *)
virtual vtkPropertyGetHandleProperty ()
virtual void SetSelectedHandleProperty (vtkProperty *)
virtual vtkPropertyGetSelectedHandleProperty ()
virtual void SetLineProperty (vtkProperty *)
virtual vtkPropertyGetLineProperty ()
virtual void SetSelectedLineProperty (vtkProperty *)
virtual vtkPropertyGetSelectedLineProperty ()
virtual void SetProjectToPlane (int)
virtual int GetProjectToPlane ()
virtual void ProjectToPlaneOn ()
virtual void ProjectToPlaneOff ()
virtual void SetProjectionNormal (int)
virtual int GetProjectionNormal ()
void SetProjectionNormalToXAxes ()
void SetProjectionNormalToYAxes ()
void SetProjectionNormalToZAxes ()
void SetProjectionPosition (double position)
virtual double GetProjectionPosition ()
void SetSnapToImage (int snap)
virtual int GetSnapToImage ()
virtual void SnapToImageOn ()
virtual void SnapToImageOff ()
virtual void SetAutoClose (int)
virtual int GetAutoClose ()
virtual void AutoCloseOn ()
virtual void AutoCloseOff ()
virtual void SetCaptureRadius (double)
virtual double GetCaptureRadius ()
virtual void SetImageSnapType (int)
virtual int GetImageSnapType ()
void SetHandlePosition (int handle, double xyz[3])
void SetHandlePosition (int handle, double x, double y, double z)
void GetHandlePosition (int handle, double xyz[3])
double * GetHandlePosition (int handle)
virtual int GetNumberOfHandles ()
void SetInteraction (int interact)
virtual int GetInteraction ()
virtual void InteractionOn ()
virtual void InteractionOff ()

Static Public Member Functions

static vtkImageTracerWidgetNew ()
static int IsTypeOf (const char *type)
static vtkImageTracerWidgetSafeDownCast (vtkObject *o)

Protected Types

enum  WidgetState {
  Start = 0, Tracing, Snapping, Erasing,
  Inserting, Moving, Translating, Outside
}

Protected Member Functions

 vtkImageTracerWidget ()
 ~vtkImageTracerWidget ()
void OnLeftButtonDown ()
void OnLeftButtonUp ()
void OnMiddleButtonDown ()
void OnMiddleButtonUp ()
void OnRightButtonDown ()
void OnRightButtonUp ()
void OnMouseMove ()
void AddObservers ()
void Trace (int, int)
void Snap (double *)
void MovePoint (const double *, const double *)
void Translate (const double *, const double *)
void ClosePath ()
void AppendHandles (double *)
void ResetHandles ()
void AllocateHandles (const int &)
void AdjustHandlePosition (const int &, double *)
int HighlightHandle (vtkProp *)
void EraseHandle (const int &)
virtual void SizeHandles ()
void InsertHandleOnLine (double *)
void HighlightLine (const int &)
void BuildLinesFromHandles ()
void ResetLine (double *)
void AppendLine (double *)
void CreateDefaultProperties ()

Static Protected Member Functions

static void ProcessEvents (vtkObject *object, unsigned long event, void *clientdata, void *calldata)

Protected Attributes

int State
int Interaction
int ProjectionNormal
double ProjectionPosition
int ProjectToPlane
int ImageSnapType
int SnapToImage
double CaptureRadius
int AutoClose
int IsSnapping
int LastX
int LastY
vtkActor ** Handle
vtkPolyData ** HandleGeometry
vtkGlyphSource2DHandleGenerator
vtkTransformPolyDataFilterTransformFilter
vtkTransformTransform
vtkFloatArrayTemporaryHandlePoints
int NumberOfHandles
vtkActorCurrentHandle
int CurrentHandleIndex
vtkPropViewProp
vtkPropPickerPropPicker
vtkPointsLinePoints
vtkCellArrayLineCells
vtkActorLineActor
vtkPolyDataLineData
vtkIdType CurrentPoints [2]
int PickCount
vtkCellPickerHandlePicker
vtkCellPickerLinePicker
vtkAbstractPropPickerCurrentPicker
vtkPropertyHandleProperty
vtkPropertySelectedHandleProperty
vtkPropertyLineProperty
vtkPropertySelectedLineProperty

Member Typedef Documentation

Reimplemented from vtk3DWidget.

Definition at line 93 of file vtkImageTracerWidget.h.


Member Enumeration Documentation

Enumerator:
Start
Tracing
Snapping
Erasing
Inserting
Moving
Translating
Outside

Definition at line 254 of file vtkImageTracerWidget.h.


Constructor & Destructor Documentation

vtkImageTracerWidget::vtkImageTracerWidget (  )  [protected]

vtkImageTracerWidget::~vtkImageTracerWidget (  )  [protected]


Member Function Documentation

static vtkImageTracerWidget* vtkImageTracerWidget::New (  )  [static]

Instantiate the object.

Reimplemented from vtkObject.

virtual const char* vtkImageTracerWidget::GetClassName (  )  [virtual]

Reimplemented from vtk3DWidget.

static int vtkImageTracerWidget::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtk3DWidget.

virtual int vtkImageTracerWidget::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtk3DWidget.

static vtkImageTracerWidget* vtkImageTracerWidget::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtk3DWidget.

void vtkImageTracerWidget::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtk3DWidget.

virtual void vtkImageTracerWidget::SetEnabled ( int   )  [virtual]

Methods that satisfy the superclass' API.

Reimplemented from vtkInteractorObserver.

virtual void vtkImageTracerWidget::PlaceWidget ( double  bounds[6]  )  [virtual]

Methods that satisfy the superclass' API.

Implements vtk3DWidget.

void vtkImageTracerWidget::PlaceWidget (  )  [inline, virtual]

Methods that satisfy the superclass' API.

Reimplemented from vtk3DWidget.

Definition at line 100 of file vtkImageTracerWidget.h.

void vtkImageTracerWidget::PlaceWidget ( double  xmin,
double  xmax,
double  ymin,
double  ymax,
double  zmin,
double  zmax
) [inline, virtual]

Methods that satisfy the superclass' API.

Reimplemented from vtk3DWidget.

Definition at line 102 of file vtkImageTracerWidget.h.

virtual void vtkImageTracerWidget::SetHandleProperty ( vtkProperty  )  [virtual]

Set/Get the handle properties (the 2D glyphs are the handles). The properties of the handles when selected and normal can be manipulated.

virtual vtkProperty* vtkImageTracerWidget::GetHandleProperty (  )  [virtual]

Set/Get the handle properties (the 2D glyphs are the handles). The properties of the handles when selected and normal can be manipulated.

virtual void vtkImageTracerWidget::SetSelectedHandleProperty ( vtkProperty  )  [virtual]

Set/Get the handle properties (the 2D glyphs are the handles). The properties of the handles when selected and normal can be manipulated.

virtual vtkProperty* vtkImageTracerWidget::GetSelectedHandleProperty (  )  [virtual]

Set/Get the handle properties (the 2D glyphs are the handles). The properties of the handles when selected and normal can be manipulated.

virtual void vtkImageTracerWidget::SetLineProperty ( vtkProperty  )  [virtual]

Set/Get the line properties. The properties of the line when selected and unselected can be manipulated.

virtual vtkProperty* vtkImageTracerWidget::GetLineProperty (  )  [virtual]

Set/Get the line properties. The properties of the line when selected and unselected can be manipulated.

virtual void vtkImageTracerWidget::SetSelectedLineProperty ( vtkProperty  )  [virtual]

Set/Get the line properties. The properties of the line when selected and unselected can be manipulated.

virtual vtkProperty* vtkImageTracerWidget::GetSelectedLineProperty (  )  [virtual]

Set/Get the line properties. The properties of the line when selected and unselected can be manipulated.

void vtkImageTracerWidget::SetViewProp ( vtkProp prop  )

Set the prop, usually a vtkImageActor, to trace over.

virtual void vtkImageTracerWidget::SetProjectToPlane ( int   )  [virtual]

Force handles to be on a specific ortho plane. Default is Off.

virtual int vtkImageTracerWidget::GetProjectToPlane (  )  [virtual]

Force handles to be on a specific ortho plane. Default is Off.

virtual void vtkImageTracerWidget::ProjectToPlaneOn (  )  [virtual]

Force handles to be on a specific ortho plane. Default is Off.

virtual void vtkImageTracerWidget::ProjectToPlaneOff (  )  [virtual]

Force handles to be on a specific ortho plane. Default is Off.

virtual void vtkImageTracerWidget::SetProjectionNormal ( int   )  [virtual]

Set the projection normal. The normal in SetProjectionNormal is 0,1,2 for YZ,XZ,XY planes respectively. Since the handles are 2D glyphs, it is necessary to specify a plane on which to generate them, even though ProjectToPlane may be turned off.

virtual int vtkImageTracerWidget::GetProjectionNormal (  )  [virtual]

Set the projection normal. The normal in SetProjectionNormal is 0,1,2 for YZ,XZ,XY planes respectively. Since the handles are 2D glyphs, it is necessary to specify a plane on which to generate them, even though ProjectToPlane may be turned off.

void vtkImageTracerWidget::SetProjectionNormalToXAxes (  )  [inline]

Set the projection normal. The normal in SetProjectionNormal is 0,1,2 for YZ,XZ,XY planes respectively. Since the handles are 2D glyphs, it is necessary to specify a plane on which to generate them, even though ProjectToPlane may be turned off.

Definition at line 143 of file vtkImageTracerWidget.h.

void vtkImageTracerWidget::SetProjectionNormalToYAxes (  )  [inline]

Set the projection normal. The normal in SetProjectionNormal is 0,1,2 for YZ,XZ,XY planes respectively. Since the handles are 2D glyphs, it is necessary to specify a plane on which to generate them, even though ProjectToPlane may be turned off.

Definition at line 145 of file vtkImageTracerWidget.h.

void vtkImageTracerWidget::SetProjectionNormalToZAxes (  )  [inline]

Set the projection normal. The normal in SetProjectionNormal is 0,1,2 for YZ,XZ,XY planes respectively. Since the handles are 2D glyphs, it is necessary to specify a plane on which to generate them, even though ProjectToPlane may be turned off.

Definition at line 147 of file vtkImageTracerWidget.h.

void vtkImageTracerWidget::SetProjectionPosition ( double  position  )

Set the position of the widgets' handles in terms of a plane's position. e.g., if ProjectionNormal is 0, all of the x-coordinate values of the handles are set to ProjectionPosition. No attempt is made to ensure that the position is within the bounds of either the underlying image data or the prop on which tracing is performed.

virtual double vtkImageTracerWidget::GetProjectionPosition (  )  [virtual]

Set the position of the widgets' handles in terms of a plane's position. e.g., if ProjectionNormal is 0, all of the x-coordinate values of the handles are set to ProjectionPosition. No attempt is made to ensure that the position is within the bounds of either the underlying image data or the prop on which tracing is performed.

void vtkImageTracerWidget::SetSnapToImage ( int  snap  )

Force snapping to image data while tracing. Default is Off.

virtual int vtkImageTracerWidget::GetSnapToImage (  )  [virtual]

Force snapping to image data while tracing. Default is Off.

virtual void vtkImageTracerWidget::SnapToImageOn (  )  [virtual]

Force snapping to image data while tracing. Default is Off.

virtual void vtkImageTracerWidget::SnapToImageOff (  )  [virtual]

Force snapping to image data while tracing. Default is Off.

virtual void vtkImageTracerWidget::SetAutoClose ( int   )  [virtual]

In concert with a CaptureRadius value, automatically form a closed path by connecting first to last path points. Default is Off.

virtual int vtkImageTracerWidget::GetAutoClose (  )  [virtual]

In concert with a CaptureRadius value, automatically form a closed path by connecting first to last path points. Default is Off.

virtual void vtkImageTracerWidget::AutoCloseOn (  )  [virtual]

In concert with a CaptureRadius value, automatically form a closed path by connecting first to last path points. Default is Off.

virtual void vtkImageTracerWidget::AutoCloseOff (  )  [virtual]

In concert with a CaptureRadius value, automatically form a closed path by connecting first to last path points. Default is Off.

virtual void vtkImageTracerWidget::SetCaptureRadius ( double   )  [virtual]

Set/Get the capture radius for automatic path closing. For image data, capture radius should be half the distance between voxel/pixel centers. Default is 1.0

virtual double vtkImageTracerWidget::GetCaptureRadius (  )  [virtual]

Set/Get the capture radius for automatic path closing. For image data, capture radius should be half the distance between voxel/pixel centers. Default is 1.0

void vtkImageTracerWidget::GetPath ( vtkPolyData pd  )

Grab the points and lines that define the traced path. These point values are guaranteed to be up-to-date when either the InteractionEvent or EndInteraction events are invoked. The user provides the vtkPolyData and the points and cells representing the line are added to it.

vtkGlyphSource2D* vtkImageTracerWidget::GetGlyphSource (  )  [inline]

Get the handles' geometric representation via vtkGlyphSource2D.

Definition at line 192 of file vtkImageTracerWidget.h.

virtual void vtkImageTracerWidget::SetImageSnapType ( int   )  [virtual]

Set/Get the type of snapping to image data: center of a pixel/voxel or nearest point defining a pixel/voxel.

virtual int vtkImageTracerWidget::GetImageSnapType (  )  [virtual]

Set/Get the type of snapping to image data: center of a pixel/voxel or nearest point defining a pixel/voxel.

void vtkImageTracerWidget::SetHandlePosition ( int  handle,
double  xyz[3]
)

Set/Get the handle position in terms of a zero-based array of handles.

void vtkImageTracerWidget::SetHandlePosition ( int  handle,
double  x,
double  y,
double  z
)

Set/Get the handle position in terms of a zero-based array of handles.

void vtkImageTracerWidget::GetHandlePosition ( int  handle,
double  xyz[3]
)

Set/Get the handle position in terms of a zero-based array of handles.

double* vtkImageTracerWidget::GetHandlePosition ( int  handle  )

Set/Get the handle position in terms of a zero-based array of handles.

virtual int vtkImageTracerWidget::GetNumberOfHandles (  )  [virtual]

Get the number of handles.

void vtkImageTracerWidget::SetInteraction ( int  interact  )

Enable/disable mouse interaction when the widget is visible.

virtual int vtkImageTracerWidget::GetInteraction (  )  [virtual]

Enable/disable mouse interaction when the widget is visible.

virtual void vtkImageTracerWidget::InteractionOn (  )  [virtual]

Enable/disable mouse interaction when the widget is visible.

virtual void vtkImageTracerWidget::InteractionOff (  )  [virtual]

Enable/disable mouse interaction when the widget is visible.

void vtkImageTracerWidget::InitializeHandles ( vtkPoints  )

Initialize the widget with a set of points and generate lines between them. If AutoClose is on it will handle the case wherein the first and last points are congruent.

int vtkImageTracerWidget::IsClosed (  )

Is the path closed or open?

void vtkImageTracerWidget::SetProp ( vtkProp prop  )

static void vtkImageTracerWidget::ProcessEvents ( vtkObject object,
unsigned long  event,
void *  clientdata,
void *  calldata
) [static, protected]

Handles the char widget activation event. Also handles the delete event.

Reimplemented from vtkInteractorObserver.

void vtkImageTracerWidget::OnLeftButtonDown (  )  [protected]

void vtkImageTracerWidget::OnLeftButtonUp (  )  [protected]

void vtkImageTracerWidget::OnMiddleButtonDown (  )  [protected]

void vtkImageTracerWidget::OnMiddleButtonUp (  )  [protected]

void vtkImageTracerWidget::OnRightButtonDown (  )  [protected]

void vtkImageTracerWidget::OnRightButtonUp (  )  [protected]

void vtkImageTracerWidget::OnMouseMove (  )  [protected]

void vtkImageTracerWidget::AddObservers (  )  [protected]

void vtkImageTracerWidget::Trace ( int  ,
int
) [protected]

void vtkImageTracerWidget::Snap ( double *   )  [protected]

void vtkImageTracerWidget::MovePoint ( const double *  ,
const double *
) [protected]

void vtkImageTracerWidget::Translate ( const double *  ,
const double *
) [protected]

void vtkImageTracerWidget::ClosePath (  )  [protected]

void vtkImageTracerWidget::AppendHandles ( double *   )  [protected]

void vtkImageTracerWidget::ResetHandles (  )  [protected]

void vtkImageTracerWidget::AllocateHandles ( const int &   )  [protected]

void vtkImageTracerWidget::AdjustHandlePosition ( const int &  ,
double *
) [protected]

int vtkImageTracerWidget::HighlightHandle ( vtkProp  )  [protected]

void vtkImageTracerWidget::EraseHandle ( const int &   )  [protected]

virtual void vtkImageTracerWidget::SizeHandles (  )  [protected, virtual]

Reimplemented from vtk3DWidget.

void vtkImageTracerWidget::InsertHandleOnLine ( double *   )  [protected]

void vtkImageTracerWidget::HighlightLine ( const int &   )  [protected]

void vtkImageTracerWidget::BuildLinesFromHandles (  )  [protected]

void vtkImageTracerWidget::ResetLine ( double *   )  [protected]

void vtkImageTracerWidget::AppendLine ( double *   )  [protected]

void vtkImageTracerWidget::CreateDefaultProperties (  )  [protected]


Member Data Documentation

int vtkImageTracerWidget::State [protected]

Definition at line 253 of file vtkImageTracerWidget.h.

Definition at line 285 of file vtkImageTracerWidget.h.

Definition at line 286 of file vtkImageTracerWidget.h.

Definition at line 287 of file vtkImageTracerWidget.h.

Definition at line 288 of file vtkImageTracerWidget.h.

Definition at line 289 of file vtkImageTracerWidget.h.

Definition at line 290 of file vtkImageTracerWidget.h.

Definition at line 291 of file vtkImageTracerWidget.h.

Definition at line 292 of file vtkImageTracerWidget.h.

Definition at line 293 of file vtkImageTracerWidget.h.

int vtkImageTracerWidget::LastX [protected]

Definition at line 294 of file vtkImageTracerWidget.h.

int vtkImageTracerWidget::LastY [protected]

Definition at line 295 of file vtkImageTracerWidget.h.

Definition at line 304 of file vtkImageTracerWidget.h.

Definition at line 305 of file vtkImageTracerWidget.h.

Definition at line 306 of file vtkImageTracerWidget.h.

Definition at line 309 of file vtkImageTracerWidget.h.

Definition at line 310 of file vtkImageTracerWidget.h.

Definition at line 311 of file vtkImageTracerWidget.h.

Definition at line 322 of file vtkImageTracerWidget.h.

Definition at line 323 of file vtkImageTracerWidget.h.

Definition at line 324 of file vtkImageTracerWidget.h.

Definition at line 326 of file vtkImageTracerWidget.h.

Definition at line 327 of file vtkImageTracerWidget.h.

Definition at line 330 of file vtkImageTracerWidget.h.

Definition at line 331 of file vtkImageTracerWidget.h.

Definition at line 332 of file vtkImageTracerWidget.h.

Definition at line 333 of file vtkImageTracerWidget.h.

Definition at line 334 of file vtkImageTracerWidget.h.

Definition at line 340 of file vtkImageTracerWidget.h.

Definition at line 343 of file vtkImageTracerWidget.h.

Definition at line 344 of file vtkImageTracerWidget.h.

Definition at line 345 of file vtkImageTracerWidget.h.

Definition at line 349 of file vtkImageTracerWidget.h.

Definition at line 350 of file vtkImageTracerWidget.h.

Definition at line 351 of file vtkImageTracerWidget.h.

Definition at line 352 of file vtkImageTracerWidget.h.


The documentation for this class was generated from the following file:

Generated on Mon Sep 27 18:29:43 2010 for VTK by  doxygen 1.5.6
