#include <vtkIncrementalOctreePointLocator.h>
As opposed to the uniform bin-based search structure (adopted in class vtkPointLocator) with a fixed spatial resolution, an octree mechanism employs a hierarchy of tree-like sub-division of the 3D data domain. Thus it enables data-aware multi-resolution and accordingly accelerated point location as well as insertion, particularly when handling a radically imbalanced layout of points as not uncommon in datasets defined on adaptive meshes. Compared to a static point locator supporting pure location functionalities through some search structure established from a fixed set of points, an incremental point locator allows for, in addition, point insertion capabilities, with the search structure maintaining a dynamically increasing number of points. Class vtkIncrementalOctreePointLocator is an octree-based accelerated implementation of the functionalities of the uniform bin-based incremental point locator vtkPointLocator. For point location, an octree is built by accessing a vtkDataSet, specifically a vtkPointSet. For point insertion, an empty octree is inited and then incrementally populated as points are inserted. Three increasingly complex point insertion modes, i.e., direct check-free insertion, zero tolerance insertion, and non-zero tolerance insertion, are supported. In fact, the octree used in the point location mode is actually constructed via direct check-free point insertion. This class also provides a polygonal representation of the octree boundary.

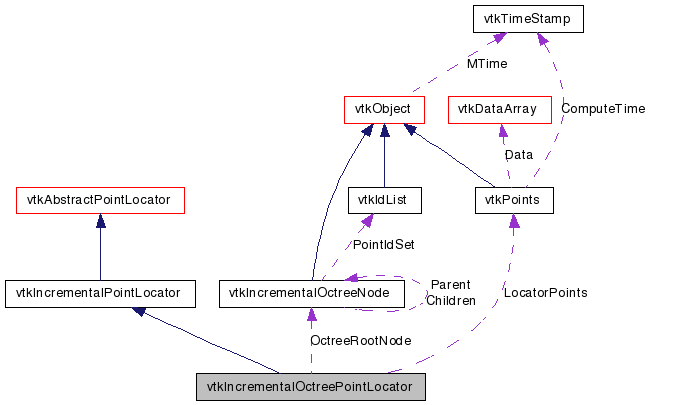

Definition at line 61 of file vtkIncrementalOctreePointLocator.h.
Public Types | |
typedef vtkIncrementalPointLocator | Superclass |
Public Member Functions | |
virtual const char * | GetClassName () |
virtual int | IsA (const char *type) |
void | PrintSelf (ostream &os, vtkIndent indent) |
virtual void | Initialize () |
virtual void | FreeSearchStructure () |
virtual void | GetBounds (double *bounds) |
int | GetNumberOfPoints () |
virtual vtkIdType | FindClosestInsertedPoint (const double x[3]) |
virtual void | GenerateRepresentation (int nodeLevel, vtkPolyData *polysData) |
virtual void | BuildLocator () |
virtual vtkIdType | FindClosestPoint (const double x[3]) |
virtual vtkIdType | FindClosestPoint (double x, double y, double z) |
virtual vtkIdType | FindClosestPoint (const double x[3], double *miniDist2) |
virtual vtkIdType | FindClosestPoint (double x, double y, double z, double *miniDist2) |
virtual int | InitPointInsertion (vtkPoints *points, const double bounds[6]) |
virtual vtkIdType | IsInsertedPoint (const double x[3]) |
virtual vtkIdType | IsInsertedPoint (double x, double y, double z) |
virtual int | InsertUniquePoint (const double point[3], vtkIdType &pntId) |
virtual void | InsertPoint (vtkIdType ptId, const double x[3]) |
virtual vtkIdType | InsertNextPoint (const double x[3]) |
virtual void | SetMaxPointsPerLeaf (int) |
virtual int | GetMaxPointsPerLeaf () |
virtual void | SetBuildCubicOctree (int) |
virtual int | GetBuildCubicOctree () |
virtual void | BuildCubicOctreeOn () |
virtual void | BuildCubicOctreeOff () |
virtual vtkPoints * | GetLocatorPoints () |
virtual double * | GetBounds () |
virtual vtkIdType | FindClosestPointWithinRadius (double radius, const double x[3], double &dist2) |
vtkIdType | FindClosestPointWithinSquaredRadius (double radius2, const double x[3], double &dist2) |
virtual void | FindPointsWithinRadius (double R, const double x[3], vtkIdList *result) |
void | FindPointsWithinSquaredRadius (double R2, const double x[3], vtkIdList *result) |
virtual void | FindClosestNPoints (int N, const double x[3], vtkIdList *result) |
virtual int | InitPointInsertion (vtkPoints *points, const double bounds[6], vtkIdType estSize) |
void | InsertPointWithoutChecking (const double point[3], vtkIdType &pntId, int insert) |
Static Public Member Functions | |
static int | IsTypeOf (const char *type) |
static vtkIncrementalOctreePointLocator * | SafeDownCast (vtkObject *o) |
static vtkIncrementalOctreePointLocator * | New () |
Protected Member Functions | |
vtkIncrementalOctreePointLocator () | |
virtual | ~vtkIncrementalOctreePointLocator () |
Reimplemented from vtkIncrementalPointLocator.
Definition at line 65 of file vtkIncrementalOctreePointLocator.h.
vtkIncrementalOctreePointLocator::vtkIncrementalOctreePointLocator | ( | ) | [protected] |
virtual vtkIncrementalOctreePointLocator::~vtkIncrementalOctreePointLocator | ( | ) | [protected, virtual] |
virtual const char* vtkIncrementalOctreePointLocator::GetClassName | ( | ) | [virtual] |
Reimplemented from vtkIncrementalPointLocator.
static int vtkIncrementalOctreePointLocator::IsTypeOf | ( | const char * | name | ) | [static] |
Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkIncrementalPointLocator.
virtual int vtkIncrementalOctreePointLocator::IsA | ( | const char * | name | ) | [virtual] |
Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkIncrementalPointLocator.
static vtkIncrementalOctreePointLocator* vtkIncrementalOctreePointLocator::SafeDownCast | ( | vtkObject * | o | ) | [static] |
Reimplemented from vtkIncrementalPointLocator.
void vtkIncrementalOctreePointLocator::PrintSelf | ( | ostream & | os, | |
vtkIndent | indent | |||
) | [virtual] |
Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.
Reimplemented from vtkIncrementalPointLocator.
static vtkIncrementalOctreePointLocator* vtkIncrementalOctreePointLocator::New | ( | ) | [static] |
Create an object with Debug turned off, modified time initialized to zero, and reference counting on.
Reimplemented from vtkObject.
virtual void vtkIncrementalOctreePointLocator::SetMaxPointsPerLeaf | ( | int | ) | [virtual] |
Set/Get the maximum number of points that a leaf node may maintain. Note that the actual number of points maintained by a leaf node might exceed this threshold if there is a large number (equal to or greater than the threshold) of exactly duplicate points (with zero distance) to be inserted (e.g., to construct an octree for subsequent point location) in extreme cases. Respecting this threshold in such scenarios would cause endless node sub-division. Thus this threshold is broken, but only in case of such situations.
virtual int vtkIncrementalOctreePointLocator::GetMaxPointsPerLeaf | ( | ) | [virtual] |
Set/Get the maximum number of points that a leaf node may maintain. Note that the actual number of points maintained by a leaf node might exceed this threshold if there is a large number (equal to or greater than the threshold) of exactly duplicate points (with zero distance) to be inserted (e.g., to construct an octree for subsequent point location) in extreme cases. Respecting this threshold in such scenarios would cause endless node sub-division. Thus this threshold is broken, but only in case of such situations.
virtual void vtkIncrementalOctreePointLocator::SetBuildCubicOctree | ( | int | ) | [virtual] |
Set/Get whether the search octree is built as a cubic shape or not.
virtual int vtkIncrementalOctreePointLocator::GetBuildCubicOctree | ( | ) | [virtual] |
Set/Get whether the search octree is built as a cubic shape or not.
virtual void vtkIncrementalOctreePointLocator::BuildCubicOctreeOn | ( | ) | [virtual] |
Set/Get whether the search octree is built as a cubic shape or not.
virtual void vtkIncrementalOctreePointLocator::BuildCubicOctreeOff | ( | ) | [virtual] |
Set/Get whether the search octree is built as a cubic shape or not.
virtual vtkPoints* vtkIncrementalOctreePointLocator::GetLocatorPoints | ( | ) | [virtual] |
Get access to the vtkPoints object in which point coordinates are stored for either point location or point insertion.
virtual void vtkIncrementalOctreePointLocator::Initialize | ( | ) | [inline, virtual] |
Delete the octree search structure.
Implements vtkIncrementalPointLocator.
Definition at line 97 of file vtkIncrementalOctreePointLocator.h.
virtual void vtkIncrementalOctreePointLocator::FreeSearchStructure | ( | ) | [virtual] |
Delete the octree search structure.
Implements vtkAbstractPointLocator.
virtual void vtkIncrementalOctreePointLocator::GetBounds | ( | double * | bounds | ) | [virtual] |
Get the spatial bounding box of the octree.
Reimplemented from vtkAbstractPointLocator.
virtual double* vtkIncrementalOctreePointLocator::GetBounds | ( | void | ) | [inline, virtual] |
Get the spatial bounding box of the octree.
Reimplemented from vtkAbstractPointLocator.
Definition at line 107 of file vtkIncrementalOctreePointLocator.h.
int vtkIncrementalOctreePointLocator::GetNumberOfPoints | ( | ) |
Get the number of points maintained by the octree.
virtual vtkIdType vtkIncrementalOctreePointLocator::FindClosestInsertedPoint | ( | const double | x[3] | ) | [virtual] |
Given a point x assumed to be covered by the octree, return the index of the closest in-octree point regardless of the associated minimum squared distance relative to the squared insertion-tolerance distance. This method is used when performing incremental point insertion. Note -1 indicates that no point is found. InitPointInsertion() should have been called in advance.
Implements vtkIncrementalPointLocator.
virtual void vtkIncrementalOctreePointLocator::GenerateRepresentation | ( | int | nodeLevel, | |
vtkPolyData * | polysData | |||
) | [virtual] |
Create a polygonal representation of the octree boundary (from the root node to a specified level).
Implements vtkAbstractPointLocator.
virtual void vtkIncrementalOctreePointLocator::BuildLocator | ( | ) | [virtual] |
Load points from a dataset to construct an octree for point location. This function resorts to InitPointInsertion() to fulfill some of the work.
Implements vtkAbstractPointLocator.
virtual vtkIdType vtkIncrementalOctreePointLocator::FindClosestPoint | ( | const double | x[3] | ) | [virtual] |
Given a point x, return the id of the closest point. BuildLocator() should have been called prior to this function. This method is thread safe if BuildLocator() is directly or indirectly called from a single thread first.
Implements vtkAbstractPointLocator.
virtual vtkIdType vtkIncrementalOctreePointLocator::FindClosestPoint | ( | double | x, | |
double | y, | |||
double | z | |||
) | [virtual] |
Given a point (x, y, z), return the id of the closest point. Note that BuildLocator() should have been called prior to this function. This method is thread safe if BuildLocator() is directly or indirectly called from a single thread first.
Reimplemented from vtkAbstractPointLocator.
virtual vtkIdType vtkIncrementalOctreePointLocator::FindClosestPoint | ( | const double | x[3], | |
double * | miniDist2 | |||
) | [virtual] |
Given a point x, return the id of the closest point and the associated minimum squared distance (via miniDist2). Note BuildLocator() should have been called prior to this function. This method is thread safe if BuildLocator() is directly or indirectly called from a single thread first.
virtual vtkIdType vtkIncrementalOctreePointLocator::FindClosestPoint | ( | double | x, | |
double | y, | |||
double | z, | |||
double * | miniDist2 | |||
) | [virtual] |
Given a point (x, y, z), return the id of the closest point and the associated minimum squared distance (via miniDist2). BuildLocator() should have been called prior to this function. This method is thread safe if BuildLocator() is directly or indirectly called from a single thread first.
virtual vtkIdType vtkIncrementalOctreePointLocator::FindClosestPointWithinRadius | ( | double | radius, | |
const double | x[3], | |||
double & | dist2 | |||
) | [virtual] |
Given a point x and a radius, return the id of the closest point within the radius and the associated minimum squared distance (via dist2, this returned distance is valid only if the point id is not -1). Note that BuildLocator() should have been called prior to this function. This method is thread safe if BuildLocator() is directly or indirectly called from a single thread first.
Implements vtkAbstractPointLocator.
vtkIdType vtkIncrementalOctreePointLocator::FindClosestPointWithinSquaredRadius | ( | double | radius2, | |
const double | x[3], | |||
double & | dist2 | |||
) |
Given a point x and a squared radius radius2, return the id of the closest point within the radius and the associated minimum squared distance (via dist2, note this returned distance is valid only if the point id is not -1). BuildLocator() should have been called prior to this function.This method is thread safe if BuildLocator() is directly or indirectly called from a single thread first.
virtual void vtkIncrementalOctreePointLocator::FindPointsWithinRadius | ( | double | R, | |
const double | x[3], | |||
vtkIdList * | result | |||
) | [virtual] |
Find all points within a radius R relative to a given point x. The returned point ids (stored in result) are not sorted in any way. BuildLocator() should have been called prior to this function. This method is thread safe if BuildLocator() is directly or indirectly called from a single thread first.
Implements vtkAbstractPointLocator.
void vtkIncrementalOctreePointLocator::FindPointsWithinSquaredRadius | ( | double | R2, | |
const double | x[3], | |||
vtkIdList * | result | |||
) |
Find all points within a squared radius R2 relative to a given point x. The returned point ids (stored in result) are not sorted in any way. BuildLocator() should have been called prior to this function. This method is thread safe if BuildLocator() is directly or indirectly called from a single thread first.
virtual void vtkIncrementalOctreePointLocator::FindClosestNPoints | ( | int | N, | |
const double | x[3], | |||
vtkIdList * | result | |||
) | [virtual] |
Find the closest N points to a given point. The returned point ids (via result) are sorted from closest to farthest. BuildLocator() should have been called prior to this function. This method is thread safe if BuildLocator() is directly or indirectly called from a single thread first.
Implements vtkAbstractPointLocator.
virtual int vtkIncrementalOctreePointLocator::InitPointInsertion | ( | vtkPoints * | points, | |
const double | bounds[6] | |||
) | [virtual] |
Initialize the point insertion process. points is an object, storing 3D point coordinates, to which incremental point insertion put coordinates. It is created and provided by an external VTK class. Argument bounds represents the spatial bounding box, into which the points fall. In fact, an adjusted version of the bounding box is used to build the octree to make sure no any point (to be inserted) falls outside the octree. This function is not thread safe.
Implements vtkIncrementalPointLocator.
virtual int vtkIncrementalOctreePointLocator::InitPointInsertion | ( | vtkPoints * | points, | |
const double | bounds[6], | |||
vtkIdType | estSize | |||
) | [virtual] |
Initialize the point insertion process. points is an object, storing 3D point coordinates, to which incremental point insertion put coordinates. It is created and provided by an external VTK class. Argument bounds represents the spatial bounding box, into which the points fall. In fact, an adjusted version of the bounding box is used to build the octree to make sure no any point (to be inserted) falls outside the octree. Argument estSize specifies the initial estimated size of the vtkPoints object. This function is not thread safe.
Implements vtkIncrementalPointLocator.
virtual vtkIdType vtkIncrementalOctreePointLocator::IsInsertedPoint | ( | const double | x[3] | ) | [virtual] |
Determine whether or not a given point has been inserted into the octree. Return the id of the already inserted point if true, otherwise return -1. InitPointInsertion() should have been called in advance.
Implements vtkIncrementalPointLocator.
virtual vtkIdType vtkIncrementalOctreePointLocator::IsInsertedPoint | ( | double | x, | |
double | y, | |||
double | z | |||
) | [virtual] |
Determine whether or not a given point has been inserted into the octree. Return the id of the already inserted point if true, otherwise return -1. InitPointInsertion() should have been called in advance.
Implements vtkIncrementalPointLocator.
virtual int vtkIncrementalOctreePointLocator::InsertUniquePoint | ( | const double | point[3], | |
vtkIdType & | pntId | |||
) | [virtual] |
Insert a point to the octree unless there has been a duplciate point. Whether the point is actually inserted (return 1) or not (return 0 upon a rejection by an existing duplicate), the index of the point (either new or the duplicate) is returned via pntId. Note that InitPointInsertion() should have been called prior to this function. vtkPoints::InsertNextPoint() is invoked. This method is not thread safe.
Implements vtkIncrementalPointLocator.
virtual void vtkIncrementalOctreePointLocator::InsertPoint | ( | vtkIdType | ptId, | |
const double | x[3] | |||
) | [virtual] |
Insert a given point into the octree with a specified point index ptId. InitPointInsertion() should have been called prior to this function. In addition, IsInsertedPoint() should have been called in advance to ensure that the given point has not been inserted unless point duplication is allowed (Note that in this case, this function involves a repeated leaf container location). vtkPoints::InsertPoint() is invoked.
Implements vtkIncrementalPointLocator.
virtual vtkIdType vtkIncrementalOctreePointLocator::InsertNextPoint | ( | const double | x[3] | ) | [virtual] |
Insert a given point into the octree and return the point index. Note that InitPointInsertion() should have been called prior to this function. In addition, IsInsertedPoint() should have been called in advance to ensure that the given point has not been inserted unless point duplication is allowed (in this case, this function invovles a repeated leaf container location). vtkPoints::InsertNextPoint() is invoked.
Implements vtkIncrementalPointLocator.
void vtkIncrementalOctreePointLocator::InsertPointWithoutChecking | ( | const double | point[3], | |
vtkIdType & | pntId, | |||
int | insert | |||
) |
"Insert" a point to the octree without any checking. Argument insert means whether vtkPoints::InsertNextPoint() upon 1 is called or the point itself is not inserted to the vtkPoints at all but instead only the point index is inserted to a vtkIdList upon 0. For case 0, the point index needs to be specified via pntId. For case 1, the actual point index is returned via pntId. InitPointInsertion() should have been called.
