vtkLineWidget2 Class Reference
#include <vtkLineWidget2.h>
Detailed Description
3D widget for manipulating a finite, straight lineThis 3D widget defines a straight line that can be interactively placed in a scene. The widget is assumed to consist of two parts: 1) two end points and 2) a straight line connecting the two points. (The representation paired with this widget determines the actual geometry of the widget.) The positioning of the two end points is facilitated by using vtkHandleWidgets to position the points.
To use this widget, you generally pair it with a vtkLineRepresentation (or a subclass). Variuos options are available in the representation for controlling how the widget appears, and how the widget functions.
- Event Bindings:
- By default, the widget responds to the following VTK events (i.e., it watches the vtkRenderWindowInteractor for these events):
If one of the two end points are selected: LeftButtonPressEvent - activate the associated handle widget LeftButtonReleaseEvent - release the handle widget associated with the point MouseMoveEvent - move the point If the line is selected: LeftButtonPressEvent - activate a handle widget accociated with the line LeftButtonReleaseEvent - release the handle widget associated with the line MouseMoveEvent - translate the line In all the cases, independent of what is picked, the widget responds to the following VTK events: MiddleButtonPressEvent - translate the widget MiddleButtonReleaseEvent - release the widget RightButtonPressEvent - scale the widget's representation RightButtonReleaseEvent - stop scaling the widget MouseMoveEvent - scale (if right button) or move (if middle button) the widget
- Event Bindings:
- Note that the event bindings described above can be changed using this class's vtkWidgetEventTranslator. This class translates VTK events into the vtkLineWidget2's widget events:
vtkWidgetEvent::Select -- some part of the widget has been selected vtkWidgetEvent::EndSelect -- the selection process has completed vtkWidgetEvent::Move -- a request for slider motion has been invoked
- Event Bindings:
- In turn, when these widget events are processed, the vtkLineWidget2 invokes the following VTK events on itself (which observers can listen for):
vtkCommand::StartInteractionEvent (on vtkWidgetEvent::Select) vtkCommand::EndInteractionEvent (on vtkWidgetEvent::EndSelect) vtkCommand::InteractionEvent (on vtkWidgetEvent::Move)
- Warning:
- Note that the widget can be picked even when it is "behind" other actors. This is an intended feature and not a bug.
This class, and vtkLineRepresentation, are next generation VTK widgets. An earlier version of this functionality was defined in the class vtkLineWidget.
- See also:
- vtkLineRepresentation vtkLineWidget vtk3DWidget vtkImplicitPlaneWidget vtkImplicitPlaneWidget2
- Events:
- vtkCommand::EndInteractionEvent vtkCommand::InteractionEvent vtkCommand::MouseMoveEvent vtkCommand::LeftButtonPressEvent vtkCommand::StartInteractionEvent vtkCommand::LeftButtonReleaseEvent
- Tests:
- vtkLineWidget2 (Tests)

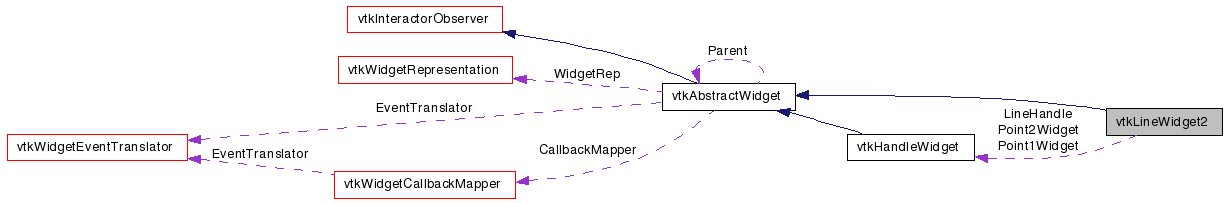

Definition at line 99 of file vtkLineWidget2.h.
| typedef vtkAbstractWidget | Superclass |
| static int | IsTypeOf (const char *type) |
| static vtkLineWidget2 * | SafeDownCast (vtkObject *o) |
| virtual const char * | GetClassName () |
| virtual int | IsA (const char *type) |
| void | PrintSelf (ostream &os, vtkIndent indent) |
Public Member Functions | |
| virtual void | SetEnabled (int enabling) |
| void | CreateDefaultRepresentation () |
| virtual void | SetProcessEvents (int) |
| void | SetRepresentation (vtkLineRepresentation *r) |
Static Public Member Functions | |
| static vtkLineWidget2 * | New () |
Protected Types | |
| enum | _WidgetState { Start = 0, Active } |
Protected Member Functions | |
| vtkLineWidget2 () | |
| ~vtkLineWidget2 () | |
Static Protected Member Functions | |
| static void | SelectAction (vtkAbstractWidget *) |
| static void | TranslateAction (vtkAbstractWidget *) |
| static void | ScaleAction (vtkAbstractWidget *) |
| static void | EndSelectAction (vtkAbstractWidget *) |
| static void | MoveAction (vtkAbstractWidget *) |
Protected Attributes | |
| int | WidgetState |
| int | CurrentHandle |
| vtkHandleWidget * | Point1Widget |
| vtkHandleWidget * | Point2Widget |
| vtkHandleWidget * | LineHandle |
Member Typedef Documentation
Standard vtkObject methods
Reimplemented from vtkAbstractWidget.
Definition at line 107 of file vtkLineWidget2.h.
Member Enumeration Documentation
enum vtkLineWidget2::_WidgetState [protected] |
Constructor & Destructor Documentation
| vtkLineWidget2::vtkLineWidget2 | ( | ) | [protected] |
| vtkLineWidget2::~vtkLineWidget2 | ( | ) | [protected] |
Member Function Documentation
| static vtkLineWidget2* vtkLineWidget2::New | ( | ) | [static] |
Instantiate the object.
Reimplemented from vtkObject.
| virtual const char* vtkLineWidget2::GetClassName | ( | ) | [virtual] |
Standard vtkObject methods
Reimplemented from vtkAbstractWidget.
| static int vtkLineWidget2::IsTypeOf | ( | const char * | type | ) | [static] |
Standard vtkObject methods
Reimplemented from vtkAbstractWidget.
| virtual int vtkLineWidget2::IsA | ( | const char * | type | ) | [virtual] |
Standard vtkObject methods
Reimplemented from vtkAbstractWidget.
| static vtkLineWidget2* vtkLineWidget2::SafeDownCast | ( | vtkObject * | o | ) | [static] |
Standard vtkObject methods
Reimplemented from vtkAbstractWidget.
| void vtkLineWidget2::PrintSelf | ( | ostream & | os, | |
| vtkIndent | indent | |||
| ) | [virtual] |
Standard vtkObject methods
Reimplemented from vtkAbstractWidget.
| virtual void vtkLineWidget2::SetEnabled | ( | int | enabling | ) | [virtual] |
Override superclasses' SetEnabled() method because the line widget must enable its internal handle widgets.
Reimplemented from vtkAbstractWidget.
| void vtkLineWidget2::SetRepresentation | ( | vtkLineRepresentation * | r | ) | [inline] |
Specify an instance of vtkWidgetRepresentation used to represent this widget in the scene. Note that the representation is a subclass of vtkProp so it can be added to the renderer independent of the widget.
Definition at line 119 of file vtkLineWidget2.h.
| void vtkLineWidget2::CreateDefaultRepresentation | ( | ) | [virtual] |
Create the default widget representation if one is not set.
Implements vtkAbstractWidget.
| virtual void vtkLineWidget2::SetProcessEvents | ( | int | ) | [virtual] |
Methods to change the whether the widget responds to interaction. Overridden to pass the state to component widgets.
Reimplemented from vtkAbstractWidget.
| static void vtkLineWidget2::SelectAction | ( | vtkAbstractWidget * | ) | [static, protected] |
| static void vtkLineWidget2::TranslateAction | ( | vtkAbstractWidget * | ) | [static, protected] |
| static void vtkLineWidget2::ScaleAction | ( | vtkAbstractWidget * | ) | [static, protected] |
| static void vtkLineWidget2::EndSelectAction | ( | vtkAbstractWidget * | ) | [static, protected] |
| static void vtkLineWidget2::MoveAction | ( | vtkAbstractWidget * | ) | [static, protected] |
Member Data Documentation
int vtkLineWidget2::WidgetState [protected] |
Definition at line 135 of file vtkLineWidget2.h.
int vtkLineWidget2::CurrentHandle [protected] |
Definition at line 138 of file vtkLineWidget2.h.
vtkHandleWidget* vtkLineWidget2::Point1Widget [protected] |
Definition at line 148 of file vtkLineWidget2.h.
vtkHandleWidget* vtkLineWidget2::Point2Widget [protected] |
Definition at line 149 of file vtkLineWidget2.h.
vtkHandleWidget* vtkLineWidget2::LineHandle [protected] |
Definition at line 150 of file vtkLineWidget2.h.
The documentation for this class was generated from the following file:
- dox/Widgets/vtkLineWidget2.h
