vtkMatlabMexAdapter Class Reference

#include <vtkMatlabMexAdapter.h>

Inheritance diagram for vtkMatlabMexAdapter:

Inheritance graph
[legend]

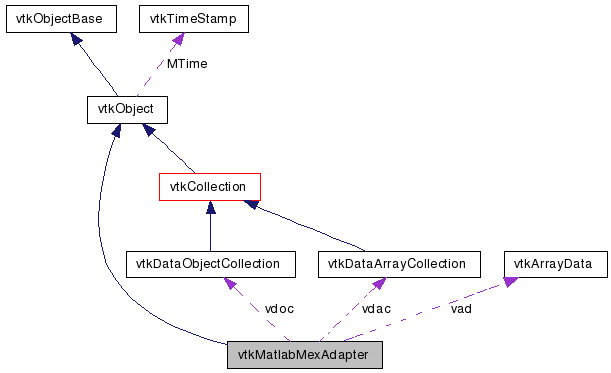

Collaboration diagram for vtkMatlabMexAdapter:

Collaboration graph
[legend]

List of all members.


Detailed Description

This is a utility class to convert VTK array data to and from the Matlab mxArray format. It is used with the Matlab Mex and Matlab Engine interfaces.

The default behavior of each function is to perform a deep copy of the data. Set the ShallowCopy argument to true to use the block of memory that has already been allocated by either VTK or Matlab. The result of a shallow copy will produce the transpose of the data in the new system, because VTK uses row major ordering and Matlab uses column major ordering for data.

VTK data structures created by this class from Matlab types are stored in array collections and freed when the class destructor is called. Use the Register() method on a returned object to increase its reference count by one, in order keep the object around after this classes destructor has been called. The code calling Register() must eventually call Delete() on the object to free memory.

See also:
vtkMatlabEngineInterface vtkMatlabEngineFilter
Thanks:
Developed by Thomas Otahal at Sandia National Laboratories.

Definition at line 67 of file vtkMatlabMexAdapter.h.


Public Types

typedef vtkObject Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
mxArray * vtkDataArrayToMxArray (vtkDataArray *aa, bool ShallowCopy=false)
vtkDataArraymxArrayTovtkDataArray (const mxArray *mxa, bool ShallowCopy=false)
mxArray * vtkArrayToMxArray (vtkArray *va)
vtkArraymxArrayTovtkArray (mxArray *mxa)
mxArray * vtkGraphToMxArray (vtkGraph *ga)
vtkGraphmxArrayTovtkGraph (mxArray *mxa)

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkMatlabMexAdapterSafeDownCast (vtkObject *o)
static vtkMatlabMexAdapterNew ()
static mxClassID GetMatlabDataType (vtkDataArray *da)
static vtkDataArrayGetVTKDataType (mxClassID cid)

Protected Member Functions

 vtkMatlabMexAdapter ()
 ~vtkMatlabMexAdapter ()

Member Typedef Documentation

Reimplemented from vtkObject.

Definition at line 72 of file vtkMatlabMexAdapter.h.


Constructor & Destructor Documentation

vtkMatlabMexAdapter::vtkMatlabMexAdapter (  )  [protected]

vtkMatlabMexAdapter::~vtkMatlabMexAdapter (  )  [protected]


Member Function Documentation

virtual const char* vtkMatlabMexAdapter::GetClassName (  )  [virtual]

Reimplemented from vtkObject.

static int vtkMatlabMexAdapter::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

virtual int vtkMatlabMexAdapter::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

static vtkMatlabMexAdapter* vtkMatlabMexAdapter::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkObject.

void vtkMatlabMexAdapter::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkObject.

static vtkMatlabMexAdapter* vtkMatlabMexAdapter::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

mxArray* vtkMatlabMexAdapter::vtkDataArrayToMxArray ( vtkDataArray aa,
bool  ShallowCopy = false
)

Create a mxArray copy of a vtkDataArray (Allocates memory by default)

vtkDataArray* vtkMatlabMexAdapter::mxArrayTovtkDataArray ( const mxArray *  mxa,
bool  ShallowCopy = false
)

Create a vtkDataArray copy of a Matlab mxArray (Allocates memory by default)

mxArray* vtkMatlabMexAdapter::vtkArrayToMxArray ( vtkArray va  )

Create a mxArray copy of a vtkArray (Allocates memory by default)

vtkArray* vtkMatlabMexAdapter::mxArrayTovtkArray ( mxArray *  mxa  )

Create a vtkArray copy of a mxArray (Allocates memory by default)

mxArray* vtkMatlabMexAdapter::vtkGraphToMxArray ( vtkGraph ga  )

Create a mxArray copy of a vtkGraph (Allocates memory by default) The result is an n by n connectivity matrix, where n is the number of nodes in the graph.

vtkGraph* vtkMatlabMexAdapter::mxArrayTovtkGraph ( mxArray *  mxa  )

Create a vtkGraph copy of a mxArray (Allocates memory by default) Input mxArray should be a n by n connectivity matrix, where n is the number of nodes in the graph.

static mxClassID vtkMatlabMexAdapter::GetMatlabDataType ( vtkDataArray da  )  [static]

Match Matlab and VTK data types for conversion.

static vtkDataArray* vtkMatlabMexAdapter::GetVTKDataType ( mxClassID  cid  )  [static]

Match Matlab and VTK data types for conversion.


The documentation for this class was generated from the following file:
