vtkMesaRenderWindow Class Reference

#include <vtkMesaRenderWindow.h>

Inheritance diagram for vtkMesaRenderWindow:

Inheritance graph
[legend]

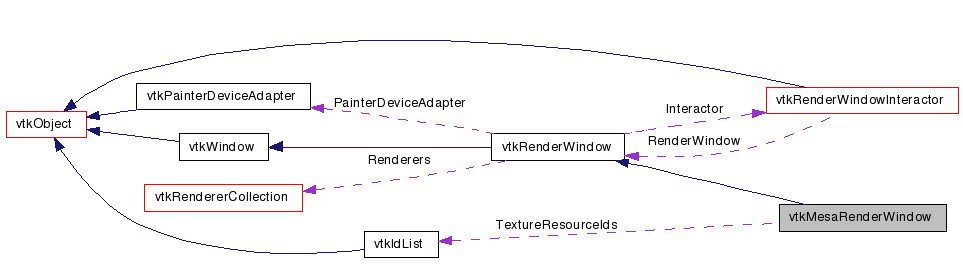

Collaboration diagram for vtkMesaRenderWindow:

Collaboration graph
[legend]

List of all members.

Detailed Description

Mesa rendering window.

vtkMesaRenderWindow is a concrete implementation of the abstract class vtkRenderWindow. It uses the mangle openGL namespace mgl, so Mesa render windows can be created in the same program as openGL render windows.

Definition at line 33 of file vtkMesaRenderWindow.h.


Public Types

typedef vtkRenderWindow Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void StereoUpdate ()
void MakeCurrent ()=0
void RegisterTextureResource (GLuint id)
int GetDepthBufferSize ()
int GetColorBufferSizes (int *rgba)
virtual void OpenGLInit ()
virtual void SetMultiSamples (int)
virtual int GetMultiSamples ()
virtual unsigned char * GetPixelData (int x, int y, int x2, int y2, int front)
virtual int GetPixelData (int x, int y, int x2, int y2, int front, vtkUnsignedCharArray *)
virtual int SetPixelData (int x, int y, int x2, int y2, unsigned char *, int front)
virtual int SetPixelData (int x, int y, int x2, int y2, vtkUnsignedCharArray *, int front)
virtual float * GetRGBAPixelData (int x, int y, int x2, int y2, int front)
virtual int GetRGBAPixelData (int x, int y, int x2, int y2, int front, vtkFloatArray *data)
virtual int SetRGBAPixelData (int x, int y, int x2, int y2, float *, int front, int blend=0)
virtual int SetRGBAPixelData (int x, int y, int x2, int y2, vtkFloatArray *, int front, int blend=0)
virtual void ReleaseRGBAPixelData (float *data)
virtual unsigned char * GetRGBACharPixelData (int x, int y, int x2, int y2, int front)
virtual int GetRGBACharPixelData (int x, int y, int x2, int y2, int front, vtkUnsignedCharArray *data)
virtual int SetRGBACharPixelData (int x, int y, int x2, int y2, unsigned char *, int front, int blend=0)
virtual int SetRGBACharPixelData (int x, int y, int x2, int y2, vtkUnsignedCharArray *, int front, int blend=0)
virtual float * GetZbufferData (int x1, int y1, int x2, int y2)
virtual int GetZbufferData (int x1, int y1, int x2, int y2, float *buffer)
virtual int GetZbufferData (int x1, int y1, int x2, int y2, vtkFloatArray *z)
virtual int SetZbufferData (int x1, int y1, int x2, int y2, float *buffer)
virtual int SetZbufferData (int x1, int y1, int x2, int y2, vtkFloatArray *buffer)

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkMesaRenderWindow * SafeDownCast (vtkObject *o)
static void SetGlobalMaximumNumberOfMultiSamples (int val)
static int GetGlobalMaximumNumberOfMultiSamples ()

Protected Member Functions

 vtkMesaRenderWindow ()
 ~vtkMesaRenderWindow ()
int GetPixelData (int x, int y, int x2, int y2, int front, unsigned char *data)
int GetRGBAPixelData (int x, int y, int x2, int y2, int front, float *data)
int GetRGBACharPixelData (int x, int y, int x2, int y2, int front, unsigned char *data)

Protected Attributes

int MultiSamples
long OldMonitorSetting
vtkIdList * TextureResourceIds

Member Typedef Documentation

typedef vtkRenderWindow vtkMesaRenderWindow::Superclass

Reimplemented from vtkRenderWindow.

Reimplemented in vtkXMesaRenderWindow.

Definition at line 40 of file vtkMesaRenderWindow.h.

Constructor & Destructor Documentation

vtkMesaRenderWindow::vtkMesaRenderWindow (  )  [protected]

vtkMesaRenderWindow::~vtkMesaRenderWindow (  )  [protected]

Member Function Documentation

virtual const char* vtkMesaRenderWindow::GetClassName (  )  [virtual]

Reimplemented from vtkRenderWindow.

Reimplemented in vtkXMesaRenderWindow.

static int vtkMesaRenderWindow::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkRenderWindow.

Reimplemented in vtkXMesaRenderWindow.

virtual int vtkMesaRenderWindow::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkRenderWindow.

Reimplemented in vtkXMesaRenderWindow.

static vtkMesaRenderWindow* vtkMesaRenderWindow::SafeDownCast ( vtkObject *  o  )  [static]

Reimplemented from vtkRenderWindow.

Reimplemented in vtkXMesaRenderWindow.

void vtkMesaRenderWindow::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkRenderWindow.

Reimplemented in vtkXMesaRenderWindow.

static void vtkMesaRenderWindow::SetGlobalMaximumNumberOfMultiSamples ( int  val  )  [static]

Set/Get the maximum number of multisamples

static int vtkMesaRenderWindow::GetGlobalMaximumNumberOfMultiSamples (  )  [static]

Set/Get the maximum number of multisamples

virtual void vtkMesaRenderWindow::SetMultiSamples ( int   )  [virtual]

Set / Get the number of multisamples to use for hardware antialiasing.

Reimplemented from vtkRenderWindow.

virtual int vtkMesaRenderWindow::GetMultiSamples (  )  [virtual]

Set / Get the number of multisamples to use for hardware antialiasing.

Reimplemented from vtkRenderWindow.

virtual void vtkMesaRenderWindow::StereoUpdate (  )  [virtual]

Update system if needed due to stereo rendering.

Reimplemented from vtkRenderWindow.

virtual unsigned char* vtkMesaRenderWindow::GetPixelData ( int  x,
int  y,
int  x2,
int  y2,
int  front
) [virtual]

Set/Get the pixel data of an image, transmitted as RGBRGB...

Implements vtkWindow.

virtual int vtkMesaRenderWindow::GetPixelData ( int  x,
int  y,
int  x2,
int  y2,
int  front,
vtkUnsignedCharArray *
) [virtual]

Set/Get the pixel data of an image, transmitted as RGBRGB...

Implements vtkWindow.

virtual int vtkMesaRenderWindow::SetPixelData ( int  x,
int  y,
int  x2,
int  y2,
unsigned char *  ,
int  front
) [virtual]

Set/Get the pixel data of an image, transmitted as RGBRGB...

Implements vtkRenderWindow.

virtual int vtkMesaRenderWindow::SetPixelData ( int  x,
int  y,
int  x2,
int  y2,
vtkUnsignedCharArray *  ,
int  front
) [virtual]

Set/Get the pixel data of an image, transmitted as RGBRGB...

Implements vtkRenderWindow.

virtual float* vtkMesaRenderWindow::GetRGBAPixelData ( int  x,
int  y,
int  x2,
int  y2,
int  front
) [virtual]

Set/Get the pixel data of an image, transmitted as RGBARGBA...

Implements vtkRenderWindow.

virtual int vtkMesaRenderWindow::GetRGBAPixelData ( int  x,
int  y,
int  x2,
int  y2,
int  front,
vtkFloatArray *  data
) [virtual]

Set/Get the pixel data of an image, transmitted as RGBARGBA...

Implements vtkRenderWindow.

virtual int vtkMesaRenderWindow::SetRGBAPixelData ( int  x,
int  y,
int  x2,
int  y2,
float *  ,
int  front,
int  blend = 0
) [virtual]

Set/Get the pixel data of an image, transmitted as RGBARGBA...

Implements vtkRenderWindow.

virtual int vtkMesaRenderWindow::SetRGBAPixelData ( int  x,
int  y,
int  x2,
int  y2,
vtkFloatArray *  ,
int  front,
int  blend = 0
) [virtual]

Set/Get the pixel data of an image, transmitted as RGBARGBA...

Implements vtkRenderWindow.

virtual void vtkMesaRenderWindow::ReleaseRGBAPixelData ( float *  data  )  [virtual]

Set/Get the pixel data of an image, transmitted as RGBARGBA...

Implements vtkRenderWindow.

virtual unsigned char* vtkMesaRenderWindow::GetRGBACharPixelData ( int  x,
int  y,
int  x2,
int  y2,
int  front
) [virtual]

Set/Get the pixel data of an image, transmitted as RGBARGBA...

Implements vtkRenderWindow.

virtual int vtkMesaRenderWindow::GetRGBACharPixelData ( int  x,
int  y,
int  x2,
int  y2,
int  front,
vtkUnsignedCharArray *  data
) [virtual]

Set/Get the pixel data of an image, transmitted as RGBARGBA...

Implements vtkRenderWindow.

virtual int vtkMesaRenderWindow::SetRGBACharPixelData ( int  x,
int  y,
int  x2,
int  y2,
unsigned char *  ,
int  front,
int  blend = 0
) [virtual]

Set/Get the pixel data of an image, transmitted as RGBARGBA...

Implements vtkRenderWindow.

virtual int vtkMesaRenderWindow::SetRGBACharPixelData ( int  x,
int  y,
int  x2,
int  y2,
vtkUnsignedCharArray *  ,
int  front,
int  blend = 0
) [virtual]

Set/Get the pixel data of an image, transmitted as RGBARGBA...

Implements vtkRenderWindow.

virtual float* vtkMesaRenderWindow::GetZbufferData ( int  x1,
int  y1,
int  x2,
int  y2
) [virtual]

Set/Get the zbuffer data from an image

Implements vtkRenderWindow.

virtual int vtkMesaRenderWindow::GetZbufferData ( int  x1,
int  y1,
int  x2,
int  y2,
float *  buffer
) [virtual]

Set/Get the zbuffer data from an image

Implements vtkRenderWindow.

virtual int vtkMesaRenderWindow::GetZbufferData ( int  x1,
int  y1,
int  x2,
int  y2,
vtkFloatArray *  z
) [virtual]

Set/Get the zbuffer data from an image

Implements vtkRenderWindow.

virtual int vtkMesaRenderWindow::SetZbufferData ( int  x1,
int  y1,
int  x2,
int  y2,
float *  buffer
) [virtual]

Set/Get the zbuffer data from an image

Implements vtkRenderWindow.

virtual int vtkMesaRenderWindow::SetZbufferData ( int  x1,
int  y1,
int  x2,
int  y2,
vtkFloatArray *  buffer
) [virtual]

Set/Get the zbuffer data from an image

Implements vtkRenderWindow.

void vtkMesaRenderWindow::MakeCurrent (  )  [pure virtual]

Make this window the current Mesa context.

Implements vtkRenderWindow.

Implemented in vtkXMesaRenderWindow.

void vtkMesaRenderWindow::RegisterTextureResource ( GLuint  id  )

Register a texture name with this render window.

int vtkMesaRenderWindow::GetDepthBufferSize (  )  [virtual]

Get the size of the depth buffer.

Implements vtkRenderWindow.

int vtkMesaRenderWindow::GetColorBufferSizes ( int *  rgba  )  [virtual]

Get the size of the color buffer. Returns 0 if not able to determine otherwise sets R G B and A into buffer.

Implements vtkRenderWindow.

virtual void vtkMesaRenderWindow::OpenGLInit (  )  [virtual]

Initialize OpenGL for this window.

int vtkMesaRenderWindow::GetPixelData ( int  x,
int  y,
int  x2,
int  y2,
int  front,
unsigned char *  data
) [protected]

int vtkMesaRenderWindow::GetRGBAPixelData ( int  x,
int  y,
int  x2,
int  y2,
int  front,
float *  data
) [protected]

int vtkMesaRenderWindow::GetRGBACharPixelData ( int  x,
int  y,
int  x2,
int  y2,
int  front,
unsigned char *  data
) [protected]

Member Data Documentation

int vtkMesaRenderWindow::MultiSamples [protected]

Reimplemented from vtkRenderWindow.

Definition at line 36 of file vtkMesaRenderWindow.h.

long vtkMesaRenderWindow::OldMonitorSetting [protected]

Definition at line 37 of file vtkMesaRenderWindow.h.

vtkIdList* vtkMesaRenderWindow::TextureResourceIds [protected]

Definition at line 122 of file vtkMesaRenderWindow.h.

The documentation for this class was generated from the following file:
