vtkMINCImageAttributes Class Reference

#include <vtkMINCImageAttributes.h>

Inheritance diagram for vtkMINCImageAttributes:

[legend]

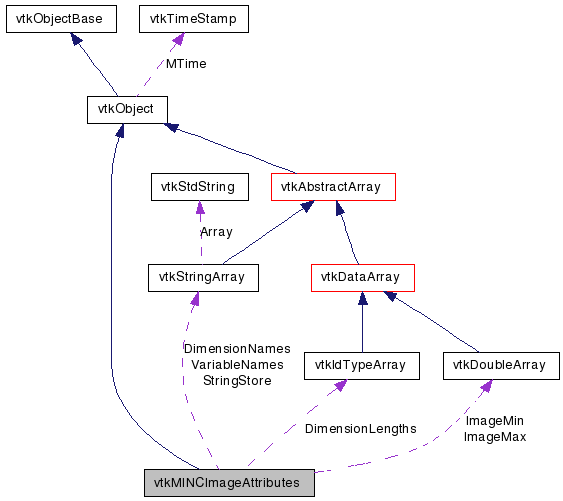

Collaboration diagram for vtkMINCImageAttributes:

[legend]

List of all members.

Detailed Description

A container for a MINC image header.

This class provides methods to access all of the information contained in the MINC header. If you read a MINC file into VTK and then write it out again, you can use writer->SetImageAttributes(reader->GetImageAttributes) to ensure that all of the medical information contained in the file is tranferred from the reader to the writer. If you want to change any of the header information, you must use ShallowCopy to make a copy of the reader's attributes and then modify only the copy.

See also:: vtkMINCImageReader vtkMINCImageWriter

Thanks:: Thanks to David Gobbi for writing this class and Atamai Inc. for contributing it to VTK.

Tests:: vtkMINCImageAttributes (Tests)

Definition at line 84 of file vtkMINCImageAttributes.h.


Public Types
typedef vtkObject	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
virtual void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	Reset ()
virtual vtkStringArray *	GetAttributeNames (const char *variable)
virtual int	HasAttribute (const char variable, const char attribute)
virtual void	ShallowCopy (vtkMINCImageAttributes *source)
virtual void	FindValidRange (double range[2])
virtual void	FindImageRange (double range[2])

virtual void	SetName (const char *)
virtual char *	GetName ()

virtual void	SetDataType (int)
virtual int	GetDataType ()

virtual void	AddDimension (const char *dimension)
virtual void	AddDimension (const char *dimension, vtkIdType length)

virtual vtkStringArray *	GetDimensionNames ()

virtual vtkIdTypeArray *	GetDimensionLengths ()

virtual vtkStringArray *	GetVariableNames ()

virtual void	SetImageMin (vtkDoubleArray *imageMin)
virtual void	SetImageMax (vtkDoubleArray *imageMax)
virtual vtkDoubleArray *	GetImageMin ()
virtual vtkDoubleArray *	GetImageMax ()

virtual int	GetNumberOfImageMinMaxDimensions ()
virtual void	SetNumberOfImageMinMaxDimensions (int)

virtual void	SetAttributeValueAsArray (const char variable, const char attribute, vtkDataArray *array)
virtual vtkDataArray *	GetAttributeValueAsArray (const char variable, const char attribute)

virtual void	SetAttributeValueAsString (const char variable, const char attribute, const char *value)
virtual const char *	GetAttributeValueAsString (const char variable, const char attribute)

virtual void	SetAttributeValueAsInt (const char variable, const char attribute, int value)
virtual int	GetAttributeValueAsInt (const char variable, const char attribute)

virtual void	SetAttributeValueAsDouble (const char variable, const char attribute, double value)
virtual double	GetAttributeValueAsDouble (const char variable, const char attribute)

virtual int	ValidateAttribute (const char varname, const char attname, vtkDataArray *array)

virtual void	PrintFileHeader ()
virtual void	PrintFileHeader (ostream &os)
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkMINCImageAttributes *	SafeDownCast (vtkObject *o)
static vtkMINCImageAttributes *	New ()
Protected Member Functions
	vtkMINCImageAttributes ()
	~vtkMINCImageAttributes ()
const char *	ConvertDataArrayToString (vtkDataArray *array)
virtual int	ValidateGlobalAttribute (const char attrib, vtkDataArray array)
virtual int	ValidateGeneralAttribute (const char varname, const char attname, vtkDataArray *array)
virtual int	ValidateDimensionAttribute (const char varname, const char attname, vtkDataArray *array)
virtual int	ValidateImageAttribute (const char varname, const char attname, vtkDataArray *array)
virtual int	ValidateImageMinMaxAttribute (const char varname, const char attname, vtkDataArray *array)
virtual int	ValidatePatientAttribute (const char varname, const char attname, vtkDataArray *array)
virtual int	ValidateStudyAttribute (const char varname, const char attname, vtkDataArray *array)
virtual int	ValidateAcquisitionAttribute (const char varname, const char attname, vtkDataArray *array)
Protected Attributes
vtkStringArray *	DimensionNames
vtkIdTypeArray *	DimensionLengths
vtkStringArray *	VariableNames
vtkMINCImageAttributeMap *	AttributeNames
vtkMINCImageAttributeMap *	AttributeValues
vtkStringArray *	StringStore
vtkDoubleArray *	ImageMin
vtkDoubleArray *	ImageMax
int	NumberOfImageMinMaxDimensions
int	DataType
char *	Name

Member Typedef Documentation

typedef vtkObject vtkMINCImageAttributes::Superclass

Reimplemented from vtkObject.

Definition at line 87 of file vtkMINCImageAttributes.h.

Constructor & Destructor Documentation

vtkMINCImageAttributes::vtkMINCImageAttributes ( ) [protected]

vtkMINCImageAttributes::~vtkMINCImageAttributes ( ) [protected]

Member Function Documentation

virtual const char* vtkMINCImageAttributes::GetClassName ( ) [virtual]

Reimplemented from vtkObject.

static int vtkMINCImageAttributes::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

virtual int vtkMINCImageAttributes::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

static vtkMINCImageAttributes* vtkMINCImageAttributes::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkObject.

static vtkMINCImageAttributes* vtkMINCImageAttributes::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual void vtkMINCImageAttributes::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkObject.

virtual void vtkMINCImageAttributes::Reset ( ) [virtual]

Reset all the attributes in preparation for loading new information.

virtual void vtkMINCImageAttributes::SetName ( const char * ) [virtual]

Get the name of the image, not including the path or the extension. This is only needed for printing the header and there is usually no need to set it.

virtual char* vtkMINCImageAttributes::GetName ( ) [virtual]

Get the name of the image, not including the path or the extension. This is only needed for printing the header and there is usually no need to set it.

virtual void vtkMINCImageAttributes::SetDataType ( int ) [virtual]

Get the image data type, as stored on disk. This information is useful if the file was converted to floating-point when it was loaded. When writing a file from float or double image data, you can use this method to prescribe the output type.

virtual int vtkMINCImageAttributes::GetDataType ( ) [virtual]

Get the image data type, as stored on disk. This information is useful if the file was converted to floating-point when it was loaded. When writing a file from float or double image data, you can use this method to prescribe the output type.

virtual void vtkMINCImageAttributes::AddDimension ( const char * dimension ) [inline, virtual]

Add the names of up to five dimensions. The ordering of these dimensions will determine the dimension order of the file. If no DimensionNames are set, the writer will set the dimension order of the file to be the same as the dimension order in memory.

Definition at line 117 of file vtkMINCImageAttributes.h.

virtual void vtkMINCImageAttributes::AddDimension	(	const char *	dimension,
		vtkIdType	length
	)			`[virtual]`

Add the names of up to five dimensions. The ordering of these dimensions will determine the dimension order of the file. If no DimensionNames are set, the writer will set the dimension order of the file to be the same as the dimension order in memory.

virtual vtkStringArray* vtkMINCImageAttributes::GetDimensionNames ( ) [inline, virtual]

Get the dimension names. The dimension names are same order as written in the file, starting with the slowest-varying dimension. Use this method to get the array if you need to change "space" dimensions to "frequency" after performing a Fourier transform.

Definition at line 127 of file vtkMINCImageAttributes.h.

virtual vtkIdTypeArray* vtkMINCImageAttributes::GetDimensionLengths ( ) [inline, virtual]

Get the lengths of all the dimensions. The dimension lengths are informative, the vtkMINCImageWriter does not look at these values but instead uses the dimension sizes of its input.

Definition at line 135 of file vtkMINCImageAttributes.h.

virtual vtkStringArray* vtkMINCImageAttributes::GetVariableNames ( ) [inline, virtual]

Get the names of all the variables.

Definition at line 141 of file vtkMINCImageAttributes.h.

virtual vtkStringArray* vtkMINCImageAttributes::GetAttributeNames ( const char * variable ) [virtual]

List the attribute names for a variable. Set the variable to the empty string to get a list of the global attributes.

virtual void vtkMINCImageAttributes::SetImageMin ( vtkDoubleArray * imageMin ) [virtual]

Get the image min and max arrays. These are set by the reader, but they aren't used by the writer except to compute the full real data range of the original file.

virtual void vtkMINCImageAttributes::SetImageMax ( vtkDoubleArray * imageMax ) [virtual]

Get the image min and max arrays. These are set by the reader, but they aren't used by the writer except to compute the full real data range of the original file.

virtual vtkDoubleArray* vtkMINCImageAttributes::GetImageMin ( ) [inline, virtual]

Get the image min and max arrays. These are set by the reader, but they aren't used by the writer except to compute the full real data range of the original file.

Definition at line 155 of file vtkMINCImageAttributes.h.

virtual vtkDoubleArray* vtkMINCImageAttributes::GetImageMax ( ) [inline, virtual]

Get the image min and max arrays. These are set by the reader, but they aren't used by the writer except to compute the full real data range of the original file.

Definition at line 156 of file vtkMINCImageAttributes.h.

virtual int vtkMINCImageAttributes::GetNumberOfImageMinMaxDimensions ( ) [virtual]

Get the number of ImageMinMax dimensions.

virtual void vtkMINCImageAttributes::SetNumberOfImageMinMaxDimensions ( int ) [virtual]

Get the number of ImageMinMax dimensions.

virtual int vtkMINCImageAttributes::HasAttribute	(	const char *	variable,
		const char *	attribute
	)			`[virtual]`

Check to see if a particular attribute exists.

virtual void vtkMINCImageAttributes::SetAttributeValueAsArray	(	const char *	variable,
		const char *	attribute,
		vtkDataArray *	array
	)			`[virtual]`

Set attribute values for a variable as a vtkDataArray. Set the variable to the empty string to access global attributes.

virtual vtkDataArray* vtkMINCImageAttributes::GetAttributeValueAsArray	(	const char *	variable,
		const char *	attribute
	)			`[virtual]`

Set attribute values for a variable as a vtkDataArray. Set the variable to the empty string to access global attributes.

virtual void vtkMINCImageAttributes::SetAttributeValueAsString	(	const char *	variable,
		const char *	attribute,
		const char *	value
	)			`[virtual]`

Set an attribute value as a string. Set the variable to the empty string to access global attributes. If you specify a variable that does not exist, it will be created.

virtual const char* vtkMINCImageAttributes::GetAttributeValueAsString	(	const char *	variable,
		const char *	attribute
	)			`[virtual]`

Set an attribute value as a string. Set the variable to the empty string to access global attributes. If you specify a variable that does not exist, it will be created.

virtual void vtkMINCImageAttributes::SetAttributeValueAsInt	(	const char *	variable,
		const char *	attribute,
		int	value
	)			`[virtual]`

Set an attribute value as an int. Set the variable to the empty string to access global attributes. If you specify a variable that does not exist, it will be created.

virtual int vtkMINCImageAttributes::GetAttributeValueAsInt	(	const char *	variable,
		const char *	attribute
	)			`[virtual]`

Set an attribute value as an int. Set the variable to the empty string to access global attributes. If you specify a variable that does not exist, it will be created.

virtual void vtkMINCImageAttributes::SetAttributeValueAsDouble	(	const char *	variable,
		const char *	attribute,
		double	value
	)			`[virtual]`

Set an attribute value as a double. Set the variable to the empty string to access global attributes. If you specify a variable that does not exist, it will be created.

virtual double vtkMINCImageAttributes::GetAttributeValueAsDouble	(	const char *	variable,
		const char *	attribute
	)			`[virtual]`

Set an attribute value as a double. Set the variable to the empty string to access global attributes. If you specify a variable that does not exist, it will be created.

virtual int vtkMINCImageAttributes::ValidateAttribute	(	const char *	varname,
		const char *	attname,
		vtkDataArray *	array
	)			`[virtual]`

Validate a particular attribute. This involves checking that the attribute is a MINC standard attribute, and checking whether it can be set (as opposed to being set automatically from the image information). The return values is 0 if the attribute is set automatically and therefore should not be copied from here, 1 if this attribute is valid and should be set, and 2 if the attribute is non-standard.

virtual void vtkMINCImageAttributes::ShallowCopy ( vtkMINCImageAttributes * source ) [virtual]

Do a shallow copy. This will copy all the attributes from the source. It is much more efficient than a DeepCopy would be, since it only copies pointers to the attribute values instead of copying the arrays themselves. You must use this method to make a copy if you want to modify any MINC attributes from a MINCReader before you pass them to a MINCWriter.

virtual void vtkMINCImageAttributes::FindValidRange ( double range[2] ) [virtual]

Find the valid range of the data from the information stored in the attributes.

virtual void vtkMINCImageAttributes::FindImageRange ( double range[2] ) [virtual]

Find the image range of the data from the information stored in the attributes.

virtual void vtkMINCImageAttributes::PrintFileHeader ( ) [virtual]

A diagnostic function. Print the header of the file in the same format as ncdump or mincheader.

virtual void vtkMINCImageAttributes::PrintFileHeader ( ostream & os ) [virtual]

A diagnostic function. Print the header of the file in the same format as ncdump or mincheader.

const char* vtkMINCImageAttributes::ConvertDataArrayToString ( vtkDataArray * array ) [protected]

virtual int vtkMINCImageAttributes::ValidateGlobalAttribute	(	const char *	attrib,
		vtkDataArray *	array
	)			`[protected, virtual]`

virtual int vtkMINCImageAttributes::ValidateGeneralAttribute	(	const char *	varname,
		const char *	attname,
		vtkDataArray *	array
	)			`[protected, virtual]`

virtual int vtkMINCImageAttributes::ValidateDimensionAttribute	(	const char *	varname,
		const char *	attname,
		vtkDataArray *	array
	)			`[protected, virtual]`

virtual int vtkMINCImageAttributes::ValidateImageAttribute	(	const char *	varname,
		const char *	attname,
		vtkDataArray *	array
	)			`[protected, virtual]`

virtual int vtkMINCImageAttributes::ValidateImageMinMaxAttribute	(	const char *	varname,
		const char *	attname,
		vtkDataArray *	array
	)			`[protected, virtual]`

virtual int vtkMINCImageAttributes::ValidatePatientAttribute	(	const char *	varname,
		const char *	attname,
		vtkDataArray *	array
	)			`[protected, virtual]`

virtual int vtkMINCImageAttributes::ValidateStudyAttribute	(	const char *	varname,
		const char *	attname,
		vtkDataArray *	array
	)			`[protected, virtual]`

virtual int vtkMINCImageAttributes::ValidateAcquisitionAttribute	(	const char *	varname,
		const char *	attname,
		vtkDataArray *	array
	)			`[protected, virtual]`
