vtkMPASReader Class Reference

#include <vtkMPASReader.h>

Inheritance diagram for vtkMPASReader:

[legend]

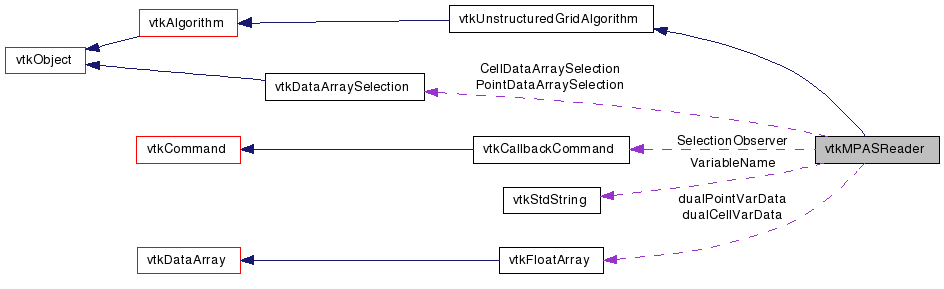

Collaboration diagram for vtkMPASReader:

[legend]

List of all members.

Detailed Description

Read an MPAS netCFD file.

This program reads an MPAS netCDF data file to allow paraview to display a dual-grid sphere. The variables that have time dim are available to ParaView.

Assume all variables are of interest if they have dims (Time, nCells|nVertices, nVertLevels, [nTracers]) Converts variable data type from double to float. Assume no more than 100 vars each for cell and point data Displays tracer vars as tracer1, tracer2, etc. Does not deal with edge data.

Christine Ahrens 8/9/2010 Version 1.2

Definition at line 96 of file vtkMPASReader.h.


Public Types
typedef vtkUnstructuredGridAlgorithm	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
int	GetNumberOfCellArrays ()
const char *	GetCellArrayName (int index)
int	GetCellArrayStatus (const char *name)
void	SetCellArrayStatus (const char *name, int status)
void	DisableAllCellArrays ()
void	EnableAllCellArrays ()
void	SetVerticalLevel (int level)
virtual int *	GetVerticalLevelRange ()
virtual void	GetVerticalLevelRange (int &, int &)
virtual void	GetVerticalLevelRange (int[2])

virtual void	SetFileName (const char *)
virtual char *	GetFileName ()

virtual int	GetNumberOfDualCells ()

virtual int	GetNumberOfDualPoints ()

virtual int	GetNumberOfVariables ()

vtkUnstructuredGrid *	GetOutput ()
vtkUnstructuredGrid *	GetOutput (int index)

int	GetNumberOfPointArrays ()
const char *	GetPointArrayName (int index)
int	GetPointArrayStatus (const char *name)
void	SetPointArrayStatus (const char *name, int status)
void	DisableAllPointArrays ()
void	EnableAllPointArrays ()
Static Public Member Functions
static vtkMPASReader *	New ()
static int	IsTypeOf (const char *type)
static vtkMPASReader *	SafeDownCast (vtkObject *o)
static int	CanReadFile (const char *filename)
Protected Member Functions
	vtkMPASReader ()
	~vtkMPASReader ()
int	RequestData (vtkInformation , vtkInformationVector , vtkInformationVector )
int	RequestInformation (vtkInformation , vtkInformationVector , vtkInformationVector )
void	LoadGeometryData (int var, double dTime)
void	LoadPointData (int var)
void	LoadCellData (int var)
int	ReadAndOutputDualGrid ()
int	ReadAndOutputVariableData ()
int	LoadPointVarData (int variable, double dTime)
int	LoadCellVarData (int variable, double dTime)
int	BuildVarArrays ()
Static Protected Member Functions
static void	SelectionCallback (vtkObject caller, unsigned long eid, void clientdata, void *calldata)
Protected Attributes
char *	FileName
vtkIdType	NumberOfDualPoints
vtkIdType	NumberOfDualCells
int	NumberOfVariables
vtkStdString *	VariableName
int *	VariableType
int	NumberOfTimeSteps
double *	TimeSteps
double	dTime
vtkFloatArray **	dualCellVarData
vtkFloatArray **	dualPointVarData
vtkDataArraySelection *	PointDataArraySelection
vtkDataArraySelection *	CellDataArraySelection
int	VerticalLevelSelected
int	VerticalLevelRange [2]
vtkCallbackCommand *	SelectionObserver
bool	infoRequested
bool	dataRequested
vtkInternals *	Internals
char	tracerNames [MAX_VAR_NAME][MAX_VARS]
int	numDualCellVars
int	numDualPointVars
double *	primalPointVarData
double *	primalCellVarData

Member Typedef Documentation

typedef vtkUnstructuredGridAlgorithm vtkMPASReader::Superclass

Reimplemented from vtkUnstructuredGridAlgorithm.

Definition at line 100 of file vtkMPASReader.h.

Constructor & Destructor Documentation

vtkMPASReader::vtkMPASReader ( ) [protected]

vtkMPASReader::~vtkMPASReader ( ) [protected]

Member Function Documentation

static vtkMPASReader* vtkMPASReader::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkUnstructuredGridAlgorithm.

virtual const char* vtkMPASReader::GetClassName ( ) [virtual]

Reimplemented from vtkUnstructuredGridAlgorithm.

static int vtkMPASReader::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkUnstructuredGridAlgorithm.

virtual int vtkMPASReader::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkUnstructuredGridAlgorithm.

static vtkMPASReader* vtkMPASReader::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkUnstructuredGridAlgorithm.

void vtkMPASReader::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkUnstructuredGridAlgorithm.

virtual void vtkMPASReader::SetFileName ( const char * ) [virtual]

Specify file name of MPAS data file to read.

virtual char* vtkMPASReader::GetFileName ( ) [virtual]

Specify file name of MPAS data file to read.

virtual int vtkMPASReader::GetNumberOfDualCells ( ) [virtual]

Get the number of data cells

virtual int vtkMPASReader::GetNumberOfDualPoints ( ) [virtual]

Get the number of points

virtual int vtkMPASReader::GetNumberOfVariables ( ) [virtual]

Get the number of data variables at the cell centers and points

vtkUnstructuredGrid* vtkMPASReader::GetOutput ( )

Get the reader's output

Reimplemented from vtkUnstructuredGridAlgorithm.

vtkUnstructuredGrid* vtkMPASReader::GetOutput ( int index )

Get the reader's output

Reimplemented from vtkUnstructuredGridAlgorithm.

int vtkMPASReader::GetNumberOfPointArrays ( )
