vtkOpenGLTexture Class Reference

#include <vtkOpenGLTexture.h>

Inheritance diagram for vtkOpenGLTexture:

[legend]

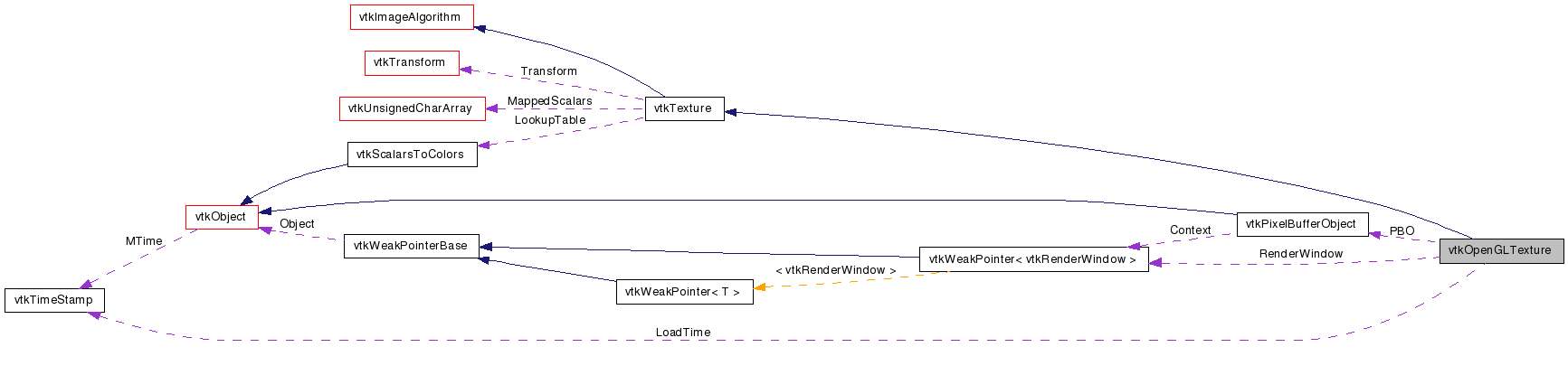

Collaboration diagram for vtkOpenGLTexture:

[legend]

List of all members.

Detailed Description

OpenGL texture map.

vtkOpenGLTexture is a concrete implementation of the abstract class vtkTexture. vtkOpenGLTexture interfaces to the OpenGL rendering library.

Definition at line 35 of file vtkOpenGLTexture.h.


Public Types
typedef vtkTexture	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
virtual void	PrintSelf (ostream &os, vtkIndent indent)
void	Load (vtkRenderer *ren)
virtual void	PostRender (vtkRenderer *ren)
void	ReleaseGraphicsResources (vtkWindow *)

virtual long	GetIndex ()
Static Public Member Functions
static vtkOpenGLTexture *	New ()
static int	IsTypeOf (const char *type)
static vtkOpenGLTexture *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkOpenGLTexture ()
	~vtkOpenGLTexture ()
unsigned char *	ResampleToPowerOfTwo (int &xsize, int &ysize, unsigned char *dptr, int bpp)
Protected Attributes
vtkTimeStamp	LoadTime
unsigned int	Index
vtkWeakPointer< vtkRenderWindow >	RenderWindow
bool	CheckedHardwareSupport
bool	SupportsNonPowerOfTwoTextures
bool	SupportsPBO
vtkPixelBufferObject *	PBO

Member Typedef Documentation

typedef vtkTexture vtkOpenGLTexture::Superclass

Reimplemented from vtkTexture.

Definition at line 39 of file vtkOpenGLTexture.h.

Constructor & Destructor Documentation

vtkOpenGLTexture::vtkOpenGLTexture ( ) [protected]

vtkOpenGLTexture::~vtkOpenGLTexture ( ) [protected]

Member Function Documentation

static vtkOpenGLTexture* vtkOpenGLTexture::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkTexture.

virtual const char* vtkOpenGLTexture::GetClassName ( ) [virtual]

Reimplemented from vtkTexture.

static int vtkOpenGLTexture::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkTexture.

virtual int vtkOpenGLTexture::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkTexture.

static vtkOpenGLTexture* vtkOpenGLTexture::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkTexture.

virtual void vtkOpenGLTexture::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkTexture.

void vtkOpenGLTexture::Load ( vtkRenderer * ren ) [virtual]

Implement base class method.

Reimplemented from vtkTexture.

virtual void vtkOpenGLTexture::PostRender ( vtkRenderer * ) [virtual]

Cleans up after the texture rendering to restore the state of the graphics context.

Reimplemented from vtkTexture.

void vtkOpenGLTexture::ReleaseGraphicsResources ( vtkWindow * ) [virtual]

Release any graphics resources that are being consumed by this texture. The parameter window could be used to determine which graphic resources to release. Using the same texture object in multiple render windows is NOT currently supported.

Reimplemented from vtkTexture.

virtual long vtkOpenGLTexture::GetIndex ( ) [virtual]

Get the openGL texture name to which this texture is bound. This is available only if GL version >= 1.1
