vtkPCosmoHaloFinder Class Reference

#include <vtkPCosmoHaloFinder.h>

Inheritance diagram for vtkPCosmoHaloFinder:

Inheritance graph
[legend]

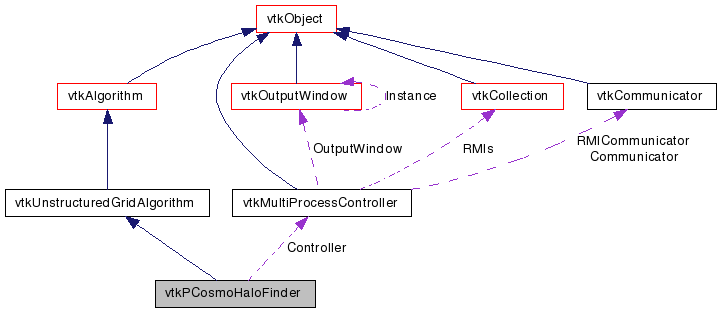

Collaboration diagram for vtkPCosmoHaloFinder:

Collaboration graph
[legend]

List of all members.


Detailed Description

find halos within a cosmology data file

vtkPCosmoHaloFinder is a filter object that operates on the unstructured grid of all particles and assigns each particle a halo id.

Definition at line 76 of file vtkPCosmoHaloFinder.h.


Public Types

typedef
vtkUnstructuredGridAlgorithm
Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual vtkMultiProcessControllerGetController ()
virtual void SetController (vtkMultiProcessController *)
virtual void SetNP (int)
virtual int GetNP ()
virtual void SetRL (float)
virtual float GetRL ()
virtual void SetOverlap (float)
virtual float GetOverlap ()
virtual void SetPMin (int)
virtual int GetPMin ()
virtual void SetBB (float)
virtual float GetBB ()
virtual void SetParticleMass (float)
virtual float GetParticleMass ()
virtual void SetCopyHaloDataToParticles (int)
virtual int GetCopyHaloDataToParticles ()

Static Public Member Functions

static vtkPCosmoHaloFinderNew ()
static int IsTypeOf (const char *type)
static vtkPCosmoHaloFinderSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkPCosmoHaloFinder ()
 ~vtkPCosmoHaloFinder ()
virtual int RequestInformation (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)

Protected Attributes

vtkMultiProcessControllerController
int NP
float RL
float Overlap
int PMin
float BB
float ParticleMass
int CopyHaloDataToParticles

Member Typedef Documentation

Reimplemented from vtkUnstructuredGridAlgorithm.

Definition at line 81 of file vtkPCosmoHaloFinder.h.


Constructor & Destructor Documentation

vtkPCosmoHaloFinder::vtkPCosmoHaloFinder (  )  [protected]

vtkPCosmoHaloFinder::~vtkPCosmoHaloFinder (  )  [protected]


Member Function Documentation

static vtkPCosmoHaloFinder* vtkPCosmoHaloFinder::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkUnstructuredGridAlgorithm.

virtual const char* vtkPCosmoHaloFinder::GetClassName (  )  [virtual]

Reimplemented from vtkUnstructuredGridAlgorithm.

static int vtkPCosmoHaloFinder::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkUnstructuredGridAlgorithm.

virtual int vtkPCosmoHaloFinder::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkUnstructuredGridAlgorithm.

static vtkPCosmoHaloFinder* vtkPCosmoHaloFinder::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkUnstructuredGridAlgorithm.

void vtkPCosmoHaloFinder::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkUnstructuredGridAlgorithm.

virtual vtkMultiProcessController* vtkPCosmoHaloFinder::GetController (  )  [virtual]

Set the communicator object for interprocess communication

virtual void vtkPCosmoHaloFinder::SetController ( vtkMultiProcessController  )  [virtual]

Set the communicator object for interprocess communication

virtual void vtkPCosmoHaloFinder::SetNP ( int   )  [virtual]

Specify the number of seeded particles in one dimension (total = np^3)

virtual int vtkPCosmoHaloFinder::GetNP (  )  [virtual]

Specify the number of seeded particles in one dimension (total = np^3)

virtual void vtkPCosmoHaloFinder::SetRL ( float   )  [virtual]

Specify the physical box dimensions size (rL) (default 91)

virtual float vtkPCosmoHaloFinder::GetRL (  )  [virtual]

Specify the physical box dimensions size (rL) (default 91)

virtual void vtkPCosmoHaloFinder::SetOverlap ( float   )  [virtual]

Specify the ghost cell spacing (edge boundary of box) (default 5)

virtual float vtkPCosmoHaloFinder::GetOverlap (  )  [virtual]

Specify the ghost cell spacing (edge boundary of box) (default 5)

virtual void vtkPCosmoHaloFinder::SetPMin ( int   )  [virtual]

Specify the minimum number of particles for a halo (pmin)

virtual int vtkPCosmoHaloFinder::GetPMin (  )  [virtual]

Specify the minimum number of particles for a halo (pmin)

virtual void vtkPCosmoHaloFinder::SetBB ( float   )  [virtual]

Specify the linking length (bb)

virtual float vtkPCosmoHaloFinder::GetBB (  )  [virtual]

Specify the linking length (bb)

virtual void vtkPCosmoHaloFinder::SetParticleMass ( float   )  [virtual]

Specify the particle mass

virtual float vtkPCosmoHaloFinder::GetParticleMass (  )  [virtual]

Specify the particle mass

virtual void vtkPCosmoHaloFinder::SetCopyHaloDataToParticles ( int   )  [virtual]

Copy the halo information to the original particles (Default on)

virtual int vtkPCosmoHaloFinder::GetCopyHaloDataToParticles (  )  [virtual]

Copy the halo information to the original particles (Default on)

virtual int vtkPCosmoHaloFinder::RequestInformation ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [protected, virtual]

Reimplemented from vtkUnstructuredGridAlgorithm.

virtual int vtkPCosmoHaloFinder::RequestData ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector
) [protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkUnstructuredGridAlgorithm.


Member Data Documentation

Definition at line 145 of file vtkPCosmoHaloFinder.h.

int vtkPCosmoHaloFinder::NP [protected]

Definition at line 147 of file vtkPCosmoHaloFinder.h.

float vtkPCosmoHaloFinder::RL [protected]

Definition at line 148 of file vtkPCosmoHaloFinder.h.

float vtkPCosmoHaloFinder::Overlap [protected]

Definition at line 149 of file vtkPCosmoHaloFinder.h.

int vtkPCosmoHaloFinder::PMin [protected]

Definition at line 150 of file vtkPCosmoHaloFinder.h.

float vtkPCosmoHaloFinder::BB [protected]

Definition at line 151 of file vtkPCosmoHaloFinder.h.

Definition at line 152 of file vtkPCosmoHaloFinder.h.

Definition at line 153 of file vtkPCosmoHaloFinder.h.


The documentation for this class was generated from the following file:

Generated on Mon Sep 27 18:39:56 2010 for VTK by  doxygen 1.5.6
