vtkPolyDataToImageStencil Class Reference

#include <vtkPolyDataToImageStencil.h>

Inheritance diagram for vtkPolyDataToImageStencil:

[legend]

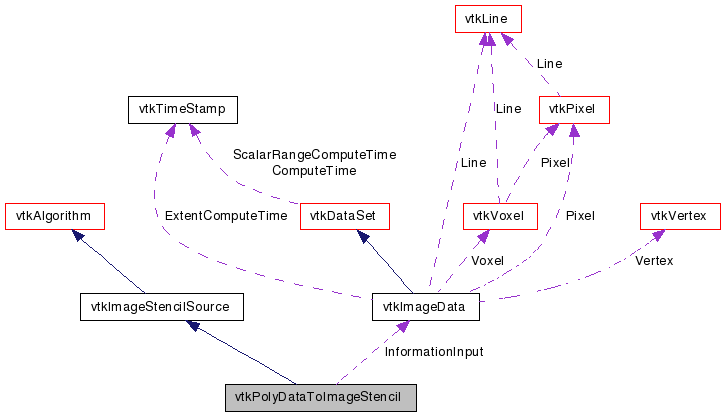

Collaboration diagram for vtkPolyDataToImageStencil:

[legend]

List of all members.

Detailed Description

use polydata to mask an image

The vtkPolyDataToImageStencil class will convert a surface mesh into an image stencil that can be used to mask an image with vtkImageStencil, or used to calculate statistics within the enclosed region with vtkImageAccumulate.

Warning:: The input polydata must contain polygons (or other 2D cells) that form a 3D surface that encloses a finite volume. Polyline contours are ignored.

See also:: vtkImageStencil vtkImageAccumulate vtkImageBlend vtkImageReslice

Examples:: vtkPolyDataToImageStencil (Examples)

Tests:: vtkPolyDataToImageStencil (Tests)

Definition at line 79 of file vtkPolyDataToImageStencil.h.


Public Types
typedef vtkImageStencilSource	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)

virtual void	SetInput (vtkPolyData *)
vtkPolyData *	GetInput ()

virtual void	SetInformationInput (vtkImageData *)
virtual vtkImageData *	GetInformationInput ()

virtual void	SetOutputOrigin (double, double, double)
virtual void	SetOutputOrigin (double[3])
virtual double *	GetOutputOrigin ()
virtual void	GetOutputOrigin (double &, double &, double &)
virtual void	GetOutputOrigin (double[3])

virtual void	SetOutputSpacing (double, double, double)
virtual void	SetOutputSpacing (double[3])
virtual double *	GetOutputSpacing ()
virtual void	GetOutputSpacing (double &, double &, double &)
virtual void	GetOutputSpacing (double[3])

virtual void	SetOutputWholeExtent (int, int, int, int, int, int)
virtual void	SetOutputWholeExtent (int[6])
virtual int *	GetOutputWholeExtent ()
virtual void	GetOutputWholeExtent (int &, int &, int &, int &, int &, int &)
virtual void	GetOutputWholeExtent (int[6])

virtual void	SetTolerance (double)
virtual double	GetTolerance ()
Static Public Member Functions
static vtkPolyDataToImageStencil *	New ()
static int	IsTypeOf (const char *type)
static vtkPolyDataToImageStencil *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkPolyDataToImageStencil ()
	~vtkPolyDataToImageStencil ()
void	ThreadedExecute (vtkImageStencilData *output, int extent[6], int threadId)
virtual int	RequestData (vtkInformation , vtkInformationVector , vtkInformationVector )
virtual int	RequestInformation (vtkInformation , vtkInformationVector , vtkInformationVector )
virtual int	FillInputPortInformation (int, vtkInformation *)
Static Protected Member Functions
static void	DataSetCutter (vtkDataSet input, vtkPolyData output, double z, vtkMergePoints *locator)
Protected Attributes
vtkImageData *	InformationInput
double	Tolerance

int	OutputWholeExtent [6]
double	OutputOrigin [3]
double	OutputSpacing [3]

Member Typedef Documentation

typedef vtkImageStencilSource vtkPolyDataToImageStencil::Superclass

Reimplemented from vtkImageStencilSource.

Definition at line 84 of file vtkPolyDataToImageStencil.h.

Constructor & Destructor Documentation

vtkPolyDataToImageStencil::vtkPolyDataToImageStencil ( ) [protected]

vtkPolyDataToImageStencil::~vtkPolyDataToImageStencil ( ) [protected]

Member Function Documentation

static vtkPolyDataToImageStencil* vtkPolyDataToImageStencil::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkImageStencilSource.

virtual const char* vtkPolyDataToImageStencil::GetClassName ( ) [virtual]

Reimplemented from vtkImageStencilSource.

static int vtkPolyDataToImageStencil::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkImageStencilSource.

virtual int vtkPolyDataToImageStencil::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkImageStencilSource.

static vtkPolyDataToImageStencil* vtkPolyDataToImageStencil::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkImageStencilSource.

void vtkPolyDataToImageStencil::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkImageStencilSource.

virtual void vtkPolyDataToImageStencil::SetInput ( vtkPolyData * ) [virtual]

Specify the implicit function to convert into a stencil.

vtkPolyData* vtkPolyDataToImageStencil::GetInput ( )

Specify the implicit function to convert into a stencil.

virtual void vtkPolyDataToImageStencil::SetInformationInput ( vtkImageData * ) [virtual]

Set a vtkImageData that has the Spacing, Origin, and WholeExtent that will be used for the stencil. This input should be set to the image that you wish to apply the stencil to. If you use this method, then any values set with the SetOutputSpacing, SetOutputOrigin, and SetOutputWholeExtent methods will be ignored.

virtual vtkImageData* vtkPolyDataToImageStencil::GetInformationInput ( ) [virtual]

Set a vtkImageData that has the Spacing, Origin, and WholeExtent that will be used for the stencil. This input should be set to the image that you wish to apply the stencil to. If you use this method, then any values set with the SetOutputSpacing, SetOutputOrigin, and SetOutputWholeExtent methods will be ignored.

virtual void vtkPolyDataToImageStencil::SetOutputOrigin	(	double	,
		double	,
		double
	)			`[virtual]`

Set the Origin to be used for the stencil. It should be set to the Origin of the image you intend to apply the stencil to. The default value is (0,0,0).

virtual void vtkPolyDataToImageStencil::SetOutputOrigin ( double [3] ) [virtual]

Set the Origin to be used for the stencil. It should be set to the Origin of the image you intend to apply the stencil to. The default value is (0,0,0).

virtual double* vtkPolyDataToImageStencil::GetOutputOrigin ( ) [virtual]

Set the Origin to be used for the stencil. It should be set to the Origin of the image you intend to apply the stencil to. The default value is (0,0,0).

virtual void vtkPolyDataToImageStencil::GetOutputOrigin	(	double &	,
		double &	,
		double &
	)			`[virtual]`

Set the Origin to be used for the stencil. It should be set to the Origin of the image you intend to apply the stencil to. The default value is (0,0,0).

virtual void vtkPolyDataToImageStencil::GetOutputOrigin ( double [3] ) [virtual]

Set the Origin to be used for the stencil. It should be set to the Origin of the image you intend to apply the stencil to. The default value is (0,0,0).

virtual void vtkPolyDataToImageStencil::SetOutputSpacing	(	double	,
		double	,
		double
	)			`[virtual]`

Set the Spacing to be used for the stencil. It should be set to the Spacing of the image you intend to apply the stencil to. The default value is (1,1,1)

virtual void vtkPolyDataToImageStencil::SetOutputSpacing ( double [3] ) [virtual]

Set the Spacing to be used for the stencil. It should be set to the Spacing of the image you intend to apply the stencil to. The default value is (1,1,1)

virtual double* vtkPolyDataToImageStencil::GetOutputSpacing ( ) [virtual]

Set the Spacing to be used for the stencil. It should be set to the Spacing of the image you intend to apply the stencil to. The default value is (1,1,1)

virtual void vtkPolyDataToImageStencil::GetOutputSpacing	(	double &	,
		double &	,
		double &
	)			`[virtual]`

Set the Spacing to be used for the stencil. It should be set to the Spacing of the image you intend to apply the stencil to. The default value is (1,1,1)

virtual void vtkPolyDataToImageStencil::GetOutputSpacing ( double [3] ) [virtual]

Set the Spacing to be used for the stencil. It should be set to the Spacing of the image you intend to apply the stencil to. The default value is (1,1,1)

virtual void vtkPolyDataToImageStencil::SetOutputWholeExtent	(	int	,
		int	,
		int	,
		int	,
		int	,
		int
	)			`[virtual]`
