vtkPOutlineCornerFilter Class Reference

#include <vtkPOutlineCornerFilter.h>

Inheritance diagram for vtkPOutlineCornerFilter:

[legend]

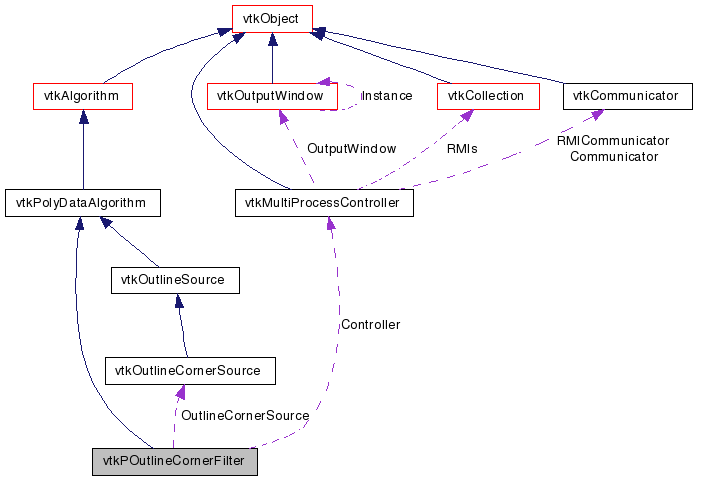

Collaboration diagram for vtkPOutlineCornerFilter:

[legend]

List of all members.

Detailed Description

create wireframe outline corners for arbitrary data set

vtkPOutlineCornerFilter works like vtkOutlineCornerFilter, but it looks for data partitions in other processes. It assumes the filter is operated in a data parallel pipeline.

Definition at line 31 of file vtkPOutlineCornerFilter.h.


Public Types
typedef vtkPolyDataAlgorithm	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)

virtual void	SetCornerFactor (double)
virtual double	GetCornerFactor ()

virtual void	SetController (vtkMultiProcessController *)
virtual vtkMultiProcessController *	GetController ()
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkPOutlineCornerFilter *	SafeDownCast (vtkObject *o)
static vtkPOutlineCornerFilter *	New ()
Protected Member Functions
	vtkPOutlineCornerFilter ()
	~vtkPOutlineCornerFilter ()
virtual int	RequestData (vtkInformation , vtkInformationVector , vtkInformationVector )
virtual int	RequestInformation (vtkInformation , vtkInformationVector , vtkInformationVector )
virtual int	FillInputPortInformation (int port, vtkInformation *info)
Protected Attributes
vtkMultiProcessController *	Controller
vtkOutlineCornerSource *	OutlineCornerSource
double	CornerFactor

Member Typedef Documentation

typedef vtkPolyDataAlgorithm vtkPOutlineCornerFilter::Superclass

Reimplemented from vtkPolyDataAlgorithm.

Definition at line 34 of file vtkPOutlineCornerFilter.h.

Constructor & Destructor Documentation

vtkPOutlineCornerFilter::vtkPOutlineCornerFilter ( ) [protected]

vtkPOutlineCornerFilter::~vtkPOutlineCornerFilter ( ) [protected]

Member Function Documentation

virtual const char* vtkPOutlineCornerFilter::GetClassName ( ) [virtual]

Reimplemented from vtkPolyDataAlgorithm.

static int vtkPOutlineCornerFilter::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkPOutlineCornerFilter::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

static vtkPOutlineCornerFilter* vtkPOutlineCornerFilter::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkPolyDataAlgorithm.

void vtkPOutlineCornerFilter::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkPolyDataAlgorithm.

static vtkPOutlineCornerFilter* vtkPOutlineCornerFilter::New ( ) [static]

Construct outline corner filter with default corner factor = 0.2

Reimplemented from vtkPolyDataAlgorithm.

virtual void vtkPOutlineCornerFilter::SetCornerFactor ( double ) [virtual]

Set/Get the factor that controls the relative size of the corners to the length of the corresponding bounds

virtual double vtkPOutlineCornerFilter::GetCornerFactor ( ) [virtual]

Set/Get the factor that controls the relative size of the corners to the length of the corresponding bounds

virtual void vtkPOutlineCornerFilter::SetController ( vtkMultiProcessController * ) [virtual]

Set and get the controller.

virtual vtkMultiProcessController* vtkPOutlineCornerFilter::GetController ( ) [virtual]

Set and get the controller.

virtual int vtkPOutlineCornerFilter::RequestData	(	vtkInformation *	request,
		vtkInformationVector **	inputVector,
		vtkInformationVector *	outputVector
	)			`[protected, virtual]`

This is called by the superclass. This is the method you should override.

Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkPOutlineCornerFilter::RequestInformation	(	vtkInformation *	,
		vtkInformationVector **	,
		vtkInformationVector *
	)			`[protected, virtual]`

Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkPOutlineCornerFilter::FillInputPortInformation	(	int	port,
		vtkInformation *	info
	)			`[protected, virtual]`

Fill the input port information objects for this algorithm. This is invoked by the first call to GetInputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkPolyDataAlgorithm.
