vtkQuadraticHexahedron Class Reference

#include <vtkQuadraticHexahedron.h>

Inheritance diagram for vtkQuadraticHexahedron:

[legend]

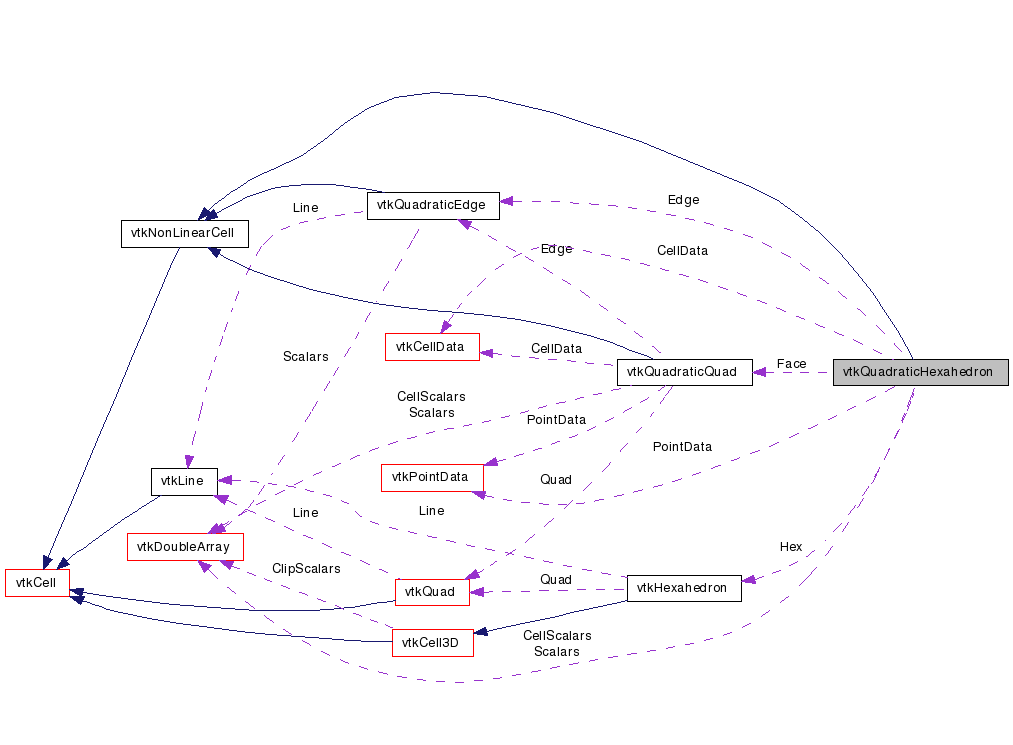

Collaboration diagram for vtkQuadraticHexahedron:

[legend]

List of all members.

Detailed Description

cell represents a parabolic, 20-node isoparametric hexahedron

vtkQuadraticHexahedron is a concrete implementation of vtkNonLinearCell to represent a three-dimensional, 20-node isoparametric parabolic hexahedron. The interpolation is the standard finite element, quadratic isoparametric shape function. The cell includes a mid-edge node. The ordering of the twenty points defining the cell is point ids (0-7,8-19) where point ids 0-7 are the eight corner vertices of the cube; followed by twelve midedge nodes (8-19). Note that these midedge nodes correspond lie on the edges defined by (0,1), (1,2), (2,3), (3,0), (4,5), (5,6), (6,7), (7,4), (0,4), (1,5), (2,6), (3,7).

See also:: vtkQuadraticEdge vtkQuadraticTriangle vtkQuadraticTetra vtkQuadraticQuad vtkQuadraticPyramid vtkQuadraticWedge

Tests:: vtkQuadraticHexahedron (Tests)

Definition at line 46 of file vtkQuadraticHexahedron.h.


static void	InterpolationFunctions (double pcoords[3], double weights[20])
static void	InterpolationDerivs (double pcoords[3], double derivs[60])
static int *	GetEdgeArray (int edgeId)
static int *	GetFaceArray (int faceId)
virtual void	InterpolateFunctions (double pcoords[3], double weights[20])
virtual void	InterpolateDerivs (double pcoords[3], double derivs[60])
Public Types
typedef vtkNonLinearCell	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
int	CellBoundary (int subId, double pcoords[3], vtkIdList *pts)
void	Contour (double value, vtkDataArray cellScalars, vtkIncrementalPointLocator locator, vtkCellArray verts, vtkCellArray lines, vtkCellArray polys, vtkPointData inPd, vtkPointData outPd, vtkCellData inCd, vtkIdType cellId, vtkCellData *outCd)
int	EvaluatePosition (double x[3], double closestPoint, int &subId, double pcoords[3], double &dist2, double weights)
void	EvaluateLocation (int &subId, double pcoords[3], double x[3], double *weights)
int	Triangulate (int index, vtkIdList ptIds, vtkPoints pts)
void	Derivatives (int subId, double pcoords[3], double values, int dim, double derivs)
virtual double *	GetParametricCoords ()
void	JacobianInverse (double pcoords[3], double **inverse, double derivs[60])

int	GetCellType ()
int	GetCellDimension ()
int	GetNumberOfEdges ()
int	GetNumberOfFaces ()
vtkCell *	GetEdge (int)
vtkCell *	GetFace (int)

void	Clip (double value, vtkDataArray cellScalars, vtkIncrementalPointLocator locator, vtkCellArray tetras, vtkPointData inPd, vtkPointData outPd, vtkCellData inCd, vtkIdType cellId, vtkCellData *outCd, int insideOut)

int	IntersectWithLine (double p1[3], double p2[3], double tol, double &t, double x[3], double pcoords[3], int &subId)
Static Public Member Functions
static vtkQuadraticHexahedron *	New ()
static int	IsTypeOf (const char *type)
static vtkQuadraticHexahedron *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkQuadraticHexahedron ()
	~vtkQuadraticHexahedron ()
void	Subdivide (vtkPointData inPd, vtkCellData inCd, vtkIdType cellId, vtkDataArray *cellScalars)
Protected Attributes
vtkQuadraticEdge *	Edge
vtkQuadraticQuad *	Face
vtkHexahedron *	Hex
vtkPointData *	PointData
vtkCellData *	CellData
vtkDoubleArray *	CellScalars
vtkDoubleArray *	Scalars

Member Typedef Documentation

typedef vtkNonLinearCell vtkQuadraticHexahedron::Superclass

Reimplemented from vtkNonLinearCell.

Definition at line 50 of file vtkQuadraticHexahedron.h.

Constructor & Destructor Documentation

vtkQuadraticHexahedron::vtkQuadraticHexahedron ( ) [protected]

vtkQuadraticHexahedron::~vtkQuadraticHexahedron ( ) [protected]

Member Function Documentation

static vtkQuadraticHexahedron* vtkQuadraticHexahedron::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkQuadraticHexahedron::GetClassName ( ) [virtual]

Reimplemented from vtkNonLinearCell.

static int vtkQuadraticHexahedron::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkNonLinearCell.

virtual int vtkQuadraticHexahedron::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkNonLinearCell.

static vtkQuadraticHexahedron* vtkQuadraticHexahedron::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkNonLinearCell.

void vtkQuadraticHexahedron::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkNonLinearCell.

int vtkQuadraticHexahedron::GetCellType ( ) [inline, virtual]
