vtkRectilinearWipeWidget Class Reference

#include <vtkRectilinearWipeWidget.h>

Inheritance diagram for vtkRectilinearWipeWidget:

Inheritance graph

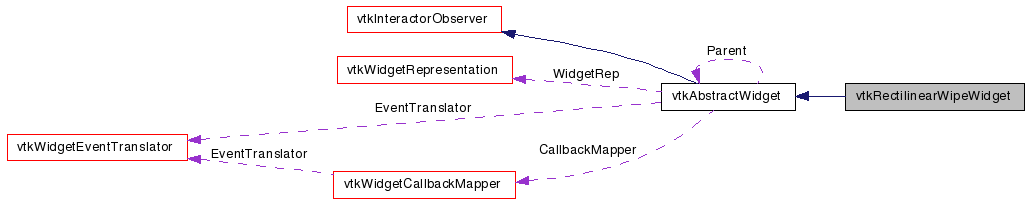

Collaboration diagram for vtkRectilinearWipeWidget:

Collaboration graph

List of all members.

Detailed Description

interactively control an instance of vtkImageRectilinearWipe filter

The vtkRectilinearWipeWidget is used to interactively control an instance of vtkImageRectilinearWipe (and an associated vtkImageActor used to display the rectilinear wipe). A rectilinear wipe is a 2x2 checkerboard pattern created by combining two separate images, where various combinations of the checker squares are possible. Using this widget, the user can adjust the layout of the checker pattern, such as moving the center point, moving the horizontal separator, or moving the vertical separator. These capabilities are particularly useful for comparing two images.

To use this widget, specify its representation (by default the representation is an instance of vtkRectilinearWipeProp). The representation generally requires that you specify an instance of vtkImageRectilinearWipe and an instance of vtkImageActor. Other instance variables may also be required to be set -- see the documentation for vtkRectilinearWipeProp (or appropriate subclass).

By default, the widget responds to the following events:

 Selecting the center point, horizontal separator, and verticel separator:
   LeftButtonPressEvent - move the separators
   LeftButtonReleaseEvent - release the separators
   MouseMoveEvent - move the separators
Selecting the center point allows you to move the horizontal and vertical separators simultaneously. Otherwise only horizontal or vertical motion is possible/

Note that the event bindings described above can be changed using this class's vtkWidgetEventTranslator. This class translates VTK events into the vtkRectilinearWipeWidget's widget events:

   vtkWidgetEvent::Select -- some part of the widget has been selected
   vtkWidgetEvent::EndSelect -- the selection process has completed
   vtkWidgetEvent::Move -- a request for motion has been invoked

In turn, when these widget events are processed, the vtkRectilinearWipeWidget invokes the following VTK events (which observers can listen for):

   vtkCommand::StartInteractionEvent (on vtkWidgetEvent::Select)
   vtkCommand::EndInteractionEvent (on vtkWidgetEvent::EndSelect)
   vtkCommand::InteractionEvent (on vtkWidgetEvent::Move)

The appearance of this widget is defined by its representation, including any properties associated with the representation. The widget representation is a type of vtkProp that defines a particular API that works with this widget. If desired, the vtkProp may be subclassed to create new looks for the widget.
See also:
vtkRectilinearWipeProp vtkImageRectilinearWipe vtkImageActor vtkCheckerboardWidget
vtkCommand::EndInteractionEvent vtkCommand::InteractionEvent vtkCommand::StartInteractionEvent
vtkRectilinearWipeWidget (Tests)

Definition at line 90 of file vtkRectilinearWipeWidget.h.

typedef vtkAbstractWidget Superclass
static int IsTypeOf (const char *type)
static vtkRectilinearWipeWidgetSafeDownCast (vtkObject *o)
virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)

Public Member Functions

virtual void CreateDefaultRepresentation ()
void SetRepresentation (vtkRectilinearWipeRepresentation *r)

Static Public Member Functions

static vtkRectilinearWipeWidgetNew ()

Protected Types

enum  _WidgetState { Start = 0, Selected }

Protected Member Functions

 vtkRectilinearWipeWidget ()
 ~vtkRectilinearWipeWidget ()
void SetCursor (int state)

Static Protected Member Functions

static void SelectAction (vtkAbstractWidget *)
static void MoveAction (vtkAbstractWidget *)
static void EndSelectAction (vtkAbstractWidget *)

Protected Attributes

int WidgetState

Member Typedef Documentation

Standard macros.

Reimplemented from vtkAbstractWidget.

Definition at line 98 of file vtkRectilinearWipeWidget.h.

Member Enumeration Documentation


Definition at line 127 of file vtkRectilinearWipeWidget.h.

Constructor & Destructor Documentation

vtkRectilinearWipeWidget::vtkRectilinearWipeWidget (  )  [protected]

vtkRectilinearWipeWidget::~vtkRectilinearWipeWidget (  )  [protected]

Member Function Documentation

static vtkRectilinearWipeWidget* vtkRectilinearWipeWidget::New (  )  [static]

Instantiate the class.

Reimplemented from vtkObject.

virtual const char* vtkRectilinearWipeWidget::GetClassName (  )  [virtual]

Standard macros.

Reimplemented from vtkAbstractWidget.

static int vtkRectilinearWipeWidget::IsTypeOf ( const char *  type  )  [static]

Standard macros.

Reimplemented from vtkAbstractWidget.

virtual int vtkRectilinearWipeWidget::IsA ( const char *  type  )  [virtual]

Standard macros.

Reimplemented from vtkAbstractWidget.

static vtkRectilinearWipeWidget* vtkRectilinearWipeWidget::SafeDownCast ( vtkObject o  )  [static]

Standard macros.

Reimplemented from vtkAbstractWidget.

void vtkRectilinearWipeWidget::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Standard macros.

Reimplemented from vtkAbstractWidget.

void vtkRectilinearWipeWidget::SetRepresentation ( vtkRectilinearWipeRepresentation r  )  [inline]

Specify an instance of vtkWidgetRepresentation used to represent this widget in the scene. Note that the representation is a subclass of vtkProp so it can be added to the renderer independent of the widget.

Definition at line 106 of file vtkRectilinearWipeWidget.h.

virtual void vtkRectilinearWipeWidget::CreateDefaultRepresentation (  )  [virtual]

Create the default widget representation if one is not set.

Implements vtkAbstractWidget.

static void vtkRectilinearWipeWidget::SelectAction ( vtkAbstractWidget  )  [static, protected]

static void vtkRectilinearWipeWidget::MoveAction ( vtkAbstractWidget  )  [static, protected]

static void vtkRectilinearWipeWidget::EndSelectAction ( vtkAbstractWidget  )  [static, protected]

void vtkRectilinearWipeWidget::SetCursor ( int  state  )  [protected]

Member Data Documentation

Definition at line 126 of file vtkRectilinearWipeWidget.h.

The documentation for this class was generated from the following file:
