vtkRenderView Class Reference

#include <vtkRenderView.h>

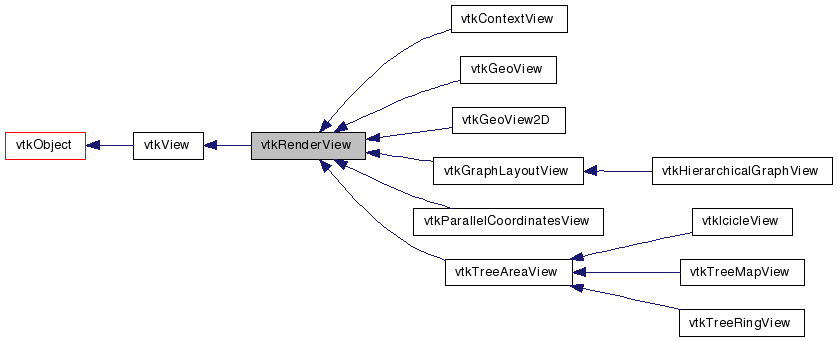

Inheritance diagram for vtkRenderView:

[legend]

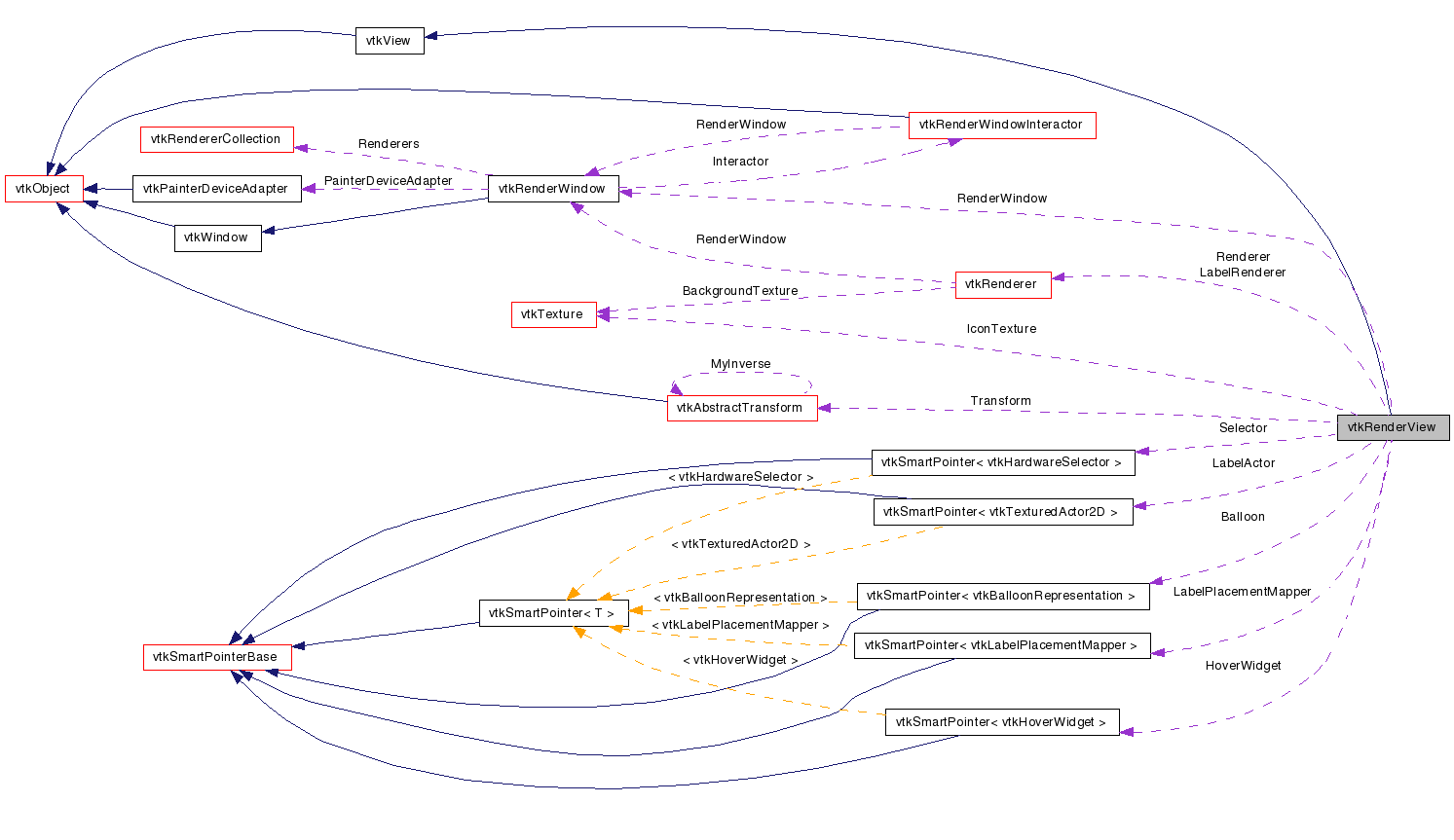

Collaboration diagram for vtkRenderView:

[legend]

List of all members.

Detailed Description

A view containing a renderer.

vtkRenderView is a view which contains a vtkRenderer. You may add vtkActors directly to the renderer, or add certain vtkDataRepresentation subclasses to the renderer. The render view supports drag selection with the mouse to select cells.

This class is also the parent class for any more specialized view which uses a renderer.

Events:: vtkCommand::HoverEvent

Tests:: vtkRenderView (Tests)

Definition at line 65 of file vtkRenderView.h.


Public Types
enum	{ INTERACTION_MODE_2D, INTERACTION_MODE_3D, INTERACTION_MODE_UNKNOWN }
enum	{ SURFACE = 0, FRUSTUM = 1 }
enum	{ NO_OVERLAP, ALL }
enum	{ FREETYPE, QT }
typedef vtkView	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	ApplyViewTheme (vtkViewTheme *theme)
virtual void	Render ()
virtual void	ResetCamera ()
virtual void	ResetCameraClippingRange ()
virtual void	AddLabels (vtkAlgorithmOutput *conn)
virtual void	RemoveLabels (vtkAlgorithmOutput *conn)

virtual vtkRenderer *	GetRenderer ()

virtual vtkRenderWindow *	GetRenderWindow ()

virtual vtkRenderWindowInteractor *	GetInteractor ()
virtual void	SetInteractor (vtkRenderWindowInteractor *interactor)

virtual void	SetInteractorStyle (vtkInteractorObserver *style)
virtual vtkInteractorObserver *	GetInteractorStyle ()

virtual void	SetInteractionMode (int mode)
virtual int	GetInteractionMode ()
virtual void	SetInteractionModeTo2D ()
virtual void	SetInteractionModeTo3D ()

virtual void	SetTransform (vtkAbstractTransform *transform)
virtual vtkAbstractTransform *	GetTransform ()

virtual void	SetDisplayHoverText (bool b)
virtual bool	GetDisplayHoverText ()
virtual void	DisplayHoverTextOn ()
virtual void	DisplayHoverTextOff ()

virtual void	SetSelectionMode (int)
virtual int	GetSelectionMode ()
void	SetSelectionModeToSurface ()
void	SetSelectionModeToFrustum ()

virtual void	SetIconTexture (vtkTexture *texture)
virtual vtkTexture *	GetIconTexture ()

virtual void	SetIconSize (int, int)
void	SetIconSize (int[2])
virtual int *	GetIconSize ()
virtual void	GetIconSize (int &, int &)
virtual void	GetIconSize (int[2])

virtual void	SetLabelPlacementMode (int mode)
virtual int	GetLabelPlacementMode ()
virtual void	SetLabelPlacementModeToNoOverlap ()
virtual void	SetLabelPlacementModeToAll ()

virtual void	SetLabelRenderMode (int mode)
virtual int	GetLabelRenderMode ()
virtual void	SetLabelRenderModeToFreetype ()
virtual void	SetLabelRenderModeToQt ()
Static Public Member Functions
static vtkRenderView *	New ()
static int	IsTypeOf (const char *type)
static vtkRenderView *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkRenderView ()
	~vtkRenderView ()
virtual void	PrepareForRendering ()
virtual void	UpdateHoverText ()
virtual void	UpdateHoverWidgetState ()
void	UpdatePickRender ()

virtual void	ProcessEvents (vtkObject caller, unsigned long eventId, void callData)

virtual void	GenerateSelection (void callData, vtkSelection selection)

void	SetRenderOnMouseMove (bool b)
virtual bool	GetRenderOnMouseMove ()
virtual void	RenderOnMouseMoveOn ()
virtual void	RenderOnMouseMoveOff ()
Protected Attributes
vtkRenderer *	Renderer
vtkRenderer *	LabelRenderer
vtkRenderWindow *	RenderWindow
int	SelectionMode
int	InteractionMode
int	LabelRenderMode
bool	DisplayHoverText
bool	Interacting
bool	InHoverTextRender
bool	InPickRender
bool	PickRenderNeedsUpdate
vtkAbstractTransform *	Transform
vtkTexture *	IconTexture
int	IconSize [2]
vtkSmartPointer < vtkBalloonRepresentation >	Balloon
vtkSmartPointer < vtkLabelPlacementMapper >	LabelPlacementMapper
vtkSmartPointer < vtkTexturedActor2D >	LabelActor
vtkSmartPointer< vtkHoverWidget >	HoverWidget
vtkSmartPointer < vtkHardwareSelector >	Selector

Member Typedef Documentation

typedef vtkView vtkRenderView::Superclass

Reimplemented from vtkView.

Reimplemented in vtkContextView, vtkGeoView, vtkGeoView2D, vtkGraphLayoutView, vtkHierarchicalGraphView, vtkIcicleView, vtkParallelCoordinatesView, vtkTreeAreaView, vtkTreeMapView, and vtkTreeRingView.

Definition at line 69 of file vtkRenderView.h.

Member Enumeration Documentation

anonymous enum

Enumerator:

INTERACTION_MODE_2D
INTERACTION_MODE_3D
INTERACTION_MODE_UNKNOWN

Definition at line 95 of file vtkRenderView.h.

anonymous enum

Enumerator:

SURFACE
FRUSTUM

Definition at line 133 of file vtkRenderView.h.

anonymous enum

Enumerator:

NO_OVERLAP
ALL

Definition at line 183 of file vtkRenderView.h.

anonymous enum

Enumerator:

FREETYPE
QT

Definition at line 204 of file vtkRenderView.h.

Constructor & Destructor Documentation

vtkRenderView::vtkRenderView ( ) [protected]

vtkRenderView::~vtkRenderView ( ) [protected]

Member Function Documentation

static vtkRenderView* vtkRenderView::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkView.

Reimplemented in vtkContextView, vtkGeoView, vtkGeoView2D, vtkGraphLayoutView, vtkHierarchicalGraphView, vtkIcicleView, vtkParallelCoordinatesView, vtkTreeAreaView, vtkTreeMapView, and vtkTreeRingView.

virtual const char* vtkRenderView::GetClassName ( ) [virtual]

Reimplemented from vtkView.

Reimplemented in vtkContextView, vtkGeoView, vtkGeoView2D, vtkGraphLayoutView, vtkHierarchicalGraphView, vtkIcicleView, vtkParallelCoordinatesView, vtkTreeAreaView, vtkTreeMapView, and vtkTreeRingView.

static int vtkRenderView::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkView.

Reimplemented in vtkContextView, vtkGeoView, vtkGeoView2D, vtkGraphLayoutView, vtkHierarchicalGraphView, vtkIcicleView, vtkParallelCoordinatesView, vtkTreeAreaView, vtkTreeMapView, and vtkTreeRingView.

virtual int vtkRenderView::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkView.

Reimplemented in vtkContextView, vtkGeoView, vtkGeoView2D, vtkGraphLayoutView, vtkHierarchicalGraphView, vtkIcicleView, vtkParallelCoordinatesView, vtkTreeAreaView, vtkTreeMapView, and vtkTreeRingView.

static vtkRenderView* vtkRenderView::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkView.

Reimplemented in vtkContextView, vtkGeoView, vtkGeoView2D, vtkGraphLayoutView, vtkHierarchicalGraphView, vtkIcicleView, vtkParallelCoordinatesView, vtkTreeAreaView, vtkTreeMapView, and vtkTreeRingView.

void vtkRenderView::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkView.

Reimplemented in vtkContextView, vtkGeoView, vtkGeoView2D, vtkGraphLayoutView, vtkHierarchicalGraphView, vtkIcicleView, vtkParallelCoordinatesView, vtkTreeAreaView, vtkTreeMapView, and vtkTreeRingView.

virtual vtkRenderer* vtkRenderView::GetRenderer ( ) [virtual]

Gets the renderer for this view.

virtual vtkRenderWindow* vtkRenderView::GetRenderWindow ( ) [virtual]

Get a handle to the render window.

virtual vtkRenderWindowInteractor* vtkRenderView::GetInteractor ( ) [virtual]

The render window interactor.

virtual void vtkRenderView::SetInteractor ( vtkRenderWindowInteractor * interactor ) [virtual]

The render window interactor.

virtual void vtkRenderView::SetInteractorStyle ( vtkInteractorObserver * style ) [virtual]

The interactor style associated with the render view.

virtual vtkInteractorObserver* vtkRenderView::GetInteractorStyle ( ) [virtual]

The interactor style associated with the render view.

virtual void vtkRenderView::SetInteractionMode ( int mode ) [virtual]

Set the interaction mode for the view. Choices are: vtkRenderView::INTERACTION_MODE_2D - 2D interactor vtkRenderView::INTERACTION_MODE_3D - 3D interactor

Reimplemented in vtkContextView.

virtual int vtkRenderView::GetInteractionMode ( ) [virtual]

Set the interaction mode for the view. Choices are: vtkRenderView::INTERACTION_MODE_2D - 2D interactor vtkRenderView::INTERACTION_MODE_3D - 3D interactor

virtual void vtkRenderView::SetInteractionModeTo2D ( ) [inline, virtual]

Set the interaction mode for the view. Choices are: vtkRenderView::INTERACTION_MODE_2D - 2D interactor vtkRenderView::INTERACTION_MODE_3D - 3D interactor

Definition at line 109 of file vtkRenderView.h.

virtual void vtkRenderView::SetInteractionModeTo3D ( ) [inline, virtual]

Set the interaction mode for the view. Choices are: vtkRenderView::INTERACTION_MODE_2D - 2D interactor vtkRenderView::INTERACTION_MODE_3D - 3D interactor

Definition at line 111 of file vtkRenderView.h.

virtual void vtkRenderView::ApplyViewTheme ( vtkViewTheme * theme ) [virtual]

Applies a view theme to this view.

Reimplemented in vtkGeoView2D, and vtkParallelCoordinatesView.

virtual void vtkRenderView::SetTransform ( vtkAbstractTransform * transform ) [virtual]

Set the view's transform. All vtkRenderedRepresentations added to this view should use this transform.

virtual vtkAbstractTransform* vtkRenderView::GetTransform ( ) [virtual]

Set the view's transform. All vtkRenderedRepresentations added to this view should use this transform.

Reimplemented in vtkGeoView2D.

virtual void vtkRenderView::SetDisplayHoverText ( bool b ) [virtual]

Whether the view should display hover text.

virtual bool vtkRenderView::GetDisplayHoverText ( ) [virtual]

Whether the view should display hover text.

virtual void vtkRenderView::DisplayHoverTextOn ( ) [virtual]

Whether the view should display hover text.

virtual void vtkRenderView::DisplayHoverTextOff ( ) [virtual]

Whether the view should display hover text.

virtual void vtkRenderView::SetSelectionMode ( int ) [virtual]

Sets the selection mode for the render view. SURFACE selection uses vtkHardwareSelector to perform a selection of visible cells. FRUSTUM selection just creates a view frustum selection, which will select everything in the frustum.

virtual int vtkRenderView::GetSelectionMode ( ) [virtual]

Sets the selection mode for the render view. SURFACE selection uses vtkHardwareSelector to perform a selection of visible cells. FRUSTUM selection just creates a view frustum selection, which will select everything in the frustum.

void vtkRenderView::SetSelectionModeToSurface ( ) [inline]

Sets the selection mode for the render view. SURFACE selection uses vtkHardwareSelector to perform a selection of visible cells. FRUSTUM selection just creates a view frustum selection, which will select everything in the frustum.

Definition at line 146 of file vtkRenderView.h.

void vtkRenderView::SetSelectionModeToFrustum ( ) [inline]

Sets the selection mode for the render view. SURFACE selection uses vtkHardwareSelector to perform a selection of visible cells. FRUSTUM selection just creates a view frustum selection, which will select everything in the frustum.

Definition at line 147 of file vtkRenderView.h.

virtual void vtkRenderView::Render ( ) [virtual]

Updates the representations, then calls Render() on the render window associated with this view.

Reimplemented in vtkContextView, vtkGeoView, and vtkGeoView2D.

virtual void vtkRenderView::ResetCamera ( ) [virtual]

Updates the representations, then calls ResetCamera() on the renderer associated with this view.

virtual void vtkRenderView::ResetCameraClippingRange ( ) [virtual]

Updates the representations, then calls ResetCameraClippingRange() on the renderer associated with this view.

virtual void vtkRenderView::AddLabels ( vtkAlgorithmOutput * conn ) [virtual]

Add labels from an input connection with an associated text property. The output must be a vtkLabelHierarchy (normally the output of vtkPointSetToLabelHierarchy).

virtual void vtkRenderView::RemoveLabels ( vtkAlgorithmOutput * conn ) [virtual]

Remove labels from an input connection.

virtual void vtkRenderView::SetIconTexture ( vtkTexture * texture ) [virtual]

Set the icon sheet to use for rendering icons.

virtual vtkTexture* vtkRenderView::GetIconTexture ( ) [virtual]

Set the icon sheet to use for rendering icons.

virtual void vtkRenderView::SetIconSize	(	int	,
		int
	)			`[virtual]`
