vtkSimple3DCirclesStrategy Class Reference

#include <vtkSimple3DCirclesStrategy.h>

Inheritance diagram for vtkSimple3DCirclesStrategy:

[legend]

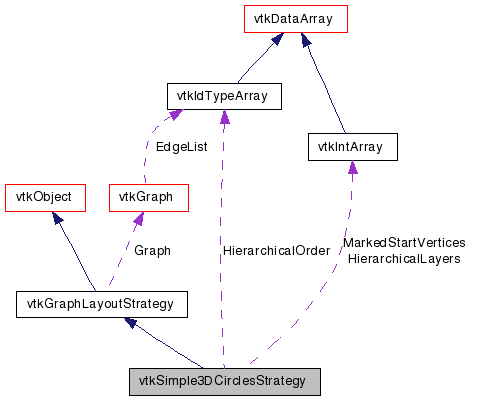

Collaboration diagram for vtkSimple3DCirclesStrategy:

[legend]

List of all members.

Detailed Description

places vertices on circles in 3D

Places vertices on circles depending on the graph vertices hierarchy level. The source graph could be vtkDirectedAcyclicGraph or vtkDirectedGraph if MarkedStartPoints array was added. The algorithm collects the standalone points, too and take them to a separated circle. If method is FixedRadiusMethod, the radius of the circles will be equal. If method is FixedDistanceMethod, the distance beetwen the points on circles will be equal.

In first step initial points are searched. A point is initial, if its in degree equal zero and out degree is greater than zero (or marked by MarkedStartVertices and out degree is greater than zero). Independent vertices (in and out degree equal zero) are collected separatelly. In second step the hierarchical level is generated for every vertex. In third step the hierarchical order is generated. If a vertex has no hierarchical level and it is not independent, the graph has loop so the algorithm exit with error message. Finally the vertices positions are calculated by the hierarchical order and by the vertices hierarchy levels.

Thanks:: Ferenc Nasztanovics, naszta@naszta.hu, Budapest University of Technology and Economics, Department of Structural Mechanics

References:: in 3D rotation was used: http://en.citizendium.org/wiki/Rotation_matrix

Tests:: vtkSimple3DCirclesStrategy (Tests)

Definition at line 51 of file vtkSimple3DCirclesStrategy.h.


Public Types
enum	{ FixedRadiusMethod = 0, FixedDistanceMethod = 1 }
typedef vtkGraphLayoutStrategy	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)

virtual void	SetMethod (int)
virtual int	GetMethod ()
virtual void	SetRadius (double)
virtual double	GetRadius ()
virtual void	SetHeight (double)
virtual double	GetHeight ()
virtual void	SetOrign (double, double, double)
virtual void	SetOrign (double[3])
virtual double *	GetOrign ()
virtual void	GetOrign (double &, double &, double &)
virtual void	GetOrign (double[3])
virtual void	SetDirection (double dx, double dy, double dz)
virtual void	SetDirection (double d[3])
virtual double *	GetDirection ()
virtual void	GetDirection (double &, double &, double &)
virtual void	GetDirection (double[3])
virtual void	SetMarkedStartVertices (vtkIntArray *_arg)
virtual vtkIntArray *	GetMarkedStartVertices ()
virtual void	SetMarkedValue (int)
virtual int	GetMarkedValue ()
virtual void	SetForceToUseUniversalStartPointsFinder (int)
virtual int	GetForceToUseUniversalStartPointsFinder ()
virtual void	ForceToUseUniversalStartPointsFinderOn ()
virtual void	ForceToUseUniversalStartPointsFinderOff ()
virtual void	SetAutoHeight (int)
virtual int	GetAutoHeight ()
virtual void	AutoHeightOn ()
virtual void	AutoHeightOff ()
virtual void	SetMinimumRadian (double)
virtual double	GetMinimumRadian ()
virtual void	SetMinimumDegree (double degree)
virtual double	GetMinimumDegree (void)
virtual void	SetHierarchicalLayers (vtkIntArray *_arg)
virtual vtkIntArray *	GetHierarchicalLayers ()
virtual void	SetHierarchicalOrder (vtkIdTypeArray *_arg)
virtual vtkIdTypeArray *	GetHierarchicalOrder ()
virtual void	Layout (void)
virtual void	SetGraph (vtkGraph *graph)
Static Public Member Functions
static vtkSimple3DCirclesStrategy *	New ()
static int	IsTypeOf (const char *type)
static vtkSimple3DCirclesStrategy *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkSimple3DCirclesStrategy (void)
virtual	~vtkSimple3DCirclesStrategy (void)
void	Transform (double Local[], double Global[])
Protected Attributes
double	Radius
double	Height
double	Orign [3]
double	Direction [3]
int	Method
vtkIntArray *	MarkedStartVertices
int	MarkedValue
int	ForceToUseUniversalStartPointsFinder
int	AutoHeight
double	MinimumRadian
vtkIntArray *	HierarchicalLayers
vtkIdTypeArray *	HierarchicalOrder

Member Typedef Documentation

typedef vtkGraphLayoutStrategy vtkSimple3DCirclesStrategy::Superclass

Reimplemented from vtkGraphLayoutStrategy.

Definition at line 55 of file vtkSimple3DCirclesStrategy.h.

Member Enumeration Documentation

anonymous enum

Enumerator:

FixedRadiusMethod
FixedDistanceMethod

Definition at line 59 of file vtkSimple3DCirclesStrategy.h.

Constructor & Destructor Documentation

vtkSimple3DCirclesStrategy::vtkSimple3DCirclesStrategy ( void ) [protected]

virtual vtkSimple3DCirclesStrategy::~vtkSimple3DCirclesStrategy ( void ) [protected, virtual]

Member Function Documentation

static vtkSimple3DCirclesStrategy* vtkSimple3DCirclesStrategy::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkSimple3DCirclesStrategy::GetClassName ( ) [virtual]

Reimplemented from vtkGraphLayoutStrategy.

static int vtkSimple3DCirclesStrategy::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkGraphLayoutStrategy.

virtual int vtkSimple3DCirclesStrategy::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkGraphLayoutStrategy.

static vtkSimple3DCirclesStrategy* vtkSimple3DCirclesStrategy::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkGraphLayoutStrategy.

void vtkSimple3DCirclesStrategy::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkGraphLayoutStrategy.

virtual void vtkSimple3DCirclesStrategy::SetMethod ( int ) [virtual]
