vtkTesting Class Reference

#include <vtkTesting.h>

Inheritance diagram for vtkTesting:

Inheritance graph
[legend]

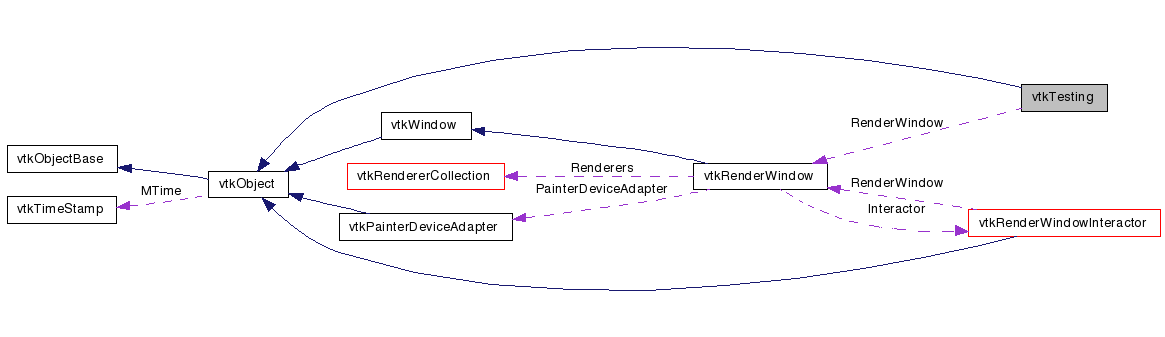

Collaboration diagram for vtkTesting:

Collaboration graph
[legend]

List of all members.


Detailed Description

a unified VTK regression testing framework

This is a VTK regression testing framework. Looks like this:

vtkTesting* t = vtkTesting::New();

Two options for setting arguments

Option 1: for ( cc = 1; cc < argc; cc ++ ) { t->AddArgument(argv[cc]); }

Option 2: t->AddArgument("-D"); t->AddArgument(my_data_dir); t->AddArgument("-V"); t->AddArgument(my_valid_image);

...

Two options of doing testing:

Option 1: t->SetRenderWindow(renWin); int res = t->RegressionTest(threshold);

Option 2: int res = t->RegressionTest(test_image, threshold);

...

if ( res == vtkTesting::PASSED ) { Test passed } else { Test failed }

Examples:
vtkTesting (Examples)
Tests:
vtkTesting (Tests)

Definition at line 80 of file vtkTesting.h.


Public Types

enum  ReturnValue { FAILED = 0, PASSED = 1, NOT_RUN = 2, DO_INTERACTOR = 3 }
typedef vtkObject Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
void CleanArguments ()
int IsValidImageSpecified ()
int IsInteractiveModeSpecified ()
int IsFlagSpecified (const char *flag)
virtual void SetFrontBuffer (int)
virtual void FrontBufferOn ()
virtual void FrontBufferOff ()
virtual int GetFrontBuffer ()
virtual int RegressionTest (double thresh)
virtual int RegressionTest (double thresh, ostream &os)
virtual int RegressionTest (vtkImageData *image, double thresh)
virtual int RegressionTest (vtkImageData *image, double thresh, ostream &os)
int CompareAverageOfL2Norm (vtkDataSet *pdA, vtkDataSet *pdB, double tol)
int CompareAverageOfL2Norm (vtkDataArray *daA, vtkDataArray *daB, double tol)
virtual void SetRenderWindow (vtkRenderWindow *rw)
virtual vtkRenderWindowGetRenderWindow ()
virtual void SetValidImageFileName (const char *)
const char * GetValidImageFileName ()
virtual double GetImageDifference ()
void AddArgument (const char *argv)
void AddArguments (int argc, const char **argv)
char * GetArgument (const char *arg)
const char * GetDataRoot ()
virtual void SetDataRoot (const char *)
const char * GetTempDirectory ()
virtual void SetTempDirectory (const char *)
virtual void SetBorderOffset (int)
virtual int GetBorderOffset ()
virtual void SetVerbose (int)
virtual int GetVerbose ()

Static Public Member Functions

static vtkTestingNew ()
static int IsTypeOf (const char *type)
static vtkTestingSafeDownCast (vtkObject *o)
static int Test (int argc, char *argv[], vtkRenderWindow *rw, double thresh)
static int InteractorEventLoop (int argc, char *argv[], vtkRenderWindowInteractor *iren, const char *stream=NULL)

Protected Member Functions

 vtkTesting ()
 ~vtkTesting ()

Static Protected Member Functions

static char * IncrementFileName (const char *fname, int count)
static int LookForFile (const char *newFileName)

Protected Attributes

int FrontBuffer
vtkRenderWindowRenderWindow
char * ValidImageFileName
double ImageDifference
char * TempDirectory
int BorderOffset
int Verbose
vtkstd::vector< vtkstd::string > Args
char * DataRoot
double StartWallTime
double StartCPUTime

Member Typedef Documentation

Reimplemented from vtkObject.

Definition at line 84 of file vtkTesting.h.


Member Enumeration Documentation

Enumerator:
FAILED
PASSED
NOT_RUN
DO_INTERACTOR

Definition at line 88 of file vtkTesting.h.


Constructor & Destructor Documentation

vtkTesting::vtkTesting (  )  [protected]

vtkTesting::~vtkTesting (  )  [protected]


Member Function Documentation

static vtkTesting* vtkTesting::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkTesting::GetClassName (  )  [virtual]

Reimplemented from vtkObject.

static int vtkTesting::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

virtual int vtkTesting::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

static vtkTesting* vtkTesting::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkObject.

void vtkTesting::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkObject.

static int vtkTesting::Test ( int  argc,
char *  argv[],
vtkRenderWindow rw,
double  thresh
) [static]

static int vtkTesting::InteractorEventLoop ( int  argc,
char *  argv[],
vtkRenderWindowInteractor iren,
const char *  stream = NULL
) [static]

This method is intended to be a comprehensive, one line replacement for vtkRegressionTest and for the replay based testing using vtkInteractorEventRecorder greatly simplifying API and code bloat. It scans the command line specified for the following : - If a "--DisableReplay" is specified, it disables the testing replay. This is particularly useful in enabling the user to exercise the widgets. Typically the widgets are defined by the testing replay, so the user misses out on playing around with the widget definition behaviour. - If a "--Record" is specified in the command line, it records the interactions into a "vtkInteractorEventRecorder.log" file. This is useful when creating the playback stream that is plugged into tests. Typical usage in a test for a VTK widget that needs playback testing / recording is : const char TestFooWidgetTestLog[] = { .... }; int TestFooWidget( int argc, char *argv[] ) { ... return vtkTesting::InteractorEventLoop( argc, argv, iren, TestFooWidgetTestLog ); } In tests where no playback is exercised, the API is simply int TestFoo( int argc, char *argv[] ) { ... return vtkTesting::InteractorEventLoop( argc, argv, iren ); }

virtual void vtkTesting::SetFrontBuffer ( int   )  [virtual]

Use front buffer for tests. By default use back buffer.

virtual void vtkTesting::FrontBufferOn (  )  [virtual]

Use front buffer for tests. By default use back buffer.

virtual void vtkTesting::FrontBufferOff (  )  [virtual]

Use front buffer for tests. By default use back buffer.

virtual int vtkTesting::GetFrontBuffer (  )  [virtual]

Use front buffer for tests. By default use back buffer.

virtual int vtkTesting::RegressionTest ( double  thresh  )  [virtual]

Perform the test and return result. At the same time the output will be written cout

virtual int vtkTesting::RegressionTest ( double  thresh,
ostream &  os
) [virtual]

Perform the test and return result. At the same time the output will be written cout

virtual int vtkTesting::RegressionTest ( vtkImageData image,
double  thresh
) [virtual]

Compare the image with the valid image.

virtual int vtkTesting::RegressionTest ( vtkImageData image,
double  thresh,
ostream &  os
) [virtual]

Compare the image with the valid image.

int vtkTesting::CompareAverageOfL2Norm ( vtkDataSet pdA,
vtkDataSet pdB,
double  tol
)

Compute the average L2 norm between all point data data arrays of types float and double present in the data sets "dsA" and "dsB" (this includes instances of vtkPoints) Compare the result of each L2 comutation to "tol".

int vtkTesting::CompareAverageOfL2Norm ( vtkDataArray daA,
vtkDataArray daB,
double  tol
)

Compute the average L2 norm between all point data data arrays of types float and double present in the data sets "dsA" and "dsB" (this includes instances of vtkPoints) Compare the result of each L2 comutation to "tol".

virtual void vtkTesting::SetRenderWindow ( vtkRenderWindow rw  )  [virtual]

Set and get the render window that will be used for regression testing.

virtual vtkRenderWindow* vtkTesting::GetRenderWindow (  )  [virtual]

Set and get the render window that will be used for regression testing.

virtual void vtkTesting::SetValidImageFileName ( const char *   )  [virtual]

Set/Get the name of the valid image file

const char* vtkTesting::GetValidImageFileName (  )

Set/Get the name of the valid image file

virtual double vtkTesting::GetImageDifference (  )  [virtual]

Get the image difference.

void vtkTesting::AddArgument ( const char *  argv  )

Pass the command line arguments into this class to be processed. Many of the Get methods such as GetValidImage and GetBaselineRoot rely on the arguments to be passed in prior to retrieving these values. Just call AddArgument for each argument that was passed into the command line

void vtkTesting::AddArguments ( int  argc,
const char **  argv
)

Pass the command line arguments into this class to be processed. Many of the Get methods such as GetValidImage and GetBaselineRoot rely on the arguments to be passed in prior to retrieving these values. Just call AddArgument for each argument that was passed into the command line

char* vtkTesting::GetArgument ( const char *  arg  )

Search for a specific argument by name and return its value (assumed to be the next on the command tail). Up to caller to delete the returned string.

void vtkTesting::CleanArguments (  )

This method delete all arguments in vtkTesting, this way you can reuse it in a loop where you would have multiple testing.

const char* vtkTesting::GetDataRoot (  )

Get some paramters from the command line arguments, env, or defaults

virtual void vtkTesting::SetDataRoot ( const char *   )  [virtual]

Get some paramters from the command line arguments, env, or defaults

const char* vtkTesting::GetTempDirectory (  )

Get some paramters from the command line arguments, env, or defaults

virtual void vtkTesting::SetTempDirectory ( const char *   )  [virtual]

Get some paramters from the command line arguments, env, or defaults

int vtkTesting::IsValidImageSpecified (  )

Is a valid image specified on the command line areguments?

int vtkTesting::IsInteractiveModeSpecified (  )

Is the interactive mode specified?

int vtkTesting::IsFlagSpecified ( const char *  flag  )

Is some arbitrary user flag ("-X", "-Z" etc) specified

virtual void vtkTesting::SetBorderOffset ( int   )  [virtual]

Number of pixels added as borders to avoid problems with window decorations added by some window managers.

virtual int vtkTesting::GetBorderOffset (  )  [virtual]

Number of pixels added as borders to avoid problems with window decorations added by some window managers.

virtual void vtkTesting::SetVerbose ( int   )  [virtual]

Get/Set verbosity level. A level of 0 is quiet.

virtual int vtkTesting::GetVerbose (  )  [virtual]

Get/Set verbosity level. A level of 0 is quiet.

static char* vtkTesting::IncrementFileName ( const char *  fname,
int  count
) [static, protected]

static int vtkTesting::LookForFile ( const char *  newFileName  )  [static, protected]


Member Data Documentation

int vtkTesting::FrontBuffer [protected]

Definition at line 236 of file vtkTesting.h.

Definition at line 237 of file vtkTesting.h.

char* vtkTesting::ValidImageFileName [protected]

Definition at line 238 of file vtkTesting.h.

double vtkTesting::ImageDifference [protected]

Definition at line 239 of file vtkTesting.h.

char* vtkTesting::TempDirectory [protected]

Definition at line 240 of file vtkTesting.h.

int vtkTesting::BorderOffset [protected]

Definition at line 241 of file vtkTesting.h.

int vtkTesting::Verbose [protected]

Definition at line 242 of file vtkTesting.h.

vtkstd::vector<vtkstd::string> vtkTesting::Args [protected]

Definition at line 245 of file vtkTesting.h.

char* vtkTesting::DataRoot [protected]

Definition at line 247 of file vtkTesting.h.

double vtkTesting::StartWallTime [protected]

Definition at line 248 of file vtkTesting.h.

double vtkTesting::StartCPUTime [protected]

Definition at line 249 of file vtkTesting.h.


The documentation for this class was generated from the following file:
