vtkTransmitPolyDataPiece Class Reference

#include <vtkTransmitPolyDataPiece.h>

Inheritance diagram for vtkTransmitPolyDataPiece:

Inheritance graph
[legend]

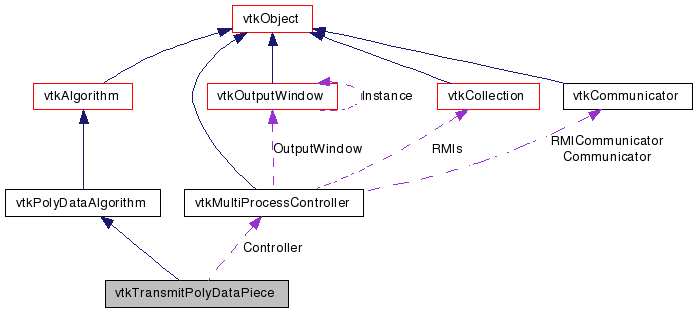

Collaboration diagram for vtkTransmitPolyDataPiece:

Collaboration graph
[legend]

List of all members.


Detailed Description

Return specified piece, including specified number of ghost levels.

This filter updates the appropriate piece by requesting the piece from process 0. Process 0 always updates all of the data. It is important that Execute get called on all processes, otherwise the filter will deadlock.

Definition at line 31 of file vtkTransmitPolyDataPiece.h.


Public Types

typedef vtkPolyDataAlgorithm Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void SetController (vtkMultiProcessController *)
virtual vtkMultiProcessControllerGetController ()
virtual void SetCreateGhostCells (int)
virtual int GetCreateGhostCells ()
virtual void CreateGhostCellsOn ()
virtual void CreateGhostCellsOff ()

Static Public Member Functions

static vtkTransmitPolyDataPieceNew ()
static int IsTypeOf (const char *type)
static vtkTransmitPolyDataPieceSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkTransmitPolyDataPiece ()
 ~vtkTransmitPolyDataPiece ()
int RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
void RootExecute (vtkPolyData *input, vtkPolyData *output, vtkInformation *outInfo)
void SatelliteExecute (int procId, vtkPolyData *output, vtkInformation *outInfo)
int RequestInformation (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
int RequestUpdateExtent (vtkInformation *, vtkInformationVector **, vtkInformationVector *)

Protected Attributes

int CreateGhostCells
vtkMultiProcessControllerController

Member Typedef Documentation

Reimplemented from vtkPolyDataAlgorithm.

Definition at line 35 of file vtkTransmitPolyDataPiece.h.


Constructor & Destructor Documentation

vtkTransmitPolyDataPiece::vtkTransmitPolyDataPiece (  )  [protected]

vtkTransmitPolyDataPiece::~vtkTransmitPolyDataPiece (  )  [protected]


Member Function Documentation

static vtkTransmitPolyDataPiece* vtkTransmitPolyDataPiece::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkPolyDataAlgorithm.

virtual const char* vtkTransmitPolyDataPiece::GetClassName (  )  [virtual]

Reimplemented from vtkPolyDataAlgorithm.

static int vtkTransmitPolyDataPiece::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkTransmitPolyDataPiece::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

static vtkTransmitPolyDataPiece* vtkTransmitPolyDataPiece::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkPolyDataAlgorithm.

void vtkTransmitPolyDataPiece::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkPolyDataAlgorithm.

virtual void vtkTransmitPolyDataPiece::SetController ( vtkMultiProcessController  )  [virtual]

By defualt this filter uses the global controller, but this method can be used to set another instead.

virtual vtkMultiProcessController* vtkTransmitPolyDataPiece::GetController (  )  [virtual]

By defualt this filter uses the global controller, but this method can be used to set another instead.

virtual void vtkTransmitPolyDataPiece::SetCreateGhostCells ( int   )  [virtual]

Turn on/off creating ghost cells (on by default).

virtual int vtkTransmitPolyDataPiece::GetCreateGhostCells (  )  [virtual]

Turn on/off creating ghost cells (on by default).

virtual void vtkTransmitPolyDataPiece::CreateGhostCellsOn (  )  [virtual]

Turn on/off creating ghost cells (on by default).

virtual void vtkTransmitPolyDataPiece::CreateGhostCellsOff (  )  [virtual]

Turn on/off creating ghost cells (on by default).

int vtkTransmitPolyDataPiece::RequestData ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector
) [protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkPolyDataAlgorithm.

void vtkTransmitPolyDataPiece::RootExecute ( vtkPolyData input,
vtkPolyData output,
vtkInformation outInfo
) [protected]

void vtkTransmitPolyDataPiece::SatelliteExecute ( int  procId,
vtkPolyData output,
vtkInformation outInfo
) [protected]

int vtkTransmitPolyDataPiece::RequestInformation ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [protected, virtual]

Reimplemented from vtkPolyDataAlgorithm.

int vtkTransmitPolyDataPiece::RequestUpdateExtent ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkPolyDataAlgorithm.


Member Data Documentation

Definition at line 63 of file vtkTransmitPolyDataPiece.h.

Definition at line 64 of file vtkTransmitPolyDataPiece.h.


The documentation for this class was generated from the following file:
