vtkXMLPStructuredGridReader Class Reference

#include <vtkXMLPStructuredGridReader.h>

Inheritance diagram for vtkXMLPStructuredGridReader:

[legend]

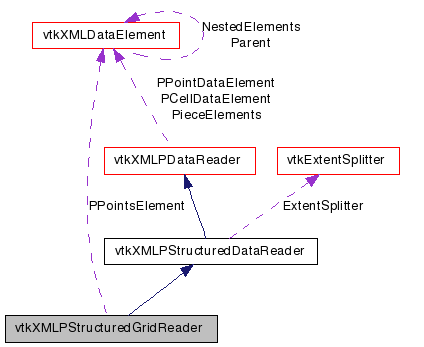

Collaboration diagram for vtkXMLPStructuredGridReader:

[legend]

List of all members.

---

Detailed Description

Read PVTK XML StructuredGrid files.

vtkXMLPStructuredGridReader reads the PVTK XML StructuredGrid file format. This reads the parallel format's summary file and then uses vtkXMLStructuredGridReader to read data from the individual StructuredGrid piece files. Streaming is supported. The standard extension for this reader's file format is "pvts".

See also:

vtkXMLStructuredGridReader

Definition at line 35 of file vtkXMLPStructuredGridReader.h.

Public Types
typedef vtkXMLPStructuredDataReader	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
vtkStructuredGrid *	GetOutput ()
vtkStructuredGrid *	GetOutput (int idx)
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkXMLPStructuredGridReader *	SafeDownCast (vtkObject *o)
static vtkXMLPStructuredGridReader *	New ()
Protected Member Functions
	vtkXMLPStructuredGridReader ()
	~vtkXMLPStructuredGridReader ()
vtkStructuredGrid *	GetPieceInput (int index)
void	SetupEmptyOutput ()
const char *	GetDataSetName ()
void	SetOutputExtent (int *extent)
void	GetPieceInputExtent (int index, int *extent)
int	ReadPrimaryElement (vtkXMLDataElement *ePrimary)
void	SetupOutputData ()
int	ReadPieceData ()
vtkXMLDataReader *	CreatePieceReader ()
virtual int	FillOutputPortInformation (int, vtkInformation *)
Protected Attributes
vtkXMLDataElement *	PPointsElement

---

Member Typedef Documentation

typedef vtkXMLPStructuredDataReader vtkXMLPStructuredGridReader::Superclass

Reimplemented from vtkXMLPStructuredDataReader.

Definition at line 38 of file vtkXMLPStructuredGridReader.h.

---

Constructor & Destructor Documentation

vtkXMLPStructuredGridReader::vtkXMLPStructuredGridReader

(

)

[protected]

vtkXMLPStructuredGridReader::~vtkXMLPStructuredGridReader

(

)

[protected]

---

Member Function Documentation

virtual const char* vtkXMLPStructuredGridReader::GetClassName

(

)

[virtual]

Reimplemented from vtkXMLPStructuredDataReader.

static int vtkXMLPStructuredGridReader::IsTypeOf

(

const char *

name

)

[static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkXMLPStructuredDataReader.

virtual int vtkXMLPStructuredGridReader::IsA

(

const char *

name

)

[virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkXMLPStructuredDataReader.

static vtkXMLPStructuredGridReader* vtkXMLPStructuredGridReader::SafeDownCast

(

vtkObject *

o

)

[static]

Reimplemented from vtkXMLPStructuredDataReader.

void vtkXMLPStructuredGridReader::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkXMLPStructuredDataReader.

static vtkXMLPStructuredGridReader* vtkXMLPStructuredGridReader::New

(

)

[static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkAlgorithm.

vtkStructuredGrid* vtkXMLPStructuredGridReader::GetOutput

(

)

Get the reader's output.

vtkStructuredGrid* vtkXMLPStructuredGridReader::GetOutput

(

int

idx

)

Needed for ParaView

vtkStructuredGrid* vtkXMLPStructuredGridReader::GetPieceInput

(

int

index

)

[protected]

void vtkXMLPStructuredGridReader::SetupEmptyOutput

(

)

[protected, virtual]

Implements vtkXMLReader.

const char* vtkXMLPStructuredGridReader::GetDataSetName

(

)

[protected, virtual]

Implements vtkXMLReader.

void vtkXMLPStructuredGridReader::SetOutputExtent

(

int *

extent

)

[protected, virtual]

Implements vtkXMLPStructuredDataReader.

void vtkXMLPStructuredGridReader::GetPieceInputExtent	(	int	index,
		int *	extent
	)			[protected, virtual]

Implements vtkXMLPStructuredDataReader.

int vtkXMLPStructuredGridReader::ReadPrimaryElement

(

vtkXMLDataElement *

ePrimary

)

[protected, virtual]

Reimplemented from vtkXMLPStructuredDataReader.

void vtkXMLPStructuredGridReader::SetupOutputData

(

)

[protected, virtual]

Reimplemented from vtkXMLPStructuredDataReader.

int vtkXMLPStructuredGridReader::ReadPieceData

(

)

[protected, virtual]

Reimplemented from vtkXMLPStructuredDataReader.

vtkXMLDataReader* vtkXMLPStructuredGridReader::CreatePieceReader

(

)

[protected, virtual]

Implements vtkXMLPDataReader.

virtual int vtkXMLPStructuredGridReader::FillOutputPortInformation	(	int	port,
		vtkInformation *	info
	)			[protected, virtual]

Fill the output port information objects for this algorithm. This is invoked by the first call to GetOutputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkAlgorithm.

---

Member Data Documentation

vtkXMLDataElement* vtkXMLPStructuredGridReader::PPointsElement [protected]

Definition at line 65 of file vtkXMLPStructuredGridReader.h.

---

The documentation for this class was generated from the following file:

• dox/IO/vtkXMLPStructuredGridReader.h
