vtkClipVolume Class Reference

#include <vtkClipVolume.h>

Inheritance diagram for vtkClipVolume:

[legend]

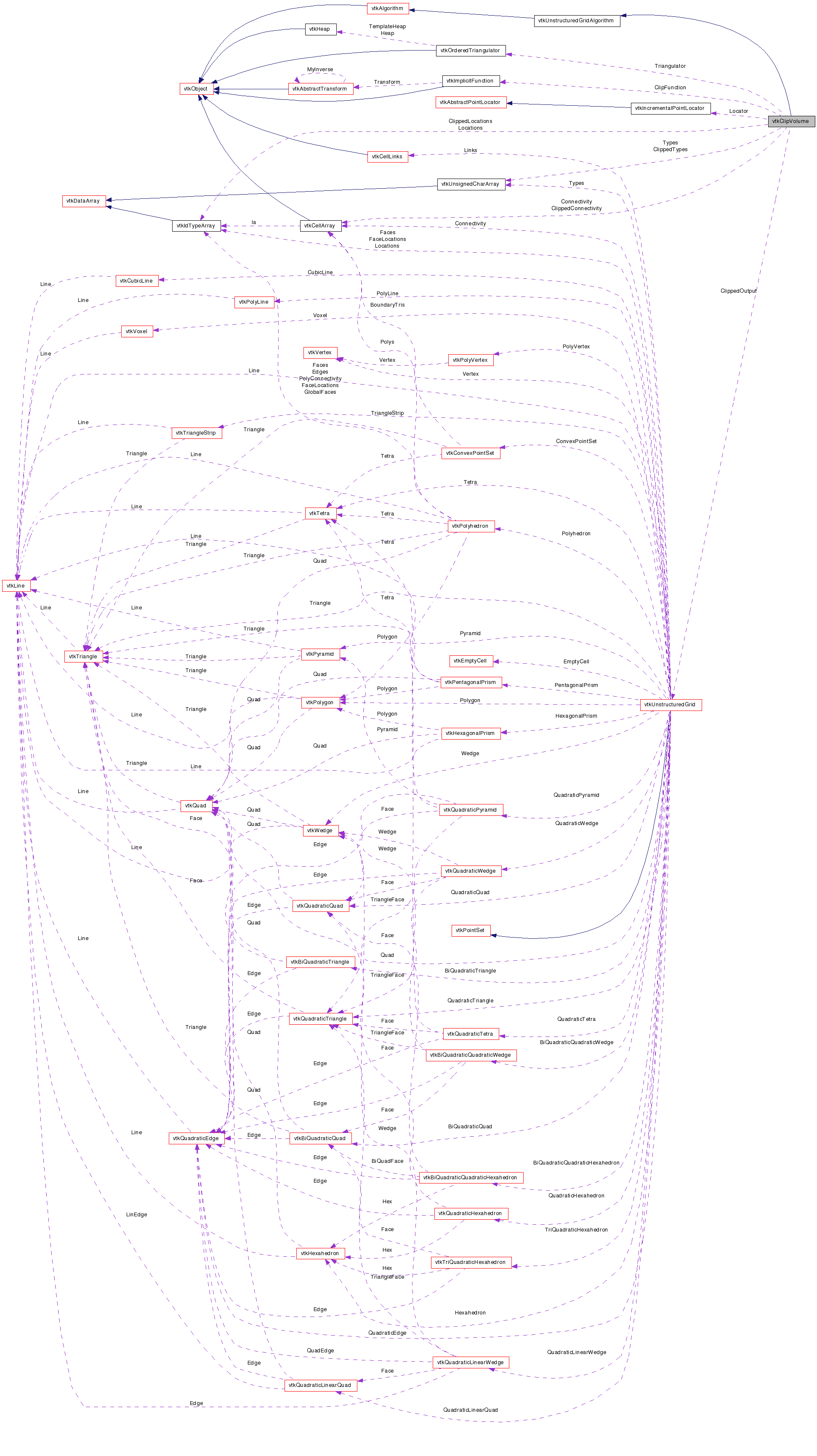

Collaboration diagram for vtkClipVolume:

[legend]

List of all members.

Detailed Description

clip volume data with user-specified implicit function or input scalar data

vtkClipVolume is a filter that clips volume data (i.e., vtkImageData) using either: any subclass of vtkImplicitFunction or the input scalar data. The clipping operation cuts through the cells of the dataset--converting 3D image data into a 3D unstructured grid--returning everything inside of the specified implicit function (or greater than the scalar value). During the clipping the filter will produce pieces of a cell. (Compare this with vtkExtractGeometry or vtkGeometryFilter, which produces entire, uncut cells.) The output of this filter is a 3D unstructured grid (e.g., tetrahedra or other 3D cell types).

To use this filter, you must decide if you will be clipping with an implicit function, or whether you will be using the input scalar data. If you want to clip with an implicit function, you must first define and then set the implicit function with the SetClipFunction() method. Otherwise, you must make sure input scalar data is available. You can also specify a scalar value, which is used to decide what is inside and outside of the implicit function. You can also reverse the sense of what inside/outside is by setting the InsideOut instance variable. (The cutting algorithm proceeds by computing an implicit function value or using the input scalar data for each point in the dataset. This is compared to the scalar value to determine inside/outside.)

This filter can be configured to compute a second output. The second output is the portion of the volume that is clipped away. Set the GenerateClippedData boolean on if you wish to access this output data.

The filter will produce an unstructured grid of entirely tetrahedra or a mixed grid of tetrahedra and other 3D cell types (e.g., wedges). Control this behavior by setting the Mixed3DCellGeneration. By default the Mixed3DCellGeneration is on and a combination of cell types will be produced. Note that producing mixed cell types is a faster than producing only tetrahedra.

Warning:: This filter is designed to function with 3D structured points. Clipping 2D images should be done by converting the image to polygonal data and using vtkClipPolyData,

See also:: vtkImplicitFunction vtkClipPolyData vtkGeometryFilter vtkExtractGeometry

Tests:: vtkClipVolume (Tests)

Definition at line 84 of file vtkClipVolume.h.


Public Types
typedef vtkUnstructuredGridAlgorithm	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
vtkUnstructuredGrid *	GetClippedOutput ()
void	CreateDefaultLocator ()
unsigned long int	GetMTime ()

virtual void	SetValue (double)
virtual double	GetValue ()

virtual void	SetInsideOut (int)
virtual int	GetInsideOut ()
virtual void	InsideOutOn ()
virtual void	InsideOutOff ()

virtual void	SetClipFunction (vtkImplicitFunction *)
virtual vtkImplicitFunction *	GetClipFunction ()

virtual void	SetGenerateClipScalars (int)
virtual int	GetGenerateClipScalars ()
virtual void	GenerateClipScalarsOn ()
virtual void	GenerateClipScalarsOff ()

virtual void	SetGenerateClippedOutput (int)
virtual int	GetGenerateClippedOutput ()
virtual void	GenerateClippedOutputOn ()
virtual void	GenerateClippedOutputOff ()

virtual void	SetMixed3DCellGeneration (int)
virtual int	GetMixed3DCellGeneration ()
virtual void	Mixed3DCellGenerationOn ()
virtual void	Mixed3DCellGenerationOff ()

virtual void	SetMergeTolerance (double)
virtual double	GetMergeTolerance ()

void	SetLocator (vtkIncrementalPointLocator *locator)
virtual vtkIncrementalPointLocator *	GetLocator ()
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkClipVolume *	SafeDownCast (vtkObject *o)
static vtkClipVolume *	New ()
Protected Member Functions
	vtkClipVolume (vtkImplicitFunction *cf=NULL)
	~vtkClipVolume ()
virtual void	ReportReferences (vtkGarbageCollector *)
virtual int	RequestData (vtkInformation , vtkInformationVector , vtkInformationVector )
virtual int	FillInputPortInformation (int port, vtkInformation *info)
void	ClipTets (double value, vtkTetra clipTetra, vtkDataArray clipScalars, vtkDataArray cellScalars, vtkIdList tetraIds, vtkPoints tetraPts, vtkPointData inPD, vtkPointData outPD, vtkCellData inCD, vtkIdType cellId, vtkCellData outCD, vtkCellData clippedCD, int insideOut)
void	ClipVoxel (double value, vtkDataArray cellScalars, int flip, double origin[3], double spacing[3], vtkIdList cellIds, vtkPoints cellPts, vtkPointData inPD, vtkPointData outPD, vtkCellData inCD, vtkIdType cellId, vtkCellData outCD, vtkCellData clippedCD)
Protected Attributes
vtkImplicitFunction *	ClipFunction
vtkIncrementalPointLocator *	Locator
int	InsideOut
double	Value
int	GenerateClipScalars
double	MergeTolerance
int	Mixed3DCellGeneration
int	GenerateClippedOutput
vtkUnstructuredGrid *	ClippedOutput

Member Typedef Documentation

typedef vtkUnstructuredGridAlgorithm vtkClipVolume::Superclass

Reimplemented from vtkUnstructuredGridAlgorithm.

Definition at line 87 of file vtkClipVolume.h.

Constructor & Destructor Documentation

vtkClipVolume::vtkClipVolume ( vtkImplicitFunction * cf = NULL ) [protected]

vtkClipVolume::~vtkClipVolume ( ) [protected]

Member Function Documentation

virtual const char* vtkClipVolume::GetClassName ( ) [virtual]

Reimplemented from vtkUnstructuredGridAlgorithm.

static int vtkClipVolume::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkUnstructuredGridAlgorithm.

virtual int vtkClipVolume::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkUnstructuredGridAlgorithm.

static vtkClipVolume* vtkClipVolume::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkUnstructuredGridAlgorithm.

void vtkClipVolume::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkUnstructuredGridAlgorithm.

static vtkClipVolume* vtkClipVolume::New ( ) [static]

Construct with user-specified implicit function; InsideOut turned off; value set to 0.0; and generate clip scalars turned off.

Reimplemented from vtkUnstructuredGridAlgorithm.

virtual void vtkClipVolume::SetValue ( double ) [virtual]

Set the clipping value of the implicit function (if clipping with implicit function) or scalar value (if clipping with scalars). The default value is 0.0.

virtual double vtkClipVolume::GetValue ( ) [virtual]

Set the clipping value of the implicit function (if clipping with implicit function) or scalar value (if clipping with scalars). The default value is 0.0.

virtual void vtkClipVolume::SetInsideOut ( int ) [virtual]

Set/Get the InsideOut flag. When off, a vertex is considered inside the implicit function if its value is greater than the Value ivar. When InsideOutside is turned on, a vertex is considered inside the implicit function if its implicit function value is less than or equal to the Value ivar. InsideOut is off by default.

virtual int vtkClipVolume::GetInsideOut ( ) [virtual]

Set/Get the InsideOut flag. When off, a vertex is considered inside the implicit function if its value is greater than the Value ivar. When InsideOutside is turned on, a vertex is considered inside the implicit function if its implicit function value is less than or equal to the Value ivar. InsideOut is off by default.

virtual void vtkClipVolume::InsideOutOn ( ) [virtual]

Set/Get the InsideOut flag. When off, a vertex is considered inside the implicit function if its value is greater than the Value ivar. When InsideOutside is turned on, a vertex is considered inside the implicit function if its implicit function value is less than or equal to the Value ivar. InsideOut is off by default.

virtual void vtkClipVolume::InsideOutOff ( ) [virtual]

Set/Get the InsideOut flag. When off, a vertex is considered inside the implicit function if its value is greater than the Value ivar. When InsideOutside is turned on, a vertex is considered inside the implicit function if its implicit function value is less than or equal to the Value ivar. InsideOut is off by default.

virtual void vtkClipVolume::SetClipFunction ( vtkImplicitFunction * ) [virtual]

Specify the implicit function with which to perform the clipping. If you do not define an implicit function, then the input scalar data will be used for clipping.

virtual vtkImplicitFunction* vtkClipVolume::GetClipFunction ( ) [virtual]

Specify the implicit function with which to perform the clipping. If you do not define an implicit function, then the input scalar data will be used for clipping.

virtual void vtkClipVolume::SetGenerateClipScalars ( int ) [virtual]

If this flag is enabled, then the output scalar values will be interpolated from the implicit function values, and not the input scalar data. If you enable this flag but do not provide an implicit function an error will be reported.

virtual int vtkClipVolume::GetGenerateClipScalars ( ) [virtual]

If this flag is enabled, then the output scalar values will be interpolated from the implicit function values, and not the input scalar data. If you enable this flag but do not provide an implicit function an error will be reported.

virtual void vtkClipVolume::GenerateClipScalarsOn ( ) [virtual]

If this flag is enabled, then the output scalar values will be interpolated from the implicit function values, and not the input scalar data. If you enable this flag but do not provide an implicit function an error will be reported.

virtual void vtkClipVolume::GenerateClipScalarsOff ( ) [virtual]

If this flag is enabled, then the output scalar values will be interpolated from the implicit function values, and not the input scalar data. If you enable this flag but do not provide an implicit function an error will be reported.

virtual void vtkClipVolume::SetGenerateClippedOutput ( int ) [virtual]

Control whether a second output is generated. The second output contains the unstructured grid that's been clipped away.

virtual int vtkClipVolume::GetGenerateClippedOutput ( ) [virtual]

Control whether a second output is generated. The second output contains the unstructured grid that's been clipped away.

virtual void vtkClipVolume::GenerateClippedOutputOn ( ) [virtual]

Control whether a second output is generated. The second output contains the unstructured grid that's been clipped away.

virtual void vtkClipVolume::GenerateClippedOutputOff ( ) [virtual]

Control whether a second output is generated. The second output contains the unstructured grid that's been clipped away.

vtkUnstructuredGrid* vtkClipVolume::GetClippedOutput ( )

Return the clipped output.

virtual void vtkClipVolume::SetMixed3DCellGeneration ( int ) [virtual]

Control whether the filter produces a mix of 3D cell types on output, or whether the output cells are all tetrahedra. By default, a mixed set of cells (e.g., tetrahedra and wedges) is produced. (Note: mixed type generation is faster and less overall data is generated.)

virtual int vtkClipVolume::GetMixed3DCellGeneration ( ) [virtual]

Control whether the filter produces a mix of 3D cell types on output, or whether the output cells are all tetrahedra. By default, a mixed set of cells (e.g., tetrahedra and wedges) is produced. (Note: mixed type generation is faster and less overall data is generated.)

virtual void vtkClipVolume::Mixed3DCellGenerationOn ( ) [virtual]

Control whether the filter produces a mix of 3D cell types on output, or whether the output cells are all tetrahedra. By default, a mixed set of cells (e.g., tetrahedra and wedges) is produced. (Note: mixed type generation is faster and less overall data is generated.)

virtual void vtkClipVolume::Mixed3DCellGenerationOff ( ) [virtual]

Control whether the filter produces a mix of 3D cell types on output, or whether the output cells are all tetrahedra. By default, a mixed set of cells (e.g., tetrahedra and wedges) is produced. (Note: mixed type generation is faster and less overall data is generated.)

virtual void vtkClipVolume::SetMergeTolerance ( double ) [virtual]

Set the tolerance for merging clip intersection points that are near the corners of voxels. This tolerance is used to prevent the generation of degenerate tetrahedra.

virtual double vtkClipVolume::GetMergeTolerance ( ) [virtual]

Set the tolerance for merging clip intersection points that are near the corners of voxels. This tolerance is used to prevent the generation of degenerate tetrahedra.

void vtkClipVolume::SetLocator ( vtkIncrementalPointLocator * locator )

Set / Get a spatial locator for merging points. By default, an instance of vtkMergePoints is used.

virtual vtkIncrementalPointLocator* vtkClipVolume::GetLocator ( ) [virtual]

Set / Get a spatial locator for merging points. By default, an instance of vtkMergePoints is used.

void vtkClipVolume::CreateDefaultLocator ( )

Create default locator. Used to create one when none is specified. The locator is used to merge coincident points.

unsigned long int vtkClipVolume::GetMTime ( ) [virtual]

Return the mtime also considering the locator and clip function.

Reimplemented from vtkObject.

virtual void vtkClipVolume::ReportReferences ( vtkGarbageCollector * ) [protected, virtual]

Reimplemented from vtkAlgorithm.

virtual int vtkClipVolume::RequestData	(	vtkInformation *	request,
		vtkInformationVector **	inputVector,
		vtkInformationVector *	outputVector
	)			`[protected, virtual]`

This is called by the superclass. This is the method you should override.

Reimplemented from vtkUnstructuredGridAlgorithm.

virtual int vtkClipVolume::FillInputPortInformation	(	int	port,
		vtkInformation *	info
	)			`[protected, virtual]`

Fill the input port information objects for this algorithm. This is invoked by the first call to GetInputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkUnstructuredGridAlgorithm.

void vtkClipVolume::ClipTets	(	double	value,
		vtkTetra *	clipTetra,
		vtkDataArray *	clipScalars,
		vtkDataArray *	cellScalars,
		vtkIdList *	tetraIds,
		vtkPoints *	tetraPts,
		vtkPointData *	inPD,
		vtkPointData *	outPD,
		vtkCellData *	inCD,
		vtkIdType	cellId,
		vtkCellData *	outCD,
		vtkCellData *	clippedCD,
		int	insideOut
	)			`[protected]`

void vtkClipVolume::ClipVoxel	(	double	value,
		vtkDataArray *	cellScalars,
		int	flip,
		double	origin[3],
		double	spacing[3],
		vtkIdList *	cellIds,
		vtkPoints *	cellPts,
		vtkPointData *	inPD,
		vtkPointData *	outPD,
		vtkCellData *	inCD,
		vtkIdType	cellId,
		vtkCellData *	outCD,
		vtkCellData *	clippedCD
	)			`[protected]`
