vtkUnstructuredGridAlgorithm Class Reference
#include <vtkUnstructuredGridAlgorithm.h>
Detailed Description
Superclass for algorithms that produce only unstructured grid as output.vtkUnstructuredGridAlgorithm is a convenience class to make writing algorithms easier. It is also designed to help transition old algorithms to the new pipeline architecture. Ther are some assumptions and defaults made by this class you should be aware of. This class defaults such that your filter will have one input port and one output port. If that is not the case simply change it with SetNumberOfInputPorts etc. See this classes constructor for the default. This class also provides a FillInputPortInfo method that by default says that all inputs will be UnstructuredGrid. If that isn't the case then please override this method in your subclass. This class breaks out the downstream requests into seperate functions such as ExecuteData and ExecuteInformation. For new algorithms you should implement RequestData( request, inputVec, outputVec) but for older filters there is a default implementation that calls the old ExecuteData(output) signature, for even older filters that don;t implement ExecuteData the default implementation calls the even older Execute() signature.
Definition at line 44 of file vtkUnstructuredGridAlgorithm.h.
Member Typedef Documentation
Reimplemented from vtkAlgorithm.

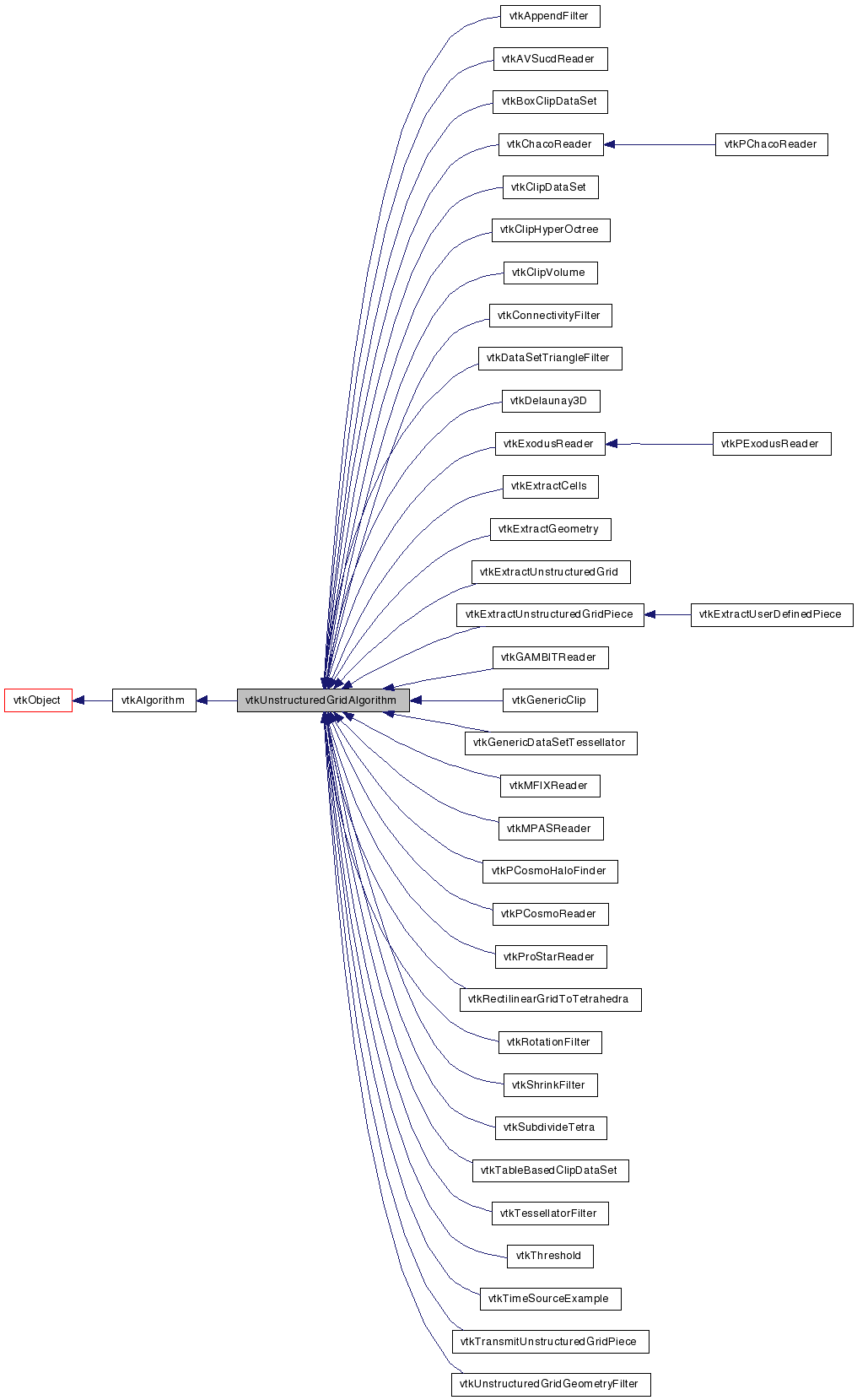

Reimplemented in vtkGenericClip, vtkGenericDataSetTessellator, vtkAppendFilter, vtkBoxClipDataSet, vtkClipDataSet, vtkClipHyperOctree, vtkClipVolume, vtkConnectivityFilter, vtkDataSetTriangleFilter, vtkDelaunay3D, vtkExtractCells, vtkExtractGeometry, vtkExtractUnstructuredGrid, vtkRectilinearGridToTetrahedra, vtkRotationFilter, vtkShrinkFilter, vtkSubdivideTetra, vtkTableBasedClipDataSet, vtkTessellatorFilter, vtkThreshold, vtkTimeSourceExample, vtkUnstructuredGridGeometryFilter, vtkExodusReader, vtkPExodusReader, vtkAVSucdReader, vtkChacoReader, vtkGAMBITReader, vtkMFIXReader, vtkMPASReader, vtkProStarReader, vtkExtractUnstructuredGridPiece, vtkExtractUserDefinedPiece, vtkPChacoReader, vtkPCosmoHaloFinder, vtkPCosmoReader, and vtkTransmitUnstructuredGridPiece.
Definition at line 48 of file vtkUnstructuredGridAlgorithm.h.
Constructor & Destructor Documentation
| vtkUnstructuredGridAlgorithm::vtkUnstructuredGridAlgorithm | ( | ) | [protected] |
| vtkUnstructuredGridAlgorithm::~vtkUnstructuredGridAlgorithm | ( | ) | [protected] |
Member Function Documentation
| static vtkUnstructuredGridAlgorithm* vtkUnstructuredGridAlgorithm::New | ( | ) | [static] |
Create an object with Debug turned off, modified time initialized to zero, and reference counting on.
Reimplemented from vtkAlgorithm.
Reimplemented in vtkGenericClip, vtkGenericDataSetTessellator, vtkAppendFilter, vtkBoxClipDataSet, vtkClipDataSet, vtkClipHyperOctree, vtkClipVolume, vtkConnectivityFilter, vtkDataSetTriangleFilter, vtkDelaunay3D, vtkExtractCells, vtkExtractGeometry, vtkExtractUnstructuredGrid, vtkRectilinearGridToTetrahedra, vtkRotationFilter, vtkShrinkFilter, vtkSubdivideTetra, vtkTableBasedClipDataSet, vtkTessellatorFilter, vtkThreshold, vtkTimeSourceExample, vtkUnstructuredGridGeometryFilter, vtkExodusReader, vtkPExodusReader, vtkAVSucdReader, vtkChacoReader, vtkGAMBITReader, vtkMFIXReader, vtkMPASReader, vtkProStarReader, vtkExtractUnstructuredGridPiece, vtkExtractUserDefinedPiece, vtkPChacoReader, vtkPCosmoHaloFinder, vtkPCosmoReader, and vtkTransmitUnstructuredGridPiece.
| virtual const char* vtkUnstructuredGridAlgorithm::GetClassName | ( | ) | [virtual] |
Reimplemented from vtkAlgorithm.
Reimplemented in vtkGenericClip, vtkGenericDataSetTessellator, vtkAppendFilter, vtkBoxClipDataSet, vtkClipDataSet, vtkClipHyperOctree, vtkClipVolume, vtkConnectivityFilter, vtkDataSetTriangleFilter, vtkDelaunay3D, vtkExtractCells, vtkExtractGeometry, vtkExtractUnstructuredGrid, vtkRectilinearGridToTetrahedra, vtkRotationFilter, vtkShrinkFilter, vtkSubdivideTetra, vtkTableBasedClipDataSet, vtkTessellatorFilter, vtkThreshold, vtkTimeSourceExample, vtkUnstructuredGridGeometryFilter, vtkExodusReader, vtkPExodusReader, vtkAVSucdReader, vtkChacoReader, vtkGAMBITReader, vtkMFIXReader, vtkMPASReader, vtkProStarReader, vtkExtractUnstructuredGridPiece, vtkExtractUserDefinedPiece, vtkPChacoReader, vtkPCosmoHaloFinder, vtkPCosmoReader, and vtkTransmitUnstructuredGridPiece.
| static int vtkUnstructuredGridAlgorithm::IsTypeOf | ( | const char * | name | ) | [static] |
Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkAlgorithm.
Reimplemented in vtkGenericClip, vtkGenericDataSetTessellator, vtkAppendFilter, vtkBoxClipDataSet, vtkClipDataSet, vtkClipHyperOctree, vtkClipVolume, vtkConnectivityFilter, vtkDataSetTriangleFilter, vtkDelaunay3D, vtkExtractCells, vtkExtractGeometry, vtkExtractUnstructuredGrid, vtkRectilinearGridToTetrahedra, vtkRotationFilter, vtkShrinkFilter, vtkSubdivideTetra, vtkTableBasedClipDataSet, vtkTessellatorFilter, vtkThreshold, vtkTimeSourceExample, vtkUnstructuredGridGeometryFilter, vtkExodusReader, vtkPExodusReader, vtkAVSucdReader, vtkChacoReader, vtkGAMBITReader, vtkMFIXReader, vtkMPASReader, vtkProStarReader, vtkExtractUnstructuredGridPiece, vtkExtractUserDefinedPiece, vtkPChacoReader, vtkPCosmoHaloFinder, vtkPCosmoReader, and vtkTransmitUnstructuredGridPiece.
| virtual int vtkUnstructuredGridAlgorithm::IsA | ( | const char * | name | ) | [virtual] |
Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkAlgorithm.
Reimplemented in vtkGenericClip, vtkGenericDataSetTessellator, vtkAppendFilter, vtkBoxClipDataSet, vtkClipDataSet, vtkClipHyperOctree, vtkClipVolume, vtkConnectivityFilter, vtkDataSetTriangleFilter, vtkDelaunay3D, vtkExtractCells, vtkExtractGeometry, vtkExtractUnstructuredGrid, vtkRectilinearGridToTetrahedra, vtkRotationFilter, vtkShrinkFilter, vtkSubdivideTetra, vtkTableBasedClipDataSet, vtkTessellatorFilter, vtkThreshold, vtkTimeSourceExample, vtkUnstructuredGridGeometryFilter, vtkExodusReader, vtkPExodusReader, vtkAVSucdReader, vtkChacoReader, vtkGAMBITReader, vtkMFIXReader, vtkMPASReader, vtkProStarReader, vtkExtractUnstructuredGridPiece, vtkExtractUserDefinedPiece, vtkPChacoReader, vtkPCosmoHaloFinder, vtkPCosmoReader, and vtkTransmitUnstructuredGridPiece.
| static vtkUnstructuredGridAlgorithm* vtkUnstructuredGridAlgorithm::SafeDownCast | ( | vtkObject * | o | ) | [static] |
Reimplemented from vtkAlgorithm.
Reimplemented in vtkGenericClip, vtkGenericDataSetTessellator, vtkAppendFilter, vtkBoxClipDataSet, vtkClipDataSet, vtkClipHyperOctree, vtkClipVolume, vtkConnectivityFilter, vtkDataSetTriangleFilter, vtkDelaunay3D, vtkExtractCells, vtkExtractGeometry, vtkExtractUnstructuredGrid, vtkRectilinearGridToTetrahedra, vtkRotationFilter, vtkShrinkFilter, vtkSubdivideTetra, vtkTableBasedClipDataSet, vtkTessellatorFilter, vtkThreshold, vtkTimeSourceExample, vtkUnstructuredGridGeometryFilter, vtkExodusReader, vtkPExodusReader, vtkAVSucdReader, vtkChacoReader, vtkGAMBITReader, vtkMFIXReader, vtkMPASReader, vtkProStarReader, vtkExtractUnstructuredGridPiece, vtkExtractUserDefinedPiece, vtkPChacoReader, vtkPCosmoHaloFinder, vtkPCosmoReader, and vtkTransmitUnstructuredGridPiece.
| void vtkUnstructuredGridAlgorithm::PrintSelf | ( | ostream & | os, | |
| vtkIndent | indent | |||
| ) | [virtual] |
Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.
Reimplemented from vtkAlgorithm.
Reimplemented in vtkGenericClip, vtkGenericDataSetTessellator, vtkAppendFilter, vtkBoxClipDataSet, vtkClipDataSet, vtkClipHyperOctree, vtkClipVolume, vtkConnectivityFilter, vtkDataSetTriangleFilter, vtkDelaunay3D, vtkExtractCells, vtkExtractGeometry, vtkExtractUnstructuredGrid, vtkRectilinearGridToTetrahedra, vtkRotationFilter, vtkShrinkFilter, vtkSubdivideTetra, vtkTableBasedClipDataSet, vtkTessellatorFilter, vtkThreshold, vtkTimeSourceExample, vtkUnstructuredGridGeometryFilter, vtkExodusReader, vtkPExodusReader, vtkAVSucdReader, vtkChacoReader, vtkGAMBITReader, vtkMFIXReader, vtkMPASReader, vtkProStarReader, vtkExtractUnstructuredGridPiece, vtkExtractUserDefinedPiece, vtkPChacoReader, vtkPCosmoHaloFinder, vtkPCosmoReader, and vtkTransmitUnstructuredGridPiece.
| vtkUnstructuredGrid* vtkUnstructuredGridAlgorithm::GetOutput | ( | ) |
Get the output data object for a port on this algorithm.
Reimplemented in vtkMPASReader.
| vtkUnstructuredGrid* vtkUnstructuredGridAlgorithm::GetOutput | ( | int | ) |
Get the output data object for a port on this algorithm.
Reimplemented in vtkMPASReader.
| virtual void vtkUnstructuredGridAlgorithm::SetOutput | ( | vtkDataObject * | d | ) | [virtual] |
Get the output data object for a port on this algorithm.
| virtual int vtkUnstructuredGridAlgorithm::ProcessRequest | ( | vtkInformation * | , | |
| vtkInformationVector ** | , | |||
| vtkInformationVector * | ||||
| ) | [virtual] |
see vtkAlgorithm for details
Reimplemented from vtkAlgorithm.
Reimplemented in vtkClipDataSet, vtkTableBasedClipDataSet, and vtkThreshold.
| vtkDataObject* vtkUnstructuredGridAlgorithm::GetInput | ( | int | port | ) |
Reimplemented in vtkAppendFilter.
| vtkDataObject* vtkUnstructuredGridAlgorithm::GetInput | ( | ) | [inline] |
| vtkUnstructuredGrid* vtkUnstructuredGridAlgorithm::GetUnstructuredGridInput | ( | int | port | ) |
| void vtkUnstructuredGridAlgorithm::SetInput | ( | vtkDataObject * | ) |
Set an input of this algorithm. You should not override these methods because they are not the only way to connect a pipeline. Note that these methods support old-style pipeline connections. When writing new code you should use the more general vtkAlgorithm::SetInputConnection(). These methods transform the input index to the input port index, not an index of a connection within a single port.
| void vtkUnstructuredGridAlgorithm::SetInput | ( | int | , | |
| vtkDataObject * | ||||
| ) |
Set an input of this algorithm. You should not override these methods because they are not the only way to connect a pipeline. Note that these methods support old-style pipeline connections. When writing new code you should use the more general vtkAlgorithm::SetInputConnection(). These methods transform the input index to the input port index, not an index of a connection within a single port.
| void vtkUnstructuredGridAlgorithm::AddInput | ( | vtkDataObject * | ) |
Add an input of this algorithm. Note that these methods support old-style pipeline connections. When writing new code you should use the more general vtkAlgorithm::AddInputConnection(). See SetInput() for details.
| void vtkUnstructuredGridAlgorithm::AddInput | ( | int | , | |
| vtkDataObject * | ||||
| ) |
Add an input of this algorithm. Note that these methods support old-style pipeline connections. When writing new code you should use the more general vtkAlgorithm::AddInputConnection(). See SetInput() for details.
| virtual int vtkUnstructuredGridAlgorithm::RequestInformation | ( | vtkInformation * | request, | |
| vtkInformationVector ** | inputVector, | |||
| vtkInformationVector * | outputVector | |||
| ) | [protected, virtual] |
| virtual int vtkUnstructuredGridAlgorithm::RequestData | ( | vtkInformation * | request, | |
| vtkInformationVector ** | inputVector, | |||
| vtkInformationVector * | outputVector | |||
| ) | [protected, virtual] |
This is called by the superclass. This is the method you should override.
Reimplemented in vtkGenericClip, vtkGenericDataSetTessellator, vtkAppendFilter, vtkBoxClipDataSet, vtkClipDataSet, vtkClipHyperOctree, vtkClipVolume, vtkConnectivityFilter, vtkDataSetTriangleFilter, vtkDelaunay3D, vtkExtractCells, vtkExtractGeometry, vtkExtractUnstructuredGrid, vtkRectilinearGridToTetrahedra, vtkRotationFilter, vtkShrinkFilter, vtkSubdivideTetra, vtkTableBasedClipDataSet, vtkTessellatorFilter, vtkThreshold, vtkTimeSourceExample, vtkUnstructuredGridGeometryFilter, vtkExodusReader, vtkPExodusReader, vtkAVSucdReader, vtkChacoReader, vtkGAMBITReader, vtkMFIXReader, vtkMPASReader, vtkProStarReader, vtkExtractUnstructuredGridPiece, vtkExtractUserDefinedPiece, vtkPChacoReader, vtkPCosmoHaloFinder, vtkPCosmoReader, and vtkTransmitUnstructuredGridPiece.
| virtual int vtkUnstructuredGridAlgorithm::RequestUpdateExtent | ( | vtkInformation * | , | |
| vtkInformationVector ** | , | |||
| vtkInformationVector * | ||||
| ) | [protected, virtual] |
This is called by the superclass. This is the method you should override.
Reimplemented in vtkUnstructuredGridGeometryFilter, vtkExtractUnstructuredGridPiece, and vtkTransmitUnstructuredGridPiece.
| virtual void vtkUnstructuredGridAlgorithm::ExecuteData | ( | vtkDataObject * | output | ) | [protected, virtual] |
This method is the old style execute method
| virtual void vtkUnstructuredGridAlgorithm::Execute | ( | ) | [protected, virtual] |
This method is the old style execute method
| virtual int vtkUnstructuredGridAlgorithm::FillOutputPortInformation | ( | int | port, | |
| vtkInformation * | info | |||
| ) | [protected, virtual] |
Fill the output port information objects for this algorithm. This is invoked by the first call to GetOutputPortInformation for each port so subclasses can specify what they can handle.
Reimplemented from vtkAlgorithm.
| virtual int vtkUnstructuredGridAlgorithm::FillInputPortInformation | ( | int | port, | |
| vtkInformation * | info | |||
| ) | [protected, virtual] |
Fill the input port information objects for this algorithm. This is invoked by the first call to GetInputPortInformation for each port so subclasses can specify what they can handle.
Reimplemented from vtkAlgorithm.
Reimplemented in vtkGenericClip, vtkGenericDataSetTessellator, vtkAppendFilter, vtkBoxClipDataSet, vtkClipDataSet, vtkClipHyperOctree, vtkClipVolume, vtkConnectivityFilter, vtkDataSetTriangleFilter, vtkDelaunay3D, vtkExtractCells, vtkExtractGeometry, vtkRectilinearGridToTetrahedra, vtkRotationFilter, vtkShrinkFilter, vtkTableBasedClipDataSet, vtkTessellatorFilter, vtkThreshold, and vtkUnstructuredGridGeometryFilter.
The documentation for this class was generated from the following file:
- dox/Filtering/vtkUnstructuredGridAlgorithm.h
