vtkCompositedSynchronizedRenderers Class Reference

#include <vtkCompositedSynchronizedRenderers.h>

Inheritance diagram for vtkCompositedSynchronizedRenderers:

[legend]

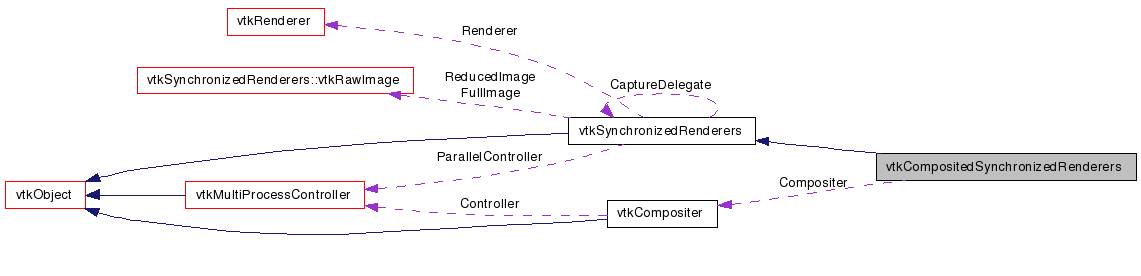

Collaboration diagram for vtkCompositedSynchronizedRenderers:

[legend]

List of all members.

Detailed Description

vtkCompositedSynchronizedRenderers is vtkSynchronizedRenderers that uses vtkCompositer to composite the images on the root node.

Definition at line 29 of file vtkCompositedSynchronizedRenderers.h.


Public Types
typedef vtkSynchronizedRenderers	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)

void	SetCompositer (vtkCompositer *)
virtual vtkCompositer *	GetCompositer ()
Static Public Member Functions
static vtkCompositedSynchronizedRenderers *	New ()
static int	IsTypeOf (const char *type)
static vtkCompositedSynchronizedRenderers *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkCompositedSynchronizedRenderers ()
	~vtkCompositedSynchronizedRenderers ()
virtual void	MasterEndRender ()
virtual void	SlaveEndRender ()
void	CaptureRenderedDepthBuffer (vtkFloatArray *depth_buffer)
Protected Attributes
vtkCompositer *	Compositer

Member Typedef Documentation

typedef vtkSynchronizedRenderers vtkCompositedSynchronizedRenderers::Superclass

Reimplemented from vtkSynchronizedRenderers.

Definition at line 33 of file vtkCompositedSynchronizedRenderers.h.

Constructor & Destructor Documentation

vtkCompositedSynchronizedRenderers::vtkCompositedSynchronizedRenderers ( ) [protected]

vtkCompositedSynchronizedRenderers::~vtkCompositedSynchronizedRenderers ( ) [protected]

Member Function Documentation

static vtkCompositedSynchronizedRenderers* vtkCompositedSynchronizedRenderers::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkSynchronizedRenderers.

virtual const char* vtkCompositedSynchronizedRenderers::GetClassName ( ) [virtual]

Reimplemented from vtkSynchronizedRenderers.

static int vtkCompositedSynchronizedRenderers::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkSynchronizedRenderers.

virtual int vtkCompositedSynchronizedRenderers::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkSynchronizedRenderers.

static vtkCompositedSynchronizedRenderers* vtkCompositedSynchronizedRenderers::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkSynchronizedRenderers.

void vtkCompositedSynchronizedRenderers::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkSynchronizedRenderers.

void vtkCompositedSynchronizedRenderers::SetCompositer ( vtkCompositer * )

Get/Set the composite. vtkTreeCompositer is used by default.

virtual vtkCompositer* vtkCompositedSynchronizedRenderers::GetCompositer ( ) [virtual]

Get/Set the composite. vtkTreeCompositer is used by default.

virtual void vtkCompositedSynchronizedRenderers::MasterEndRender ( ) [protected, virtual]

Reimplemented from vtkSynchronizedRenderers.

virtual void vtkCompositedSynchronizedRenderers::SlaveEndRender ( ) [protected, virtual]

Reimplemented from vtkSynchronizedRenderers.

void vtkCompositedSynchronizedRenderers::CaptureRenderedDepthBuffer ( vtkFloatArray * depth_buffer ) [protected]
