vtkContinuousValueWidget Class Reference

#include <vtkContinuousValueWidget.h>

Inheritance diagram for vtkContinuousValueWidget:

[legend]

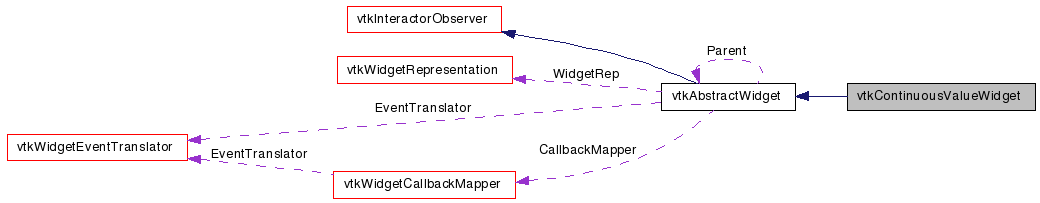

Collaboration diagram for vtkContinuousValueWidget:

[legend]

List of all members.

Detailed Description

set a value by manipulating something

The vtkContinuousValueWidget is used to adjust a scalar value in an application. Note that the actual appearance of the widget depends on the specific representation for the widget.

To use this widget, set the widget representation. (the details may vary depending on the particulars of the representation).

Event Bindings:

By default, the widget responds to the following VTK events (i.e., it watches the vtkRenderWindowInteractor for these events):

 If the slider bead is selected:
   LeftButtonPressEvent - select slider
   LeftButtonReleaseEvent - release slider
   MouseMoveEvent - move slider

Event Bindings:

Note that the event bindings described above can be changed using this class's vtkWidgetEventTranslator. This class translates VTK events into the vtkContinuousValueWidget's widget events:

   vtkWidgetEvent::Select -- some part of the widget has been selected
   vtkWidgetEvent::EndSelect -- the selection process has completed
   vtkWidgetEvent::Move -- a request for slider motion has been invoked

Event Bindings:

In turn, when these widget events are processed, the vtkContinuousValueWidget invokes the following VTK events on itself (which observers can listen for):

   vtkCommand::StartInteractionEvent (on vtkWidgetEvent::Select)
   vtkCommand::EndInteractionEvent (on vtkWidgetEvent::EndSelect)
   vtkCommand::InteractionEvent (on vtkWidgetEvent::Move)

Events:: vtkCommand::EndInteractionEvent vtkCommand::InteractionEvent vtkCommand::StartInteractionEvent

Definition at line 74 of file vtkContinuousValueWidget.h.


typedef vtkAbstractWidget	Superclass
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
static int	IsTypeOf (const char *type)
static vtkContinuousValueWidget *	SafeDownCast (vtkObject *o)
Public Member Functions

void	SetRepresentation (vtkContinuousValueWidgetRepresentation *r)

vtkContinuousValueWidgetRepresentation *	GetContinuousValueWidgetRepresentation ()

double	GetValue ()
void	SetValue (double v)
Protected Types
enum	_WidgetState { Start = 0, Highlighting, Adjusting }
Protected Member Functions
	vtkContinuousValueWidget ()
	~vtkContinuousValueWidget ()
Static Protected Member Functions
static void	SelectAction (vtkAbstractWidget *)
static void	EndSelectAction (vtkAbstractWidget *)
static void	MoveAction (vtkAbstractWidget *)
Protected Attributes
int	WidgetState
double	Value

Member Typedef Documentation

typedef vtkAbstractWidget vtkContinuousValueWidget::Superclass

Standard macros.

Reimplemented from vtkAbstractWidget.

Definition at line 79 of file vtkContinuousValueWidget.h.

Member Enumeration Documentation

enum vtkContinuousValueWidget::_WidgetState [protected]

Enumerator:

Start
Highlighting
Adjusting

Definition at line 116 of file vtkContinuousValueWidget.h.

Constructor & Destructor Documentation

vtkContinuousValueWidget::vtkContinuousValueWidget ( ) [protected]

vtkContinuousValueWidget::~vtkContinuousValueWidget ( ) [inline, protected]

Definition at line 107 of file vtkContinuousValueWidget.h.

Member Function Documentation

virtual const char* vtkContinuousValueWidget::GetClassName ( ) [virtual]

Standard macros.

Reimplemented from vtkAbstractWidget.

static int vtkContinuousValueWidget::IsTypeOf ( const char * type ) [static]

Standard macros.

Reimplemented from vtkAbstractWidget.

virtual int vtkContinuousValueWidget::IsA ( const char * type ) [virtual]

Standard macros.

Reimplemented from vtkAbstractWidget.

static vtkContinuousValueWidget* vtkContinuousValueWidget::SafeDownCast ( vtkObject * o ) [static]

Standard macros.

Reimplemented from vtkAbstractWidget.

void vtkContinuousValueWidget::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Standard macros.

Reimplemented from vtkAbstractWidget.

void vtkContinuousValueWidget::SetRepresentation ( vtkContinuousValueWidgetRepresentation * r ) [inline]

Specify an instance of vtkWidgetRepresentation used to represent this widget in the scene. Note that the representation is a subclass of vtkProp so it can be added to the renderer independent of the widget.

Definition at line 87 of file vtkContinuousValueWidget.h.

vtkContinuousValueWidgetRepresentation* vtkContinuousValueWidget::GetContinuousValueWidgetRepresentation ( ) [inline]

Return the representation as a vtkContinuousValueWidgetRepresentation.

Definition at line 95 of file vtkContinuousValueWidget.h.

double vtkContinuousValueWidget::GetValue ( )

Get the value for this widget.

void vtkContinuousValueWidget::SetValue ( double v )

Get the value for this widget.

static void vtkContinuousValueWidget::SelectAction ( vtkAbstractWidget * ) [static, protected]
