vtkAbstractWidget Class Reference

#include <vtkAbstractWidget.h>

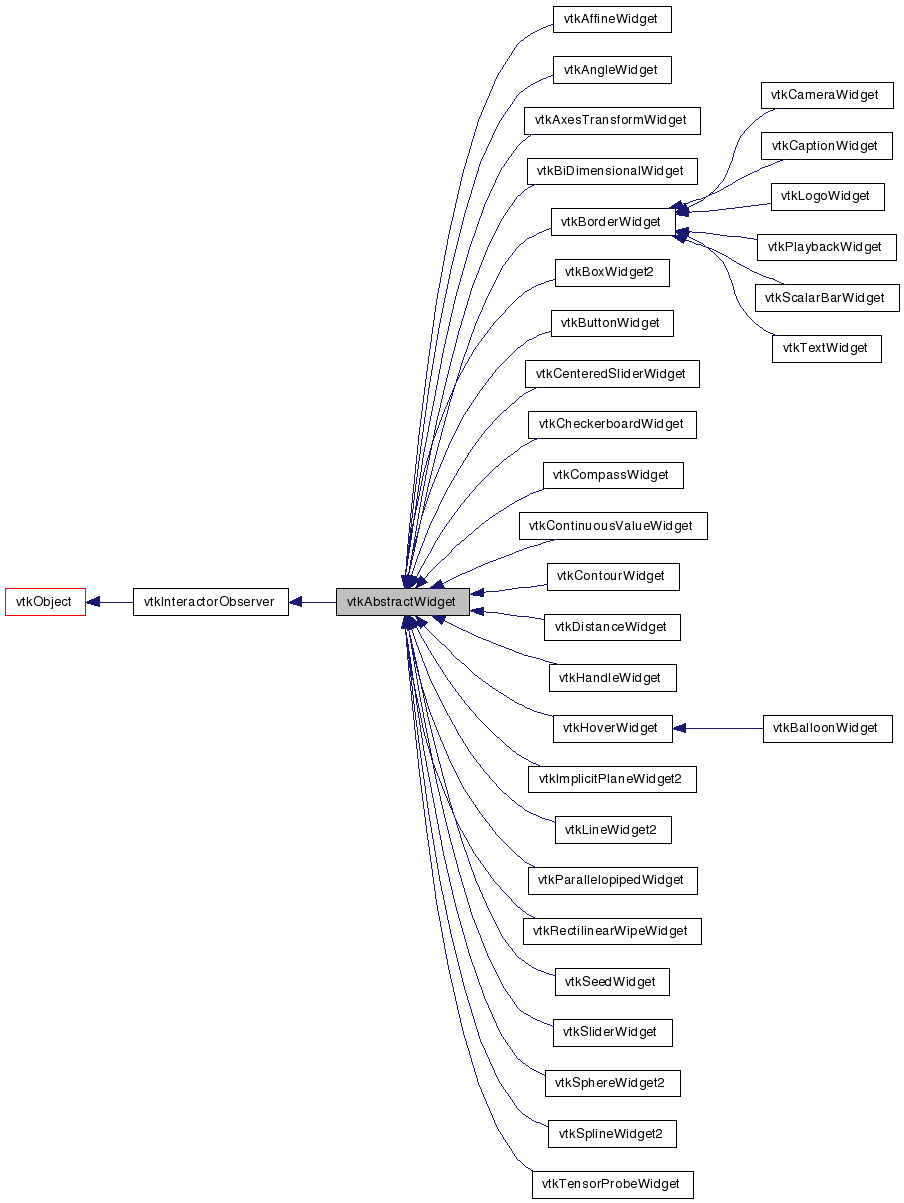

Inheritance diagram for vtkAbstractWidget:

Inheritance graph
[legend]

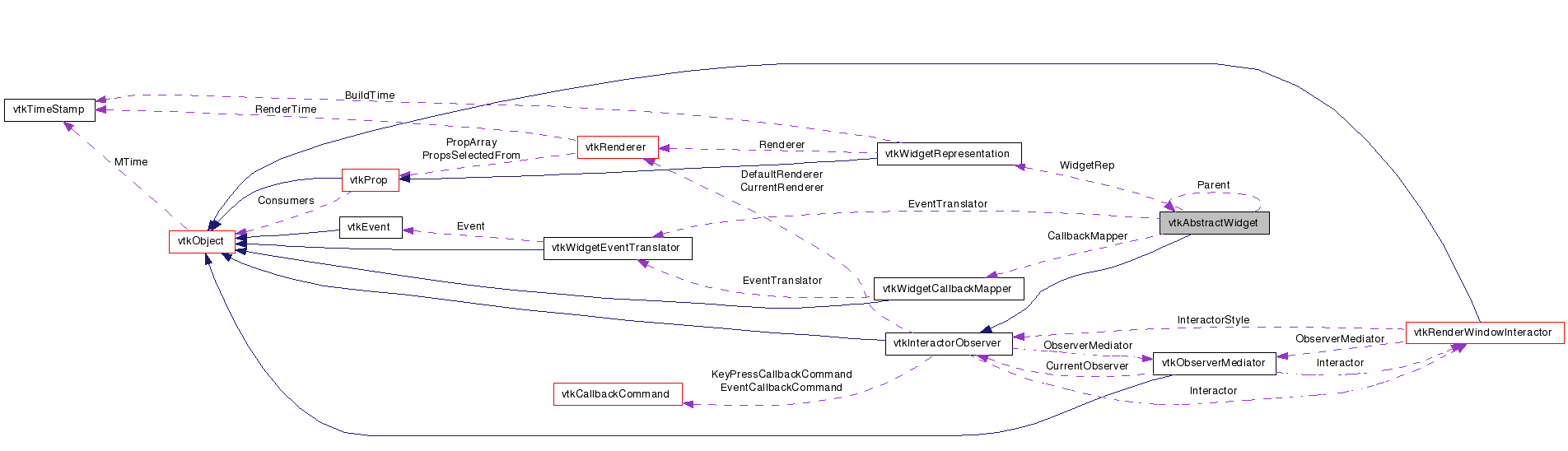

Collaboration diagram for vtkAbstractWidget:

Collaboration graph
[legend]

List of all members.


Detailed Description

define the API for widget / widget representation

The vtkAbstractWidget defines an API and implements methods common to all widgets using the interaction/representation design. In this design, the term interaction means that part of the widget that performs event handling, while the representation corresponds to a vtkProp (or the subclass vtkWidgetRepresentation) used to represent the widget. vtkAbstractWidget also implements some methods common to all subclasses.

Note that vtkAbstractWidget provides access to the vtkWidgetEventTranslator. This class is responsible for translating VTK events (defined in vtkCommand.h) into widget events (defined in vtkWidgetEvent.h). This class can be manipulated so that different VTK events can be mapped into widget events, thereby allowing the modification of event bindings. Each subclass of vtkAbstractWidget defines the events to which it responds.

Warning:
Note that the pair (vtkAbstractWidget/vtkWidgetRepresentation) are an implementation of the second generation VTK Widgets design. In the first generation design, widgets were implemented in a single monotonic class. This design was problematic because in client-server applications it was difficult to manage widgets properly. Also, new "representations" or look-and-feel, for a widget required a whole new class, with a lot of redundant code. The separation of the widget event handling and representation enables users and developers to create new appearances for the widget. It also facilitates parallel processing, where the client application handles events, and remote representations of the widget are slaves to the client (and do not handle events).
See also:
vtkWidgetRepresentation vtkWidgetEventTranslator vtkWidgetCallbackMapper
Events:
vtkCommand::DisableEvent vtkCommand::EnableEvent

Definition at line 64 of file vtkAbstractWidget.h.

typedef vtkInteractorObserver Superclass
virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
static int IsTypeOf (const char *type)
static vtkAbstractWidgetSafeDownCast (vtkObject *o)

Public Member Functions

virtual void SetEnabled (int)
virtual void CreateDefaultRepresentation ()=0
void Render ()
virtual void SetPriority (float)
virtual void SetProcessEvents (int)
virtual int GetProcessEvents ()
virtual void ProcessEventsOn ()
virtual void ProcessEventsOff ()
vtkWidgetEventTranslatorGetEventTranslator ()
void SetParent (vtkAbstractWidget *parent)
virtual vtkAbstractWidgetGetParent ()
vtkWidgetRepresentationGetRepresentation ()
virtual void SetManagesCursor (int)
virtual int GetManagesCursor ()
virtual void ManagesCursorOn ()
virtual void ManagesCursorOff ()

Protected Member Functions

 vtkAbstractWidget ()
 ~vtkAbstractWidget ()
void SetWidgetRepresentation (vtkWidgetRepresentation *r)
virtual void SetCursor (int vtkNotUsed(state))

Static Protected Member Functions

static void ProcessEventsHandler (vtkObject *object, unsigned long event, void *clientdata, void *calldata)

Protected Attributes

vtkWidgetRepresentationWidgetRep
int ManagesCursor
vtkWidgetEventTranslatorEventTranslator
vtkWidgetCallbackMapperCallbackMapper
vtkAbstractWidgetParent
void * CallData
int ProcessEvents

Member Typedef Documentation


Constructor & Destructor Documentation

vtkAbstractWidget::vtkAbstractWidget (  )  [protected]

vtkAbstractWidget::~vtkAbstractWidget (  )  [protected]


Member Function Documentation

virtual const char* vtkAbstractWidget::GetClassName (  )  [virtual]

static int vtkAbstractWidget::IsTypeOf ( const char *  type  )  [static]

virtual int vtkAbstractWidget::IsA ( const char *  type  )  [virtual]

static vtkAbstractWidget* vtkAbstractWidget::SafeDownCast ( vtkObject o  )  [static]

void vtkAbstractWidget::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

virtual void vtkAbstractWidget::SetEnabled ( int   )  [virtual]

Methods for activating this widget. Note that the widget representation must be specified or the widget will not appear. ProcessEvents (On by default) must be On for Enabled widget to respond to interaction. If ProcessEvents is Off, enabling/disabling a widget merely affects the visibility of the representation.

Reimplemented from vtkInteractorObserver.

Reimplemented in vtkAffineWidget, vtkAngleWidget, vtkAxesTransformWidget, vtkBalloonWidget, vtkBiDimensionalWidget, vtkCaptionWidget, vtkCheckerboardWidget, vtkContourWidget, vtkDistanceWidget, vtkHoverWidget, vtkLineWidget2, vtkParallelopipedWidget, and vtkSeedWidget.

virtual void vtkAbstractWidget::SetProcessEvents ( int   )  [virtual]

Methods to change the whether the widget responds to interaction. Set this to Off to disable interaction. On by default. Subclasses must overide SetProcessEvents() to make sure that they pass on the flag to all component widgets.

Reimplemented in vtkAngleWidget, vtkAxesTransformWidget, vtkBiDimensionalWidget, vtkDistanceWidget, vtkLineWidget2, vtkParallelopipedWidget, and vtkSeedWidget.

virtual int vtkAbstractWidget::GetProcessEvents (  )  [virtual]

Methods to change the whether the widget responds to interaction. Set this to Off to disable interaction. On by default. Subclasses must overide SetProcessEvents() to make sure that they pass on the flag to all component widgets.

virtual void vtkAbstractWidget::ProcessEventsOn (  )  [virtual]

Methods to change the whether the widget responds to interaction. Set this to Off to disable interaction. On by default. Subclasses must overide SetProcessEvents() to make sure that they pass on the flag to all component widgets.

virtual void vtkAbstractWidget::ProcessEventsOff (  )  [virtual]

Methods to change the whether the widget responds to interaction. Set this to Off to disable interaction. On by default. Subclasses must overide SetProcessEvents() to make sure that they pass on the flag to all component widgets.

vtkWidgetEventTranslator* vtkAbstractWidget::GetEventTranslator (  )  [inline]

Get the event translator. Careful manipulation of this class enables the user to override the default event bindings.

Definition at line 93 of file vtkAbstractWidget.h.

virtual void vtkAbstractWidget::CreateDefaultRepresentation (  )  [pure virtual]

void vtkAbstractWidget::Render (  )

This method is called by subclasses when a render method is to be invoked on the vtkRenderWindowInteractor. This method should be called (instead of vtkRenderWindow::Render() because it has built into it optimizations for minimizing renders and/or speeding renders.

void vtkAbstractWidget::SetParent ( vtkAbstractWidget parent  )  [inline]

Specifying a parent to this widget is used when creating composite widgets. It is an internal method not meant to be used by the public. When a widget has a parent, it defers the rendering to the parent. It may also defer managing the cursor (see ManagesCursor ivar).

Definition at line 114 of file vtkAbstractWidget.h.

virtual vtkAbstractWidget* vtkAbstractWidget::GetParent (  )  [virtual]

Specifying a parent to this widget is used when creating composite widgets. It is an internal method not meant to be used by the public. When a widget has a parent, it defers the rendering to the parent. It may also defer managing the cursor (see ManagesCursor ivar).

vtkWidgetRepresentation* vtkAbstractWidget::GetRepresentation (  )  [inline]

Return an instance of vtkWidgetRepresentation used to represent this widget in the scene. Note that the representation is a subclass of vtkProp (typically a subclass of vtkWidgetRepresenation) so it can be added to the renderer independent of the widget.

Definition at line 123 of file vtkAbstractWidget.h.

virtual void vtkAbstractWidget::SetManagesCursor ( int   )  [virtual]

Turn on or off the management of the cursor. Cursor management is typically disabled for subclasses when composite widgets are created. For example, vtkHandleWidgets are often used to create composite widgets, and the parent widget takes over the cursor management.

virtual int vtkAbstractWidget::GetManagesCursor (  )  [virtual]

Turn on or off the management of the cursor. Cursor management is typically disabled for subclasses when composite widgets are created. For example, vtkHandleWidgets are often used to create composite widgets, and the parent widget takes over the cursor management.

virtual void vtkAbstractWidget::ManagesCursorOn (  )  [virtual]

Turn on or off the management of the cursor. Cursor management is typically disabled for subclasses when composite widgets are created. For example, vtkHandleWidgets are often used to create composite widgets, and the parent widget takes over the cursor management.

virtual void vtkAbstractWidget::ManagesCursorOff (  )  [virtual]

Turn on or off the management of the cursor. Cursor management is typically disabled for subclasses when composite widgets are created. For example, vtkHandleWidgets are often used to create composite widgets, and the parent widget takes over the cursor management.

virtual void vtkAbstractWidget::SetPriority ( float   )  [virtual]

Override the superclass method. This will automatically change the priority of the widget. Unlike the superclass documentation, no methods such as SetInteractor to null and reset it etc. are necessary

Reimplemented from vtkInteractorObserver.

static void vtkAbstractWidget::ProcessEventsHandler ( vtkObject object,
unsigned long  event,
void *  clientdata,
void *  calldata
) [static, protected]

void vtkAbstractWidget::SetWidgetRepresentation ( vtkWidgetRepresentation r  )  [protected]

virtual void vtkAbstractWidget::SetCursor ( int   vtkNotUsedstate  )  [inline, protected, virtual]

Definition at line 162 of file vtkAbstractWidget.h.


Member Data Documentation

Definition at line 158 of file vtkAbstractWidget.h.

Definition at line 161 of file vtkAbstractWidget.h.

Definition at line 165 of file vtkAbstractWidget.h.

Definition at line 166 of file vtkAbstractWidget.h.

Definition at line 169 of file vtkAbstractWidget.h.

void* vtkAbstractWidget::CallData [protected]

Definition at line 174 of file vtkAbstractWidget.h.

Definition at line 178 of file vtkAbstractWidget.h.


The documentation for this class was generated from the following file:
