vtkDiscretizableColorTransferFunction Class Reference

#include <vtkDiscretizableColorTransferFunction.h>

Inheritance diagram for vtkDiscretizableColorTransferFunction:

[legend]

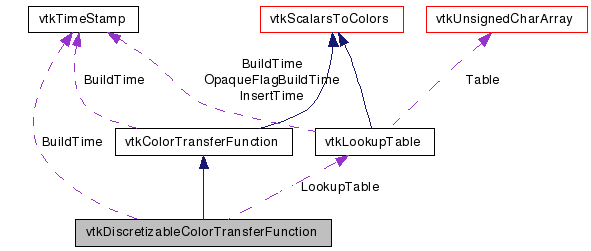

Collaboration diagram for vtkDiscretizableColorTransferFunction:

[legend]

List of all members.

Detailed Description

a combination of vtkColorTransferFunction and vtkLookupTable.

This is a cross between a vtkColorTransferFunction and a vtkLookupTable selectively combiniting the functionality of both. NOTE: One must call Build() after making any changes to the points in the ColorTransferFunction to ensure that the discrete and non-discrete version match up.

Tests:: vtkDiscretizableColorTransferFunction (Tests)

Definition at line 37 of file vtkDiscretizableColorTransferFunction.h.


Public Types
typedef vtkColorTransferFunction	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	Build ()
virtual unsigned char *	MapValue (double v)
virtual void	GetColor (double v, double rgb[3])
double *	GetRGBPoints ()
virtual void	SetAlpha (double alpha)
virtual vtkIdType	GetNumberOfAvailableColors ()

virtual void	SetDiscretize (int)
virtual int	GetDiscretize ()
virtual void	DiscretizeOn ()
virtual void	DiscretizeOff ()

virtual void	SetUseLogScale (int useLogScale)
virtual int	GetUseLogScale ()

void	SetNumberOfValues (vtkIdType number)
virtual vtkIdType	GetNumberOfValues ()

virtual vtkUnsignedCharArray *	MapScalars (vtkDataArray *scalars, int colorMode, int component)

virtual void	SetNanColor (double r, double g, double b)
virtual void	SetNanColor (double rgb[3])

virtual int	UsingLogScale ()
Static Public Member Functions
static vtkDiscretizableColorTransferFunction *	New ()
static int	IsTypeOf (const char *type)
static vtkDiscretizableColorTransferFunction *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkDiscretizableColorTransferFunction ()
	~vtkDiscretizableColorTransferFunction ()
Protected Attributes
int	Discretize
int	UseLogScale
vtkIdType	NumberOfValues
vtkLookupTable *	LookupTable
vtkTimeStamp	BuildTime

Member Typedef Documentation

typedef vtkColorTransferFunction vtkDiscretizableColorTransferFunction::Superclass

Reimplemented from vtkColorTransferFunction.

Definition at line 41 of file vtkDiscretizableColorTransferFunction.h.

Constructor & Destructor Documentation

vtkDiscretizableColorTransferFunction::vtkDiscretizableColorTransferFunction ( ) [protected]

vtkDiscretizableColorTransferFunction::~vtkDiscretizableColorTransferFunction ( ) [protected]

Member Function Documentation

static vtkDiscretizableColorTransferFunction* vtkDiscretizableColorTransferFunction::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkColorTransferFunction.

virtual const char* vtkDiscretizableColorTransferFunction::GetClassName ( ) [virtual]

Reimplemented from vtkColorTransferFunction.

static int vtkDiscretizableColorTransferFunction::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkColorTransferFunction.

virtual int vtkDiscretizableColorTransferFunction::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkColorTransferFunction.

static vtkDiscretizableColorTransferFunction* vtkDiscretizableColorTransferFunction::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkColorTransferFunction.

void vtkDiscretizableColorTransferFunction::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Print method for vtkColorTransferFunction

Reimplemented from vtkColorTransferFunction.

virtual void vtkDiscretizableColorTransferFunction::Build ( ) [virtual]

Generate discretized lookup table, if applicable. This method must be called after changes to the ColorTransferFunction otherwise the discretized version will be inconsitent with the non-discretized one.

Reimplemented from vtkScalarsToColors.

virtual void vtkDiscretizableColorTransferFunction::SetDiscretize ( int ) [virtual]

Set if the values are to mapped after discretization. The number of discrete values is set by using SetNumberOfValues(). Not set by default, i.e. color value is determined by interpolating at the scalar value.

virtual int vtkDiscretizableColorTransferFunction::GetDiscretize ( ) [virtual]

Set if the values are to mapped after discretization. The number of discrete values is set by using SetNumberOfValues(). Not set by default, i.e. color value is determined by interpolating at the scalar value.

virtual void vtkDiscretizableColorTransferFunction::DiscretizeOn ( ) [virtual]

Set if the values are to mapped after discretization. The number of discrete values is set by using SetNumberOfValues(). Not set by default, i.e. color value is determined by interpolating at the scalar value.

virtual void vtkDiscretizableColorTransferFunction::DiscretizeOff ( ) [virtual]

Set if the values are to mapped after discretization. The number of discrete values is set by using SetNumberOfValues(). Not set by default, i.e. color value is determined by interpolating at the scalar value.

virtual void vtkDiscretizableColorTransferFunction::SetUseLogScale ( int useLogScale ) [virtual]

Get/Set if log scale must be used while mapping scalars to colors. The default is 0.

virtual int vtkDiscretizableColorTransferFunction::GetUseLogScale ( ) [virtual]

Get/Set if log scale must be used while mapping scalars to colors. The default is 0.

void vtkDiscretizableColorTransferFunction::SetNumberOfValues ( vtkIdType number )

Set the number of values i.e. colors to be generated in the discrete lookup table. This has no effect if Discretize is off. The default is 256.

virtual vtkIdType vtkDiscretizableColorTransferFunction::GetNumberOfValues ( ) [virtual]

Set the number of values i.e. colors to be generated in the discrete lookup table. This has no effect if Discretize is off. The default is 256.

virtual unsigned char* vtkDiscretizableColorTransferFunction::MapValue ( double v ) [virtual]

Map one value through the lookup table and return a color defined as a RGBA unsigned char tuple (4 bytes).

Reimplemented from vtkColorTransferFunction.

virtual void vtkDiscretizableColorTransferFunction::GetColor	(	double	v,
		double	rgb[3]
	)			`[virtual]`

Map one value through the lookup table and return the color as an RGB array of doubles between 0 and 1.

Reimplemented from vtkColorTransferFunction.

virtual vtkUnsignedCharArray* vtkDiscretizableColorTransferFunction::MapScalars	(	vtkDataArray *	scalars,
		int	colorMode,
		int	component
	)			`[virtual]`

An internal method maps a data array into a 4-component, unsigned char RGBA array. The color mode determines the behavior of mapping. If VTK_COLOR_MODE_DEFAULT is set, then unsigned char data arrays are treated as colors (and converted to RGBA if necessary); otherwise, the data is mapped through this instance of ScalarsToColors. The offset is used for data arrays with more than one component; it indicates which component to use to do the blending. When the component argument is -1, then the this object uses its own selected technique to change a vector into a scalar to map.

Reimplemented from vtkScalarsToColors.

double* vtkDiscretizableColorTransferFunction::GetRGBPoints ( )

Returns the (x, r, g, b) values as an array.

virtual void vtkDiscretizableColorTransferFunction::SetAlpha ( double alpha ) [virtual]

Specify an additional opacity (alpha) value to blend with. Values != 1 modify the resulting color consistent with the requested form of the output. This is typically used by an actor in order to blend its opacity. Overridden to pass the alpha to the internal vtkLookupTable.

Reimplemented from vtkScalarsToColors.

virtual void vtkDiscretizableColorTransferFunction::SetNanColor	(	double	r,
		double	g,
		double	b
	)			`[virtual]`

Set the color to use when a NaN (not a number) is encountered. This is an RGB 3-tuple color of doubles in the range [0,1]. Overridden to pass the NanColor to the internal vtkLookupTable.

Reimplemented from vtkColorTransferFunction.

virtual void vtkDiscretizableColorTransferFunction::SetNanColor ( double rgb[3] ) [inline, virtual]

Set the color to use when a NaN (not a number) is encountered. This is an RGB 3-tuple color of doubles in the range [0,1]. Overridden to pass the NanColor to the internal vtkLookupTable.

Reimplemented from vtkColorTransferFunction.

Definition at line 111 of file vtkDiscretizableColorTransferFunction.h.

virtual int vtkDiscretizableColorTransferFunction::UsingLogScale ( ) [inline, virtual]

This should return 1 is the subclass is using log scale for mapping scalars to colors.

Reimplemented from vtkScalarsToColors.

Definition at line 120 of file vtkDiscretizableColorTransferFunction.h.

virtual vtkIdType vtkDiscretizableColorTransferFunction::GetNumberOfAvailableColors ( ) [virtual]

Get the number of available colors for mapping to.

Reimplemented from vtkColorTransferFunction.
