#include <vtkScalarsToColors.h>
vtkScalarsToColors is a general purpose superclass for objects that convert scalars to colors. This include vtkLookupTable classes and color transfer functions.
The scalars to color mapping can be augmented with an additional uniform alpha blend. This is used, for example, to blend a vtkActor's opacity with the lookup table values.
Definition at line 42 of file vtkScalarsToColors.h.
Public Types | |
enum | VectorModes { MAGNITUDE = 0, COMPONENT = 1 } |
typedef vtkObject | Superclass |
Public Member Functions | |
virtual const char * | GetClassName () |
virtual int | IsA (const char *type) |
void | PrintSelf (ostream &os, vtkIndent indent) |
virtual int | IsOpaque () |
virtual void | Build () |
virtual unsigned char * | MapValue (double v)=0 |
virtual void | GetColor (double v, double rgb[3])=0 |
virtual vtkIdType | GetNumberOfAvailableColors ()=0 |
virtual double * | GetRange ()=0 |
virtual void | SetRange (double min, double max)=0 |
void | SetRange (double rng[2]) |
double * | GetColor (double v) |
virtual double | GetOpacity (double vtkNotUsed(v)) |
double | GetLuminance (double x) |
virtual void | SetAlpha (double alpha) |
virtual double | GetAlpha () |
virtual vtkUnsignedCharArray * | MapScalars (vtkDataArray *scalars, int colorMode, int component) |
virtual void | SetVectorMode (int) |
virtual int | GetVectorMode () |
void | SetVectorModeToMagnitude () |
void | SetVectorModeToComponent () |
virtual void | SetVectorComponent (int) |
virtual int | GetVectorComponent () |
void | MapScalarsThroughTable (vtkDataArray *scalars, unsigned char *output, int outputFormat) |
void | MapScalarsThroughTable (vtkDataArray *scalars, unsigned char *output) |
virtual void | MapScalarsThroughTable2 (void *input, unsigned char *output, int inputDataType, int numberOfValues, int inputIncrement, int outputFormat)=0 |
virtual vtkUnsignedCharArray * | ConvertUnsignedCharToRGBA (vtkUnsignedCharArray *colors, int numComp, int numTuples) |
virtual int | UsingLogScale () |
Static Public Member Functions | |
static int | IsTypeOf (const char *type) |
static vtkScalarsToColors * | SafeDownCast (vtkObject *o) |
Protected Member Functions | |
vtkScalarsToColors () | |
~vtkScalarsToColors () | |
Protected Attributes | |
double | Alpha |
int | VectorMode |
int | UseMagnitude |
int | VectorComponent |
Reimplemented from vtkObject.

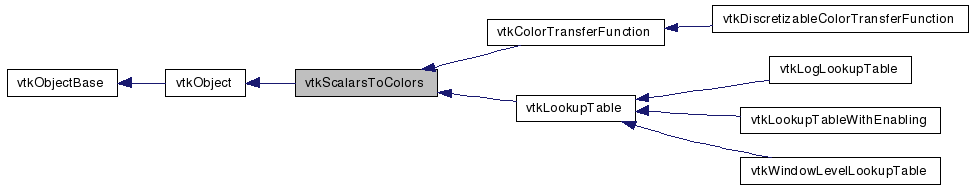

Reimplemented in vtkLogLookupTable, vtkLookupTable, vtkLookupTableWithEnabling, vtkWindowLevelLookupTable, vtkColorTransferFunction, and vtkDiscretizableColorTransferFunction.
Definition at line 45 of file vtkScalarsToColors.h.
vtkScalarsToColors::vtkScalarsToColors | ( | ) | [protected] |
vtkScalarsToColors::~vtkScalarsToColors | ( | ) | [inline, protected] |
Definition at line 183 of file vtkScalarsToColors.h.
virtual const char* vtkScalarsToColors::GetClassName | ( | ) | [virtual] |
Reimplemented from vtkObject.
Reimplemented in vtkLogLookupTable, vtkLookupTable, vtkLookupTableWithEnabling, vtkWindowLevelLookupTable, vtkColorTransferFunction, and vtkDiscretizableColorTransferFunction.
static int vtkScalarsToColors::IsTypeOf | ( | const char * | name | ) | [static] |
Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkObject.
Reimplemented in vtkLogLookupTable, vtkLookupTable, vtkLookupTableWithEnabling, vtkWindowLevelLookupTable, vtkColorTransferFunction, and vtkDiscretizableColorTransferFunction.
virtual int vtkScalarsToColors::IsA | ( | const char * | name | ) | [virtual] |
Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkObject.
Reimplemented in vtkLogLookupTable, vtkLookupTable, vtkLookupTableWithEnabling, vtkWindowLevelLookupTable, vtkColorTransferFunction, and vtkDiscretizableColorTransferFunction.
static vtkScalarsToColors* vtkScalarsToColors::SafeDownCast | ( | vtkObject * | o | ) | [static] |
Reimplemented from vtkObject.
Reimplemented in vtkLogLookupTable, vtkLookupTable, vtkLookupTableWithEnabling, vtkWindowLevelLookupTable, vtkColorTransferFunction, and vtkDiscretizableColorTransferFunction.
void vtkScalarsToColors::PrintSelf | ( | ostream & | os, | |
vtkIndent | indent | |||
) | [virtual] |
Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.
Reimplemented from vtkObject.
Reimplemented in vtkLogLookupTable, vtkLookupTable, vtkLookupTableWithEnabling, vtkWindowLevelLookupTable, vtkColorTransferFunction, and vtkDiscretizableColorTransferFunction.
virtual int vtkScalarsToColors::IsOpaque | ( | ) | [virtual] |
Return true if all of the values defining the mapping have an opacity equal to 1. Default implementation return true.
Reimplemented in vtkLookupTable.
virtual void vtkScalarsToColors::Build | ( | ) | [inline, virtual] |
Perform any processing required (if any) before processing scalars.
Reimplemented in vtkLookupTable, vtkWindowLevelLookupTable, and vtkDiscretizableColorTransferFunction.
Definition at line 53 of file vtkScalarsToColors.h.
virtual double* vtkScalarsToColors::GetRange | ( | ) | [pure virtual] |
Sets/Gets the range of scalars which will be mapped.
Implemented in vtkLookupTable, and vtkColorTransferFunction.
virtual void vtkScalarsToColors::SetRange | ( | double | min, | |
double | max | |||
) | [pure virtual] |
Sets/Gets the range of scalars which will be mapped.
Implemented in vtkLookupTable, and vtkColorTransferFunction.
void vtkScalarsToColors::SetRange | ( | double | rng[2] | ) | [inline] |
Sets/Gets the range of scalars which will be mapped.
Reimplemented in vtkLookupTable, and vtkColorTransferFunction.
Definition at line 59 of file vtkScalarsToColors.h.
virtual unsigned char* vtkScalarsToColors::MapValue | ( | double | v | ) | [pure virtual] |
Map one value through the lookup table and return a color defined as a RGBA unsigned char tuple (4 bytes).
Implemented in vtkLookupTable, vtkColorTransferFunction, and vtkDiscretizableColorTransferFunction.
virtual void vtkScalarsToColors::GetColor | ( | double | v, | |
double | rgb[3] | |||
) | [pure virtual] |
Map one value through the lookup table and return the color as an RGB array of doubles between 0 and 1.
Implemented in vtkLookupTable, vtkColorTransferFunction, and vtkDiscretizableColorTransferFunction.
double* vtkScalarsToColors::GetColor | ( | double | v | ) | [inline] |
Map one value through the lookup table and return the color as an RGB array of doubles between 0 and 1.
Reimplemented in vtkColorTransferFunction.
Definition at line 74 of file vtkScalarsToColors.h.
virtual double vtkScalarsToColors::GetOpacity | ( | double | vtkNotUsedv | ) | [inline, virtual] |
Map one value through the lookup table and return the alpha value (the opacity) as a double between 0 and 1.
Definition at line 81 of file vtkScalarsToColors.h.
double vtkScalarsToColors::GetLuminance | ( | double | x | ) | [inline] |
Map one value through the lookup table and return the luminance 0.3*red + 0.59*green + 0.11*blue as a double between 0 and 1. Returns the luminance value for the specified scalar value.
Definition at line 89 of file vtkScalarsToColors.h.
virtual void vtkScalarsToColors::SetAlpha | ( | double | alpha | ) | [virtual] |
Specify an additional opacity (alpha) value to blend with. Values != 1 modify the resulting color consistent with the requested form of the output. This is typically used by an actor in order to blend its opacity.
Reimplemented in vtkDiscretizableColorTransferFunction.
virtual double vtkScalarsToColors::GetAlpha | ( | ) | [virtual] |
Specify an additional opacity (alpha) value to blend with. Values != 1 modify the resulting color consistent with the requested form of the output. This is typically used by an actor in order to blend its opacity.
virtual vtkUnsignedCharArray* vtkScalarsToColors::MapScalars | ( | vtkDataArray * | scalars, | |
int | colorMode, | |||
int | component | |||
) | [virtual] |
An internal method maps a data array into a 4-component, unsigned char RGBA array. The color mode determines the behavior of mapping. If VTK_COLOR_MODE_DEFAULT is set, then unsigned char data arrays are treated as colors (and converted to RGBA if necessary); otherwise, the data is mapped through this instance of ScalarsToColors. The offset is used for data arrays with more than one component; it indicates which component to use to do the blending. When the component argument is -1, then the this object uses its own selected technique to change a vector into a scalar to map.
Reimplemented in vtkDiscretizableColorTransferFunction.
virtual void vtkScalarsToColors::SetVectorMode | ( | int | ) | [virtual] |
Change mode that maps vectors by magnitude vs. component.
virtual int vtkScalarsToColors::GetVectorMode | ( | ) | [virtual] |
Change mode that maps vectors by magnitude vs. component.
void vtkScalarsToColors::SetVectorModeToMagnitude | ( | ) |
Change mode that maps vectors by magnitude vs. component.
void vtkScalarsToColors::SetVectorModeToComponent | ( | ) |
Change mode that maps vectors by magnitude vs. component.
virtual void vtkScalarsToColors::SetVectorComponent | ( | int | ) | [virtual] |
If the mapper does not select which component of a vector to map to colors, you can specify it here.
virtual int vtkScalarsToColors::GetVectorComponent | ( | ) | [virtual] |
If the mapper does not select which component of a vector to map to colors, you can specify it here.
void vtkScalarsToColors::MapScalarsThroughTable | ( | vtkDataArray * | scalars, | |
unsigned char * | output, | |||
int | outputFormat | |||
) |
Map a set of scalars through the lookup table in a single operation. The output format can be set to VTK_RGBA (4 components), VTK_RGB (3 components), VTK_LUMINANCE (1 component, greyscale), or VTK_LUMINANCE_ALPHA (2 components) If not supplied, the output format defaults to RGBA.
void vtkScalarsToColors::MapScalarsThroughTable | ( | vtkDataArray * | scalars, | |
unsigned char * | output | |||
) | [inline] |
Map a set of scalars through the lookup table in a single operation. The output format can be set to VTK_RGBA (4 components), VTK_RGB (3 components), VTK_LUMINANCE (1 component, greyscale), or VTK_LUMINANCE_ALPHA (2 components) If not supplied, the output format defaults to RGBA.
Definition at line 149 of file vtkScalarsToColors.h.
virtual void vtkScalarsToColors::MapScalarsThroughTable2 | ( | void * | input, | |
unsigned char * | output, | |||
int | inputDataType, | |||
int | numberOfValues, | |||
int | inputIncrement, | |||
int | outputFormat | |||
) | [pure virtual] |
An internal method typically not used in applications.
Implemented in vtkLookupTable, vtkLookupTableWithEnabling, and vtkColorTransferFunction.
virtual vtkUnsignedCharArray* vtkScalarsToColors::ConvertUnsignedCharToRGBA | ( | vtkUnsignedCharArray * | colors, | |
int | numComp, | |||
int | numTuples | |||
) | [virtual] |
An internal method used to convert a color array to RGBA. The method instantiates a vtkUnsignedCharArray and returns it. The user is responsible for managing the memory.
virtual int vtkScalarsToColors::UsingLogScale | ( | ) | [inline, virtual] |
This should return 1 is the subclass is using log scale for mapping scalars to colors. Default implementation returns 0.
Reimplemented in vtkLookupTable, and vtkDiscretizableColorTransferFunction.
Definition at line 174 of file vtkScalarsToColors.h.
virtual vtkIdType vtkScalarsToColors::GetNumberOfAvailableColors | ( | ) | [pure virtual] |
Get the number of available colors for mapping to.
Implemented in vtkLookupTable, vtkColorTransferFunction, and vtkDiscretizableColorTransferFunction.
double vtkScalarsToColors::Alpha [protected] |
Definition at line 185 of file vtkScalarsToColors.h.
int vtkScalarsToColors::VectorMode [protected] |
Definition at line 188 of file vtkScalarsToColors.h.
int vtkScalarsToColors::UseMagnitude [protected] |
Definition at line 192 of file vtkScalarsToColors.h.
int vtkScalarsToColors::VectorComponent [protected] |
Definition at line 193 of file vtkScalarsToColors.h.
