vtkEdgeLayout Class Reference

#include <vtkEdgeLayout.h>

Inheritance diagram for vtkEdgeLayout:

[legend]

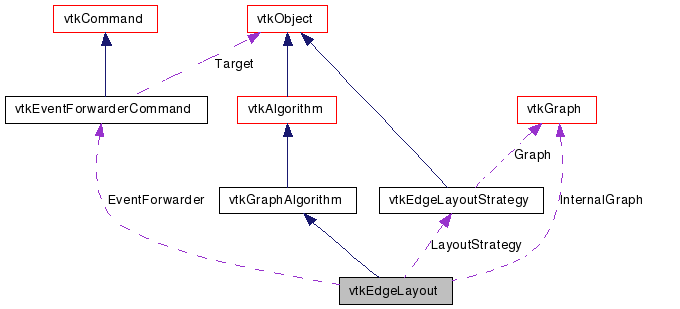

Collaboration diagram for vtkEdgeLayout:

[legend]

List of all members.

Detailed Description

layout graph edges

This class is a shell for many edge layout strategies which may be set using the SetLayoutStrategy() function. The layout strategies do the actual work.

Tests:: vtkEdgeLayout (Tests)

Definition at line 39 of file vtkEdgeLayout.h.


Public Types
typedef vtkGraphAlgorithm	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual unsigned long	GetMTime ()

void	SetLayoutStrategy (vtkEdgeLayoutStrategy *strategy)
virtual vtkEdgeLayoutStrategy *	GetLayoutStrategy ()
Static Public Member Functions
static vtkEdgeLayout *	New ()
static int	IsTypeOf (const char *type)
static vtkEdgeLayout *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkEdgeLayout ()
	~vtkEdgeLayout ()
int	RequestData (vtkInformation , vtkInformationVector , vtkInformationVector )
Protected Attributes
vtkEdgeLayoutStrategy *	LayoutStrategy

vtkEventForwarderCommand *	EventForwarder
unsigned long	ObserverTag

Member Typedef Documentation

typedef vtkGraphAlgorithm vtkEdgeLayout::Superclass

Reimplemented from vtkGraphAlgorithm.

Definition at line 43 of file vtkEdgeLayout.h.

Constructor & Destructor Documentation

vtkEdgeLayout::vtkEdgeLayout ( ) [protected]

vtkEdgeLayout::~vtkEdgeLayout ( ) [protected]

Member Function Documentation

static vtkEdgeLayout* vtkEdgeLayout::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkGraphAlgorithm.

virtual const char* vtkEdgeLayout::GetClassName ( ) [virtual]

Reimplemented from vtkGraphAlgorithm.

static int vtkEdgeLayout::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkGraphAlgorithm.

virtual int vtkEdgeLayout::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkGraphAlgorithm.

static vtkEdgeLayout* vtkEdgeLayout::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkGraphAlgorithm.

void vtkEdgeLayout::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkGraphAlgorithm.

void vtkEdgeLayout::SetLayoutStrategy ( vtkEdgeLayoutStrategy * strategy )

The layout strategy to use during graph layout.

virtual vtkEdgeLayoutStrategy* vtkEdgeLayout::GetLayoutStrategy ( ) [virtual]

The layout strategy to use during graph layout.

virtual unsigned long vtkEdgeLayout::GetMTime ( ) [virtual]

Get the modification time of the layout algorithm.

Reimplemented from vtkObject.

int vtkEdgeLayout::RequestData	(	vtkInformation *	request,
		vtkInformationVector **	inputVector,
		vtkInformationVector *	outputVector
	)			`[protected, virtual]`
