vtkEdgeLayoutStrategy Class Reference

#include <vtkEdgeLayoutStrategy.h>

Inheritance diagram for vtkEdgeLayoutStrategy:

Inheritance graph
[legend]

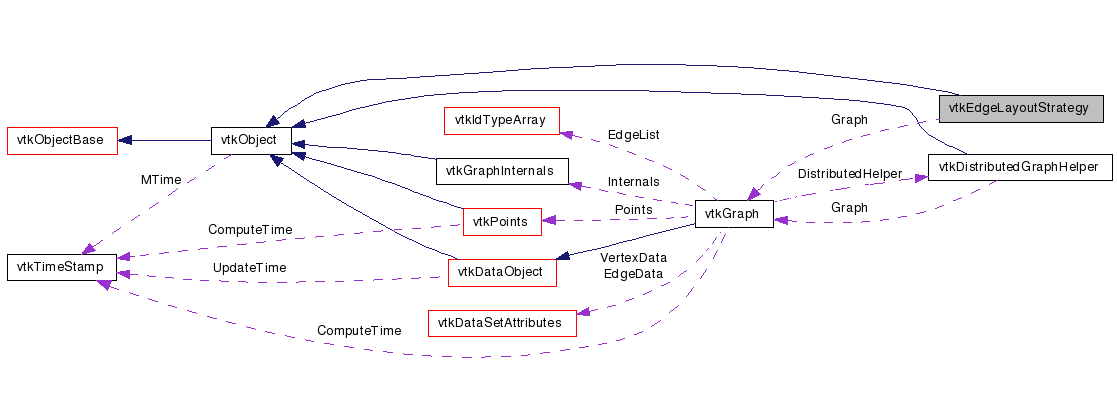

Collaboration diagram for vtkEdgeLayoutStrategy:

Collaboration graph
[legend]

List of all members.


Detailed Description

abstract superclass for all edge layout strategies

All edge layouts should subclass from this class. vtkEdgeLayoutStrategy works as a plug-in to the vtkEdgeLayout algorithm.

Definition at line 34 of file vtkEdgeLayoutStrategy.h.


Public Types

typedef vtkObject Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void SetGraph (vtkGraph *graph)
virtual void Initialize ()
virtual void Layout ()=0
virtual void SetEdgeWeightArrayName (const char *)
virtual char * GetEdgeWeightArrayName ()

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkEdgeLayoutStrategySafeDownCast (vtkObject *o)

Protected Member Functions

 vtkEdgeLayoutStrategy ()
 ~vtkEdgeLayoutStrategy ()

Protected Attributes

vtkGraphGraph
char * EdgeWeightArrayName

Member Typedef Documentation

Reimplemented from vtkObject.

Reimplemented in vtkArcParallelEdgeStrategy, vtkGeoEdgeStrategy, and vtkPassThroughEdgeStrategy.

Definition at line 37 of file vtkEdgeLayoutStrategy.h.


Constructor & Destructor Documentation

vtkEdgeLayoutStrategy::vtkEdgeLayoutStrategy (  )  [protected]

vtkEdgeLayoutStrategy::~vtkEdgeLayoutStrategy (  )  [protected]


Member Function Documentation

virtual const char* vtkEdgeLayoutStrategy::GetClassName (  )  [virtual]

static int vtkEdgeLayoutStrategy::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

Reimplemented in vtkArcParallelEdgeStrategy, vtkGeoEdgeStrategy, and vtkPassThroughEdgeStrategy.

virtual int vtkEdgeLayoutStrategy::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

Reimplemented in vtkArcParallelEdgeStrategy, vtkGeoEdgeStrategy, and vtkPassThroughEdgeStrategy.

static vtkEdgeLayoutStrategy* vtkEdgeLayoutStrategy::SafeDownCast ( vtkObject o  )  [static]

void vtkEdgeLayoutStrategy::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkObject.

Reimplemented in vtkArcParallelEdgeStrategy, vtkGeoEdgeStrategy, and vtkPassThroughEdgeStrategy.

virtual void vtkEdgeLayoutStrategy::SetGraph ( vtkGraph graph  )  [virtual]

Setting the graph for the layout strategy

virtual void vtkEdgeLayoutStrategy::Initialize (  )  [inline, virtual]

This method allows the layout strategy to do initialization of data structures or whatever else it might want to do.

Definition at line 45 of file vtkEdgeLayoutStrategy.h.

virtual void vtkEdgeLayoutStrategy::Layout (  )  [pure virtual]

This is the layout method where the graph that was set in SetGraph() is laid out.

Implemented in vtkArcParallelEdgeStrategy, vtkGeoEdgeStrategy, and vtkPassThroughEdgeStrategy.

virtual void vtkEdgeLayoutStrategy::SetEdgeWeightArrayName ( const char *   )  [virtual]

Set/Get the field to use for the edge weights.

virtual char* vtkEdgeLayoutStrategy::GetEdgeWeightArrayName (  )  [virtual]

Set/Get the field to use for the edge weights.


Member Data Documentation

Definition at line 61 of file vtkEdgeLayoutStrategy.h.

Definition at line 62 of file vtkEdgeLayoutStrategy.h.


The documentation for this class was generated from the following file:
